Actisense Gateway NMEA 0183 to SeaTalk NG
Actisense Gateway NMEA 0183 to SeaTalk NG Actisense NMEA 0183 to NMEA 2000 / STNG Gateways

Actisense NMEA 0183 to NMEA 2000 / STNG Gateways

SKU
005-NGW-1-STNG-CONFIG

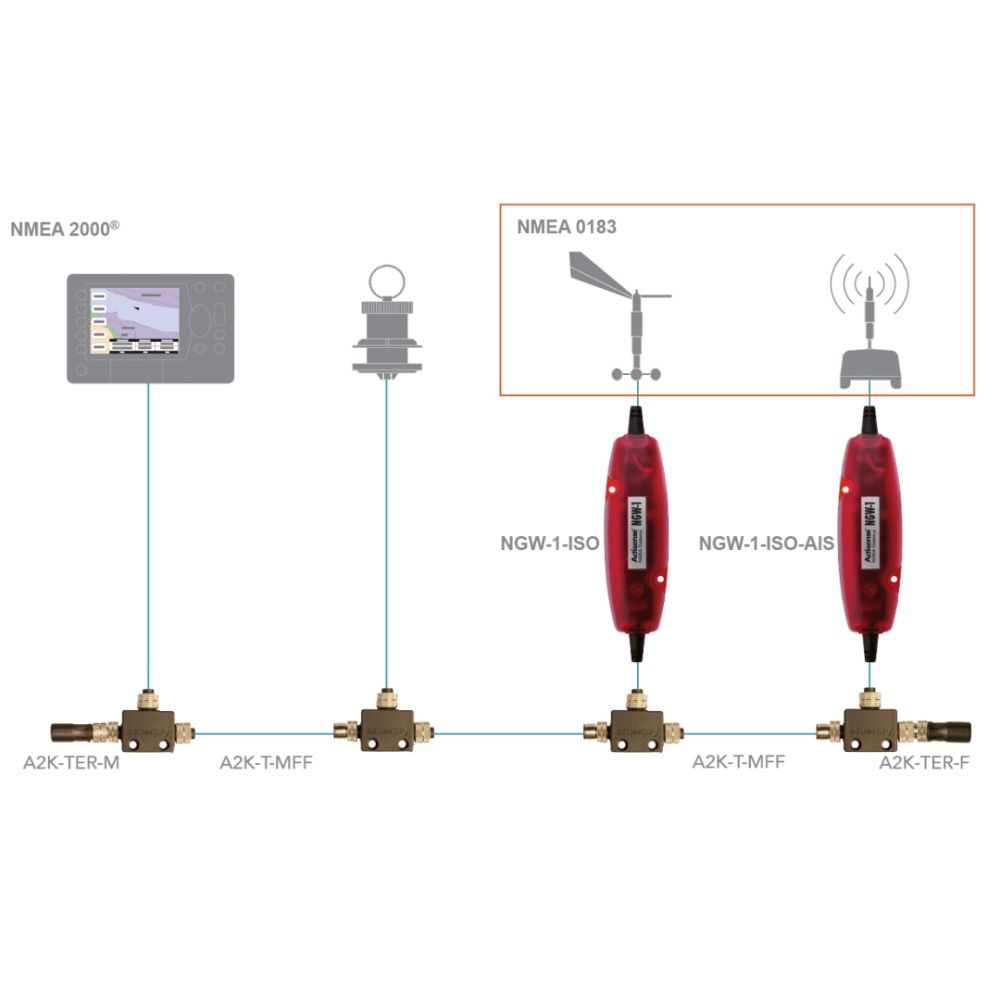

Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices. The NGW-1 range provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.

Select the NGW-1 Version from the dropdown below.

SRP ex vat: £144.34
Availability: please select an option
Tap the Download button to buy this map from the Memory-Map Licence Management site.
  • Fully isolated NMEA 0183 incorporating ISO-Drive™ technology
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Up to 230,400 baud data transfer rate
  • Integrated 1.5m drop cable
  • Diagnostic receive LEDs

Fully NMEA 2000 Certified
The NGW-1 has the largest range of conversions available on the market. To see a full up to date list of the conversions the various configurations can handle, please click here.

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

BENEFITS

  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit

Available Options

  • 005-NGW-1-STNG - NMEA 0183 TO Raymarine STNG Gateway (Includes NMEA 2000 to STNG Cable)
  • 005-NGW-1 - NMEA 0183 TO NMEA 2000 Gateway (ISO Version)
  • 005-NGW-1-USB - NMEA 0183 TO NMEA 2000 Gateway (USB Version)
  • 005-NGW-1-AIS - NMEA 0183 to NMEA 2000 Gateway (AIS Preconfigured Version)
