Airmar R109LH DT XID 12m Cable CHIRP
Airmar R109LH DT XID 12m Cable CHIRP

Airmar R109LH DT XID 12m Cable CHIRP

SKU
032-41442103

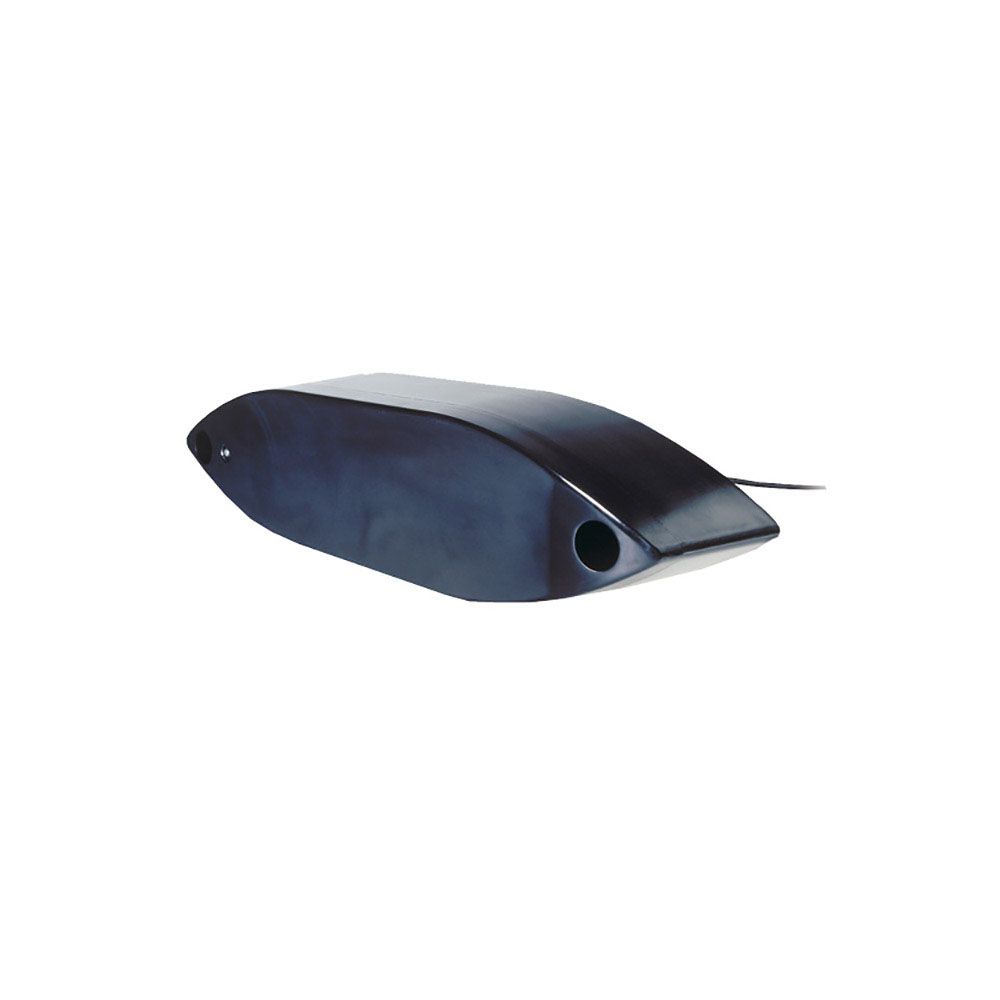

Airmar 41-442-1-03 R109LH Thru-Hull Transducer

The R109LH is a thru-hull, 2 kW transducer which delivers excellent target resolution, bottom discrimination and bait and game fish separation. The R109LH is packed with a fifteen element, low-frequency array that operates at anywhere between 38 kHz and 75 kHz which delivers great depth capabilities out to 6000'.

The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has narrow, 8° to 4° beams that provide tremendous bottom detail and fish target discrimination at depths to 1500'.

SRP ex vat: £4,277.69
🟠 Reserve - Stock Pending. Please call
  • Depth and fast-response water-temperature sensor
  • 2 kW
  • Low Frequency: 38 kHz to 75 kHz
    • 19° to 10° beamwidth (port to starboard)
    • 10° to 5° beamwidth (fore to aft)
  • High Frequency: 130 kHz to 210 kHz
    • 8° to 4° beamwidth with a maximum depth of 457 m (1500')
  • 117 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 60 and 200 kHz plus everything else in the bandwidth
  • Urethane transducer housing with high-performance fairing
  • Recommended boat size: 12 m (40') and above
  • Hull Type: Fiberglass, metal or wood hulls
  • Exclusive Xducer ID technology
