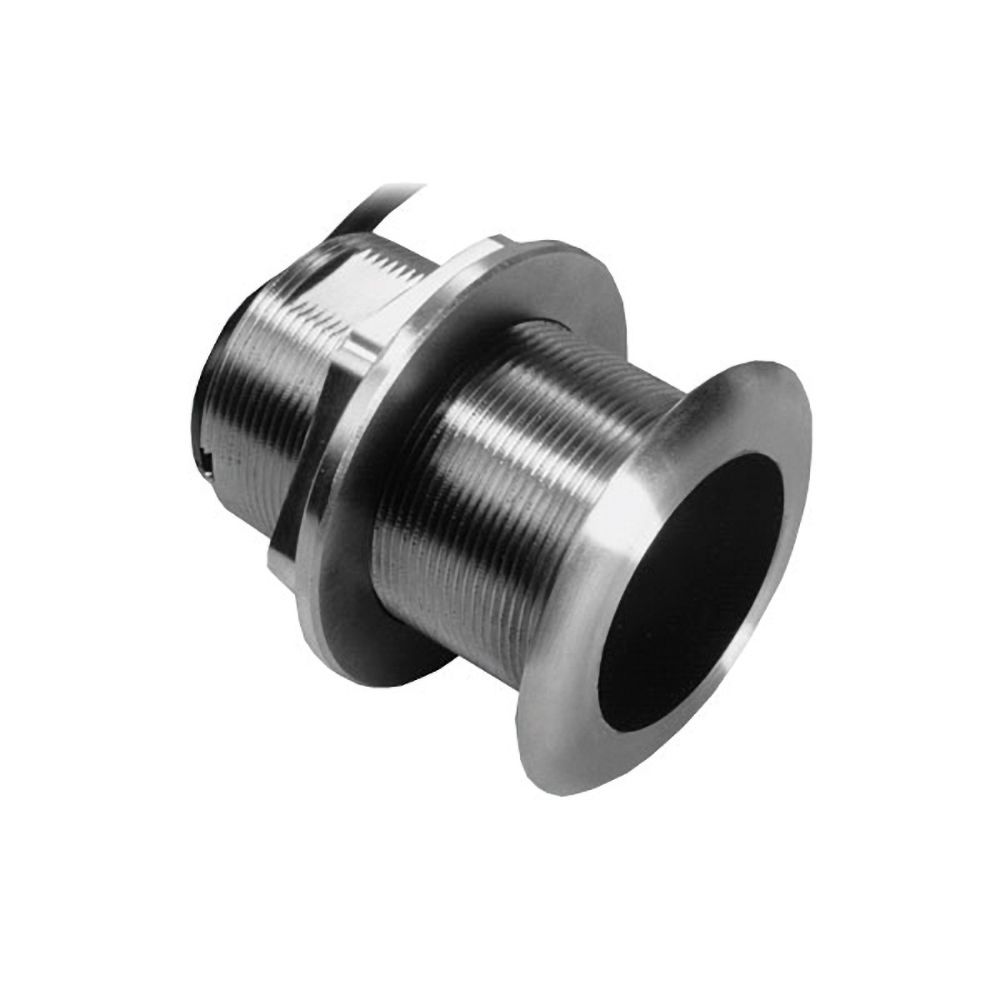

Garmin Airmar SS60 20° Tilt 8 Pin Stainless Steel Thru-Hull Transducer
SKU
230-0101186822
Garmin 010-11868-22 Airmar SS60 50/200kHz Thru-Hull Transducer with Garmin 8 Pin Connector
20° Tilted version for 16°-24° deadrise
The SS60 is a 600 W, 50/200 kHz transducer which integrates Airmar’s popular tilted element feature. Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.
SRP ex vat:
£383.33
🟠 Reserve - Stock Pending. Please call
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Depth and water temperature
- 600 W
- Dual-frequency elements:
- 50 kHz with a wide 45° beam for performance to 353 m (1200')
- 200 kHz with a 12° beam for performance to 206 m (700')
- Perfect for center-console, trailered boats
- Low-profile protrusion below the hull - only 3/16" (.476 cm) extends outside the hull
- No affect on your boats running performance
- Stainless steel transducer housing for use on all hull materials
- Recommended boat size: Up to 8 m (25')
