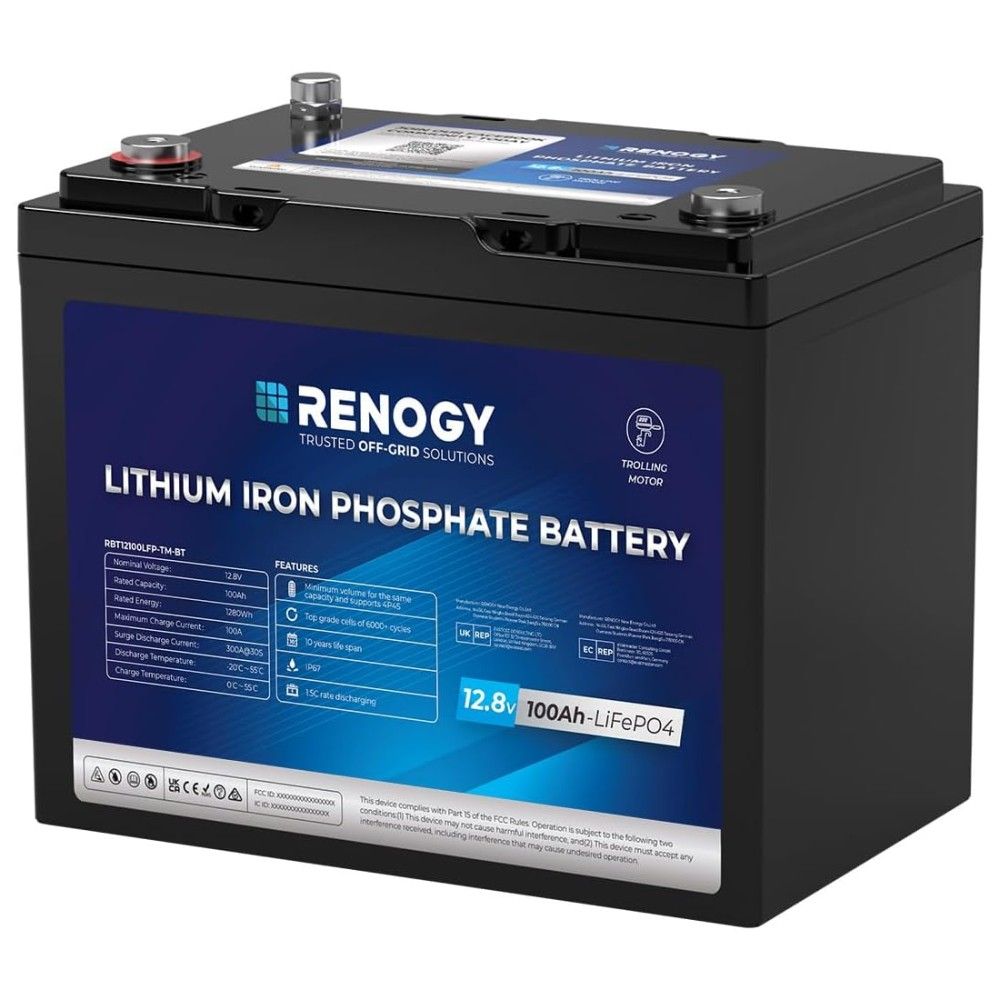

Renogy Core Lithium Trolling Motor Battery With Bluetooth - 12V 100Ah
Made for Trolling Motors and fully compatible with Minn Kota and other major trolling motor brands. IP67 waterproof rated with marine grade protections while providing 150 Amps of continuous power, all in a package under 10Kgs.

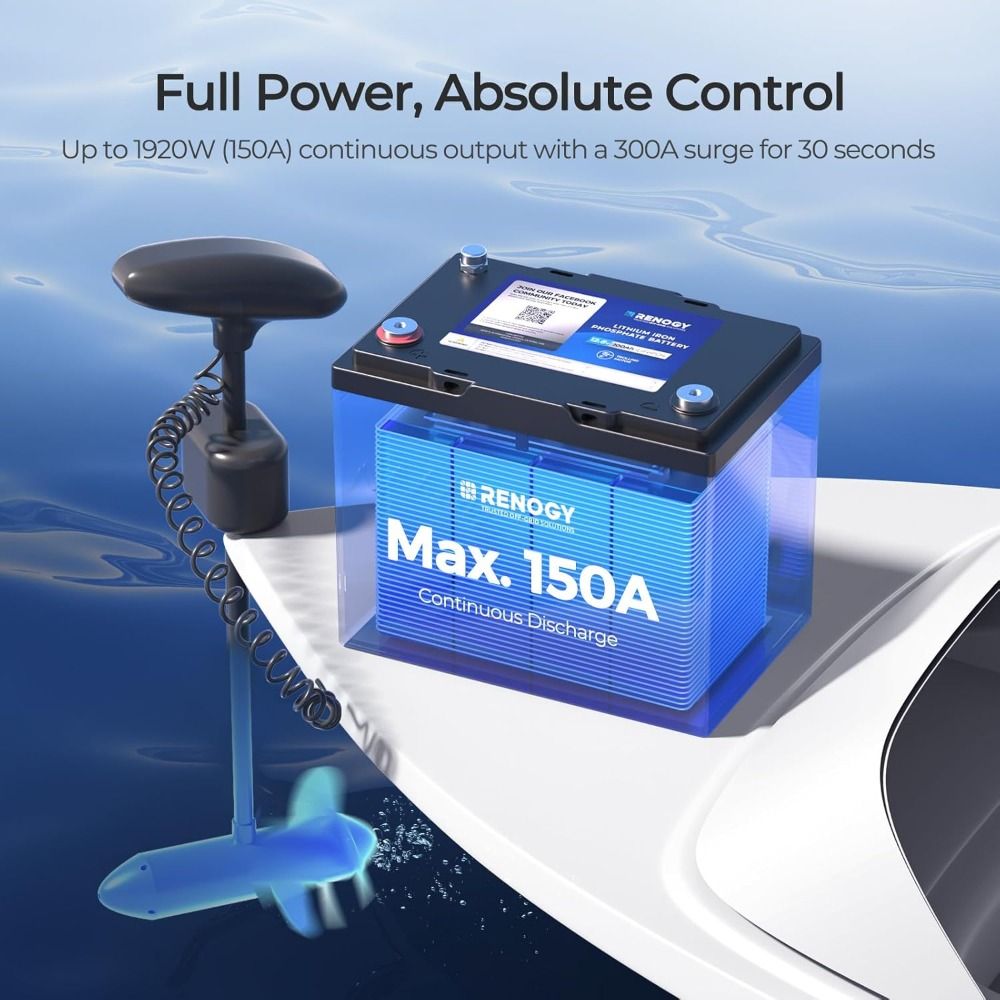

- 150A continuous, 300A @30s discharge. Supports 12V-36V trolling motors
- 9.9 kg, half lead-acid weight. Group 24, 1/3 smaller than Group 31
- IP67 waterproof with marine-grade protection

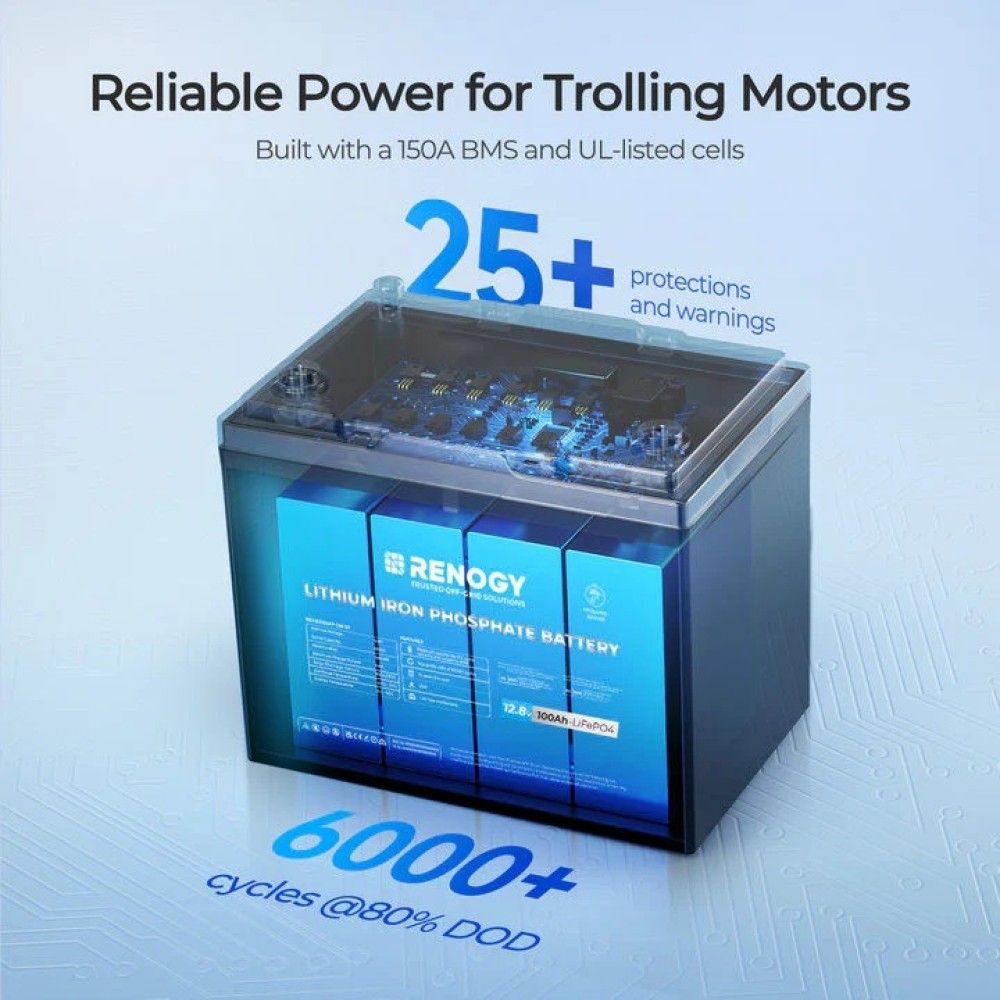

- Bluetooth 5.3 for remote monitoring. 150A BMS with low-temp cut-off
- Compatible with electric outboards, workshops, RVs, and off-road systems
Specifications
X| Specifications | |
|---|---|
| Rated Capacity (0.5C, 25°C) | 100Ah |
| Nominal Voltage | 12.8V |
| Energy | 1280Wh |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD) |
| Operation Temperature Range | Charge: 0°C to 55°C (32°F to 131°F)
Discharge: -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Operation Relative Humidity | 5% to 95% |
| Voltage Range | 10.8V to 14.8V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 300A@30s |
| Dimension (L x W x H) | 260x168×209mm (10.24" x 6.61" x 8.23") |
| Weight | 9.9 kg (21.83lbs) |
| Terminal Bolt Size | M8 x 1.25 x 12 mm |
| Protection Rating | IP67 |
| Certifications | RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, and UKCA |
Made for Trolling Motors and fully compatible with Minn Kota and other major trolling motor brands. IP67 waterproof rated with marine grade protections while providing 150 Amps of continuous power, all in a package under 10Kgs.
Real-Time Monitoring with Bluetooth 5.3 - The built-in Bluetooth 5.3 enables real-time power tracking via the Renogy App, allowing you to access information such as system overview, fault alerts, and battery status.
Ready for Any Environment - Renogy’s rugged design offers advanced safety, superior moisture resistance for outdoor use, longer life span, and seamless real-time monitoring – all in one compact battery.

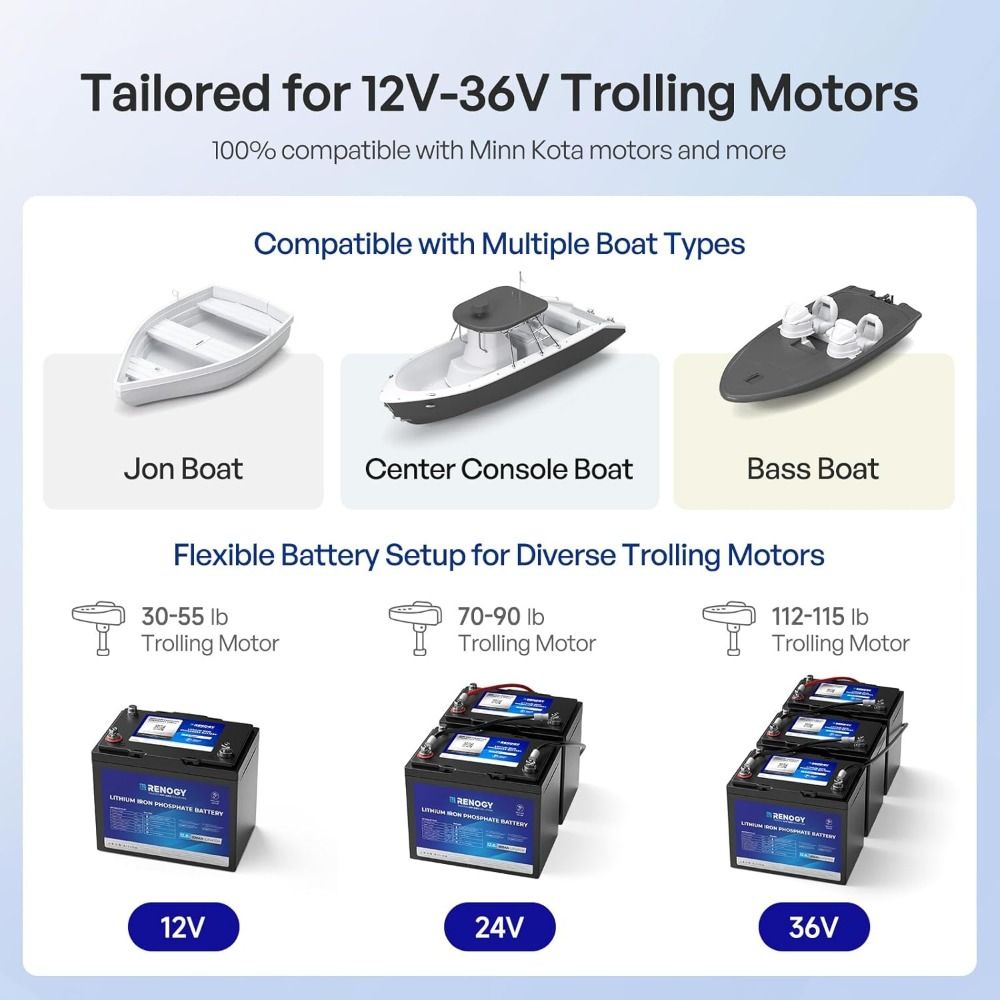

Made for Trolling Motors - Fully compatible with Minn Kota and other major trolling motor brands. Run a single battery for 30-55 lb motors, two in series for 70-90 lb motors, or three in series for 112-115 lb motors.
Scalable Power, Flexible Setup - Build your ideal power system with up to 4 batteries in series and 4 in parallel (4P4S), delivering up to 20.48kWh. Great for trolling motors, RVs, workshops, and off-road systems. Can adapt to various setup.
World-Class Standards, Rigorously Tested - The Renogy 12V 100Ah Trolling Motor LiFePO4 Battery meets global safety certifications, including MSDS, UN38.3, IC, FCC, CE, PSE, RCM, RoHS, and UKCA. Each unit undergoes thorough testing to ensure the reliable performance you can trust.
In The Box
- 12V 100Ah Lithium Iron Phosphate Battery
- Long Terminal Bolts
- Insulating Sleeve
- User Manual
