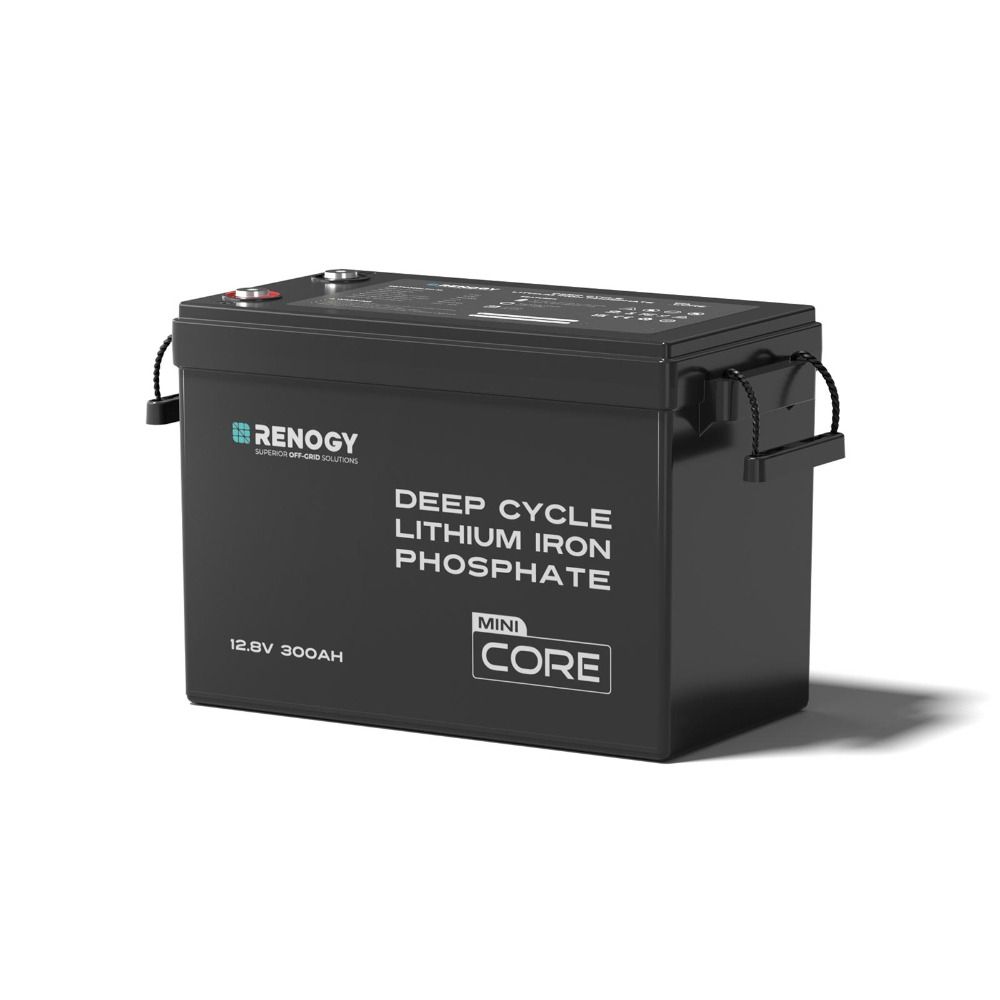

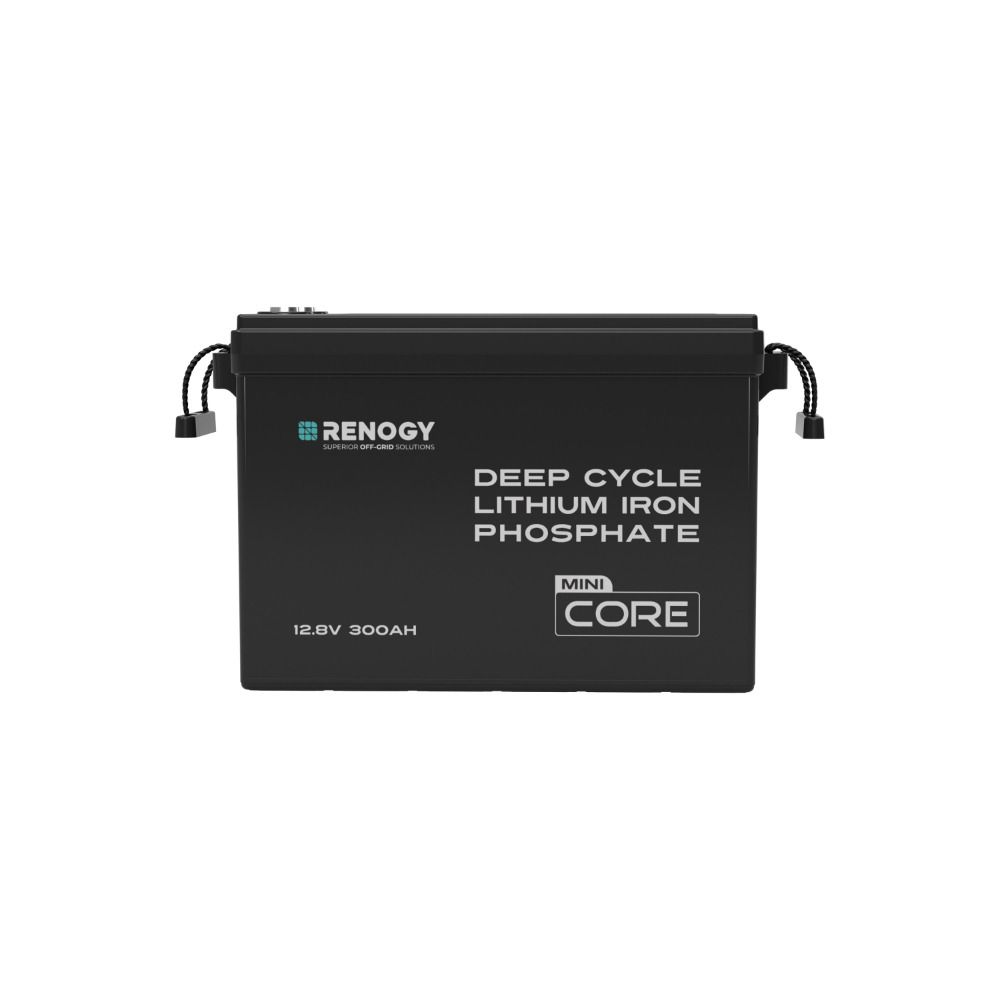

Renogy Core Mini Lithium Battery - 12.8V 300Ah
You won't find a lighter 12V 300Ah Lithium Battery anywhere. With its ultralightweight, compact design, and low-temperature cut-off, this battery is perfect for both travel and home use.
- Rated Capacity (0.5C, 25°C): 300Ah
- Nominal Voltage: 12.8V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 5000 Cycles (80% DOD, 80% EOL)
- Dimensions: 384 x 194 x 253mm (15.12" x 7.64" x 9.96")
- Weight: 25.0 kg (55.1lbs)
- Protection Rating: IP65
Specifications
X| Specifications | |
|---|---|
| Rated Capacity (0.5C, 25°C) | 300AH |
| Nominal Voltage | 12.8V |
| Energy | 3840Wh |
| Cycle Life (0.5C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
| Charge Temperature | 0°C to 60°C (32°F to 140°F) |
| Discharge Temperature | -20°C to 65°C (-4°F to 149°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Operation Relative Humidity | 5% to 95% |
| Dimension (L x W x H) | 384 x 194 x 253mm (15.12" x 7.64" x 9.96") |
| Weight | 25.0kg / 55.1lbs |

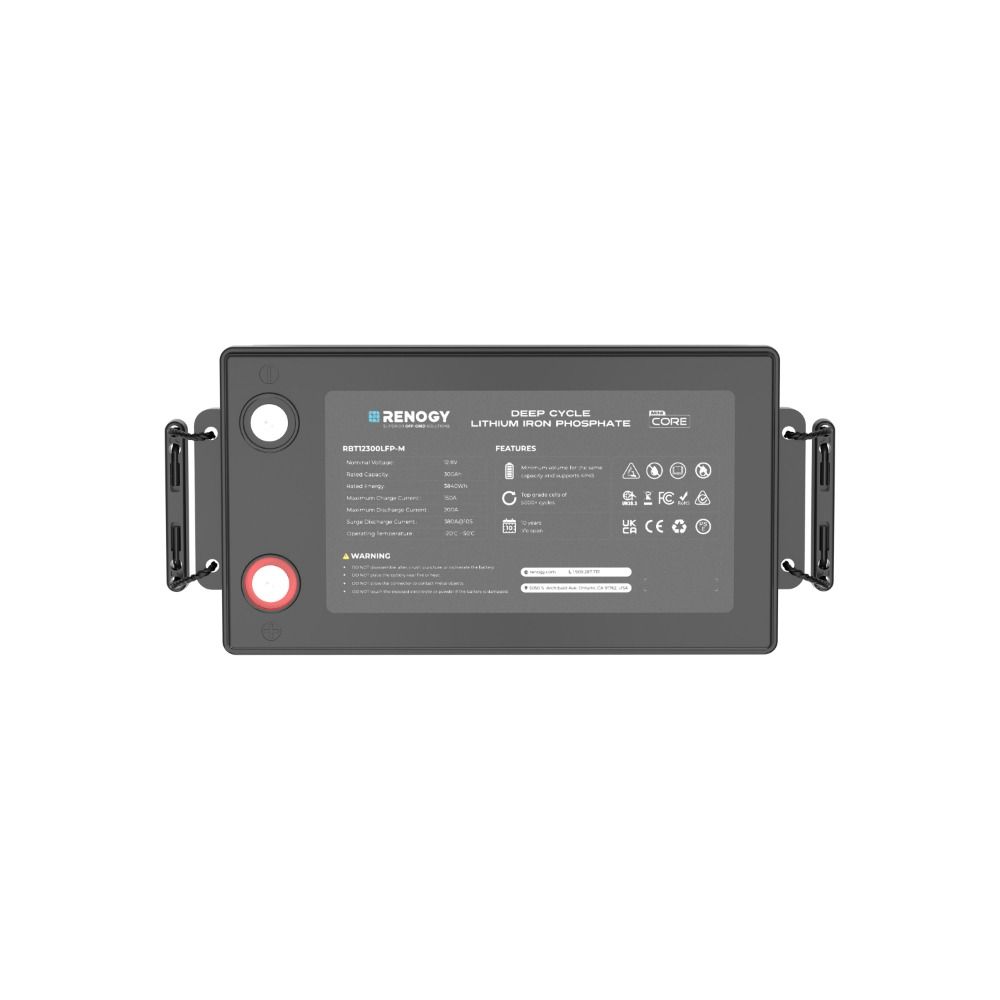

| Terminal Bolt Size | M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm |
| Protection Rating | IP65 |
| Charge Voltage | 10V to 14.8V |
| Maximum Continuous Charge Current | 150A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 380A @ 10s |
| Certification | MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA |
High Capacity. Light weight. Mini Sized - You won't find a lighter 12V 300Ah Lithium Battery anywhere. With its ultralightweight, compact design, and low-temperature cut-off, this battery is perfect for both travel and home use.

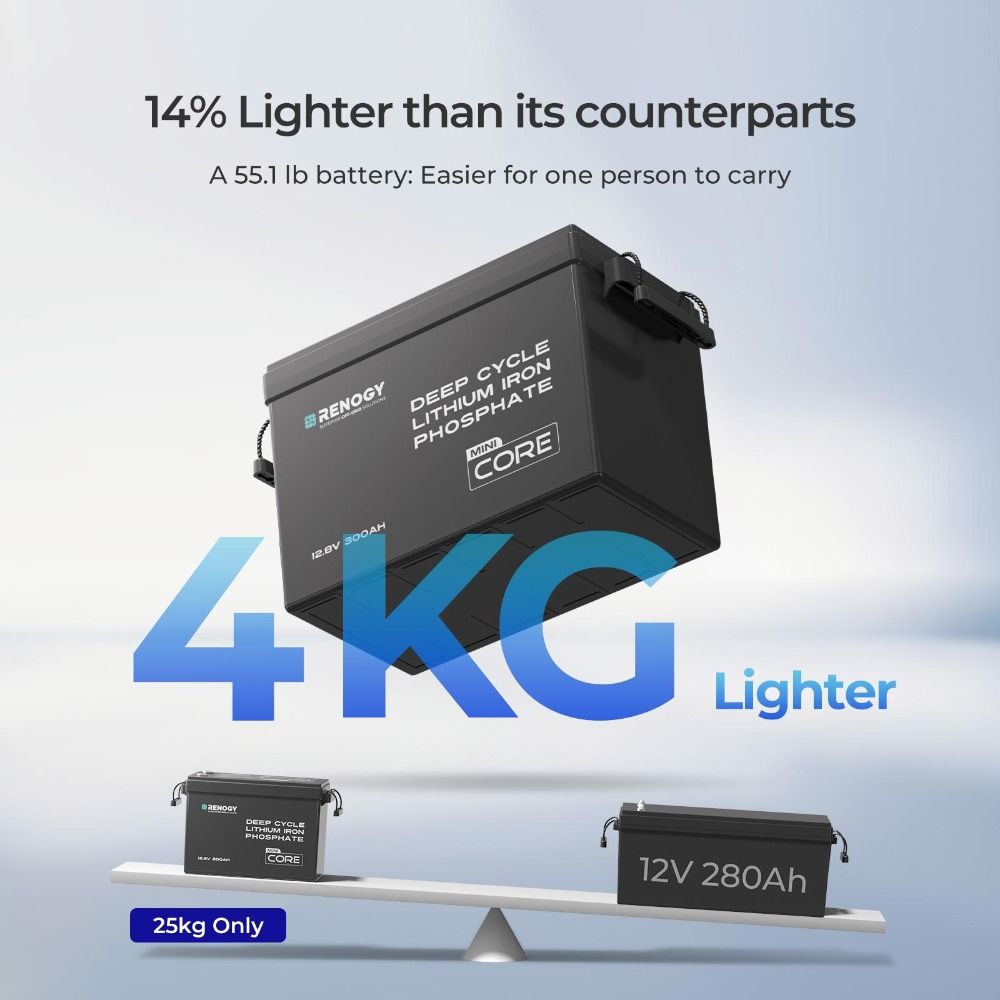

Lighter Than Ever, Easier to Carry - At only 55.1 lb/25 kg, this battery is easy for one person to carry. That's 9 lb/4 kg lighter than its counterparts! Its lightweight, compact design makes handling and installation hassle-free.
31% Smaller Than Its Counterparts - This battery's compact and sleek design saves space, provides more room for easier connections and maintenance. and fits in various battery boxes, including 8D and 4D sizes.
Simple. Powerful. Hassle-free - One 12v 300Ah Battery is three times more powerful than the old three-battery setup. Two simple cable connections saves time, money, and stress. Plus, one battery eliminates cell imbalance issues.
Cold Weather Charging Protection - The built-in BMS with low-temperature cut-off means you don’t have to monitor your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.
Power Your RV Adventure - Two batteries provide 7680Wh of power. That's enough to run your fridge, microwave, coffee maker, and A/C unit for 24hrs+
Power Your Marine Adventure - Two batteries provides 7680Wh of power. That's enough to run your navigation, heating, lighting, and onboard essentials for 24hrs+
Up to 61.44kWh to Power any Adventure - Customize your power setup to fit your needs. Connect four batteries in series, four in parallel, or a mix of both to create a tailored power backup.
In The Box
- Core Mini - 12.8V 300Ah Lithium Iron Phosphate Battery
- Long Terminal Bolts (M8 x 1.25 x 16 mm)
- Terminal Bolts (M8 x 1.25 x 12 mm)
- User Manual
