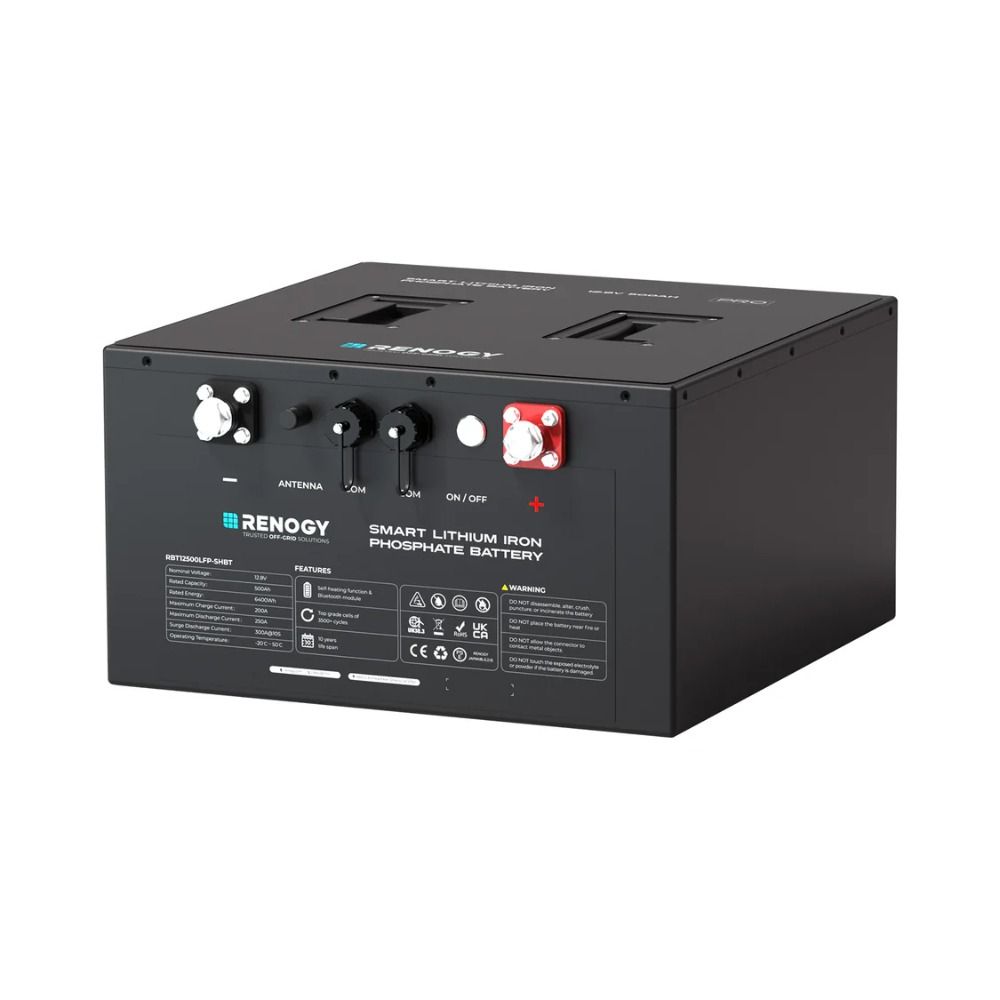

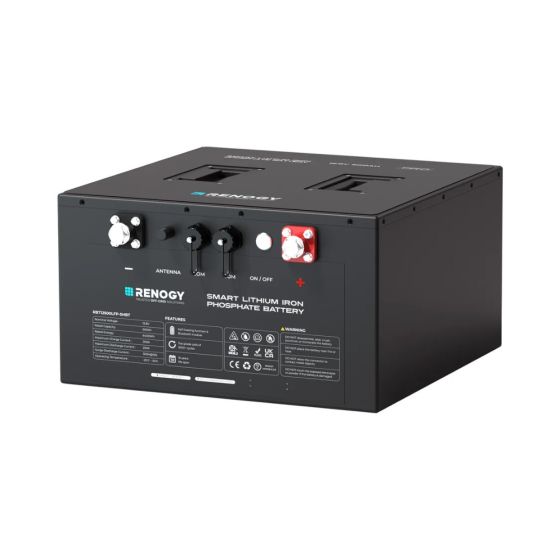

Renogy Pro Underseat Lithium Battery With BT & Canbus - 12.8V 500Ah

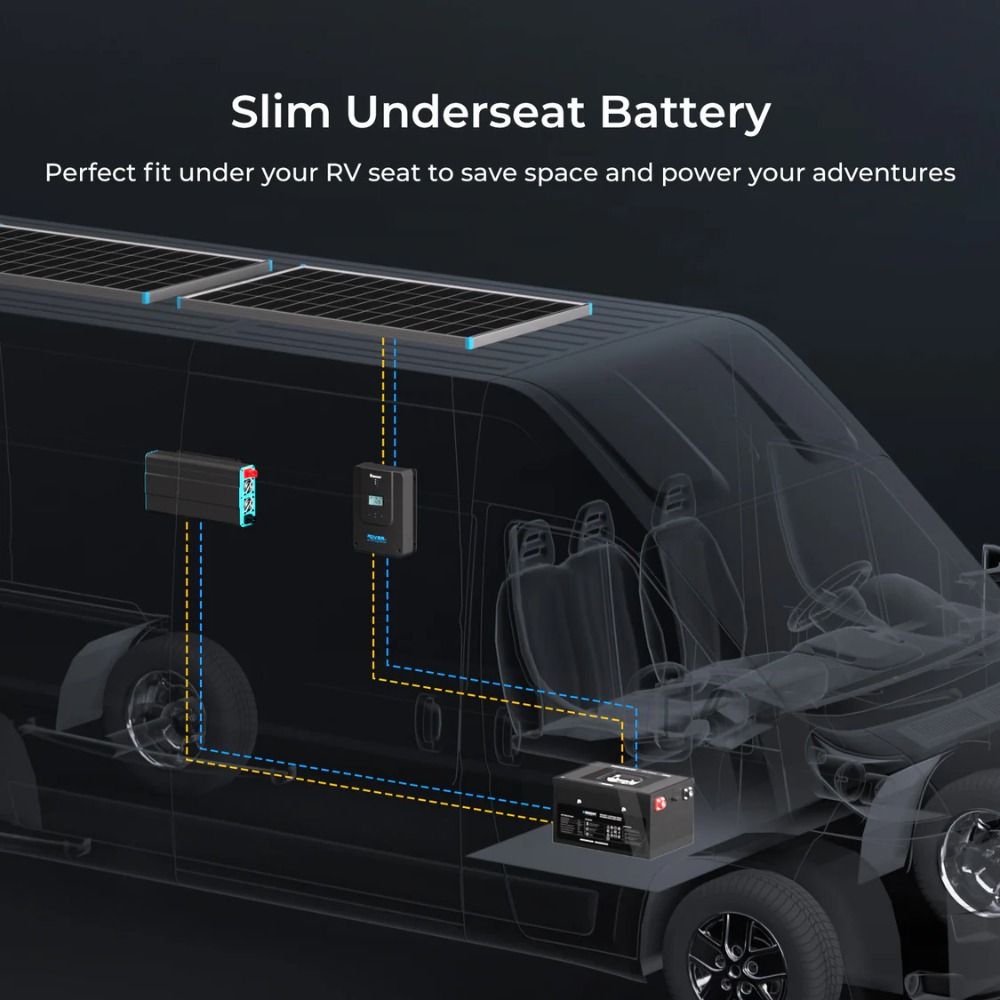

Compact size fits under RV seats while delivering strong, safe power, Built-in Bluetooth gives real-time battery updates via Renogy app. Automotive cells enable up to 200A charge/discharge, 4000+ cycles, Self-heating allows safe cold-weather charging down to -20°C.
- Rated Capacity (0.5C, 25°C): 500Ah
- Nominal Voltage: 12.8V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 3500 Cycles (80% DOD)
- Dimensions: 355 x 350 x 198mm (14" x 13.8" x 7.8")
- Weight: 50Kg (110.23lbs)
- Protection Rating: IP65
Specifications
X| Specifications | |
|---|---|
| Battery Cell Type | Lithium Iron Phosphate |
| Rated Capacity (0.5C, 25°C) | 500Ah |
| Nominal Voltage | 12.8V |
| Voltage Range | 10V to 14.8V |
| Cycle Life (0.5C, 25°C) | 3500 Cycles (80% DOD) |
| Dimension | 355 x 350 x 198mm (14" x 13.8" x 7.8") |
| Weight | 50kg (110.23lbs) |
| Connection Method | Parallel (Up to 8 batteries) |
| Terminal Bolt Size | Long Terminal Bolt: M8 x 1.25 x 16mm |
| Recommended Terminal Torque | 70.8 inch·lbs / 8 N.m |
| Protection Rating | IP65 |
| Certification | MSDS, UN383, CE, and RoHS |
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 250A |
| Peak Discharge Current | 300A@10S |
| Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -20°C to 45°C (-4°F to 113°F) |
| Operation Relative Humidity | 10% to 95% |
Compact size fits under RV seats while delivering strong, safe power, Built-in Bluetooth gives real-time battery updates via Renogy app. Automotive cells enable up to 200A charge/discharge, 4000+ cycles, Self-heating allows safe cold-weather charging down to -20°C.
Versatile Power for Life Off the Grid - Designed for RVs and beyond-from cabins to boats, it delivers dependable energy wherever life takes you.

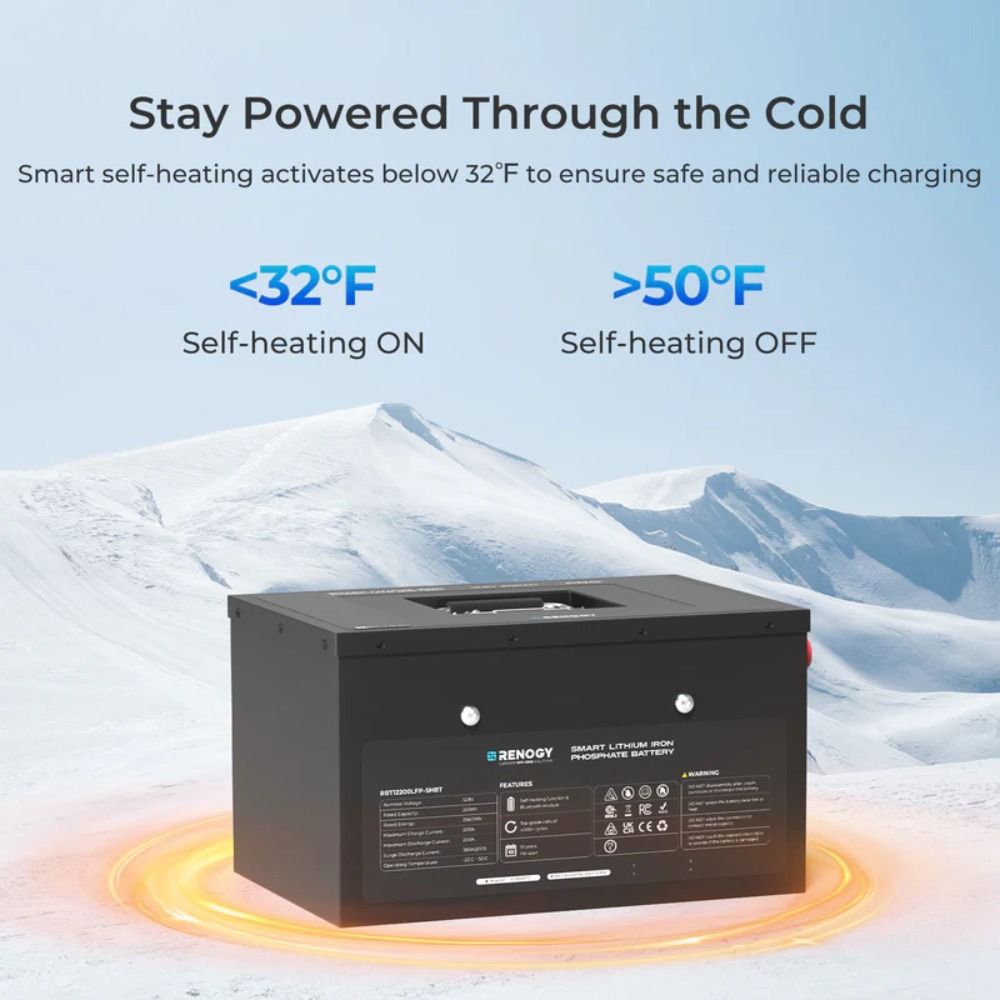

Powerful Built-In Features - Integrated Bluetooth offers seamless connectivity while the self-heating function keeps your battery operating reliably even in freezing temperatures.
Power Made Easy on the Move - Go further and stay longer. Two 500Ah batteries power heavy-duty appliances and home-like comfort on the road.

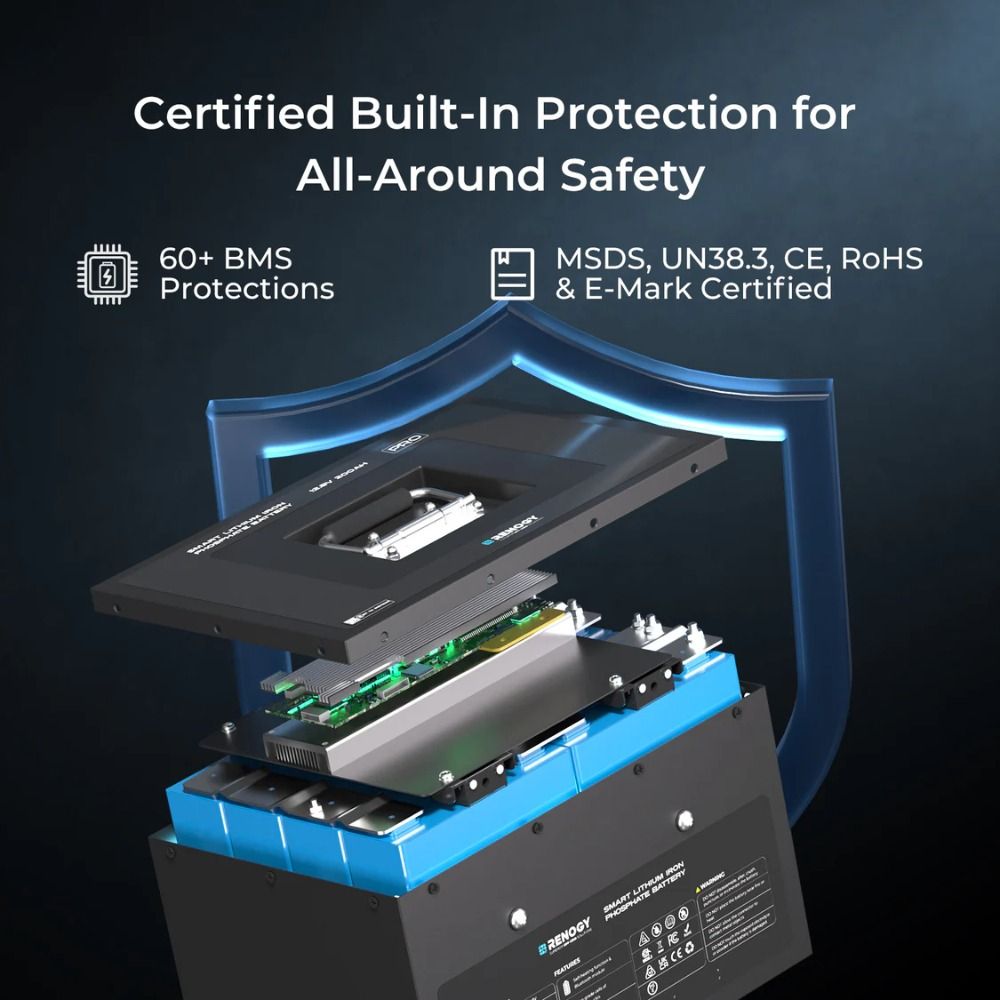

Safeguard Your Power on Every RV Journey - Equipped with 60+ lavers of battery protection and certified to meet strict safety standards for worry-free use.

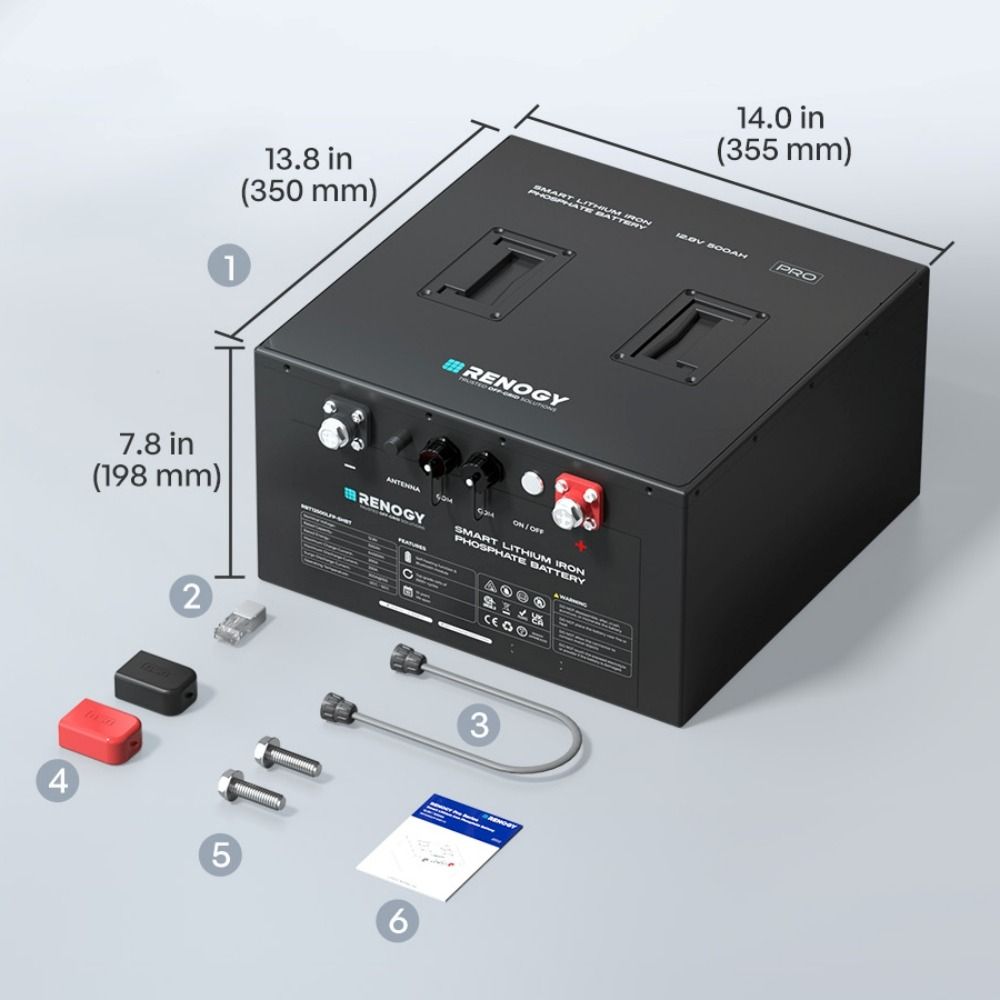

In The Box
- 12.8V 500Ah Pro Series Underseat Lithium lron Phosphate Battery
- User Manual
- Terminal Resistors
- Network Cable
- Insulation Sleeves
- Long Terminal Bolt
