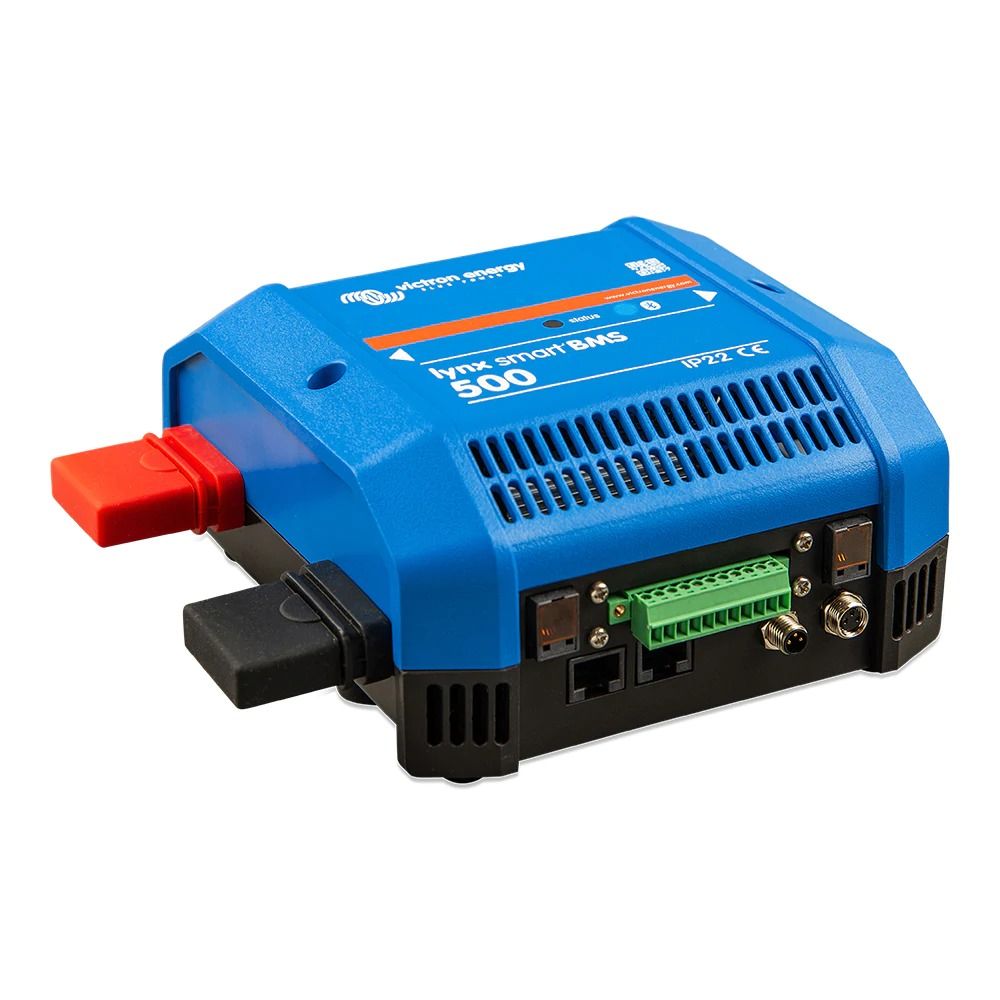

Victron Energy LYN034160200 Lynx Smart BMS 500

• Supply Voltage Range: 9-58Vdc
• Main Safety Contactor Continuous Current Rating: 500A continuous
• Reverse Polarity Protection: No
• Supported System Voltages: 12, 24 or 48V
• Main Safety Contactor Peak Current Rating: 600A for 5 minutes

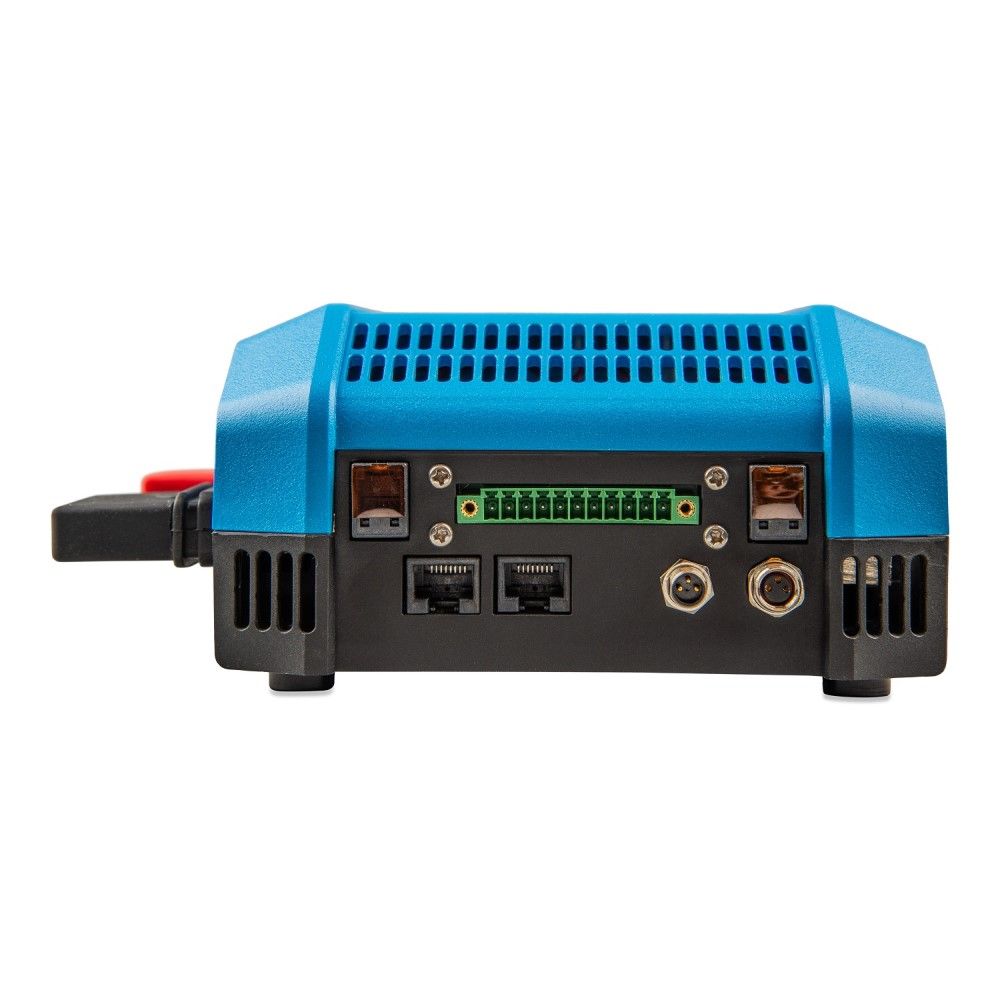

• Battery BMS Cables Connection: Male and female circular 3-pole connector with M8 screw ring
• VE.Can Connection: RJ45 and RJ45 terminator
• Busbar Connection: M8
• AUX Output Maximum Current Rating: 1.1A continuous, protected by resettabel fuse
• Power Consumption in Active Mode: Approximately 2.6W (200mA at 13V) depending on the state of the relays
• Power Consumption Hibernate or Standby Mode: Approximately 10.4mW (0.8mA at 13V)

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:

• Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
• Battery monitor, indicating state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with the VictronConnect App, for setup and monitoring.
• Local and remote monitoring using a Victron GX device, for example the Cerbo GX
• The Lynx Smart BMS is part of the modular Lynx Distribution system.
