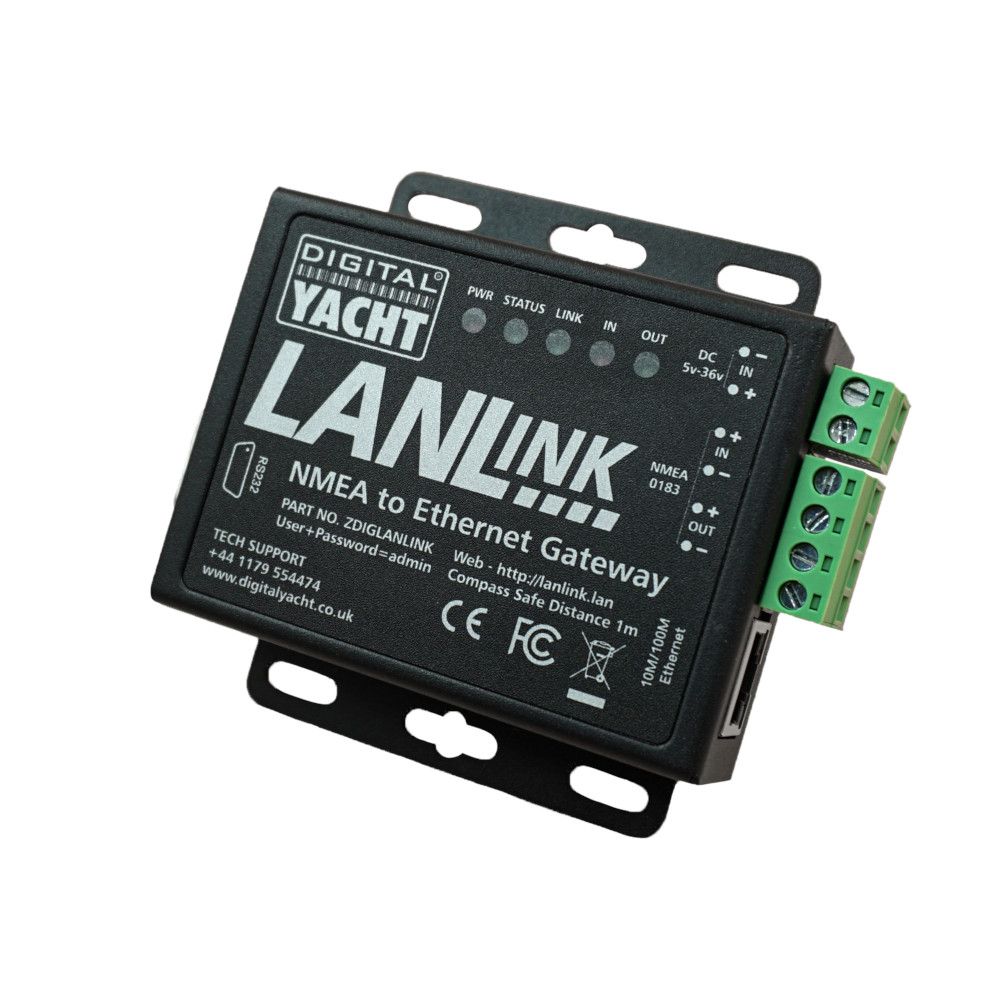

Digital Yacht Lanlink NMEA 0183 to Ethernet Gateway
LANLink is a NMEA 0183 to ethernet gateway which enables the boat’s NMEA data to integrate onto a router network – allowing connected devices and apps to take advantage of the data.
- NMEA 0183 to Ethernet Gateway
- 12/24v DC low power operation
- Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection
- Web user interface for easy setup from connected device via browser
- TCP/IP or UDP connection modes – support for up to 5 connected devices with TCP/IP
- Bi-Directional
- NMEA 0183 variant has one NMEA 0183 input & output.
- RS232 port for PC apps too
- Status indicators for power, data in-out, network link and server status
More and more boats now have a wireless router fitted or utilise devices like our 4G Connect for internet connectivity. LANLink is a NMEA to ethernet gateway which enables the boat’s NMEA data to integrate onto the router network – allowing connected devices and apps to take advantage of the data.
LANLink is available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy to use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.
It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, you can setup apps like TZ iBoat, iNavX, Navionics, NavLink, iSailor, Imray, Weather4D , SailGrib, etc by simply entering the IP address and port for streaming NMEA data.
NMEA 2000 version ships with iKonvert NMEA Certified gateway for easy connection to NMEA 2000 backbone. Easily configurable for multiple installation options.
