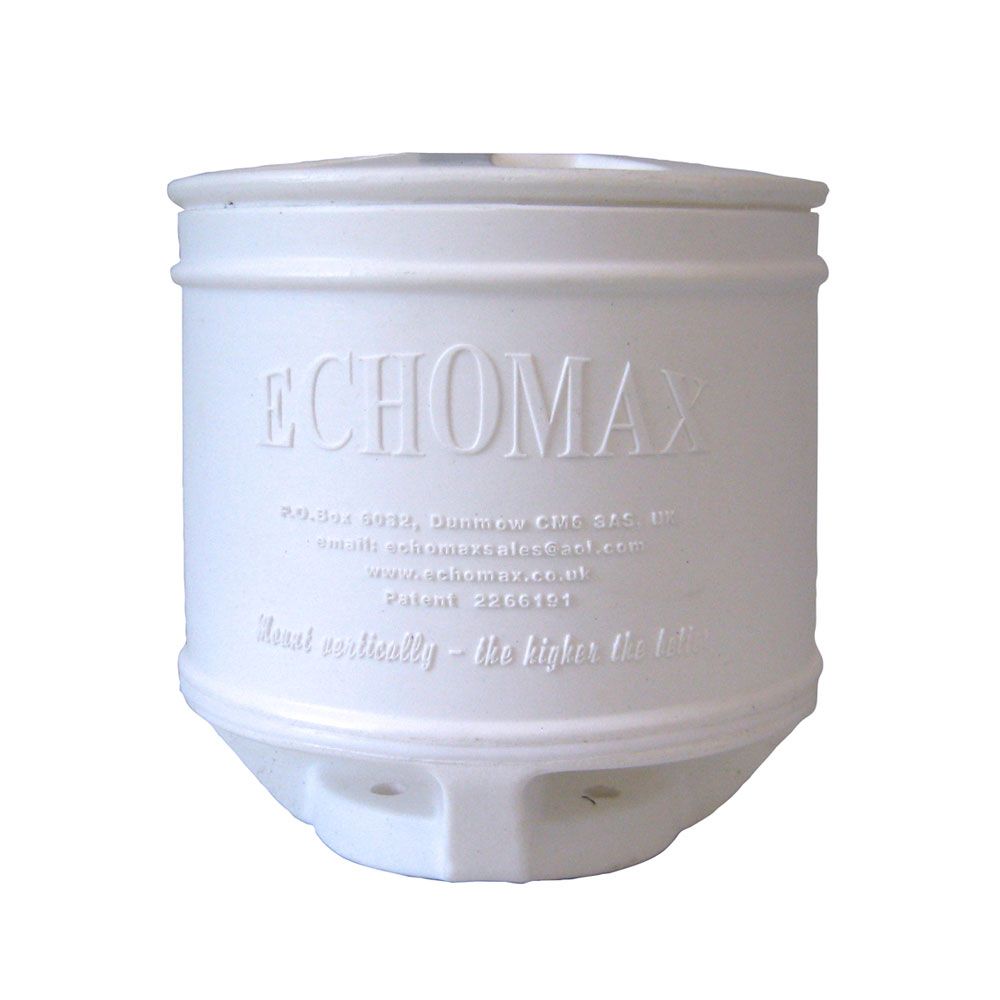

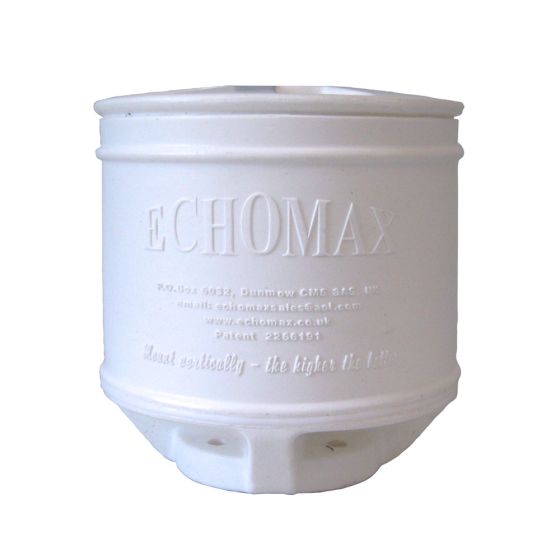

Echomax 9'' EM230 Compact Base Mount Passive Radar Reflector
Echomax 9'' EM230 Compact Base Mount Passive Radar Reflector

Echomax 9''EM230 Compact Base Mount Passive Radar Reflector

SKU
030-EM230C

Adapted from the very successful big brother with high response of 8.3M2. Suitable for 6-9 metre fast fishing boats, solves the problem where to fit the radar reflector and the light.

SRP ex vat: £121.66
In stock
      Features



  • Increased Radar Cross Section
  • Increased Heel Response & High S Band Response
  • Increased 360° Response Cycle
  • Fitting kit included
  • Maximum response of 8.3M2 average 1.3M2
  • Width 245mm Height 268mm (with light 340mm)
  • 150mm Base fitting with 4 x 6mm fixings @ 80mm centres
  • Weight with light 1.6kg

Adapted from the very successful big brother with high response of 8.3M2. Suitable for 6-9 metre fast fishing boats, solves the problem where to fit the radar reflector and the light. Available with optional factory fitted.

  • Lalizas DOT all round navigation light or Tri-colour light supplied with 4M of cable
  • Hella LED 360 all round white supplied certified by RINA/USCG/IMO/NMMA to 2nm with 1M cable

Just bolt on and wire up! Fit the QD Fitting whilst trailering to avoid damage caused by low obstacles such as trees, garage or barn entrances.

More Information
SKU 030-EM230C
Brand Echomax
