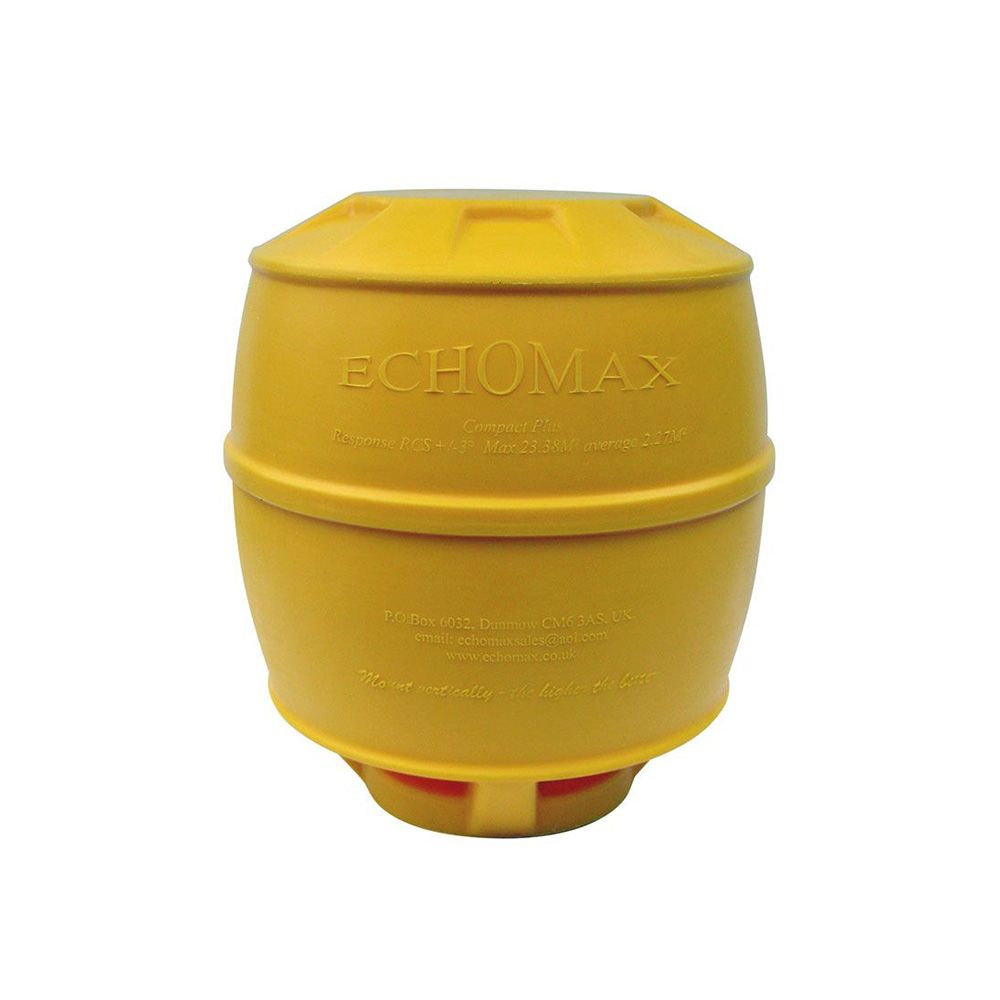

Echomax Compact Plus Radar Reflector
Echomax Compact Plus Radar Reflector

Echomax Compact Plus Radar Reflector


Adapted from the very successful EM230 Compact with Maximum response of 23.38M2. Ideal for Ribs, land hazards, marina entrances, poles, buoys and fish farms. Built to support large Navigation lights such as Sealite and Carmanah.

SRP ex vat: £150.83
🟠 Reserve - Stock Pending. Please call


    • Increased Radar Cross Section
    • Increased Heel Response & High S Band Response
    • Increased 360° Response Cycle
    • Fitting kit included
    • Maximum response of 8.3M2 average 1.3M2
    • Width 245mm Height 268mm (with light 340mm)
    • 150mm Base fitting with 4 x 6mm fixings @ 80mm centres
    • Weight with light 1.6kg

    Adapted from the very successful big brother with high response of 8.3M2. Suitable for 6-9 metre fast fishing boats, solves the problem where to fit the radar reflector and the light. Available with optional factory fitted.

          • Lalizas DOT all round navigation light or Tri-colour light supplied with 4M of cable
          • Hella LED 360 all round white supplied certified by RINA/USCG/IMO/NMMA to 2nm with 1M cable

    Just bolt on and wire up! Fit the QD Fitting whilst trailering to avoid damage caused by low obstacles such as trees, garage or barn entrances.
