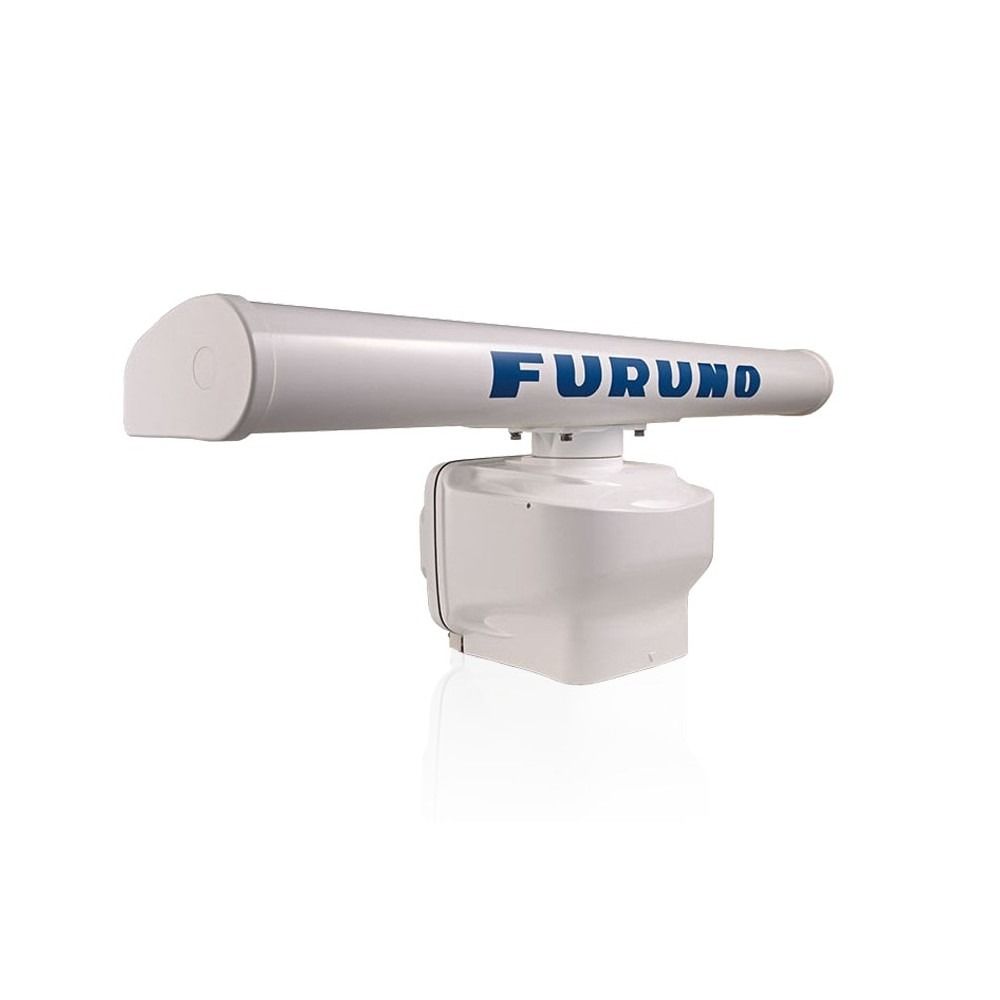

Furuno DRS6AX 6KW 6ft X-Class Open Array Radar
6kW Open array radar with upto 96 nautical mile range withwith 6' antenna. This Furuno UHD Digital Radar is compatible with TZtouch, TZtouch2 and TZtouch3 displays.
- Antenna Size: 6 ft
- Antenna Type: Open Array
- Band: X-Band
- Beam Width: 1.35 degrees
- Power Supply: 24 VDC
- Power Output: 6 kW
The newly redesigned pedestal unit is 20% lighter than previous models, and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking
Fast Target Tracking, a function adopted from our commercial Radar FAR3000, is available on the X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Spot flocks of birds from far away
Bird echoes can be distinctly and automatically separated from nearby vessels. While a vessel in motion shows a straight and clear echo trail, bird echoes are identifiable by their random motion. With Bird Mode activated, bird echoes are distinct and clear, and can easily be distinguished from other targets. With Echo Trails on, it is even possible to discern the movements of individual birds!
X-Class = a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, X-Class Radar marks yet another leap forward for FURUNO. Improved in almost all aspects, X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
X-Class Radars are compatible with NavNet TZtouch, TZtouch2, TZtouch3, TZtouchXL, TZtouchE, and the FR10/FR12 Radar Series.
