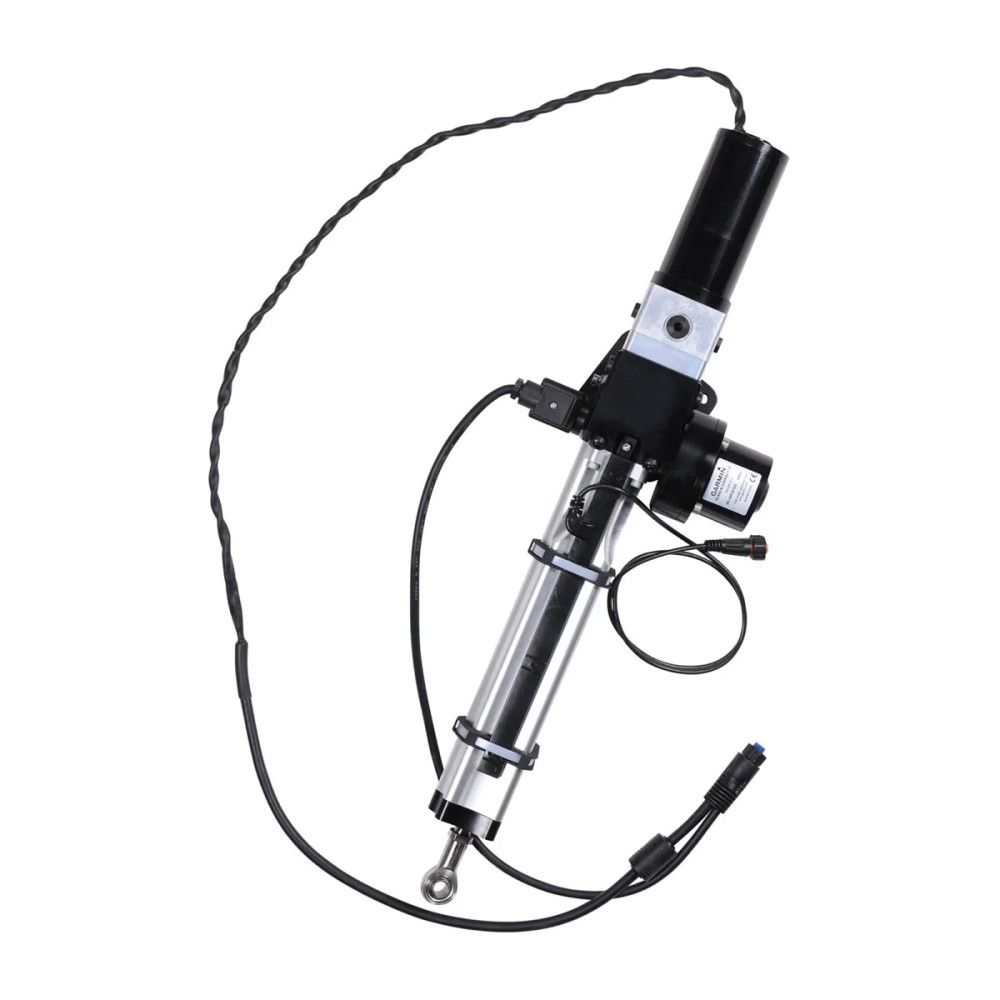

Garmin Class B Compact v2 Drive Unit
SKU
230-0101202901
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 24 tons (48,400 lbs) of displacement.
SRP ex vat:
£1,499.99
Reserve - Stock Pending. Please call
- Dimensions: 810 x 120 x 225mm (31.9″ x 4.6″ x 8.9″)
- Drive Unit Type: Integrated hydraulic linear
- Stroke length: 254 mm (10″)
- Maximum thrust: 730 kg (1.610 lbs)
- Supply voltage: 10V to 30V (regulated to 12V by the ECU)
- Average clutch current at 12V: 1 Amp
- Average motor current at 12V: 2-4 Amps
- Operating temperature: -15°C to 50°C
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 24 tons (48,400 lbs) of displacement.
