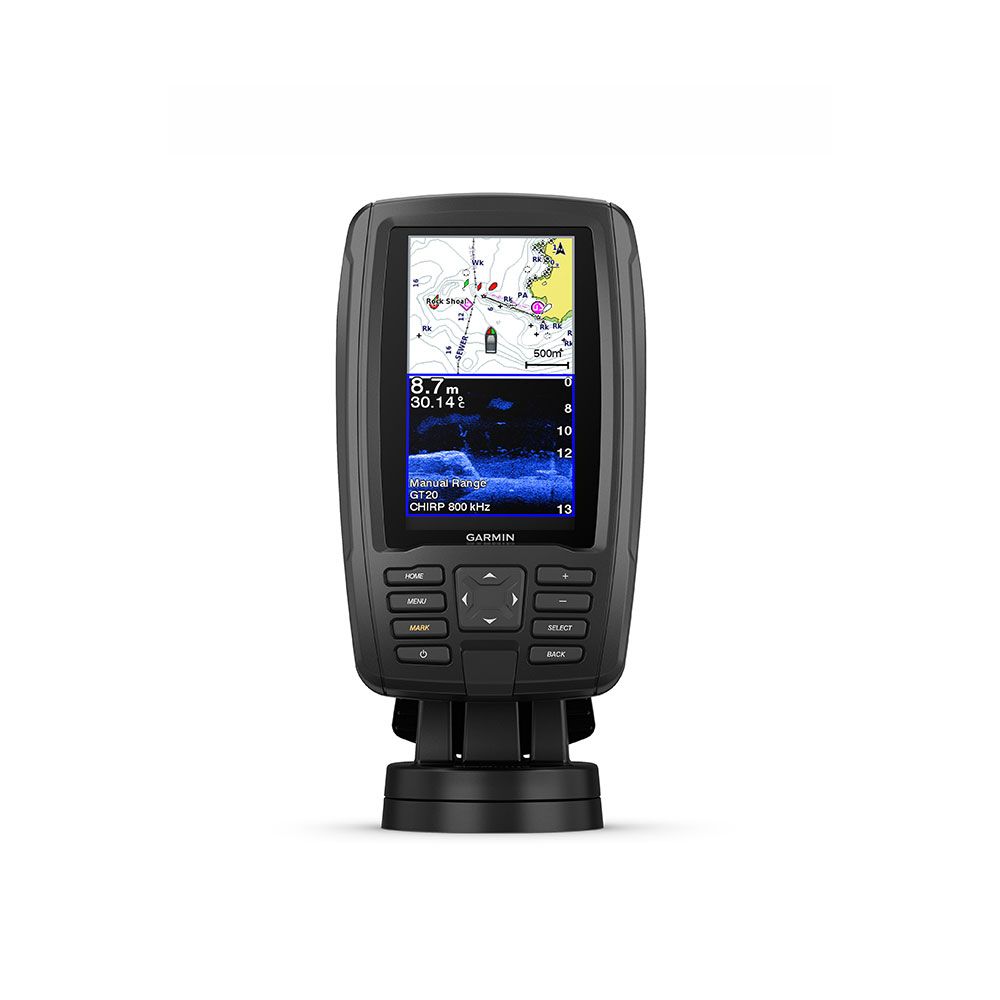

Garmin EchoMAP Plus 45cv
This compact combo has lots of built-in benefits. Easy-to-install and even easier to use, it has a bright 4.3” display that is easy to read on a sunny day on the water. It features built-in support for Garmin CHIRP traditional sonar that delivers remarkable target separation and CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat.
Preloaded with BlueChart g2 charts for the U.K., Ireland and the Northwest mainland Europe coast.
- Bright, sunlight-readable 4.3 inch combo
- Preloaded BlueChart charts for the United Kingdom, Ireland and NW Europe coast
- Built-in Garmin Quickdraw Contours mapping software
- Share waypoints and routes with other ECHOMAP or STRIKER units
Technical Specifications
X| General | |
|---|---|
| Dimensions | 10.2 x 20.4 x 0.4 cm (4" x 8" x 3.1") |
| Display Size | 5.4 x 9.5cm, 10.5cm Diagonal (2.1" x 3.7", 4.3" Diagonal) |
| Display Resolution | 480 x 272 Pixels |
| Display Type | WQVGA Display |
| Weight | 0.7Kg (1.6lbs) |
| Water Rating | IPX7 |
| Mounting Options | Bail or Flush |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 1 MicroSD Card, Max 32GB |
| Waypoints | 5,000 |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Reciever | 5Hz |
| NMEA 0183 Compatible | ✓ |
| Chartplotter Features | |
|---|---|
| AIS | ✓ |
| DSC | ✓ |
| Connections | |
|---|---|
| NMEA 0183 Inputs | 1 |
| Video Input Ports | None |
| Video Output Ports | None |
| Garmin Marine Network Ports | None |
The Garmin CHIRP difference
The built-in sonar capabilities of ECHOMAP Plus 45cv include Garmin's CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota and MotorGuide trolling motors with integrated transducers.
Clear scanning sonar images
Garmin CHIRP ClearVü scanning sonar gives a nearly photographic image of what’s below the boat. Clearly see structure, submerged objects and fish.
Preloaded BlueChart g2 charts
Preloaded with highly detailed Garmin BlueChart g2 mapping covering the British Isles in their entirety, including the Thames Estuary, Caledonian Canal, Outer Hebrides, Shetland and Orkney Islands, Isle of Wight, Isle of Man, Lough Neagh, The Shannon river (up to Lough Kee) and the Irish Sea. Continental coverage from Brest, FR to Kiel, DE including the Channel Islands, the Waddenzee, the IJsselmeer, the canals of The Netherlands, the Meuse River to Liege, BE; the Rhine River to Dusseldorf, DE and the Kiel Canal.
Quickdraw Contours to create personalised maps
Instantly create personalised fishing maps on-screen with 1 foot contours, then tailor them to fit all needs. Keep the data locally, or share it with the Quickdraw Community on Garmin Connect.
Upgrade to Garmin's best maps on the water
Step up to BlueChart g2 HD or BlueChart g2 Vision HD, which adds Auto Guidance and other great features. A single microSD card slot provides expandable memory for accessory map purchases..
In The Box
- ECHOMAP Plus 45cv with BlueChart g2 for UK, Ireland and Northwest mainland Europe coast
- Power/data cable
- 4-pin sounder to 8-pin transducer adapter cable
- Tilt/swivel mount with quick release cradle
- Documentation
