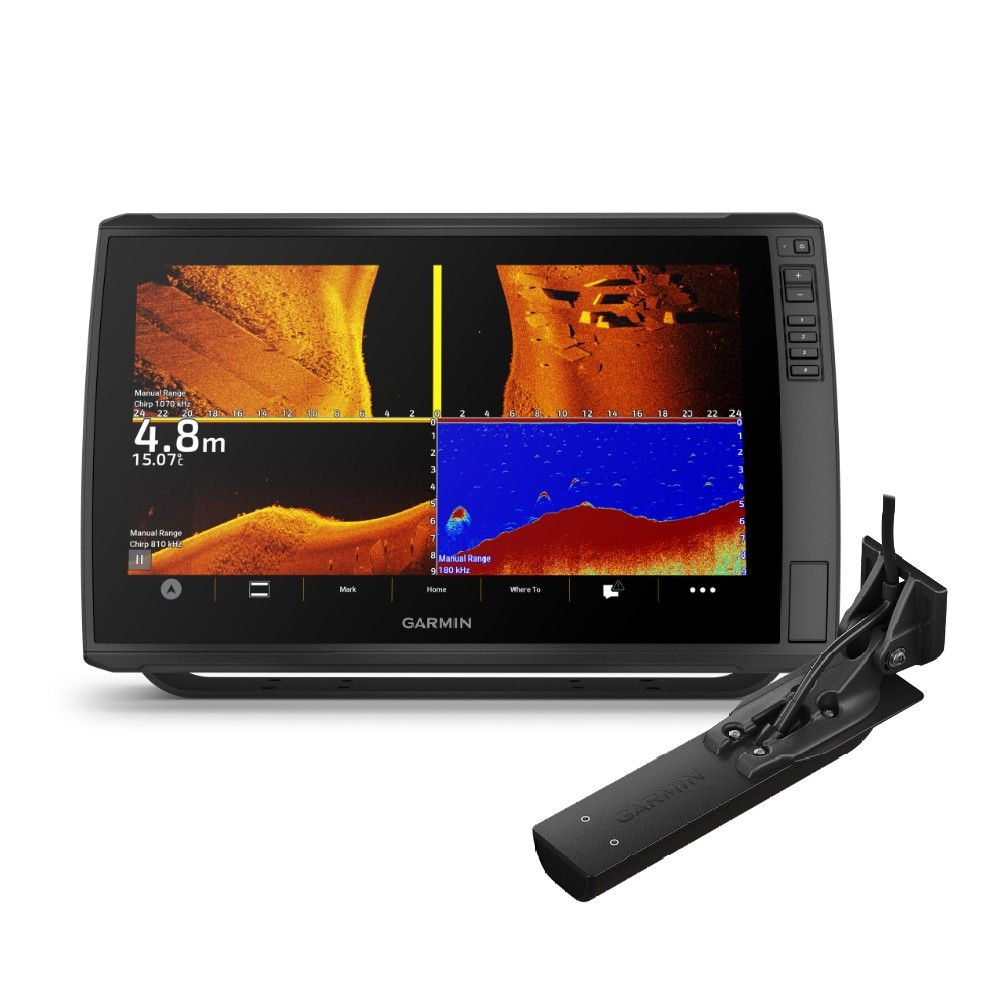

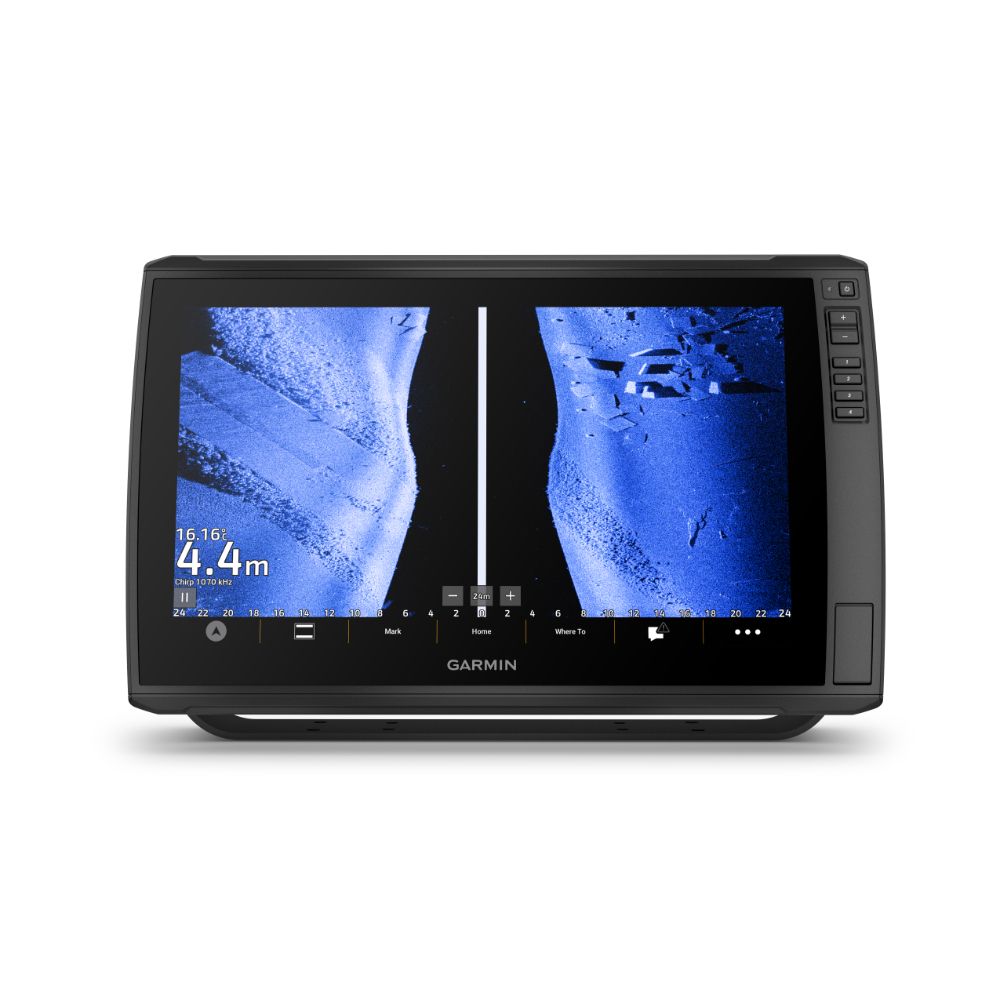

Garmin ECHOMAP Ultra2 162sv With GT56UHD-TM Transducer
Designed with the serious angler in mind, this 16″ chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to navigation mapping and sonar returns. It support Garmin Navionics+ and Garmin Navionics Vision+ mapping, plus there’s support for the full line of LiveScope sonars as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar. Includes a GT56UHD-TM Transom Mount transducer for traditional, ClearVu & SideVu scanning.
- 16″ Touchscreen with keyed assist
- HDMI Output connectors for screen sharing
- Bluetooth technology enables voice control features
- Ssupports Livescope sonar and more
- Wirelessly network, Share sonar waypoints and routes
- Multi-band GPS for superior position accuracy
- Includes GT56UHD-TM Transom Mount Transducer
Technical Specifications
X| General | |
|---|---|
| Dimensions | 43 x 26.6 x 8 cm (16.9″ x 10.5″ x 3.14″) |
| Weight | 4.31 kg (9.5 lbs) |
| Water Rating | IPX7 |
| Touchscreen | ✓ |
| Display Type | FHD, IPS |
| Display Size | 34.5 x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal) |
| Display Resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or Flush |
| Input | Touchscreen with keyed assist |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| BEIDOU | ✓ |
| Built-in Receiver | ✓ |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| Supports WAAS | ✓ |
| Supports Multi-Band, Multi-Constellation GPS | ✓ |
| Built-In Maps | |
|---|---|
| Built-in Auto Guidance+ | ✓ |
| Garmin Navionics+ Inland & Coastal | ✓ |
| Tide tables | ✓ |
| Optional Map Support | |
|---|---|
| BlueChart G3 | ✓ |
| BlueChart G3 Vision | ✓ |
| LakeVu G3 | ✓ |
| LakeVu G3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO 100k | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Chartplotter Features | |
|---|---|
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| ActiveCaptain App Compatible | ✓ |
| Supports Voice Commands | ✓ |
| Sailing Features | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 9 - 18 VDC |
| Typical Current Draw at 12V | 3.9A |
| Max Current at 12V | 6.6A |
| Max Power Use at 10V | 48W |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Power Output | 600 W |
| Traditional Sonar | Built-in (Single channel CHIRP, 70/83/200 kHz, L/M/H CHIRP) |
| ClearVu | Built-in 260/455/800/1000/1200 kHz |
| SideVu | Built-in 260/455/800/1000/1200 kHz |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| Video Output Ports | 1 HDMI |
| Garmin Marine Network Ports | 2 (Large connector) |
| 12 Pin Transducer Ports | 12-pin scanning sonar |
| Bluetooth Calling | ✓ |
| ANT+ | ✓ |
| Garmin Wi-Fi Network | ✓ |
Designed with the serious angler in mind, this 16″ chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to navigation mapping and sonar returns. It support Garmin Navionics+ and Garmin Navionics Vision+ mapping, plus there’s support for the full line of LiveScope sonars as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
What To Love

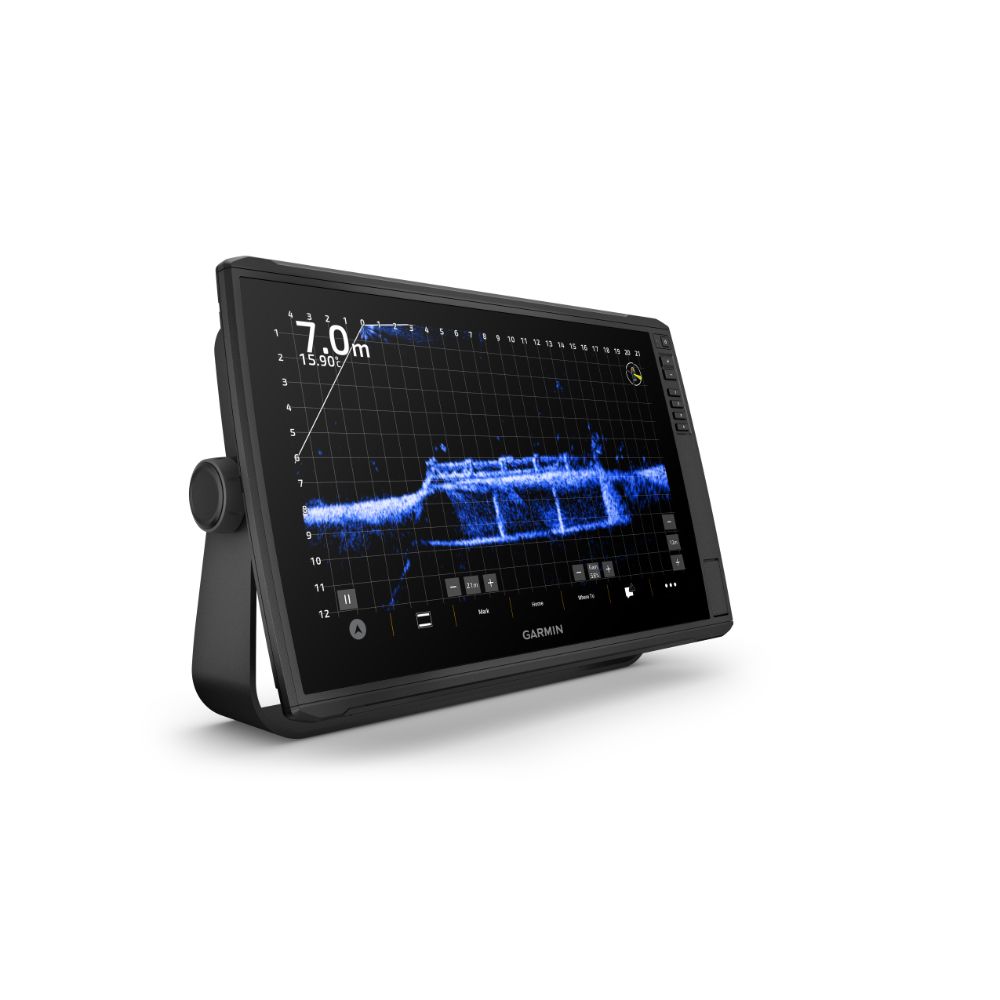

Livescope Sonar Support - The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

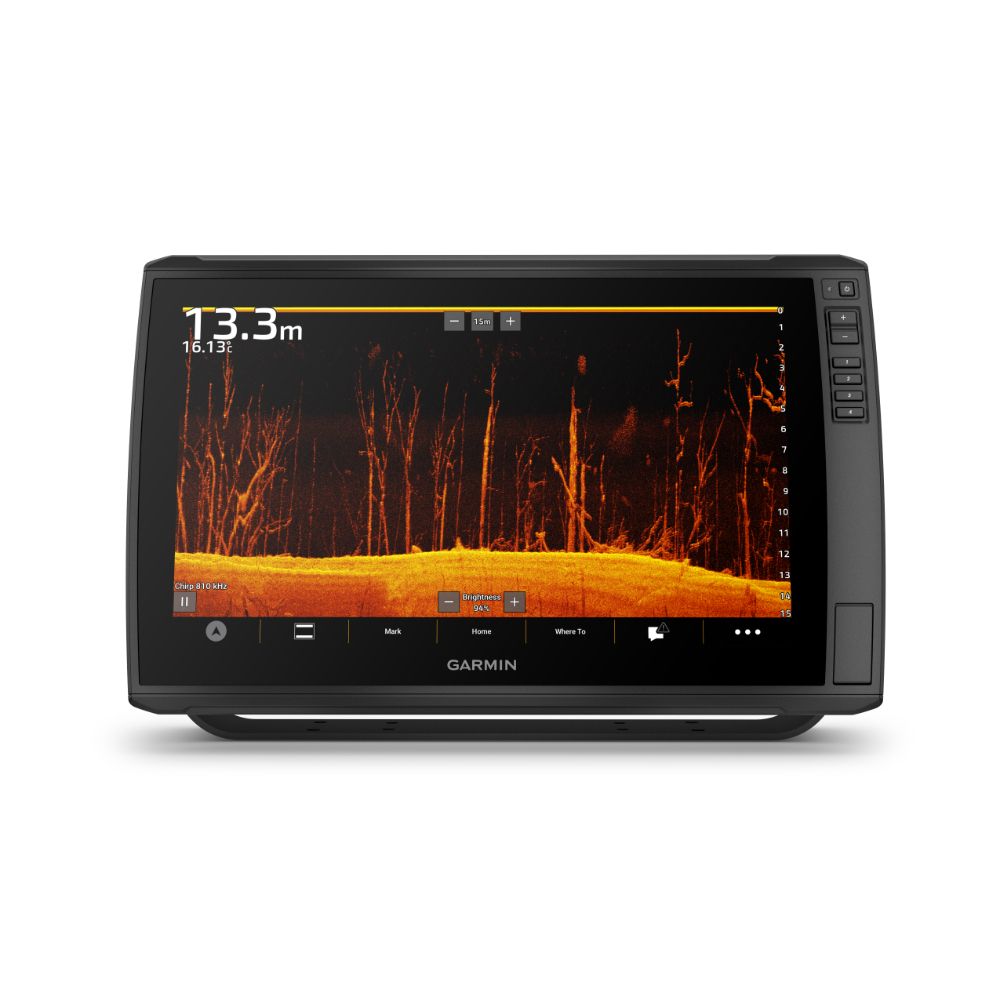

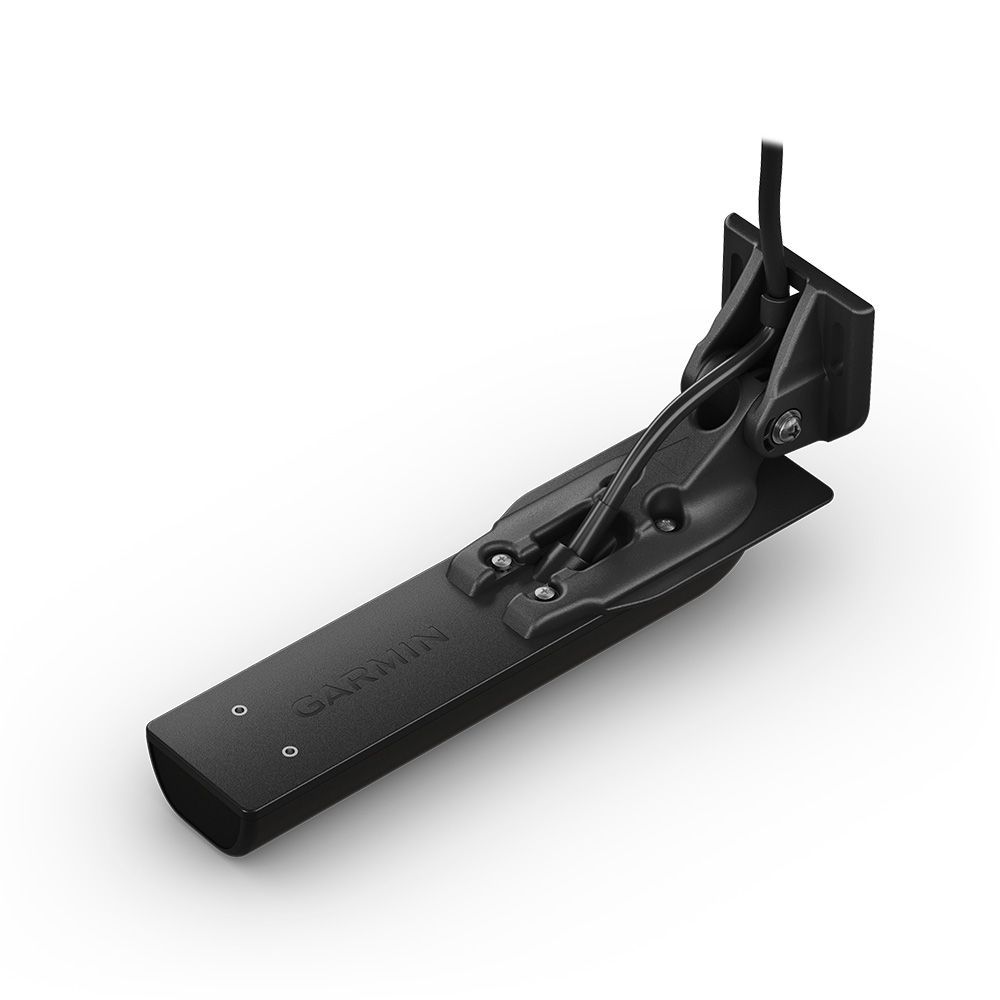

Built-in UHD Sonar - The included GT56UHD-TM transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

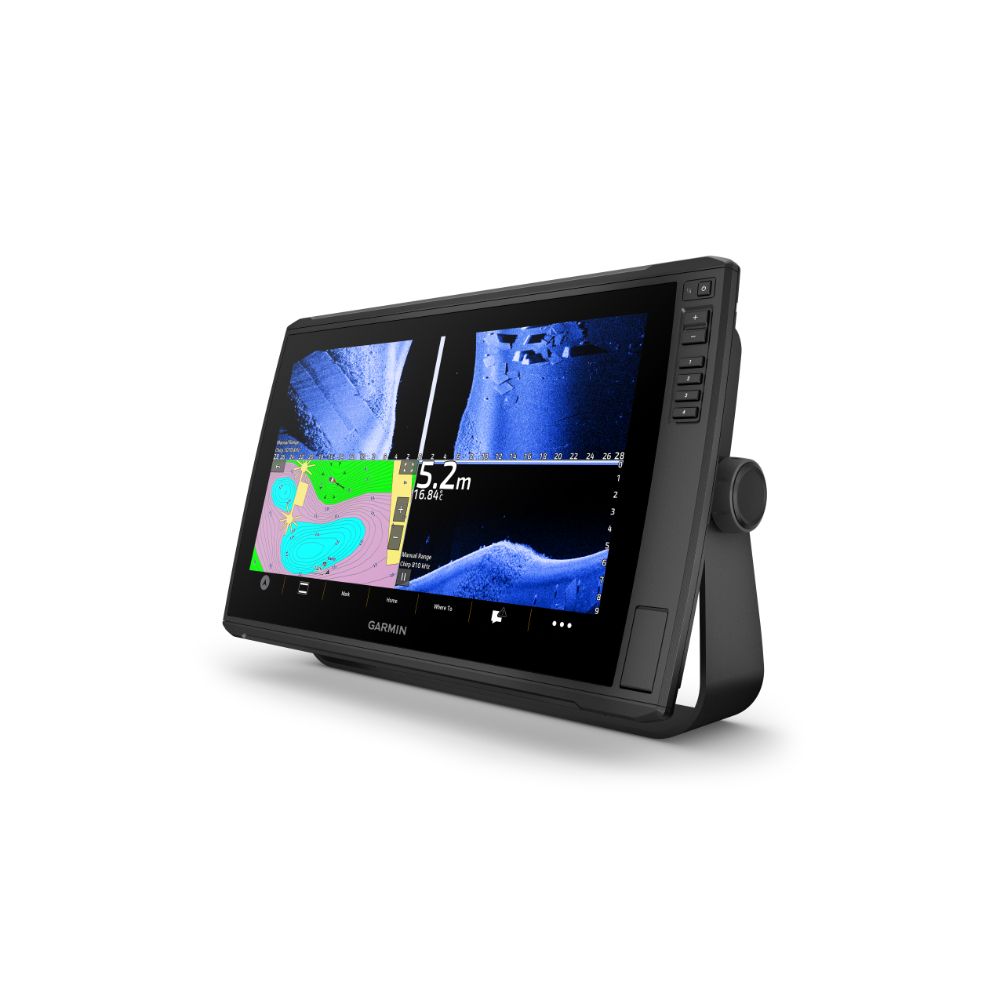

Charts & Maps - Bring a fresh new look and feel to the chartplotter with Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology and more (sold separatley).
HDMI Output - In addition to recording and capturing what’s showing on sonar, the chartplotter’s HDMI output connectors also allow ice anglers to share their screens with their TVs or other external displays.
Voice Control Features - Built-in BLUETOOTH technology enables voice commands to the chartplotter for hands-free control of such features as Force trolling motor modes, favorite keys and sonar inputs.
Vivid Colour Palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
More Ways To Navigate And Connect
Available Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, depth range shading, daily updates and more (subscription required).
Premium Map Upgrades - Optional Garmin Navionics Vision+ premium mapping (sold separately) brings relief shading, satellite imagery and more to the chartplotter.
Multi-band GPS - Get improved position accuracy with multi-band GPS
NMEA 2000 Network Compatibility - Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.

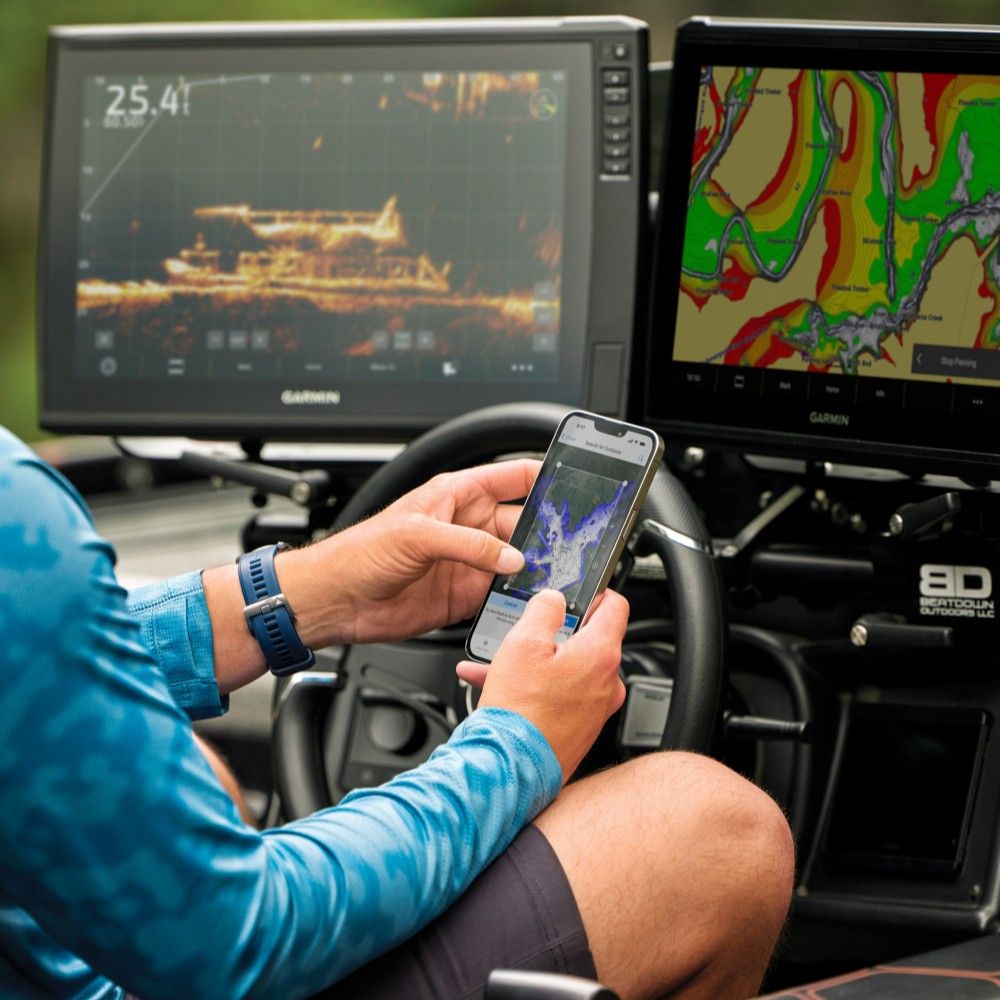

ActiveCaptain App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data and more.
Force Trolling Motor - Wirelessly connect to a Garmin Force trolling motor to navigate to waypoints, draw and follow routes, and more.
Screen Recording - Use the recording feature through the ActiveCaptain app on a compatible smartphone to share images from the chartplotter.

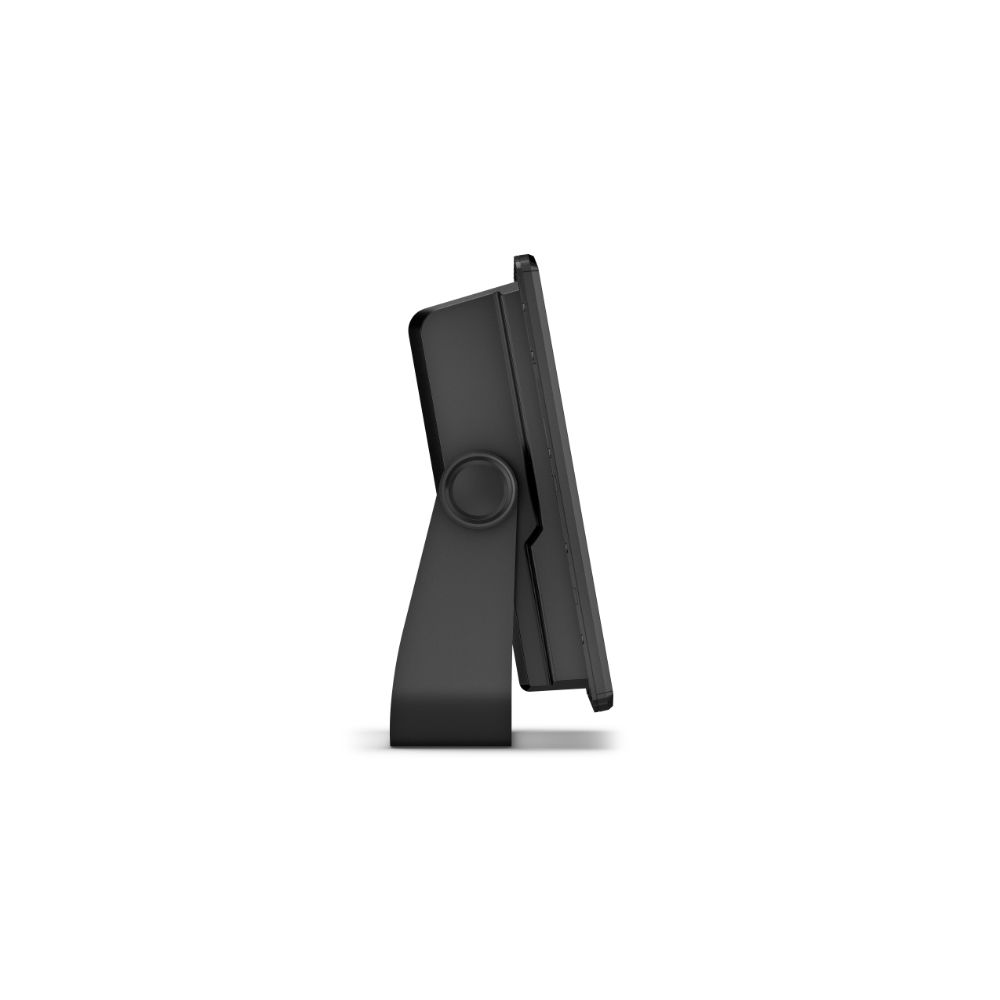

Bail Mount With Quick Release Cradle - Surface mount the ECHOMAP Ultra 2 chartplotter by using the bail mount with knobs
