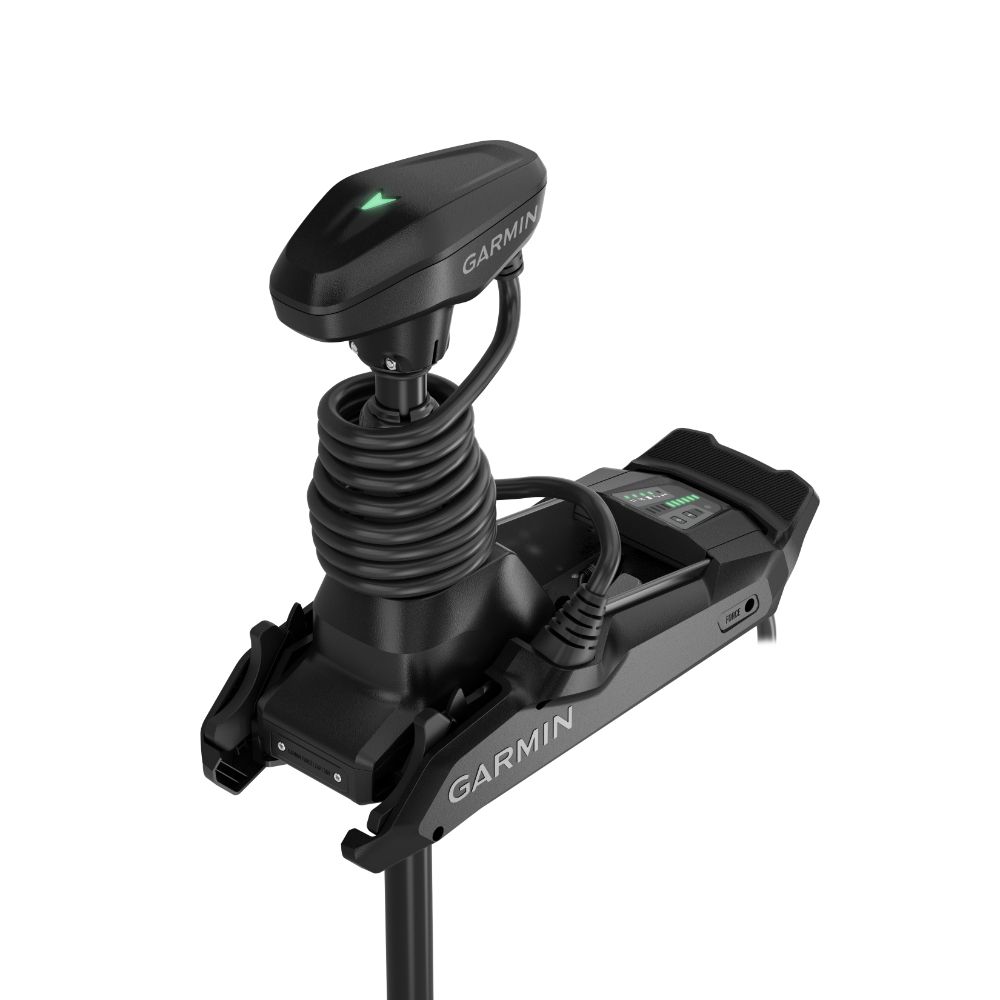

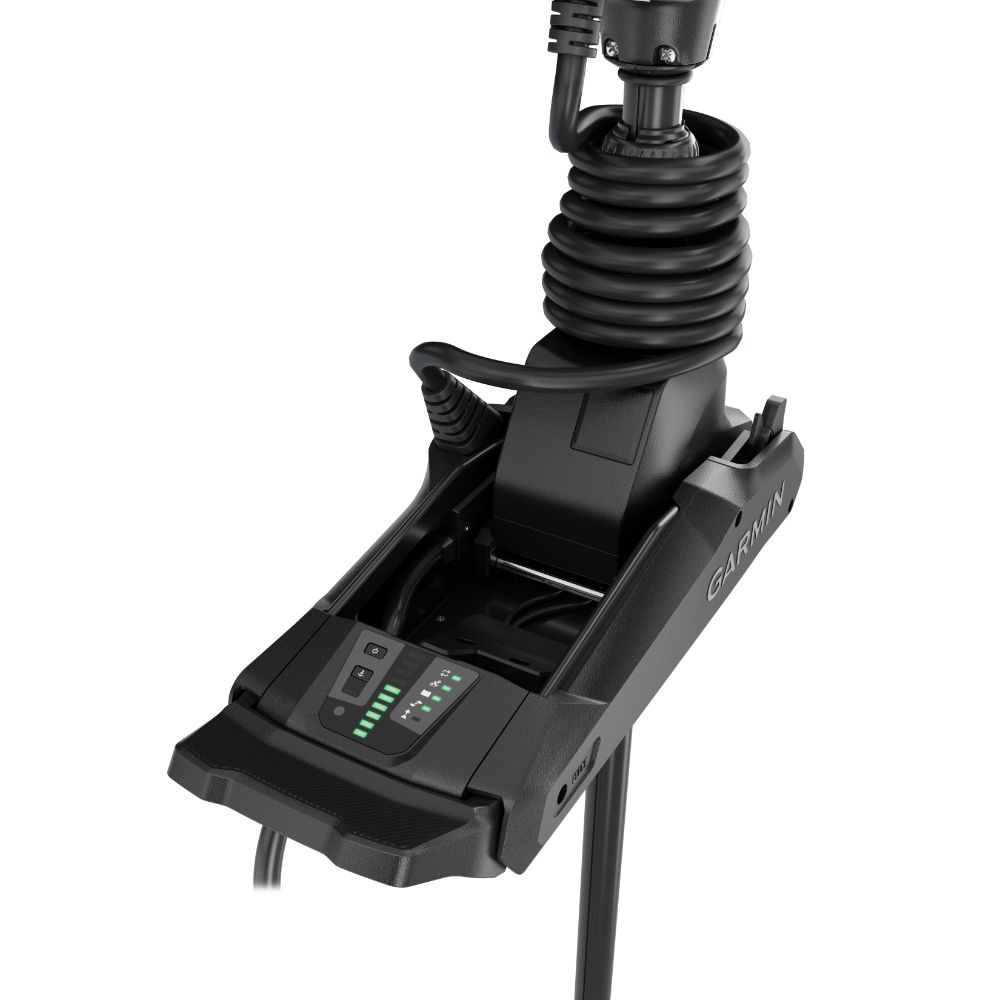

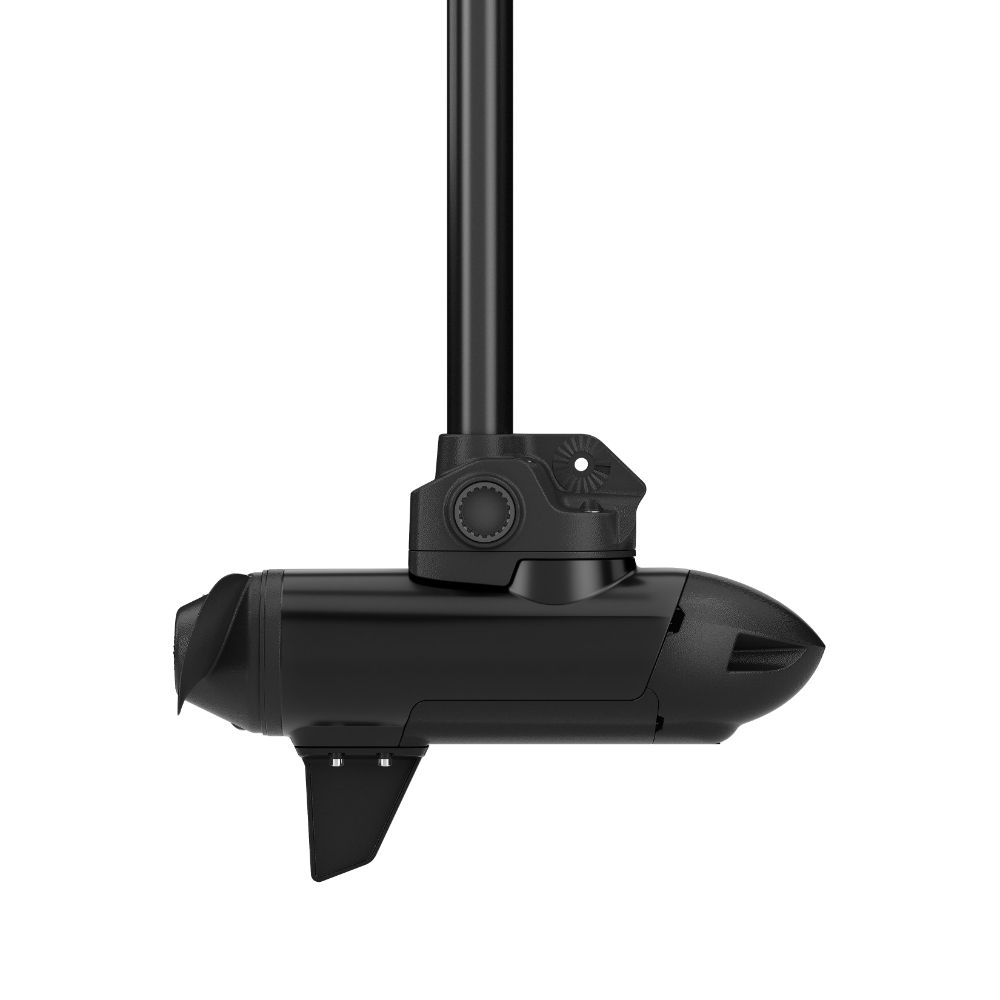

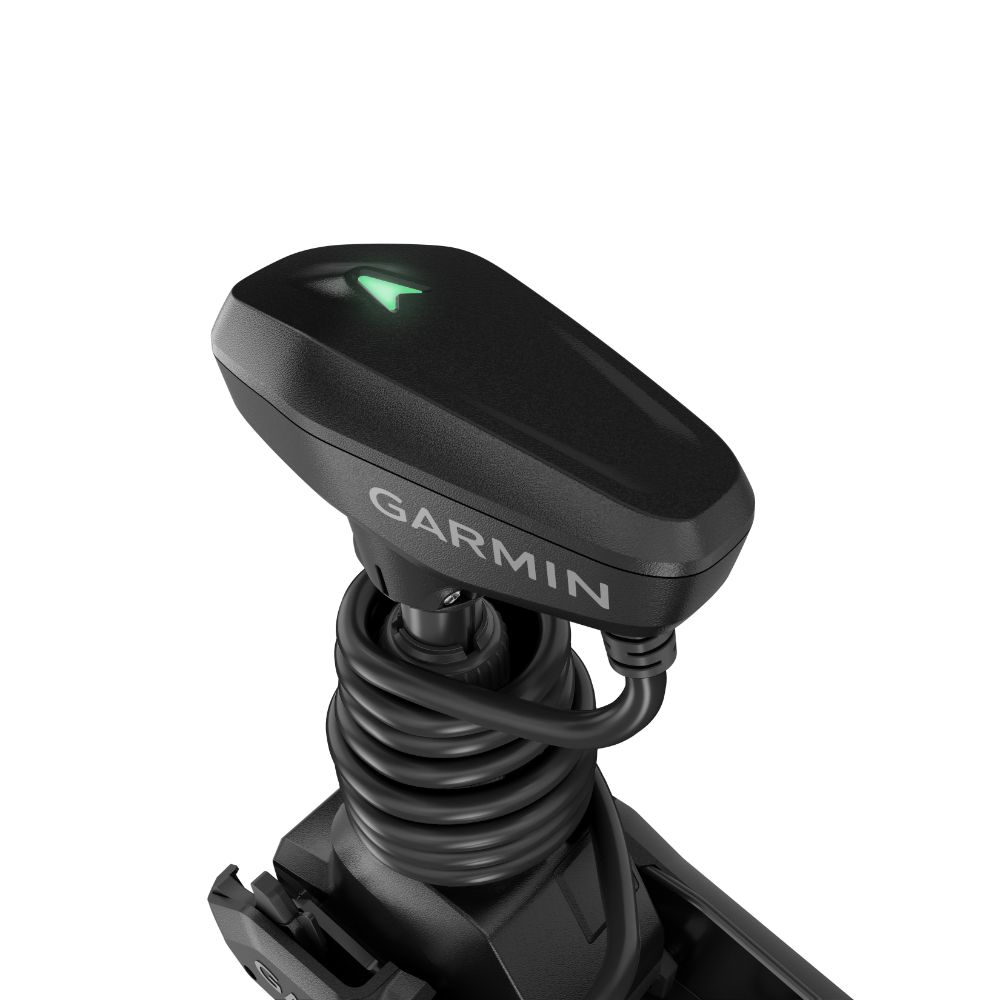

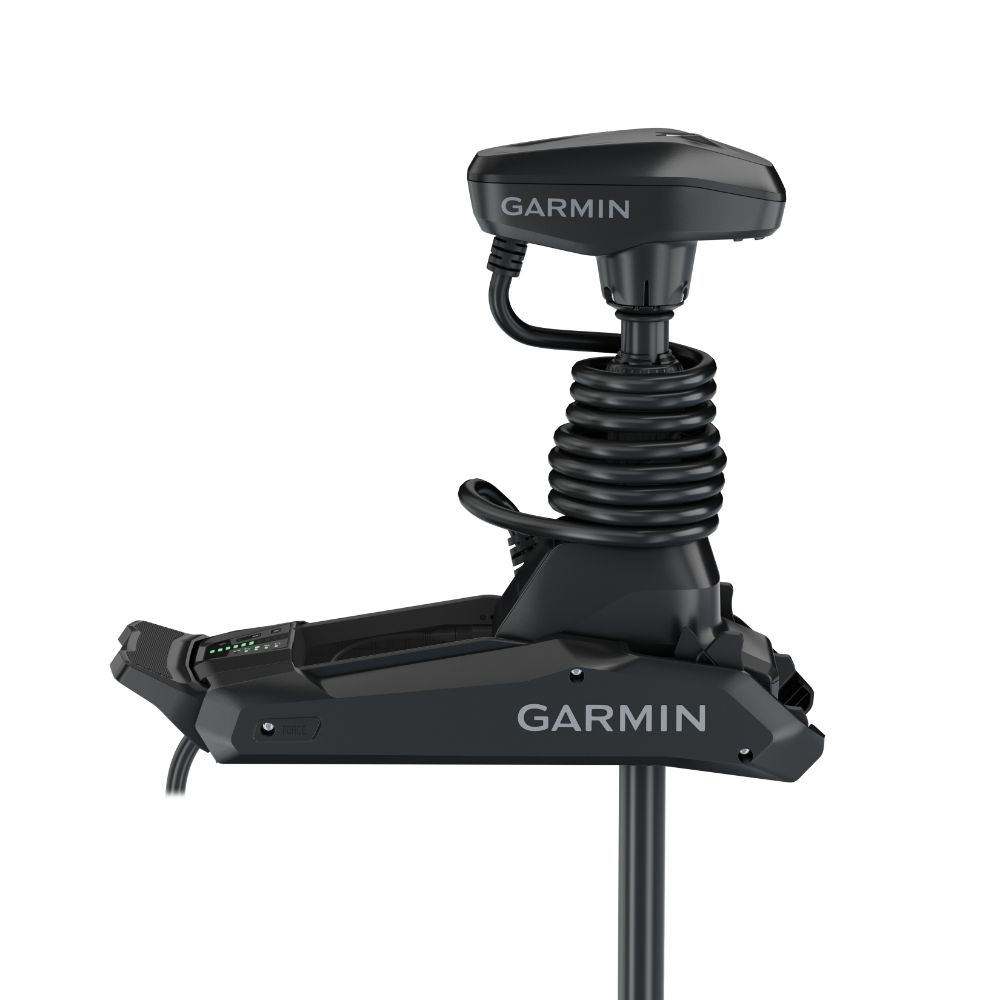

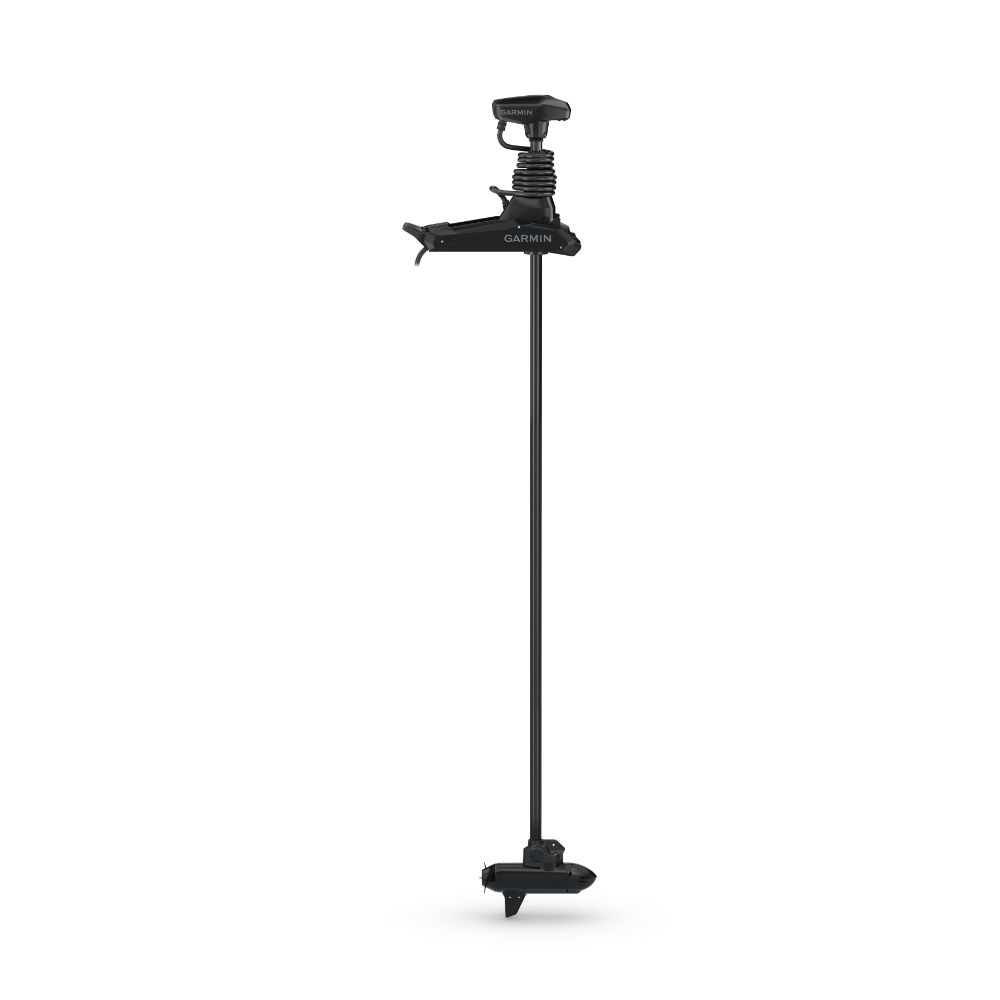

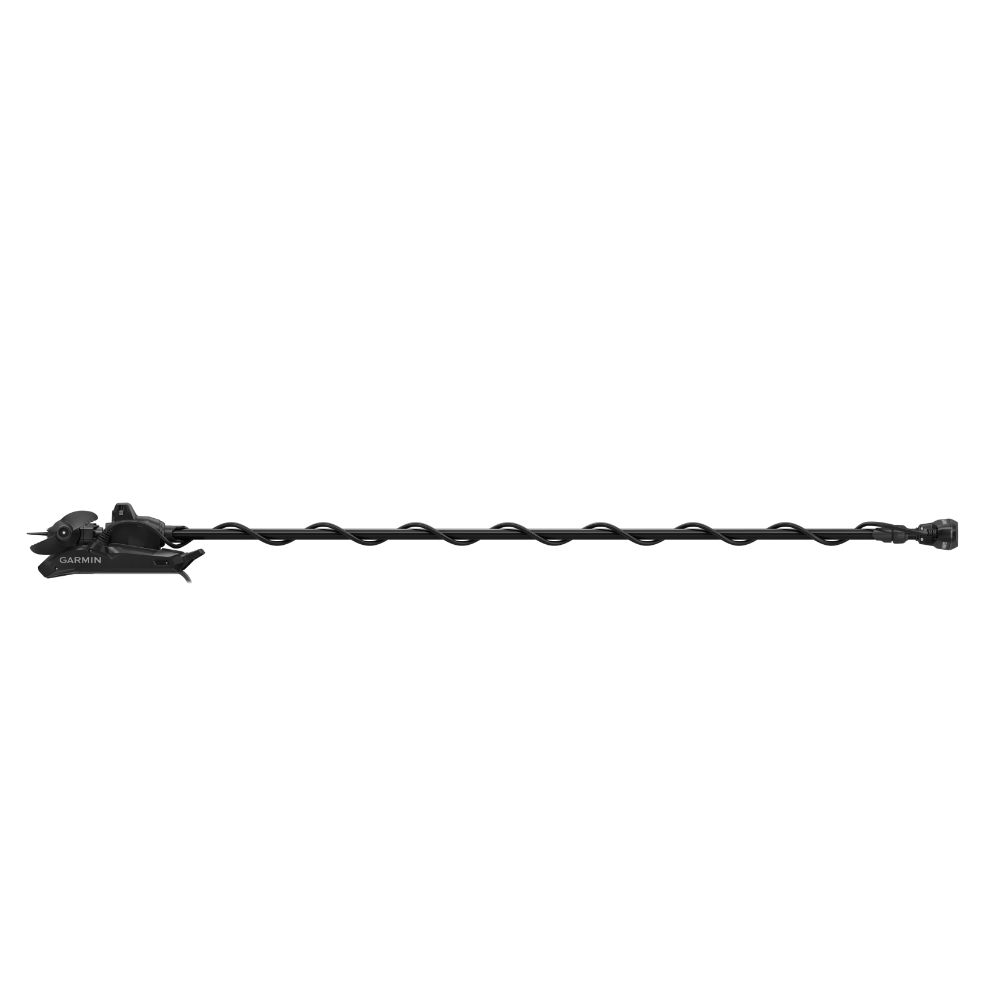

Garmin Force Kraken Trolling Motor - Black 110"
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
- Legendary power and performance - 100lbs of thrust
- Wireless integration with Garmin Chartplotters
- Stay on the fish with anchor lock and multi-band GPS
- Pivot-style mount for easy installation
- Available in multiple shaft lengths
- Engineered for the harsh saltwater environment
Technical Specifications
X| General | |
|---|---|
| Colour | Black |
| For use in | Freshwater, brackish water and saltwater |
| Mount style | Pivot-style mount |
| Max thrust | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| Voltage | 24 V or 36 V |
| Electric steering | ✓ |
| Built-in heading sensor | ✓ |
| Built-in GPS | Yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | Bow |
| Wireless remote | Yes (included) |
| Power pedal compatible | ✓ |
| Battery indicator | ✓ |
| Variable speed control | Yes (20 steps) |
| Lighted Direction Indicator | ✓ |
| quatix remote control supported | ✓ |
| Manual reverse control | ✓ |
| Sonar features & specifications | |
|---|---|
| LiveScope cable integration | Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
| AutoPilot features | |
|---|---|
| Route following | ✓ |
| Anchor lock | ✓ |
| Smart anchor lock features | ✓ |
| Anchor lock jog | ✓ |
| Heading hold | ✓ |
| Cruise control | ✓ |
| Gesture features | Yes (manual+, heading hold+, jog+) |
| Foot pedal features | |
|---|---|
| Dimensions | 12″ L x 9″ W x 4 1/2″ H |
| Remote Features | |
|---|---|
| Display size | 30.2 mm (1.2″) diameter |
| Display resolution | 240 x 240 pixels |
| Display type | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | ✓ |
| Autopilot feature control | ✓ |
| Water rating | IPX7 |
| Battery life | Typical use with backlight at low, 43 weeks |
| Floats | ✓ |
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
What To Love
High Powered - Force Kraken provides legendary power and performance with 100 lbs of thrust1.
Designed to Endure - The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
Power that Lasts - Efficient brushless motor design has longer run times than brushed motors and allows users to focus on fishing - and not running out of battery.
Purpose-built Design - This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
Livescope Sonar Cable Management - Keep the LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).
Perfect for Inshore Boats and Centre Consoles - Get easy installation where bow space is limited, thanks to the pivot-style mount. The multiple shaft lengths accommodate many different boat sizes and deck configurations.
Total Control
Stay Put - The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.
Floating Remote - Use the included remote to help navigate from anywhere in the boat with our simple point -and-go technology.
Smartwatch Inegration - Connect a compatible Garmin smartwatch to control steering, anchor lock and more from the wrist.
Wireless Integration - Connect to a compatible chartplotter to create and follow routes for the trolling motor to follow while fishing.
Whisper Quiet - Don’t spook the fish; the motor is extremely quiet above and below the water.
In The Box
- Force Kraken Trolling Motor
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Stabiliser (included with 90″ and 110″ only)
- Documentation
