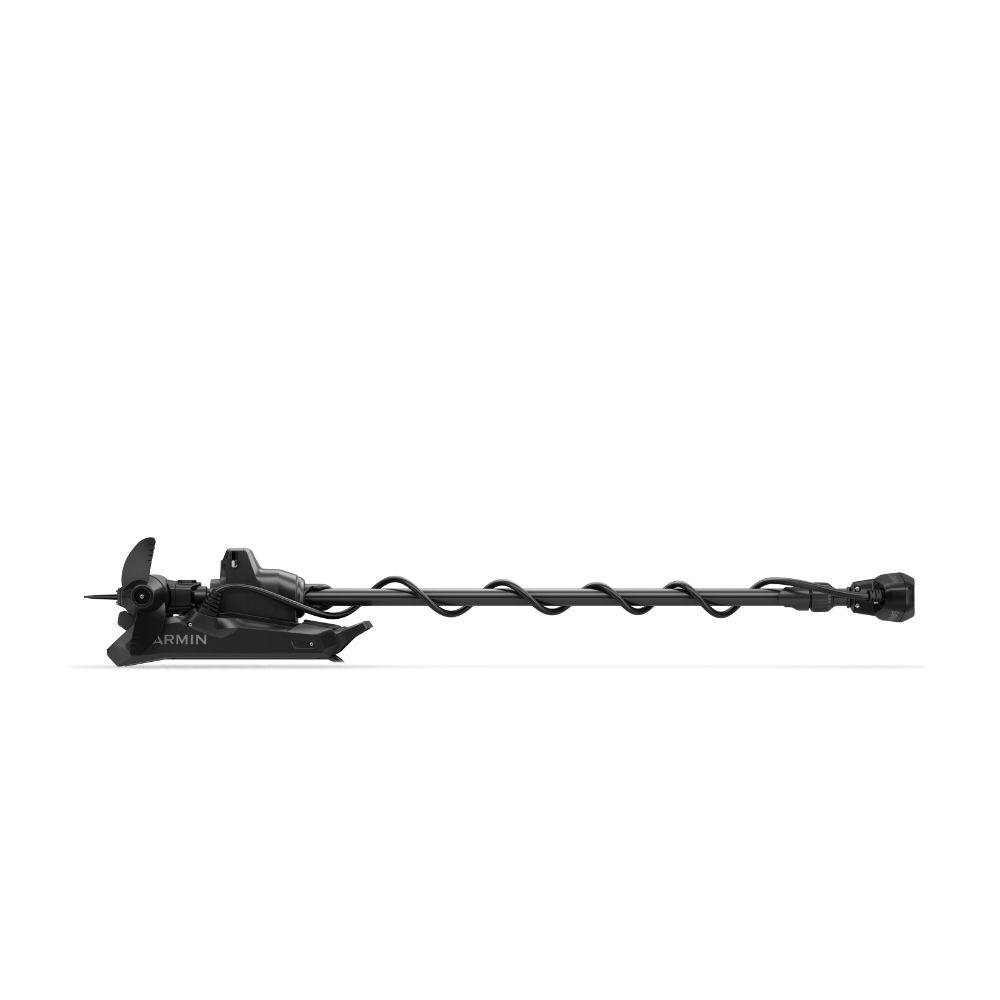

Garmin Force Kraken Trolling Motor - Black 75" with GT56UHD-TR TDX
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited. Get brilliant UHD sonar with the included GT56 transducer.
- The Industry’s most powerful trolling motor; 100 lbs of thrust
- Wireless integration with Garmin chartplotters
- Stay on the fish with anchor lock and multi-band GPS

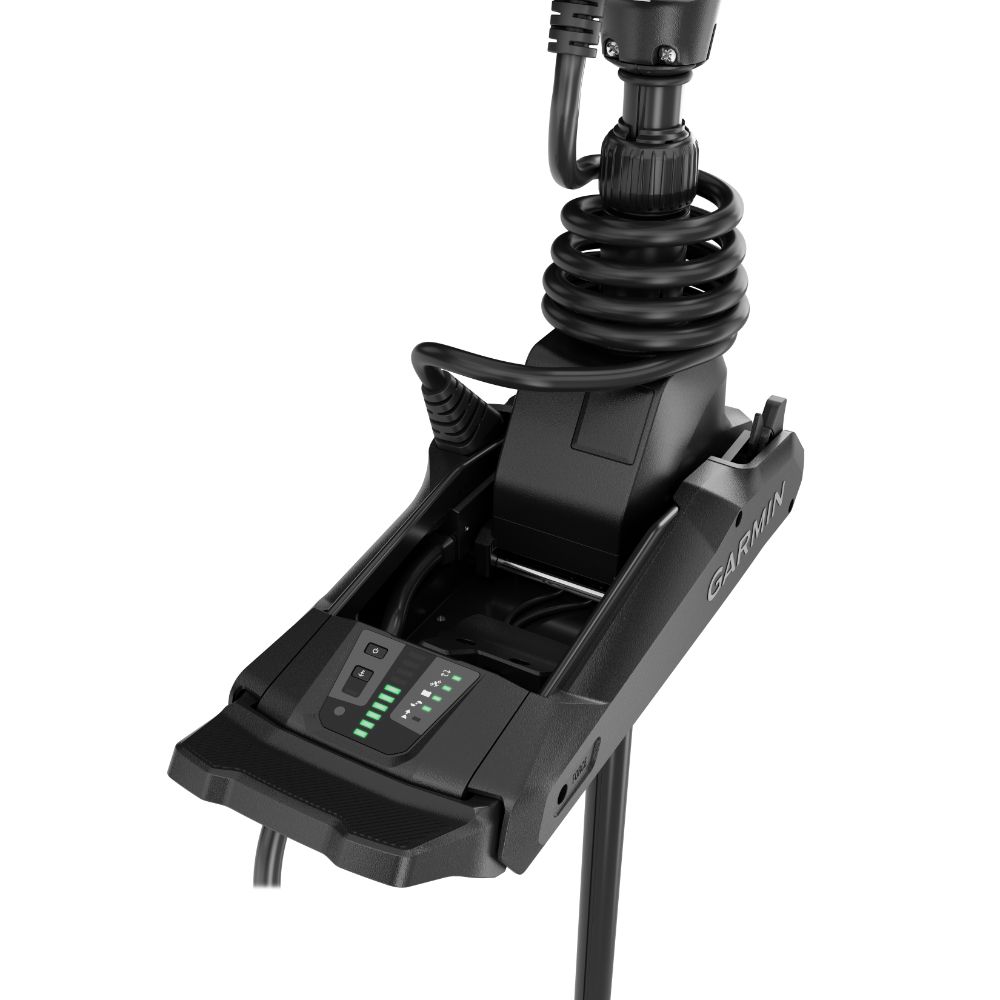

- Pivot-style mount for easy installation
- 75″ shaft length (63" Version also available)
- Seamless cable integration with livescope sonar
- Included Sonar; Get brilliant UHD sonar with the included GT56 transducer.
Technical Specifications
XGeneral | |
---|---|
Colour | Black |
For Use In | Freshwater, Brackish Water and Saltwater |
Mount Style | Pivot-style mount |
Max Thrust | 100lbs (per ISO 13342 with high efficiency prop at 36v) 80lbs (per ISO13342 with high efficiency prop at 24v) |
Voltage | 24V or 36V DC |
Electric Steering | ✓ |
Built-In Heading Sensor | ✓ |
Built-In GPS | Yes (dual Frequency GPS) |
Warranty | 3-Year, Limited lifetime on shaft |
Water Rating | IPX7 |
Mounting Location | Bow |
Wireless Remote | Yes (included) |
Foot Pedal Compatible | ✓ |
Battery Indicator | ✓ |
Variable Speed Control | Yes (20 steps) |
Lighted Direction Indicator | ✓ |
Quatix Remote Control Supported | ✓ |
Sonar Features & Specifications | |
---|---|
Frequencies Supported | CHIRP sonar: High-wide CHIRP (150-240kHz)
ClearVu: 455kHz (425-485kHz), 800kHz (790-850kHz), 1000kHz (940-1100kHz) SideVu: 455kHz (425-485kHz), 800kHz (790-850kHz), 1000kHz (940-1100kHz) |
Transmit Power | Tradional: 350W
ClearVu/SideVu: 500W |
Maximum Depth | CHIRP Sonar: 800'
ClearVu: 400' SideVu: 500' |
Depth / Speed / Temperature | Depth and temperature |
Number of Pins | 12-Pin (Orange Connector) |
LiveScope Cable Integration | Yes (Livescope transducer and Kraken Mounting Bracket required) |
AutoPilot Features | |
---|---|
Route Following | ✓ |
Anchor Lock | ✓ |
Anchor Lock Jog | ✓ |
Heading Hold | ✓ |
Cruise Control | ✓ |
Gesture Features | Yes (Manual+, Heading hold+, Jog+) |
Foot Pedal Features | |
---|---|
Dimensions | 12" x 9" x 4.5" |
Wireless Communication | ✓ |
Power Installation | 12V/24V/36V Wired or Battery Powered (2xAA) |
AA Battery Life | 1 Full season |
Water Rating | IPX7 |
Adjustable Pedal Resistance | ✓ |
Remote Features | |
---|---|
Display Size | 30.4mm diameter (1.2") |
Display Resolution | 240 x 240 pixels |
Display Type | Colour, sunlight-visible transflective memory-in-pixel (MIP) |
Chartplotter User-Programmable Keys | ✓ |
AutoPilot Feature Control | ✓ |
Water Rating | IPX7 |
Battery Life | 43.2 weeks (Typical use with low backlight) |
Floats | ✓ |
There’s A New Legend To Behold
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
What You'll Love
High powered - With 100 lbs of thrust, Force Kraken is the most powerful trolling motor on the market.

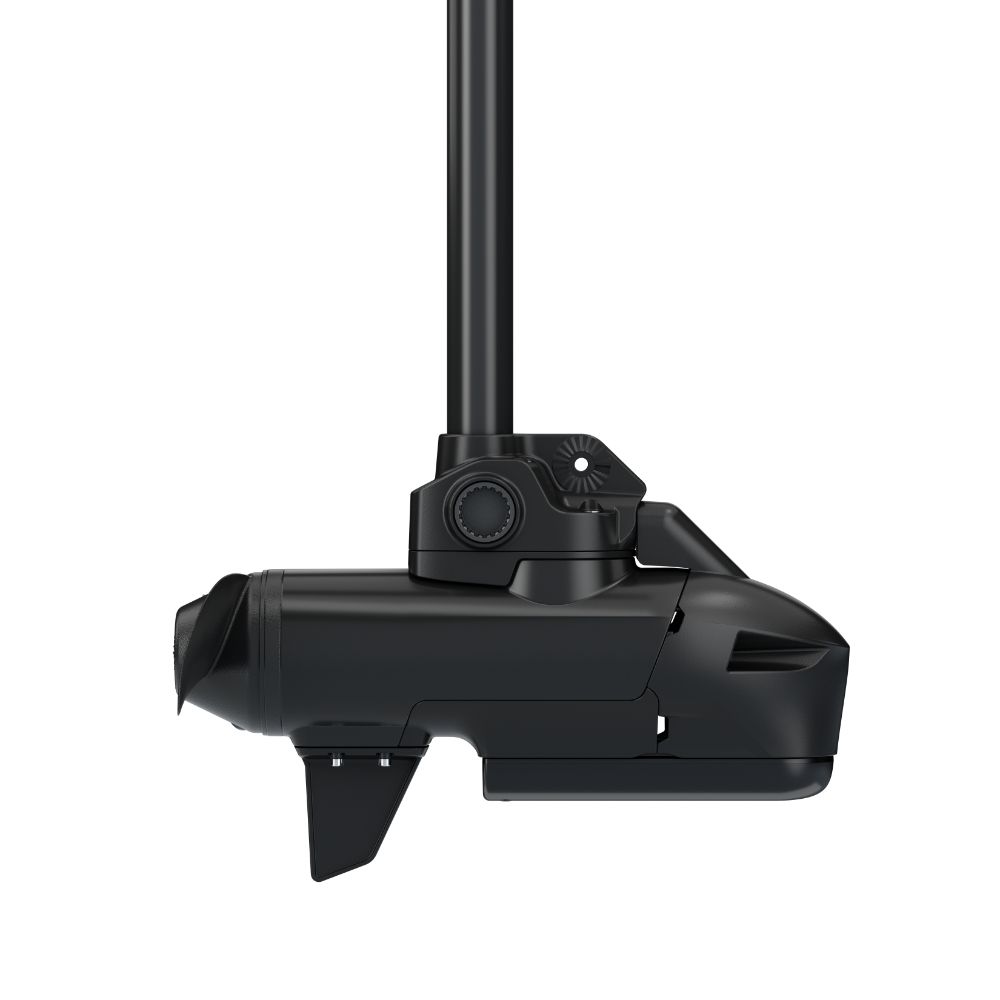

Power that lasts - Efficient brushless motor design has longer run times than brushed motors and allows users to focus on fishing - and not running out of battery.
Whisper quiet - Don’t spook the fish; the motor is extremely quiet above and below the water.
Purpose-Built Design - This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
Designed to endure - The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
Perfect for deep V Hulls - Get easy installation where bow space is limited, thanks to the pivot-style mount. The 63″ and 75″ shaft lengths accommodate many different boat sizes and deck configurations.
Total Control
Stay put - The anchor lock provides Garmin's most precise boat positioning technology to help keep the boat in one place.
Floating Remote - Use the included remote to help navigate from anywhere in the boat with simple point and go technology.
Smartwatch integration - Connect a compatible Garmin smartwatch to control steering, anchor lock and more.
Wireless integration - Connect to a compatible chartplotter to create and follow routes for the trolling motor to follow while fishing.
Sonar
Included sonar - Get brilliant UHD sonar with the included GT56 transducer.
Ultra high-definition sonar picure - The brushless motor allows for clear sonar returns with extremely low levels of unwanted noise.
LiveScope cable management - Keep the LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).
In The Box
- Force Kraken Trolling motor
- GT56UHD-TR transducer
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
