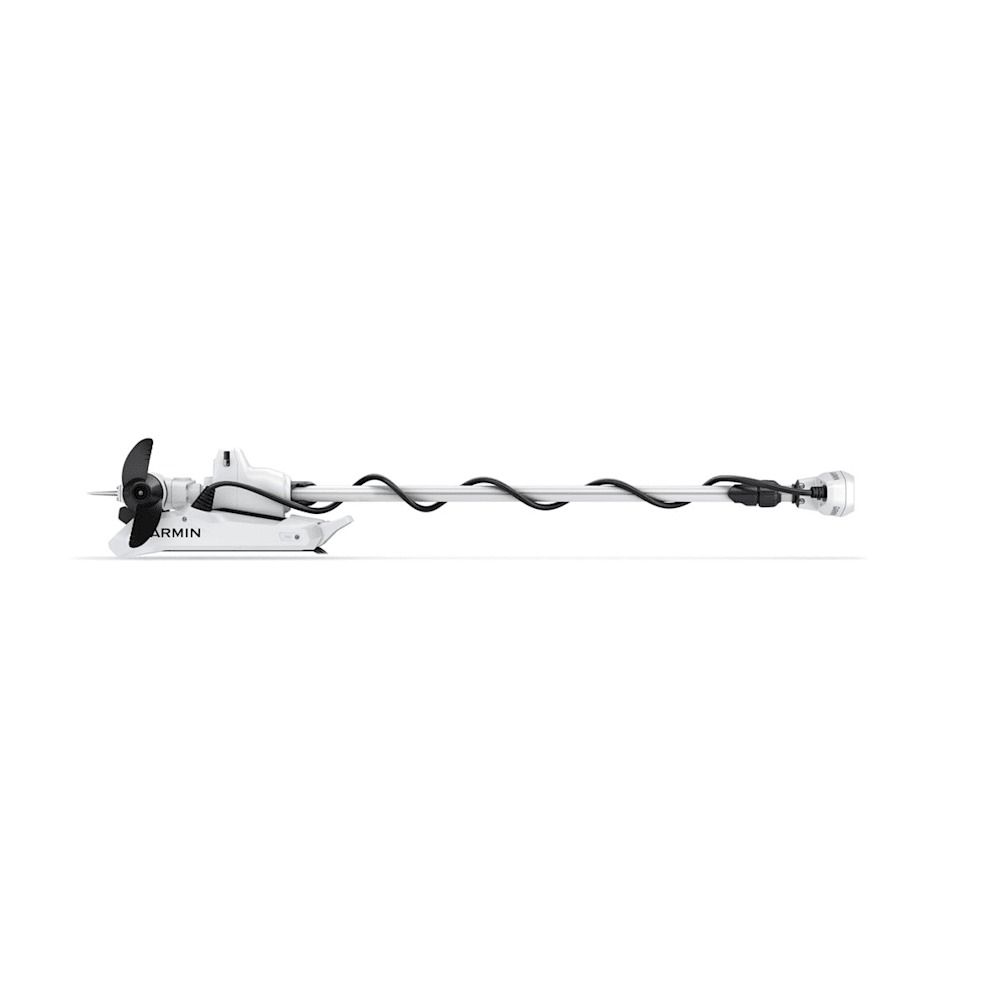

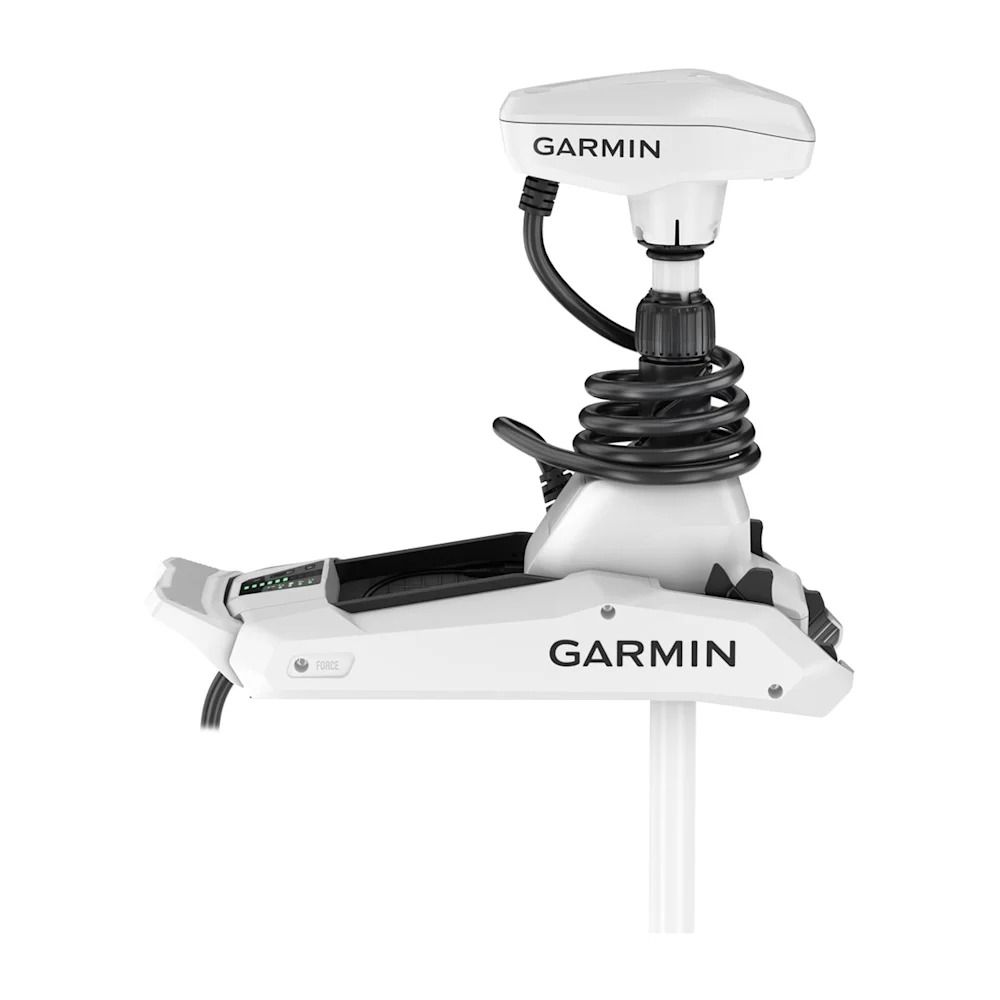

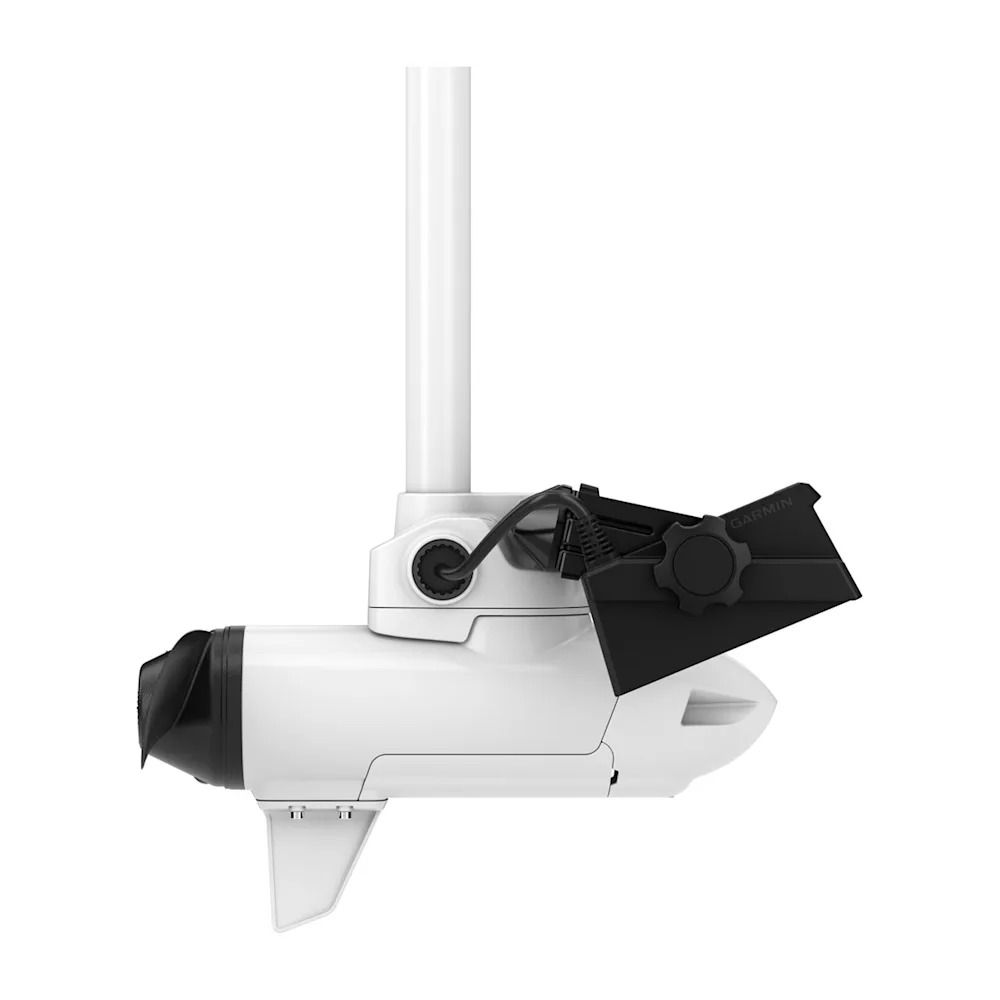

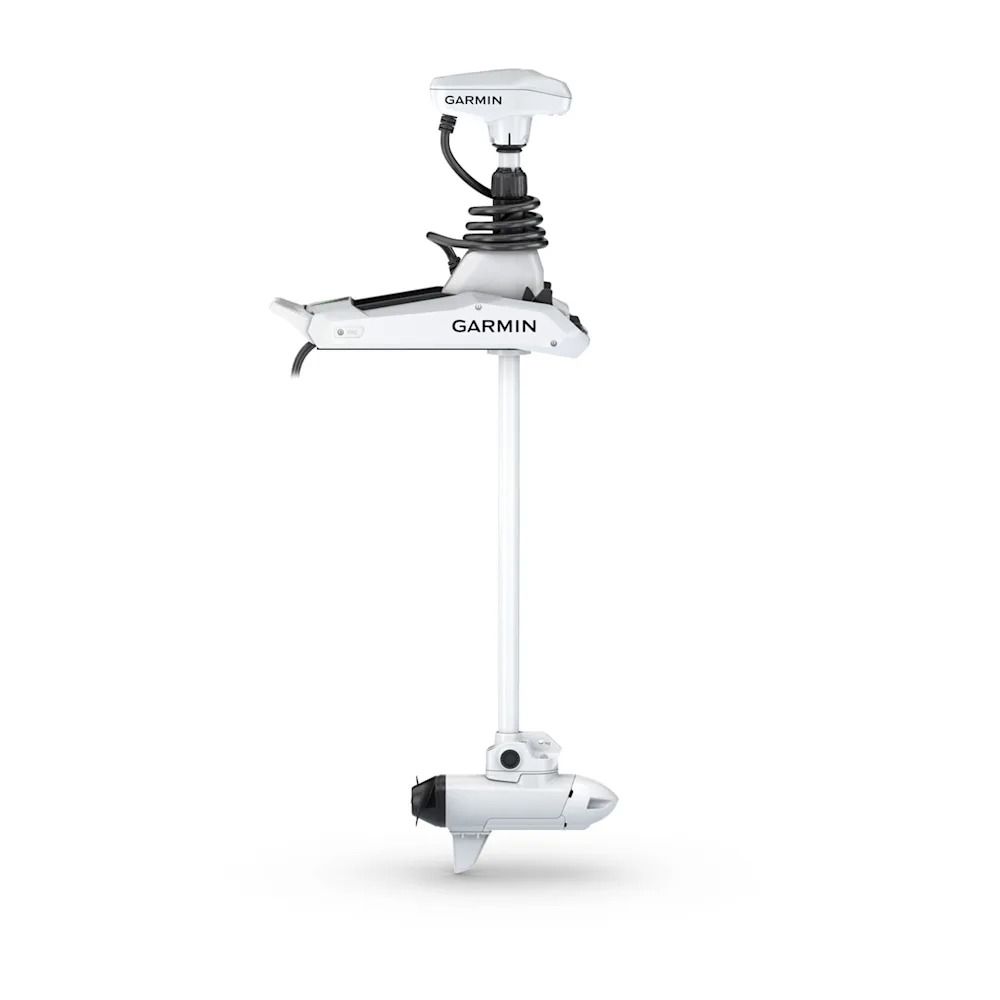

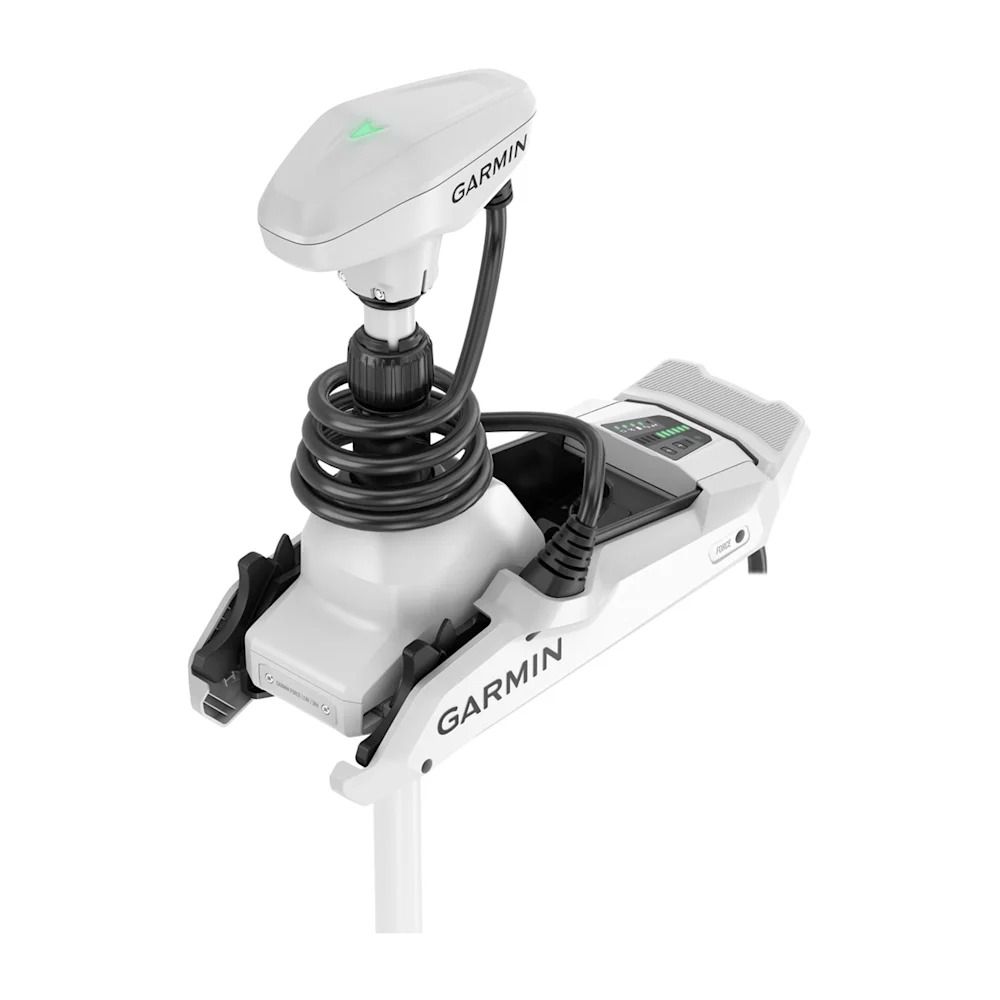

Garmin Force Kraken Trolling Motor - White 48"
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
- Industry’s most powerful trolling motor; 100 lbs of thrust
- Wireless integration with garmin chartplotters
- Stay on the fish with anchor lock and multi-band gps
- Pivot-style mount for easy installation
- 48″ shaft length
- Engineered for the harsh saltwater environment
Technical Specifications
X| General | |
|---|---|
| Colour | White |
| For use in | Freshwater, brackish water, and saltwater |
| Mount Style | Pivot-style mount |
| Max Thrust | 100lbs per ISO 13342 using high efficiency propeller at 36V 80lbs per ISO 13342 using high efficiency propeller at 24V |
| Voltage | 24V / 36V |
| Electric Steering | Yes |
| Built In Heading Sensor | Yes |
| Built In GPS | Yes (Dual frequency GPS) |
| Warranty | 3 Year, limited lifetime on shaft |
| Water Rating | IPX7 |
| Mounting location | Bow |
| Wireless Remote | Yes (Included) |
| Foot Pedal Compatible | Yes |
| Battery Indicator | Yes |
| Variable Speed Control | Yes (20 Steps) |
| Lighted Direction Indicator | Yes |
| Deck Stabiliser | No |
| Quatix Remote Control Supported | Yes |
| Sonar Features & Specifications | |
|---|---|
| Livescope Cable Integration | Yes |
| AutoPilot Features | |
|---|---|
| Route Following | Yes |
| Anchor Lock | Yes |
| Anchor Lock Jog | Yes |
| Heading Hold | Yes |
| Cruise Control | Yes |
| Gesture Features | Yes (Manual+, Heading hold+, Jog+) |
| Foot Pedal Features | |
|---|---|
| Dimensions | 12" x 9" x 4.5" |
| Wireless Communication | Yes |
| Power Installation | 12/24/36V Wired or battery powered (2 AA) |
| AA Battery Life | 1 Full season |
| Water Rating | IPX7 |
| Adjustable Pedal Resistance | Yes |
| Remote Features | |
|---|---|
| Display Size | 30.4mm (1.2") |
| Display Resolution | 240 x 240 pixels |
| Display Type | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter User-Programmable Keys | Yes |
| AutoPilot Feature Control | Yes |
| Water Rating | IPX7 |
| Battery Life | 43.2 Weeks (Typical use with backlight at low) |
| Floats | Yes |
Here’s A New Legend To Behold
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
What to Love
High Powered - With 100 lbs of thrust, Force Kraken is the most powerful trolling motor on the market.
Designed To Endure - The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
Power That Lasts - Efficient brushless motor design has longer run times than brushed motors and allows users to focus on fishing and not running out of battery.
Purpose-Built Design - This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
Livescope Sonar Cable Management - Keep the LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).
Perfect For Bay Boats and Ceter Consoles - Get easy installation where bow space is limited, thanks to the pivot-style mount. The 48″, 63″, 75″ and 90″ shaft lengths accommodate many different boat sizes and deck configurations.
Total Control
Stay Put - The anchor lock provides Garmin's most precise boat positioning technology to help keep the boat in one place.
Floating Remote - Use the included remote to help navigate from anywhere in the boat with Garmin's simple point and go technology.
Smartwatch Integration - Connect a compatible Garmin smartwatch to control steering, anchor lock and more from the watch.
Wireless Integration - Connect to a compatible chartplotter to create and follow routes for the trolling motor to follow while fishing.
Whisper Quiet - Don’t spook the fish; the motor is extremely quiet above and below the water.
In The Box
- Force Kraken Trolling motor
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
