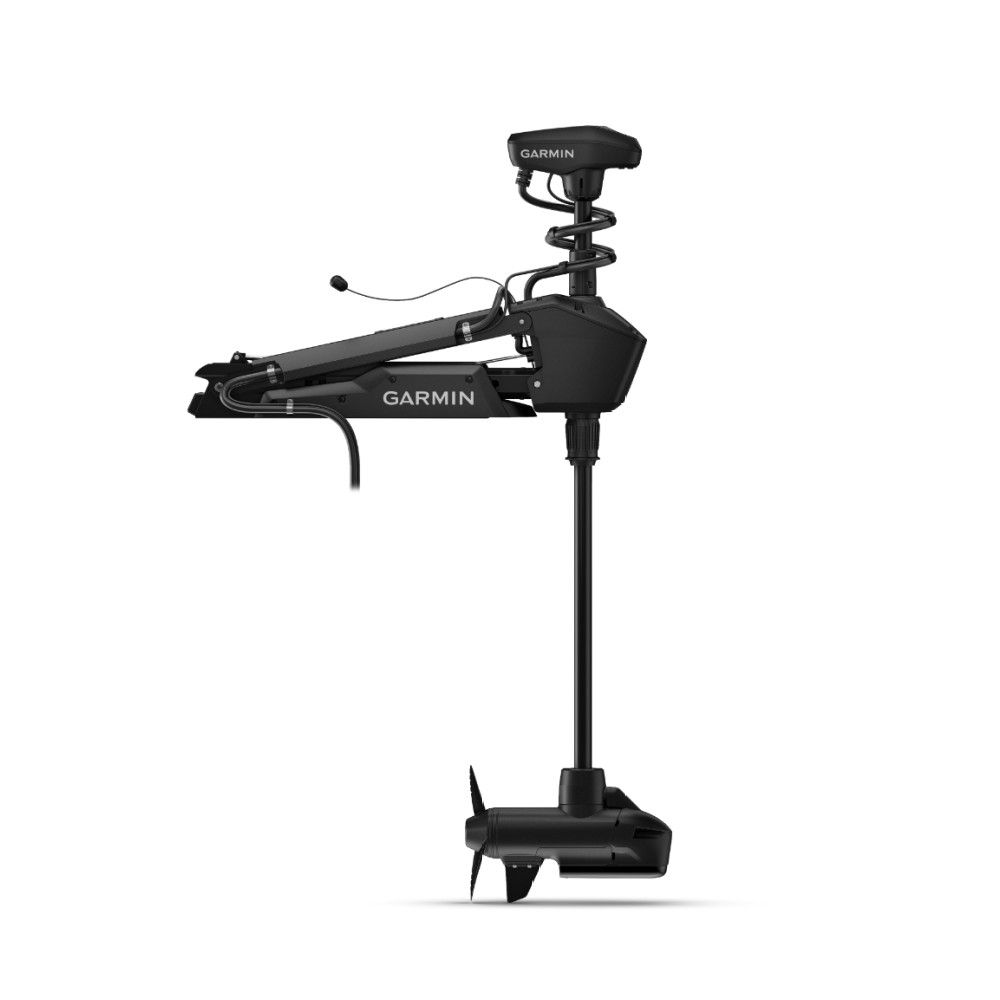

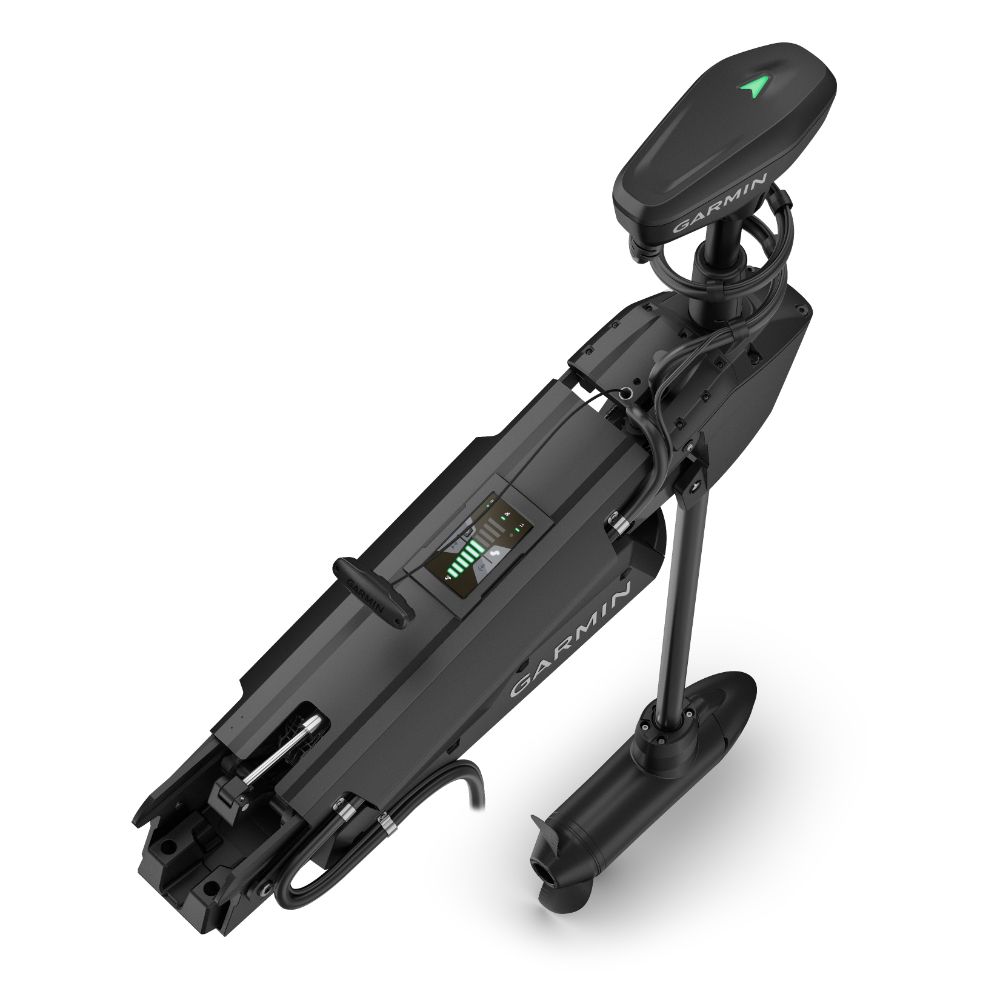

Garmin Force Pro Trolling Motor - Black 50" With GT56UHD Transducer
Move fast, move quiet with the Force Pro trolling motor - engineered with a powerful motor and our most precise positioning technology.
- Improved anchor lock via superior accuracy multi-band GPS
- Legendary power and performance; 100lbs of thrust
- Wireless controles; Integrates with Garmin Chartplotters
- Dual gas springs and pull cable for easy deployment and stowing
- Brilliant high-definition scanning sonar
- Available in 50 Inch and 57 Inch shaft lengths
Technical Specifications
X| General | |
|---|---|
| Colour | Black |
| For use in | Freshwater, Brackish Water, & Saltwater |
| Mount Style | Scissor-style mount |
| Max thrust | 100 lbs per ISO 13342 using high efficiency propeller at 36V
80 lbs per ISO 13342 using high efficiency propeller at 24V |
| Voltage | 24V or 36V |
| Electric Steering | Yes |
| Lift Assist | Dual gas springs |
| Built-in heading sensor | Yes |
| Built-in GPS | Yes, Dual frequency GPS |
| Warranty | 3 Year, limited lifetime on shaft |
| Water Rating | IPX7 |
| Mounting location | Bow |
| Wireless Remote | Yes (Included) |
| Foot Pedal Compatible | Yes (Included) |

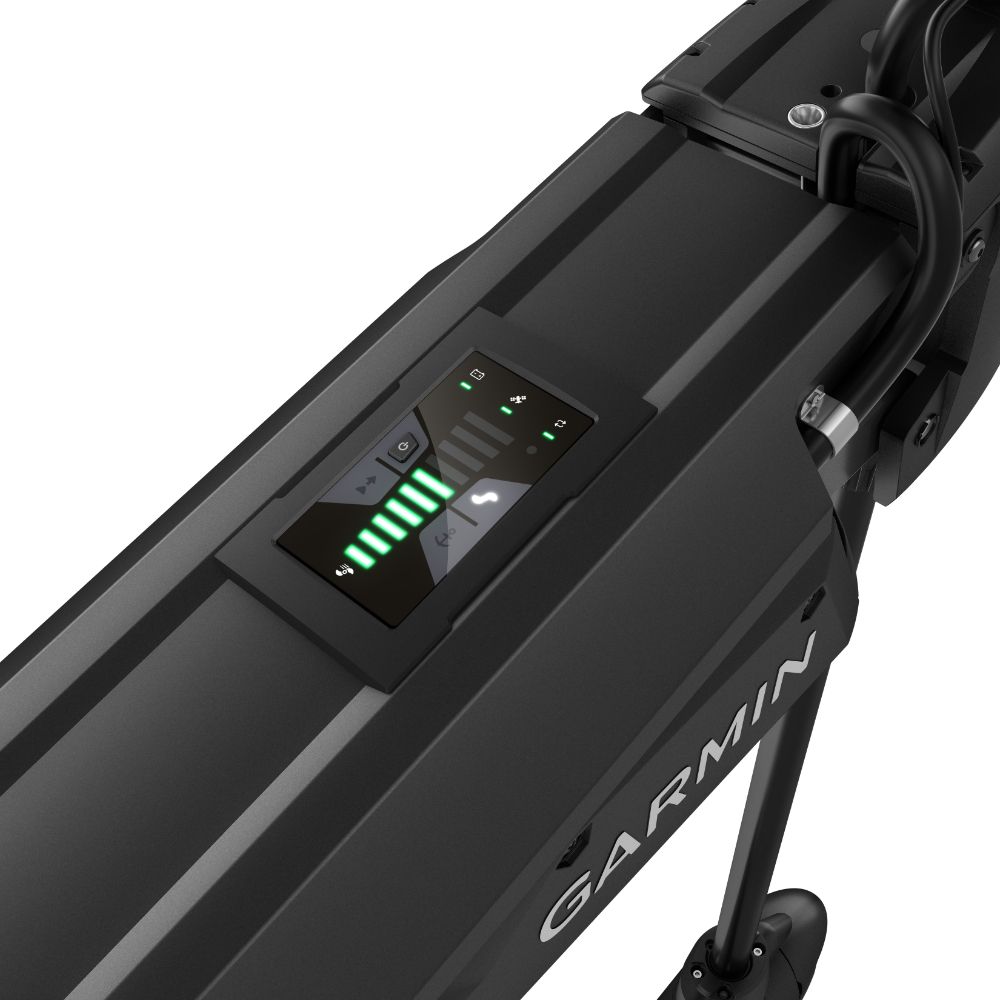

| Battery Indicator | Yes |
| Variable Speed Control | Yes, 20 steps |
| Lighted direction indicator | Yes |
| Deck Stabiliser | Yes (Included) |
| Quatix remote control supported | Yes |
| Manual reverse control | Yes |
| Sonar features & specifications | |
|---|---|
| Frequencies supported | Traditional: High-wide CHIRP (150-240kHz)
ClearVu/SideVu: 455kHz, 1000kHz |
| Transmit power | Traditional: 350W
ClearVu/SideVu: 500W |
| Maximum Depth | CHIRP sonar: 800' freshwater
ClearVu: 400' SideVu: 500' |
| Depth / Speed / Temperature | Depth and Temperature |
| Number of Pins | 12 Pin (Orange connector) |
| AutoPilot features | |
|---|---|
| Route Following | Yes |
| Anchor Lock | Yes |
| Smart anchor lock features | Yes |
| Anchor Lock Jog | Yes |
| Heading hold | Yes |
| Cruise control | Yes |
| Gesture features | Yes (Manual+, Heading hold+, Jog+) |
| Foot pedal features | |
|---|---|
| Dimensions | 12" x 9" x 4.5") |
| Wireless communication | Yes |
| Power installation | 12V/24V/36V Wired or battery powered (2 AA) |
| AA Battery life | 1 full season |
| Water rating | IPX7 |
| Adjustable pedal resistance | Yes |
| Remote features | |
|---|---|
| Display size | 30.2mm (1.2") diameter |
| Display resolution | 240 x 240 pixels |
| Display type | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter User-programmable keys | Yes |
| AutoPilot feature control | Yes |
| Water rating | IPX7 |
| Battery Life | 43 weeks (Typical use with backlight at low) |
| Floats | Yes |
Legendary power and performance

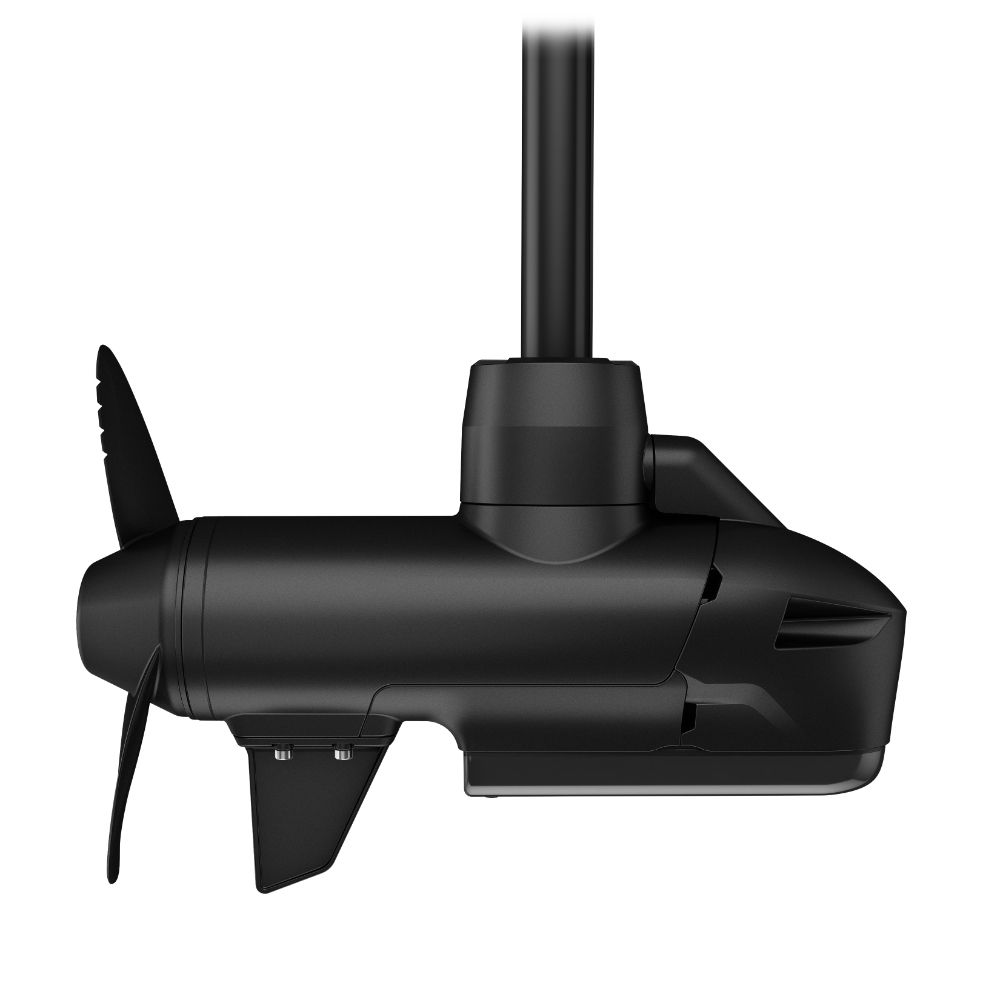

High Powered - The brushless motor on Force Pro provides legendary power and performance, as well as premium efficiency, with 100 lbs of thrust1.
Stay Put - The anchor lock feature provides our most precise boat positioning technology with new multi-band GPS, plus reverse prop spin and calm-water cable unwrap help reduce motor activity.
Built-In Sonar - This trolling motor includes the improved all-in-one GT56UHD-TR transducer, so you can see everything around your boat with brilliant high-definition scanning sonar and extremely low levels of sonar noise.

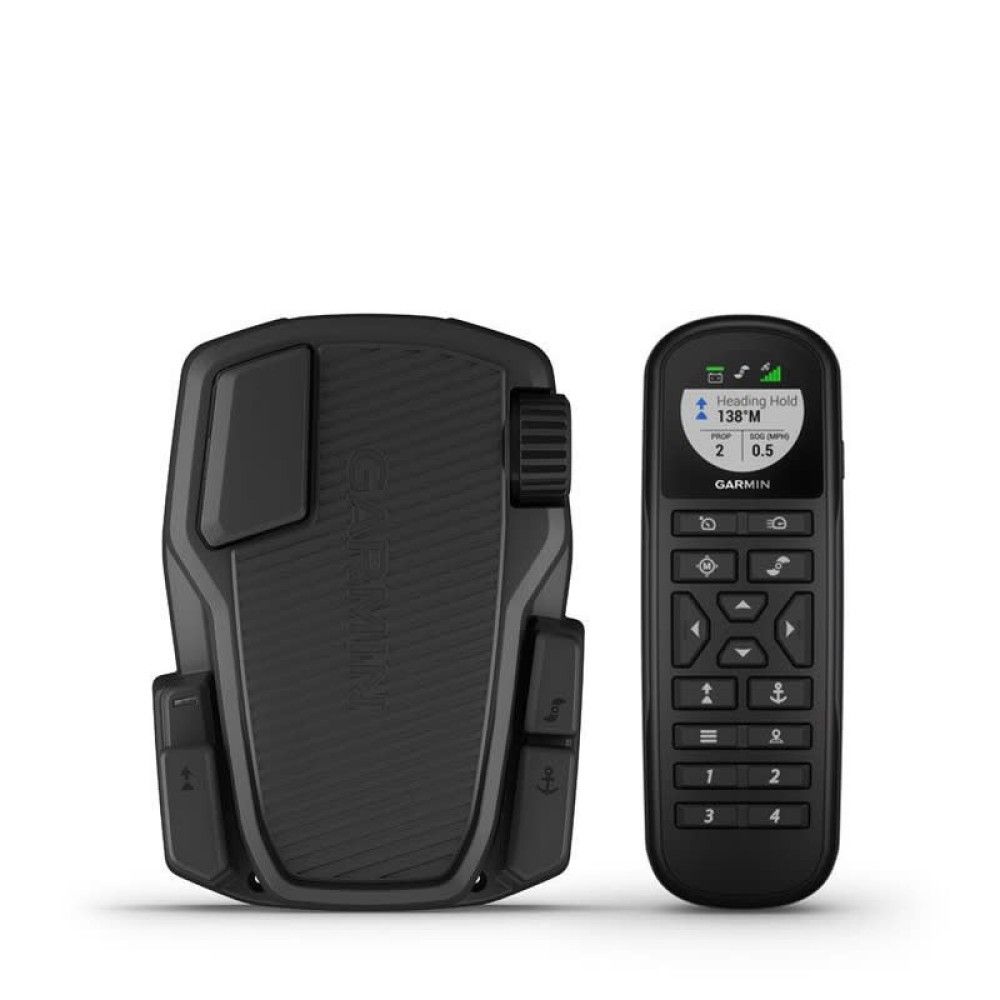

Wireless Control - Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control.

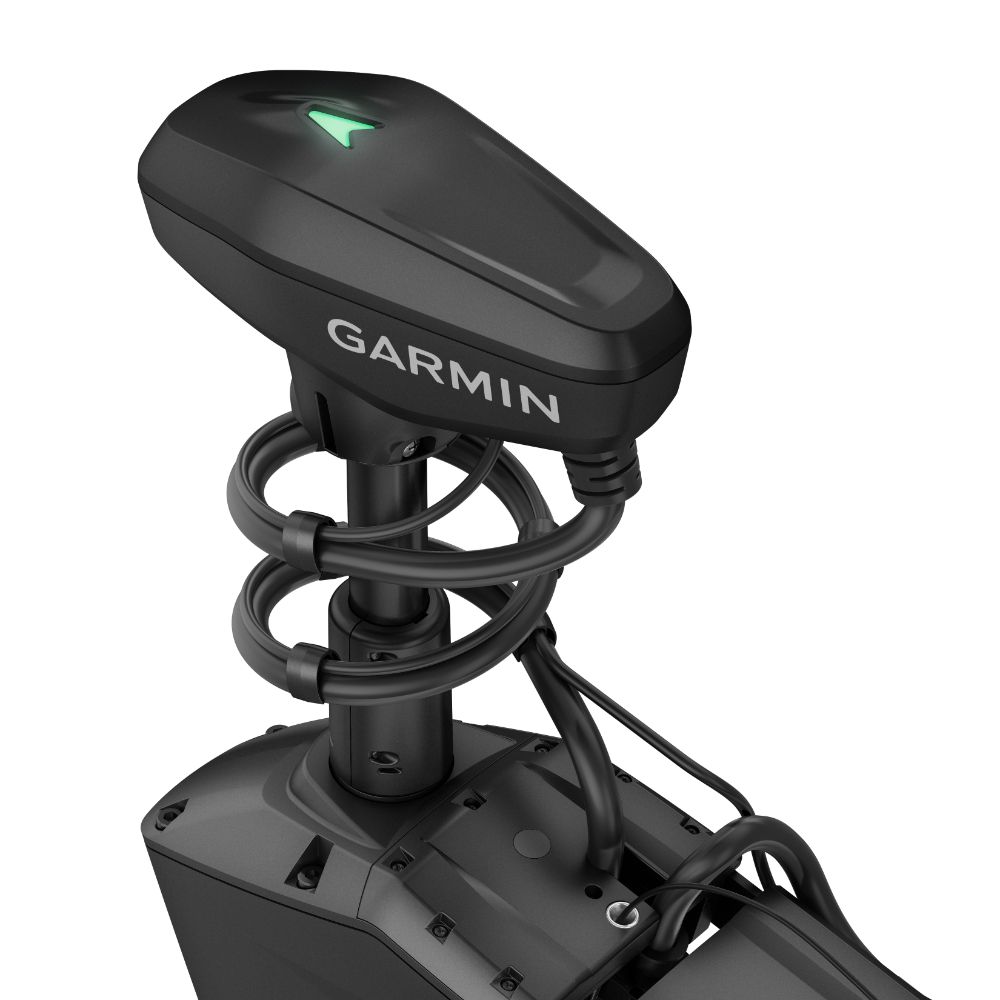

Lighted Indicator - Fish in low light, and always know what direction you’re headed with the lighted indicator on the trolling motor shaft cap.

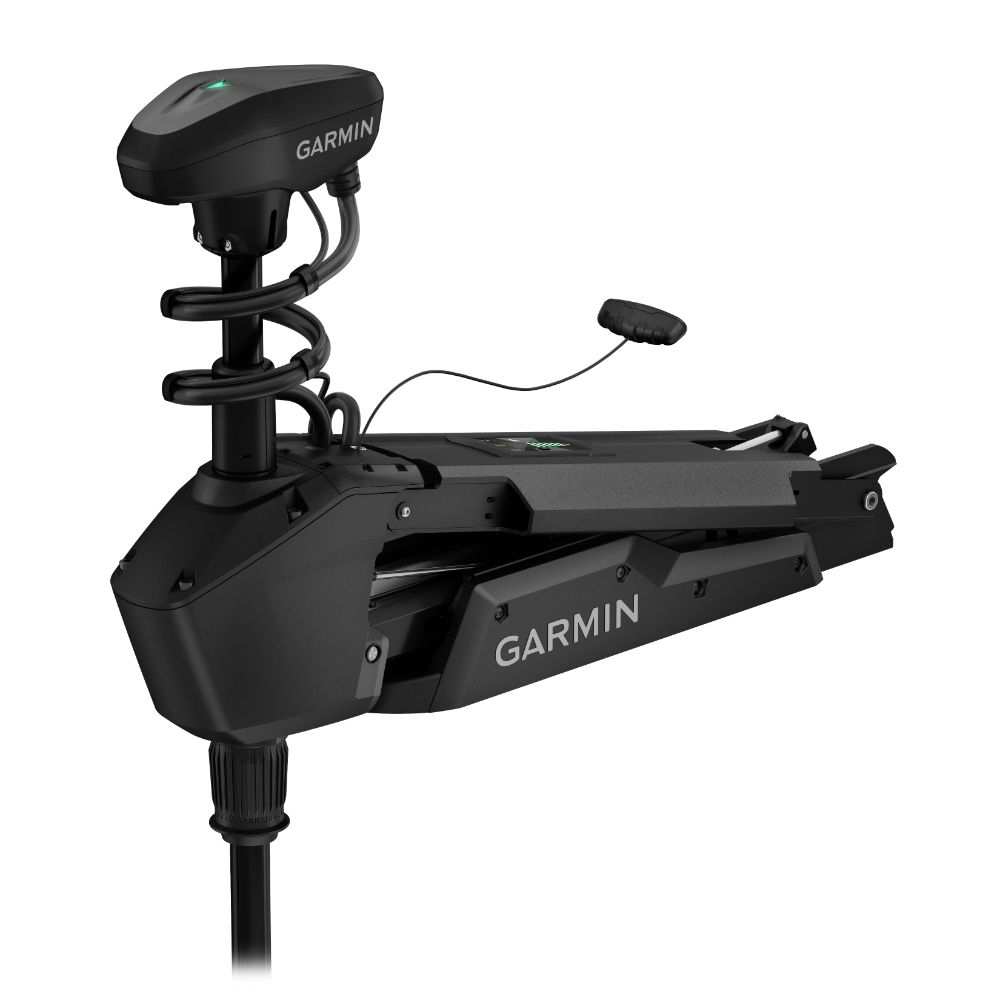

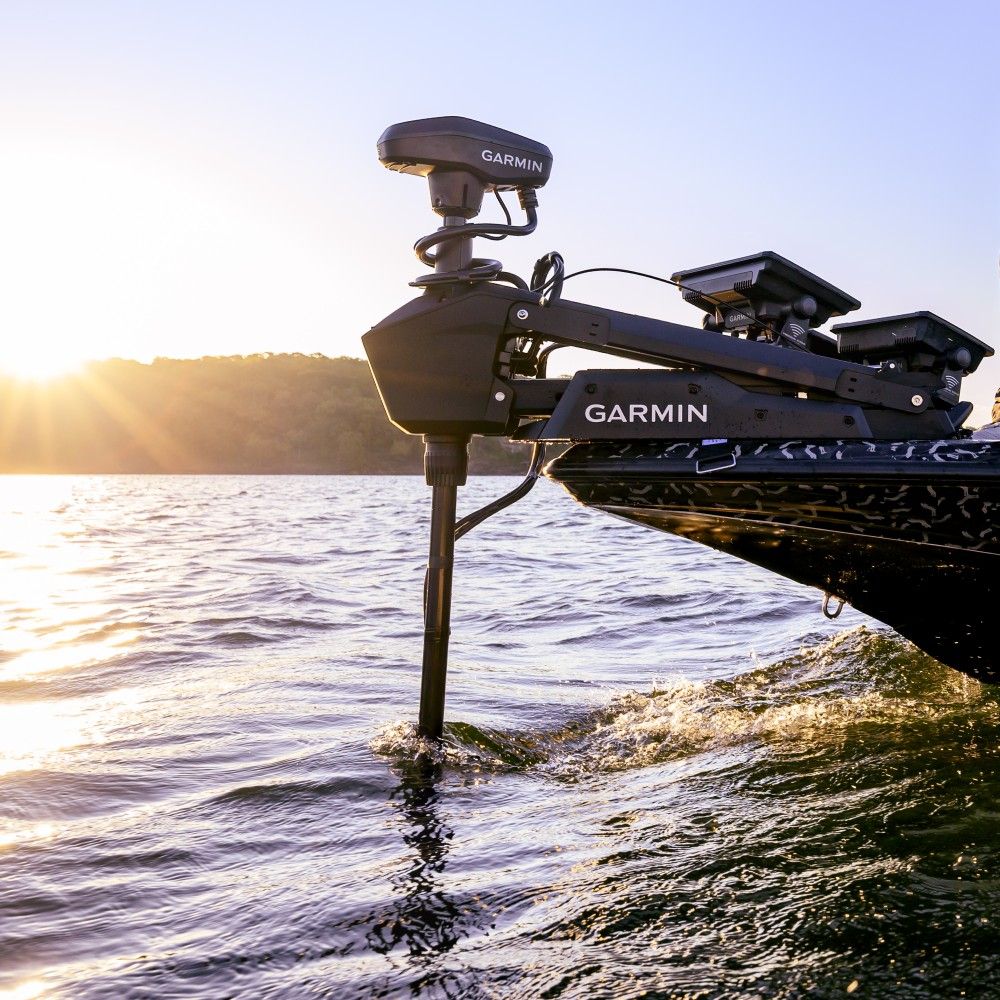

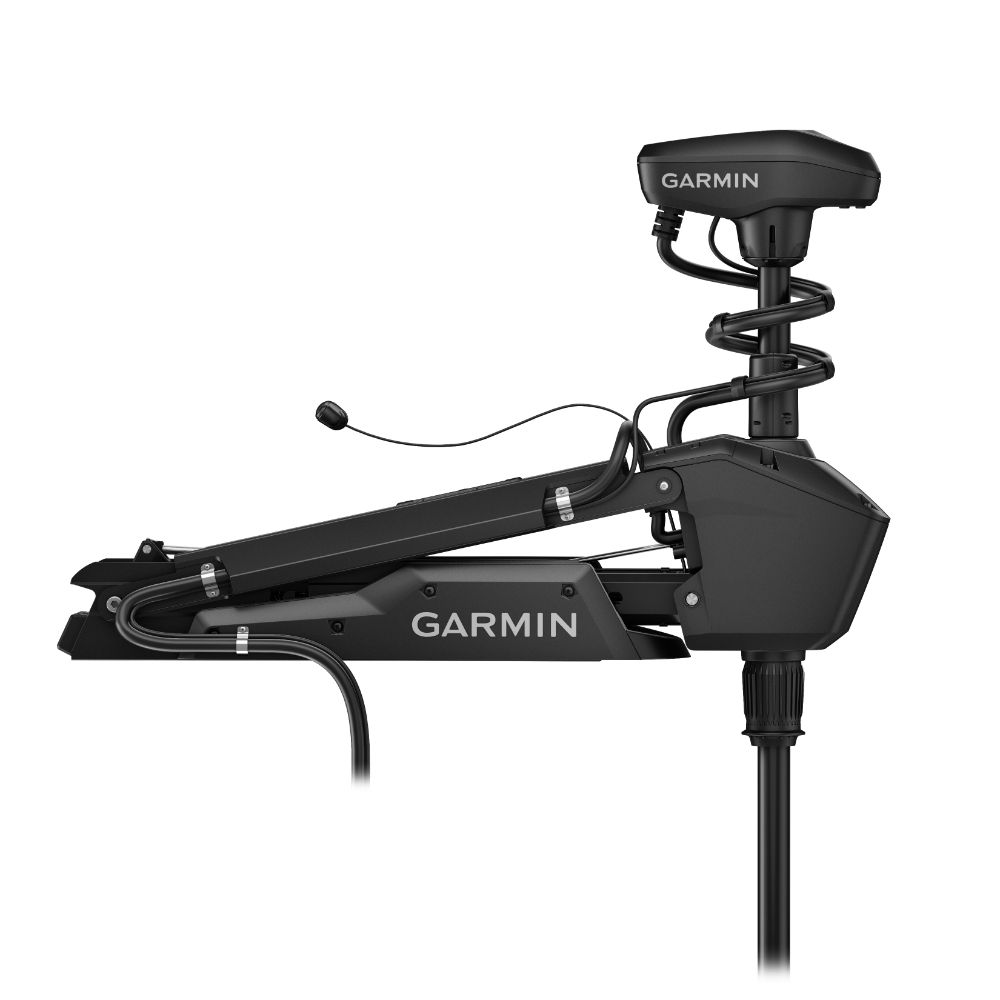

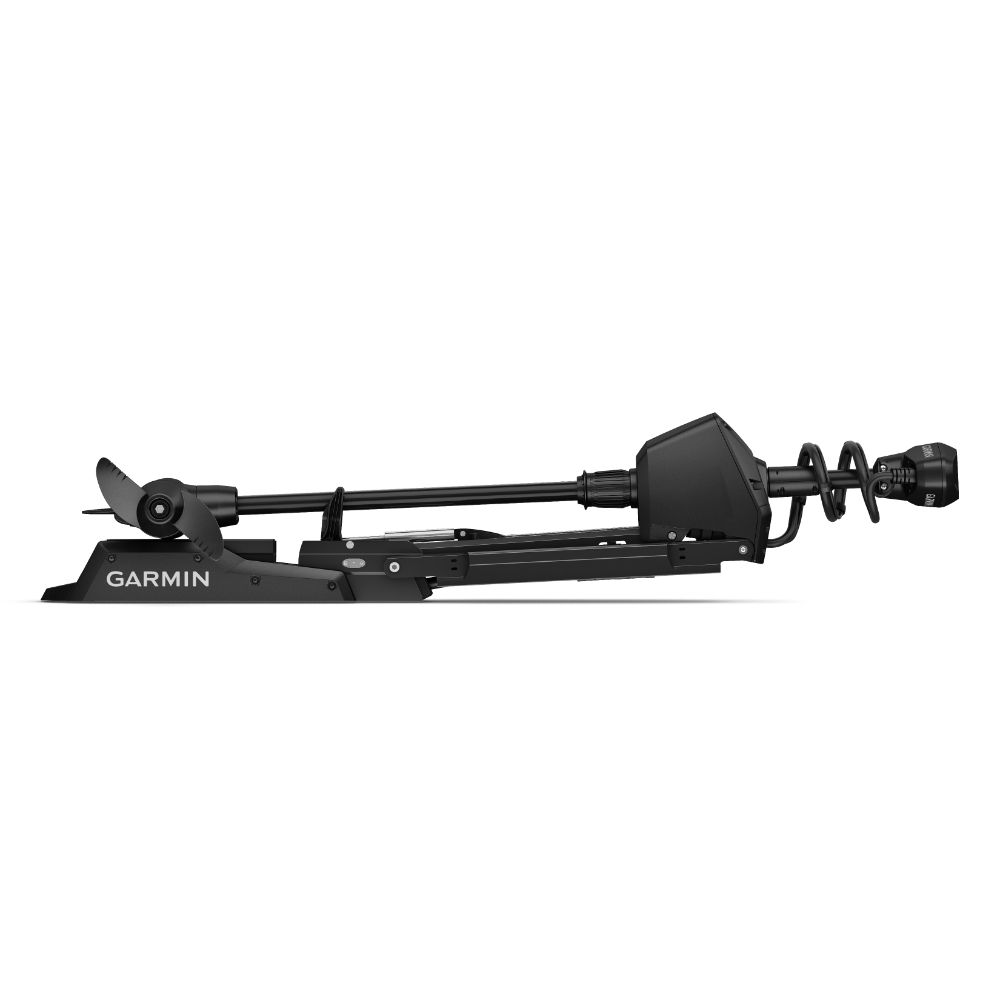

Perfect for Bass Boats - Deploy and stow the motor with ease, thanks to dual gas springs and a durable pull cable. The 50-inch and 57-inch shaft lengths accommodate different boat sizes and deck configurations. And the included weedless and high-efficiency propellers can be easily swapped as needed.
Total Control
Floating Remote - Use the included remote to help you navigate from anywhere in the boat with our simple point-and-go technology.
Smartwatch Integration - Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
Chartplotter Integration - Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.
Whisper Quiet - Don’t spook the fish; the motor is extremely quiet above and below the water.
Designed to endure - The Force Pro trolling motor is built with advanced corrosion and saltwater protection for harsh marine environments.
In The Box
- Force Pro trolling motor
- High efficiency propeller
- Weedless propeller
- Foot pedal
- Remote
- Stabiliser
- Assembly and mounting hardware
- Documentation
