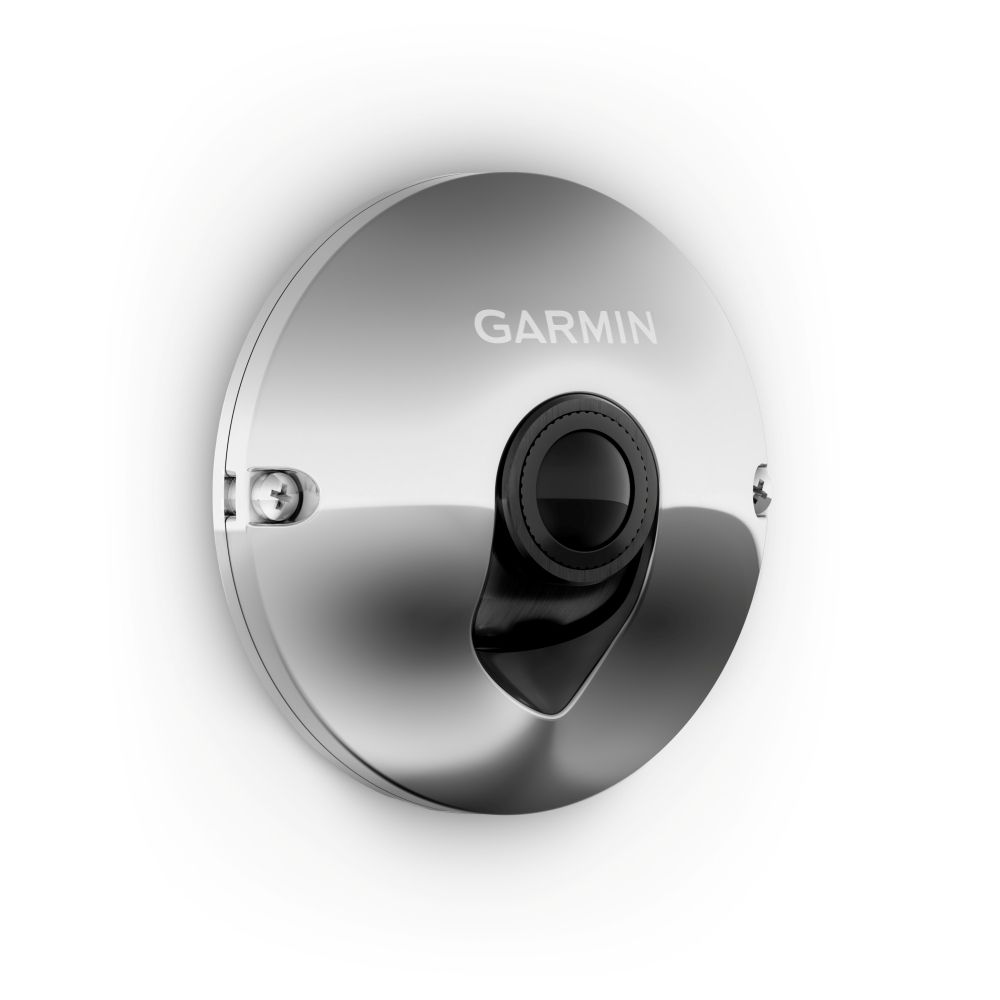

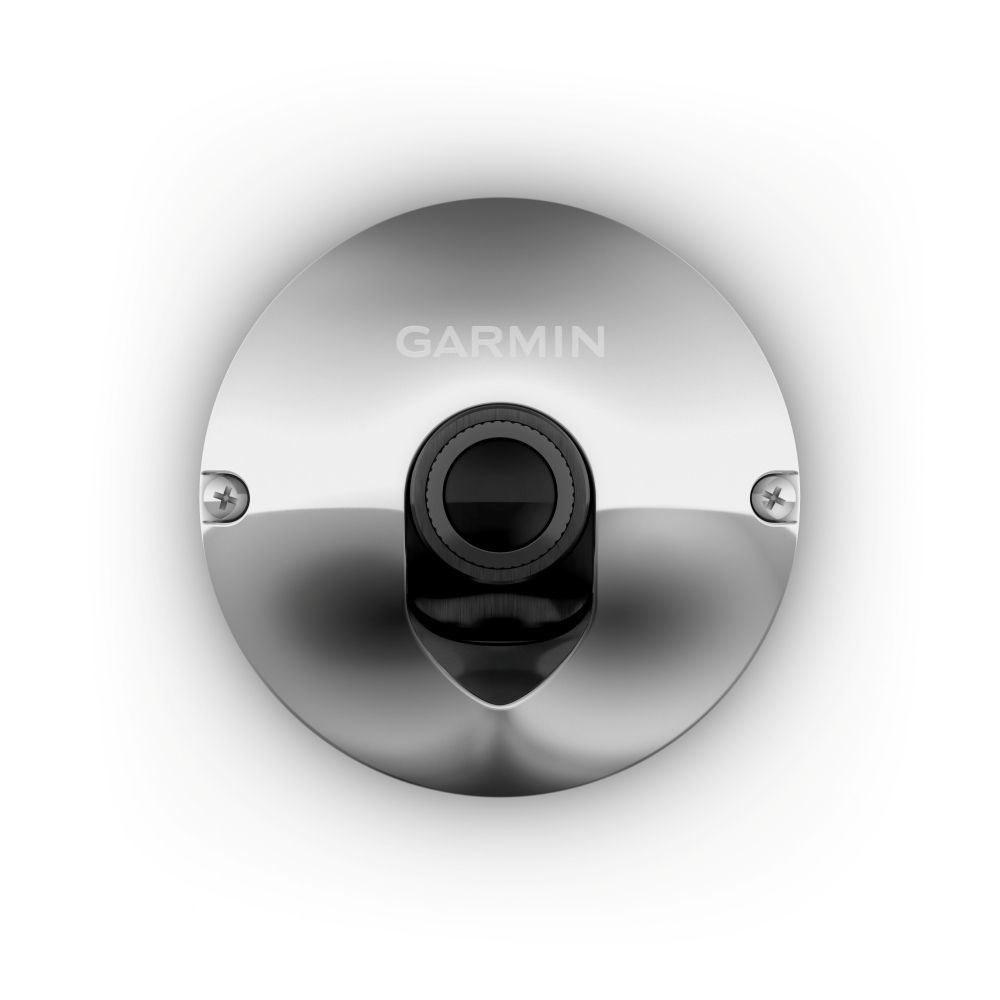

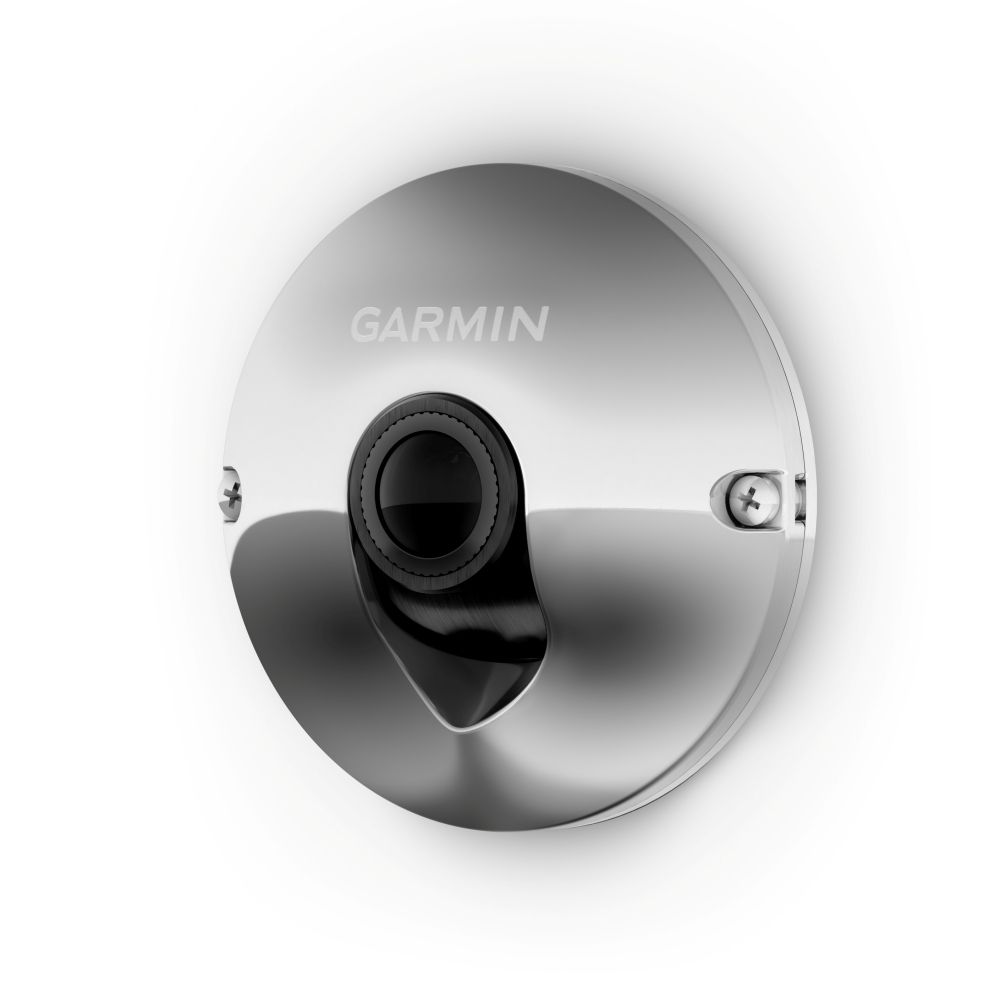

Garmin GC 255 Flush Mount Camera - Stainless Steel
The GC 255 is a high-resolution marine camera that takes the stress out of docking the boat. Enhance proximity awareness and confidence at the dock and in close quarters with the low-profile GC 255 Flush Mount Camera.
- Distance markers specific to the boat and user-defined guidance lines
- 1080P High resolution output
- Durable low-profile stainless steel finish
- See camera feeds in fisheye or standard view. Birdseye view also available with profesional calibration
- Full integration on the Garmin Marine Network or Garmin BlueNet
Specifications
X| General | |
|---|---|
| Unit dimensions | 8.1 x 8.1 x 8.38cm (3.2″ x 3.2″ x 3.3″) |
| Weight | 650g (22.9oz) |
| Hardwire power | 12V/24V |
| Operating current | 300mA at 12VDC, 200mA at 24VDC |
| Power consumption | 4.5W |
| Connection to chartplotter | IP |
| Versatile mounting options | Thru-hull installation |
| Rugged housing | yes (High impact) |
| Install below rub rail | yes |
| Setup | plug-and-play |
| Water rating | IPX7 |
| Video resolution | 1920 x 1080 pixels |
| Video output | H.264 over GMN and BlueNet |
| Images | Standard and reverse |
| Selectable views | FishEye, standard, BirdsEye (OEM calilbrated) |
| Augmented reality features | Distance markers (OEM calibrated) and guidance lines (user setup) |
| Viewing angle | 160° Horizontal, 90° Vertical |
| Operating temperature | -20°C to +60°C |
| Scanning system | Progressive scan |
| Day/night operation | RGB mode full-time |
Guidance Lines - Set up custom guidance lines for more confidence avoiding obstacles in the marina.
Distance Markers - Use distance markers calibrated to the vessel by the boatbuilder to know how far away the boat is from objects.
Rugged Installation - Thru-hull flush mounting ensures sleek and rugged installation
Three Camera Views - Get the right perspective with FishEye and standard views with impressive low-light performance. The GC 245 is also available with BirdsEye camera view.
Multiple Camera Feeds - See up to four camera feeds simultaneously on acompatible MFD. Watch the video on networked chartplotters, or set it up on a custom combo page.
See What You Want - Take a closer look with digital zoom, or get a different perspective with digital pan.
In The Box
- GC 255 flush-mount camera

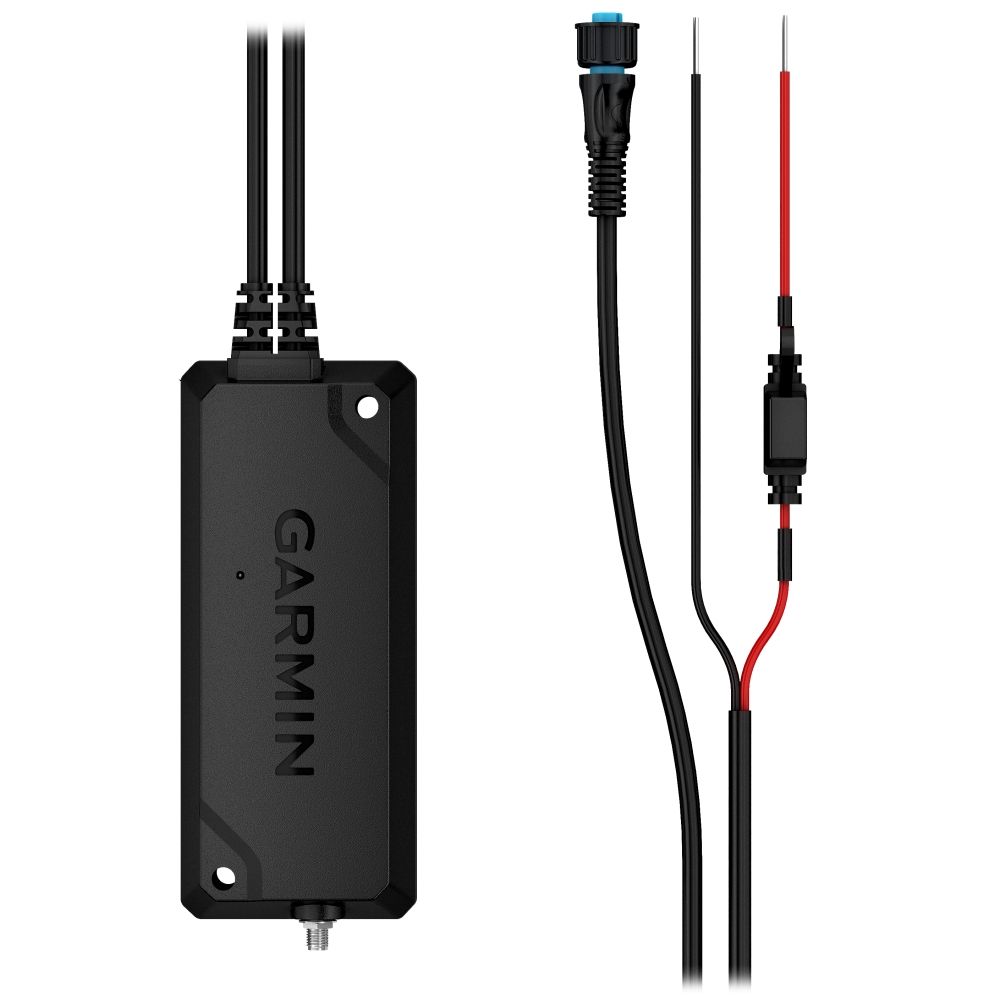

- GVA 10 with integrated power and network cables
- Network adapter cable (500 mm)
- Video coaxial cable (8 m)
- Mounting hardware
- Documentation
