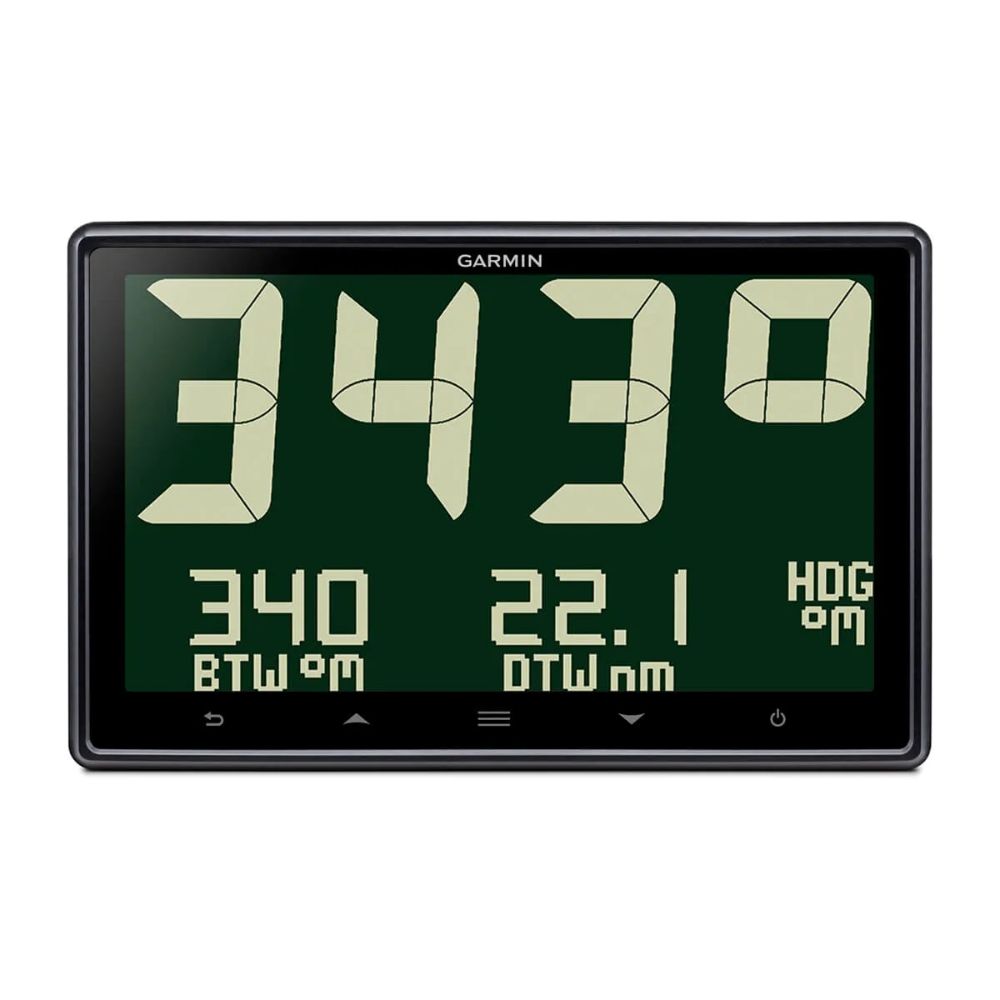

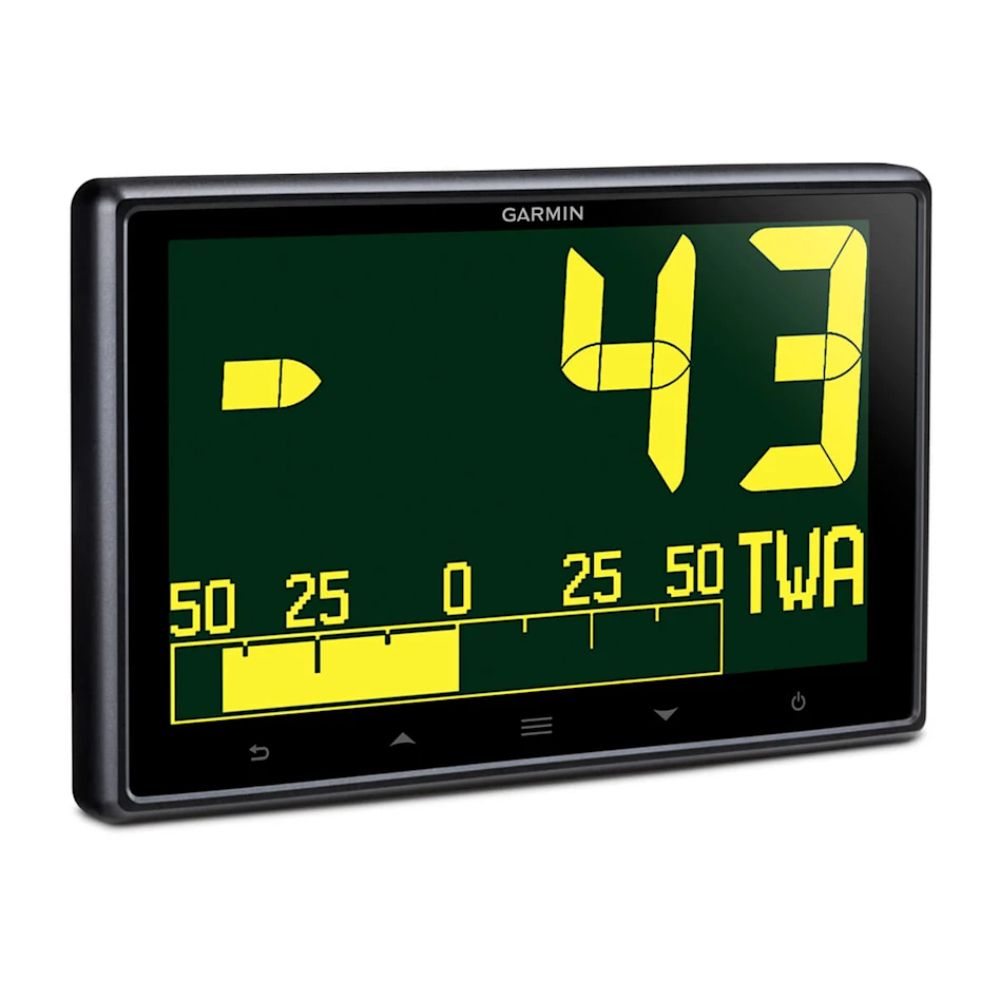

Garmin GNX 130 - 10" Large Format Marine Instrument
Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded, 10-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.
- High-precision glass-bonded backlit LCD display avoids fogging
- Bold 2.75-inch (70 mm) digits are the largest digits in class
- Provides the data necessary to make confident decisions
- Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
- Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices
- Configuration and set up through capacitive touch buttons on the display
Technical Specifications
X| General | |
|---|---|
| Dimensions | 249 x 153 x 19 mm (9.8'' x 6.02'' x .75'') |
| Weight | 820 g (28.9 oz)) |
| Water rating | IPX7 |
| Display Type | Inverted LCD, monochrome |
| Display Size | 207 x 116 mm (8.15'' x 4.57'') |
| Mounting Options | Flush |
| Glass bonded display | ✓ |
| Temperature range | from -15° to 70°C |
| Electrical Features | |
|---|---|
| Power Consumption | 0.36W (Day)
0.4W (Night) |
| Instrument Features | |
|---|---|
| Auto-On | ✓ |
| User Profiles | ✓ |
Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded, 10-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.
Superior Readability
Enjoy superior readability in all conditions, day and night. Options for white or colour 2.75-inch (70 mm) digits — the largest in class — allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 130 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.
Design Your Profile
Fully customisable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions.
In The Box
- GNX 130
- Trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000 T-connector
- NMEA 2000 drop cable
- Documentation
