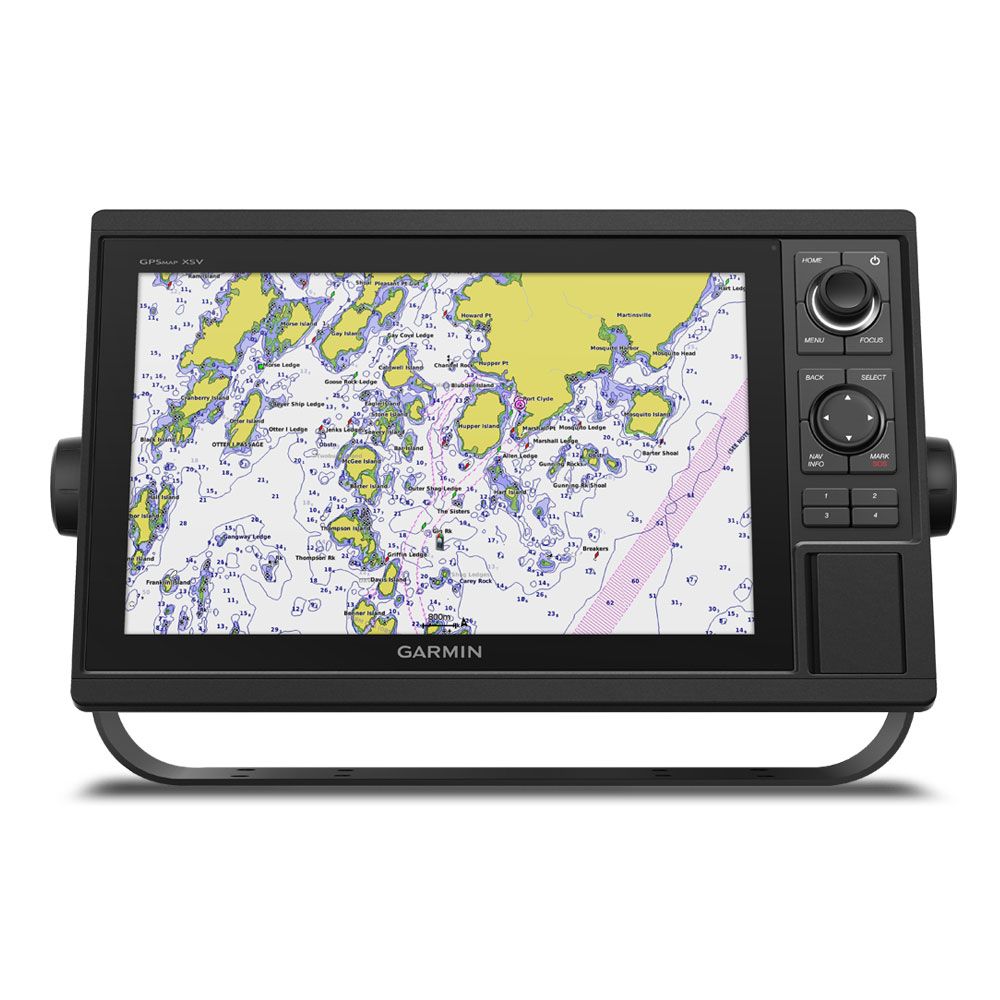

Garmin GPSMAP 1222 - Chartplotter Only
GPSMAP 1222 is designed for cruisers, blue water cruisers and racers who need the advanced all-in-one solution. Featuring a 12-inch bright screen and easy to use interface and are compatible with the Garmin Marine Network.
GPSMAP 1222 Chartplotter only - No built in Sonar capabilities
- Get wider viewing angles on a vivid 12″ colour display
- Compatible with Garmin's premium maps
- Share information among multiple units, thanks to Garmin Marine Network support
- See fluid position and heading changes with update rates of 10 times per second
- Easily transfer waypoints, tracks and routes from other GPS devices
Technical Specifications
X| General | |
|---|---|
| Dimensions | 35.8 x 22.6 x 6.9 cm |
| Input | Keyed |
| Display Size | 26.2 x 16.3 cm, 30.7cm (12.1") Diagonal |
| Display Resolution | 1280 x 800 pixels |
| Display Type | WXGA Display |
| Weight | 2.34Kg |
| Water Rating | IPX7 |
| Mounting Options | Bail, or Flush |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 SD Cards |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Built-in Receiver | ✓ |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| GPS | ✓ |
| GLONASS | ✓ |
| Supports WAAS | ✓ |
| Built-in Maps | |
|---|---|
| Tidetables | ✓ |
| Optional Map Support | |
|---|---|
| LakeVu G3 | ✓ |
| LakeVu G3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Raster Chart Support | ✓ |
| Chartplotter Features | |
|---|---|
| Garmin Smartmode Compatible (Custom Monitor Presets) | ✓ |
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| GSD Black Box Sonar Support | ✓ |
| GCV Black Box Sonar Support | ✓ |
| ActiveCaptain App Compatible | ✓ |
| GRID (Garmin Remote Input Device) Compatible | ✓ |
| Wireless Remote Compatible | ✓ |
| Sailing Features | ✓ |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Traditional Sonar | Only with GCV Black Box Sonar (Sold Separately) |
| ClearVu | Only with GCV Black Box Sonar (Sold Separately) |
| SideVu | Only with compatible Black Box Sonar (Sold Separately) |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| NMEA 0183 Input Ports | 1 Diffential |
| Video Input Ports | 1 - BNC Composite |
| Video Output Ports | None |
| Garmin Marine Network Ports | 2 |
| Bluetooth Calling | ✓ |
| ANT+ Connectivity | ✓ |
| Garmin Wi-Fi Network | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Typical Current Draw at 12V | 2.2A |
| Max Current at 12V | 2.9A |
| Max Power Use at 10V | 34.8W |
12-inch Chartplotter Is An All-in-One Solution
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 12-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network and NMEA 2000 Support
Full-network compatibility allows you to add more capabilities to your boat. Garmin Marine Network support allows sharing of sonar, including Panoptix FrontVü collision avoidance sonar, maps, user data, dome or open-array radar and IP cameras among multiple units. Plus, there’s NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built-in ANT Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
Connected Active Captain App
Built in Wi-Fi technology gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere on your compatible smartphone.

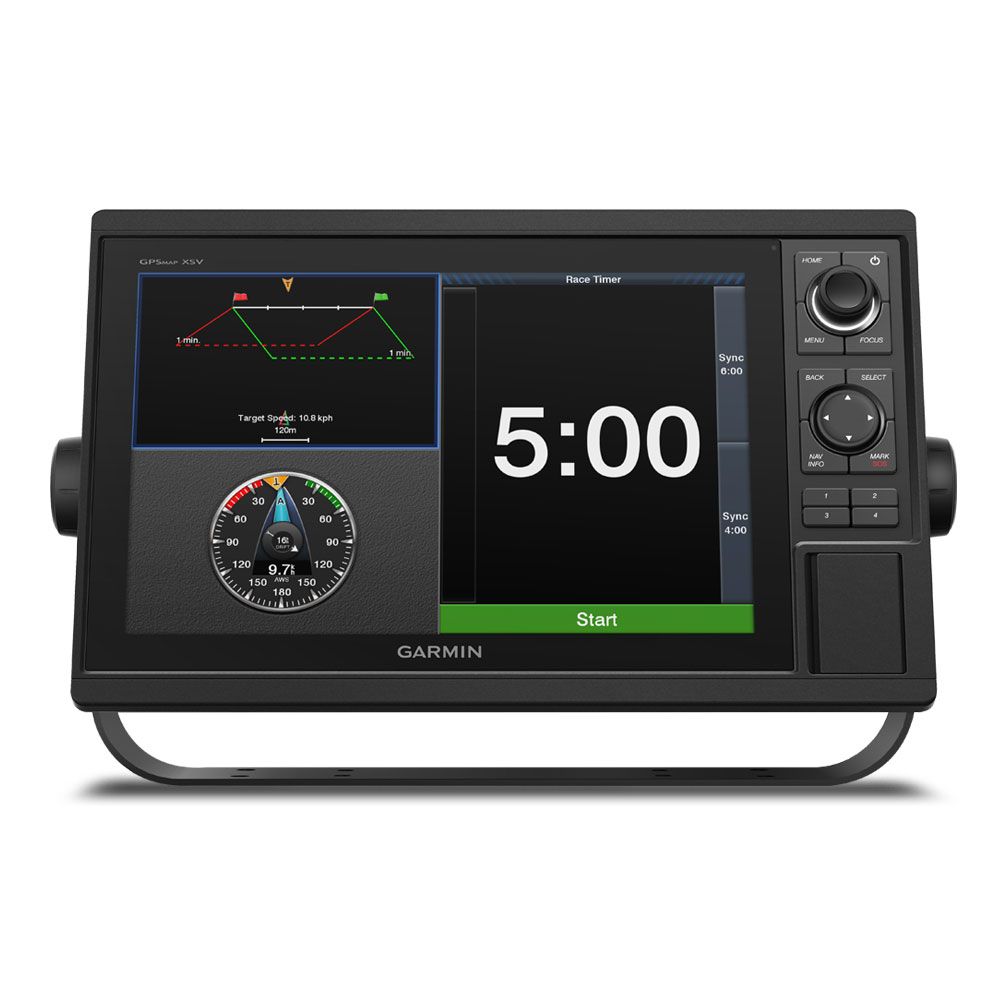

Garmin SailAssist Feature
Use the polar table to view important data fields to help you trim your sails for maximum speed and efficiency. You can also see laylines, set and drift, true and apparent wind data (sensor sold separately), and more.
Charts and Maps
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology and more.
Smoth Tracking
The fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid.
Network Capable
The GPSMAP chartplotters are fully network capable for the Garmin Marine Network and NMEA 2000® networking plus NMEA 0183 technology support.
GPX Waypoint Transfer
Easily transfer waypoints, tracks or frequently used routes from other devices via industry standard GPX software formatting.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, and Panoptix and LiveScope sonars among multiple units.
Engine Connectivity
Read RPMs, fuel flow, temperature, trim and other important information at a glance. Check with your engine manufacturer for additional hardware needs.
In The Box
- GPSMAP 1222 chartplotter
- Power cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
