Garmin GPSMAP 9013xsv Premium 13" Chartplotter / Sonar
The Garmin GPSMAP 9013xsv is the integrated 4k touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials. Built in 1kW xCHIRP, Garmin RapidReturn sonar and UHD scanning sonar.
- Premium 4k ips sunlight-readable touchscreen display
- Up to 7 times faster processing power than previous generations
- See fish like never before with our best sonar ever
- Supports garmin navionics+ charts with auto guidance+ technology
- Gigabit speeds on the garmin bluenet network
- Network with multiple chartplotters, cameras and more
Technical Specifications
X| General | |
|---|---|
| Dimensions | 33.5 cm x 23.4 cm x 9.1 cm (13.2″ x 9.19″ x 3.56″) |
| Weight | 4.13 kg (9.1 lbs) |
| Water rating | IPX7 |
| Touchscreen | ✓ |
| Display Type | 4K, IPS; Mini LED (Local Dimming) backlight |
| Display Size | 29.4 cm x 16.5 cm x 33.7 cm diagonal (11.57″ x 6.50″ x 13.27″ diagonal) |
| Display Resolution | 3,840 x 2,160 pixels |
| Mounting Options | Bail, flat or flush |
| Input | Touchscreen |
| Polarised Lens Viewability | ✓ |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards (In rear of unit) |
| Supports USB Card Reader | ✓ |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| BEIDOU | ✓ |
| Has built-in receiver | ✓ |
| Receiver | 10Hz |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| Supports WAAS | ✓ |
| Supports Multi-Band, Multi-Contellation GPS | ✓ |
| Optional Map Support | |
|---|---|
| BlueChart g3 | ✓ |
| BlueChart g3 Vision | ✓ |
| LakeVü g3 | ✓ |
| LakeVü g3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO 100K | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Raster chart support | ✓ |
| Chartplotter Features | |
|---|---|
| Garmin SmartMode compatible (customisable monitor presets) | ✓ |
| AIS | ✓ |
| DSC | ✓ |
| Supports Fusion-Link compatible radios | ✓ |
| GCV Black Box Sonar Support | ✓ |
| ActiveCaptain Mobile Planning Compatible | ✓ |
| Supports Voice Commands | ✓ |
| GRID (Garmin Remote Input Device) compatible | ✓ |
| GRID 20 compatible | ✓ |
| Wireless Remote Compatible | ✓ |
| Sailing features | ✓ |
| Spoken audio alerts | ✓ |
| OneHelm support | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Typical Current Draw at 12V DC | 4.7A |
| Max Current at 12V DC | 5.4A |
| Max Power Use at 10V DC | 63W |
| Sonar Features & Specifications | |
|---|---|
| Displays sonar | ✓ |
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | Yes (dual 1 kW) |
| Supports built-in xCHIRP | ✓ |
| Supports built-in RapidReturn | Yes (up to 2x) |
| ClearVü | ✓ |
| SideVü | ✓ |
| Panoptix sonar | ✓ |

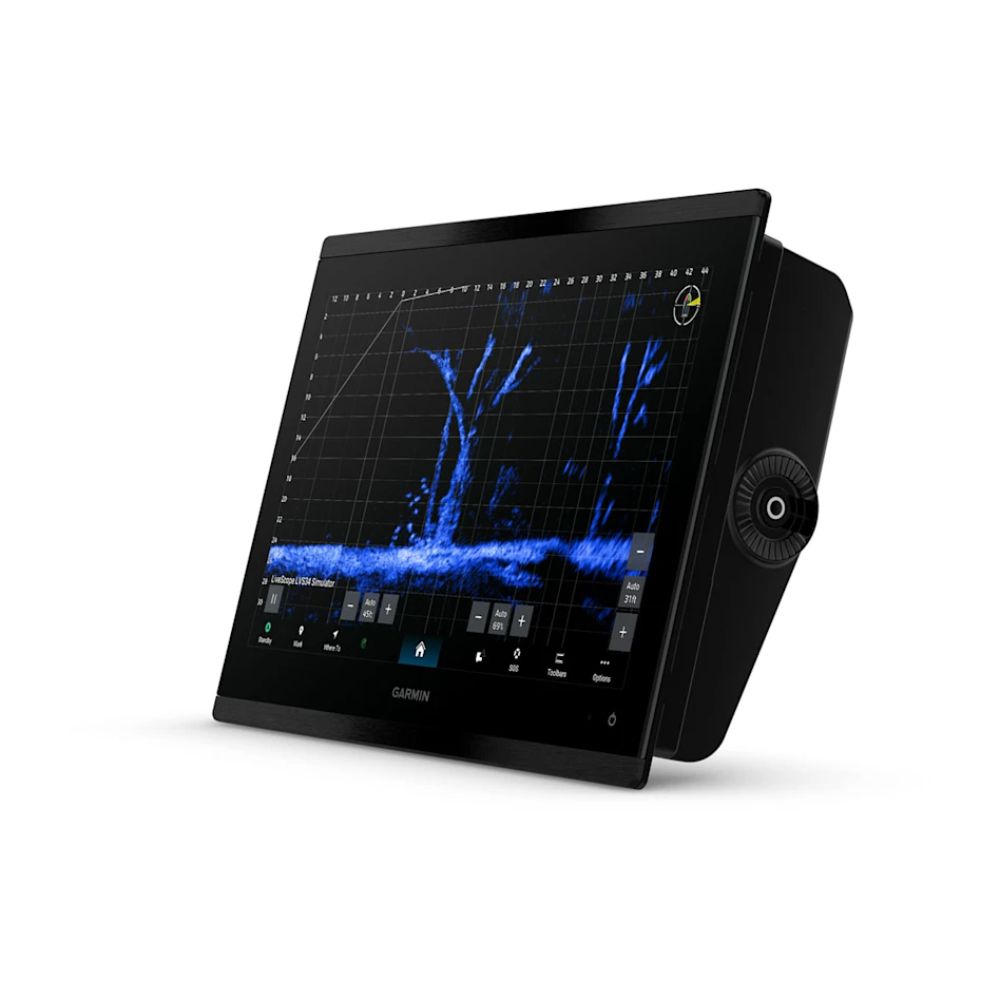

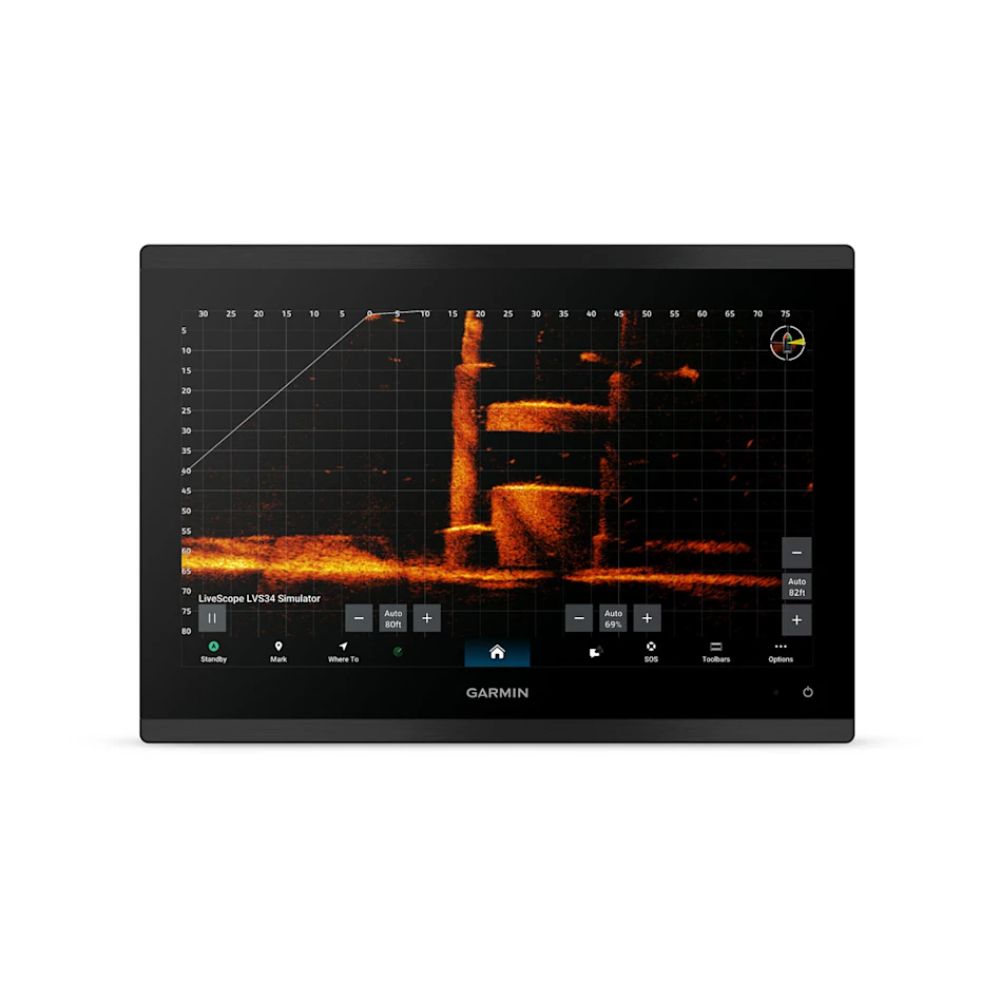

| LiveScope | ✓ |

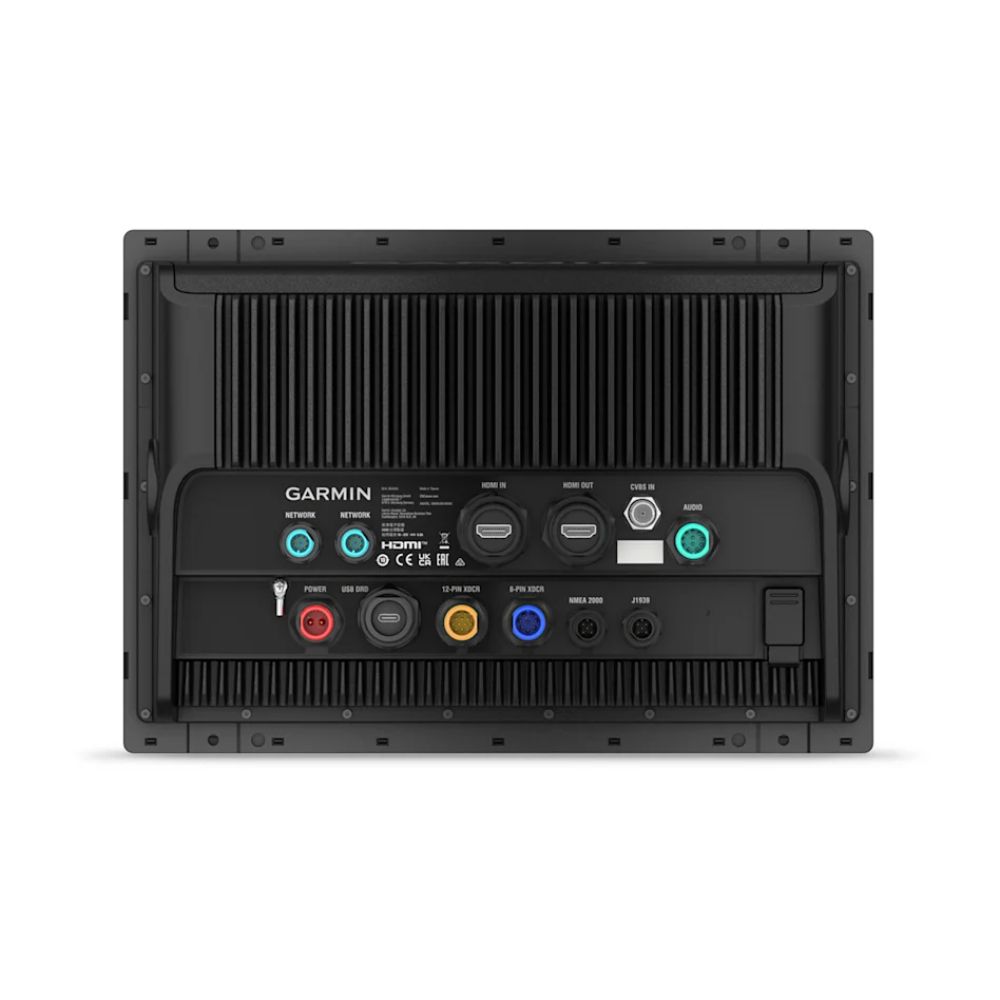

| Connections | |
|---|---|
| NMEA 2000 ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| USB ports | Yes (1x USB-C) |
| Bluetooth calling | ✓ |
| ANT (Connectivity) | ✓ |
| Garmin Wi-Fi network (local connection) | ✓ |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
| Audio output | ✓ |
The Garmin GPSMAP 9013xsv is the integrated 4k touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials. Built in 1kW xCHIRP, Garmin RapidReturn sonar and UHD scanning sonar.
What To Love
Premium Chartplotter - The 4K IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.
Faster, Much Faster - Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes with lightning speed with optional Garmin Navionics+ subscription.

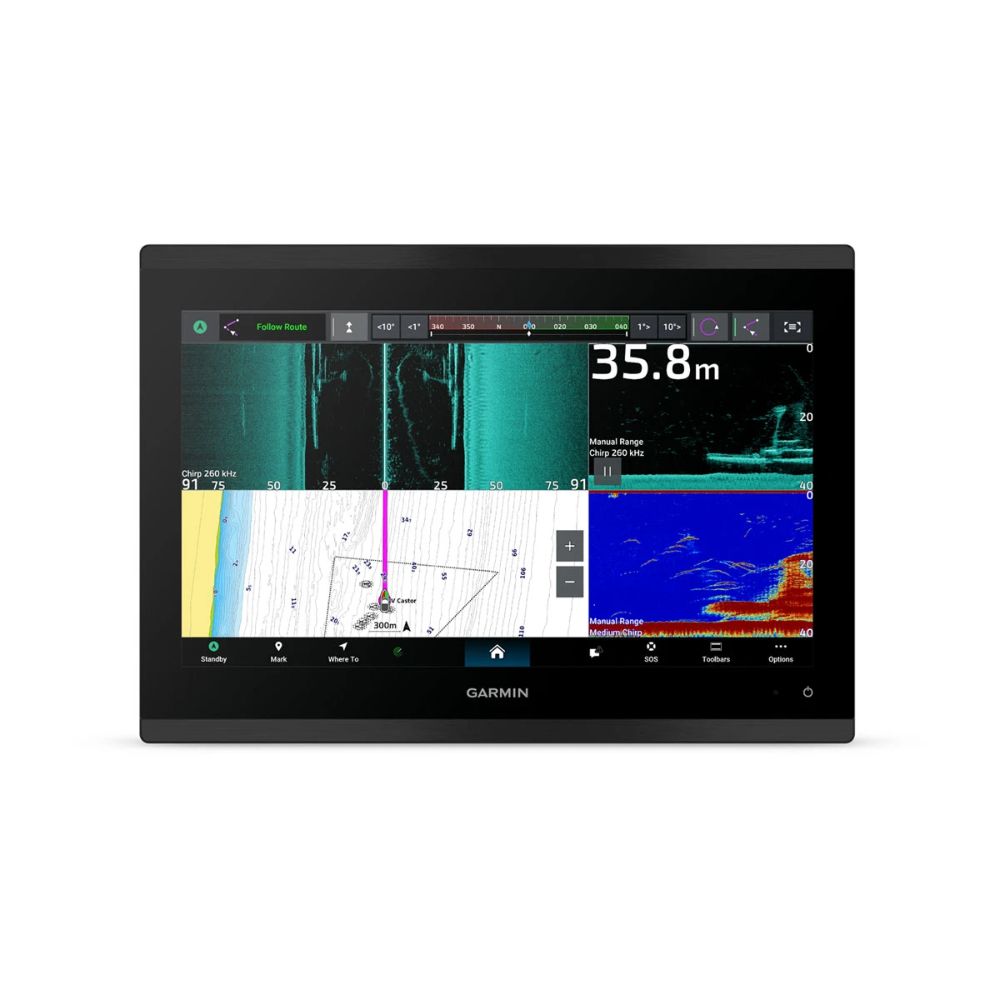

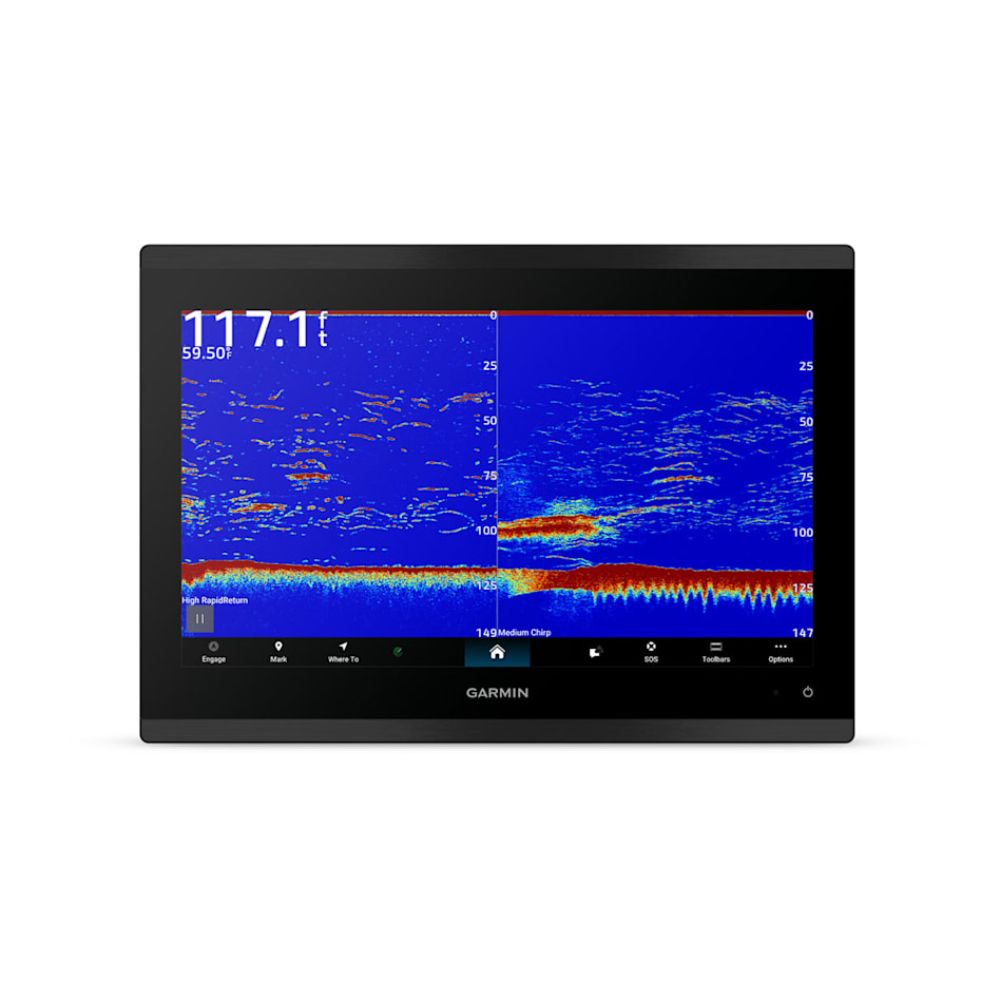

High-Definition Sonar - Fish in stunning high definition with built-in 1kw xCHIRP and Garmin RapidReturn sonar. Excellent target separation helps show crisp and clear fish targets all around.
Garmin Bluenet Network - Build extensive networks with multiple chartplotters, cameras, radars and sonars and enjoy gigabit-speed networking.

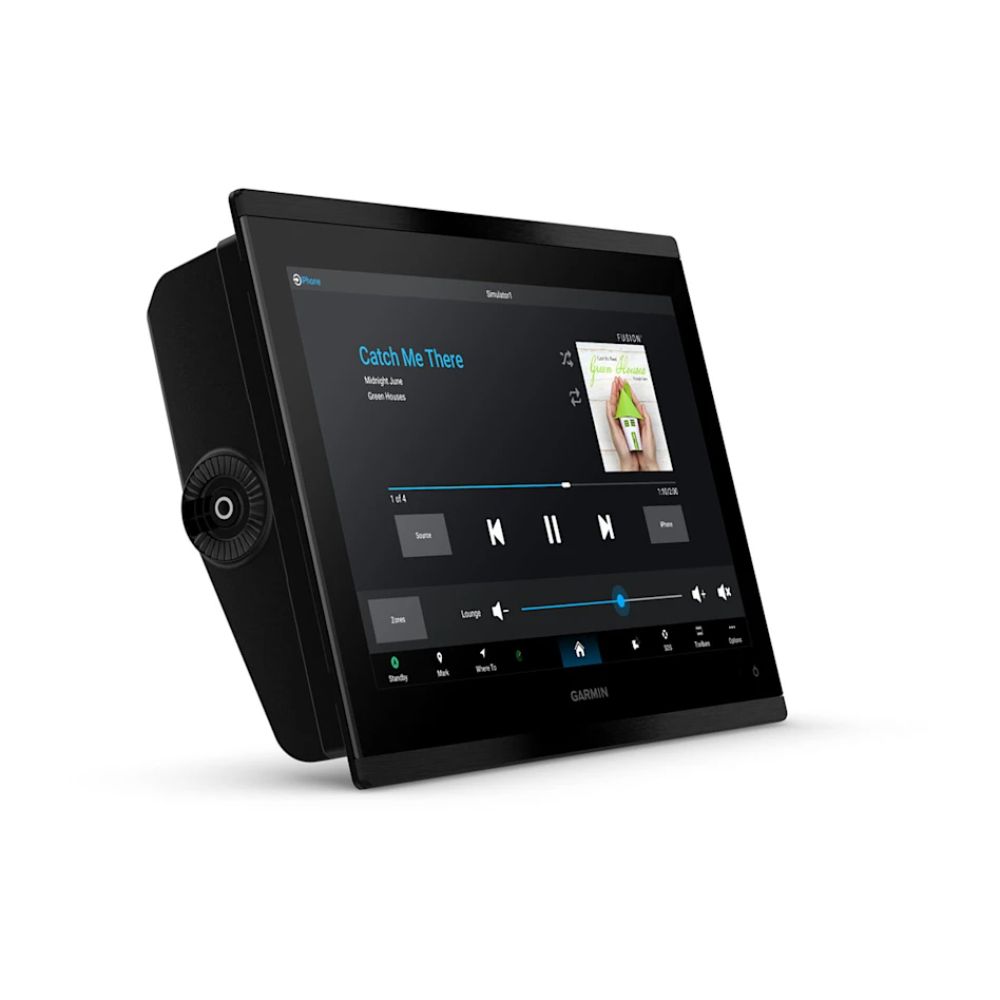

Entertainment Options - Enjoy audio and video integrations that allow users to show and hear the same video throughout the screens and speakers on the network.

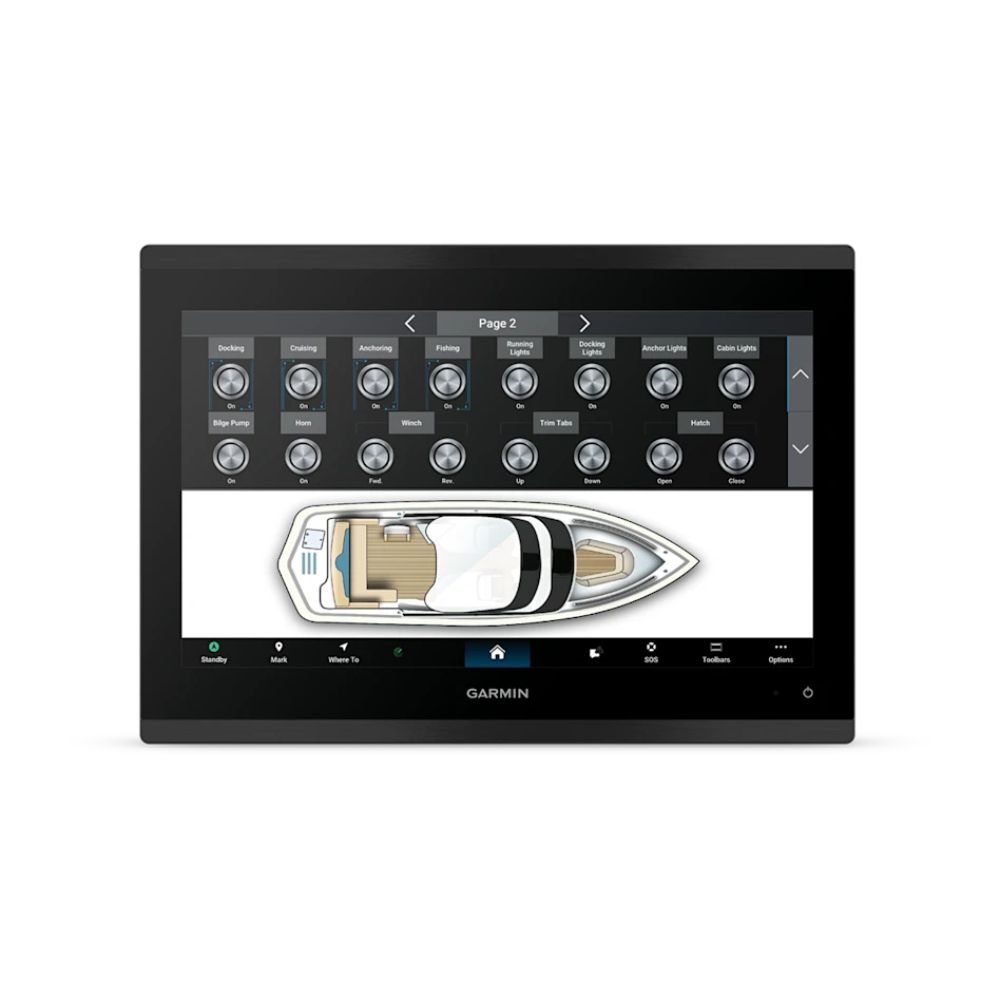

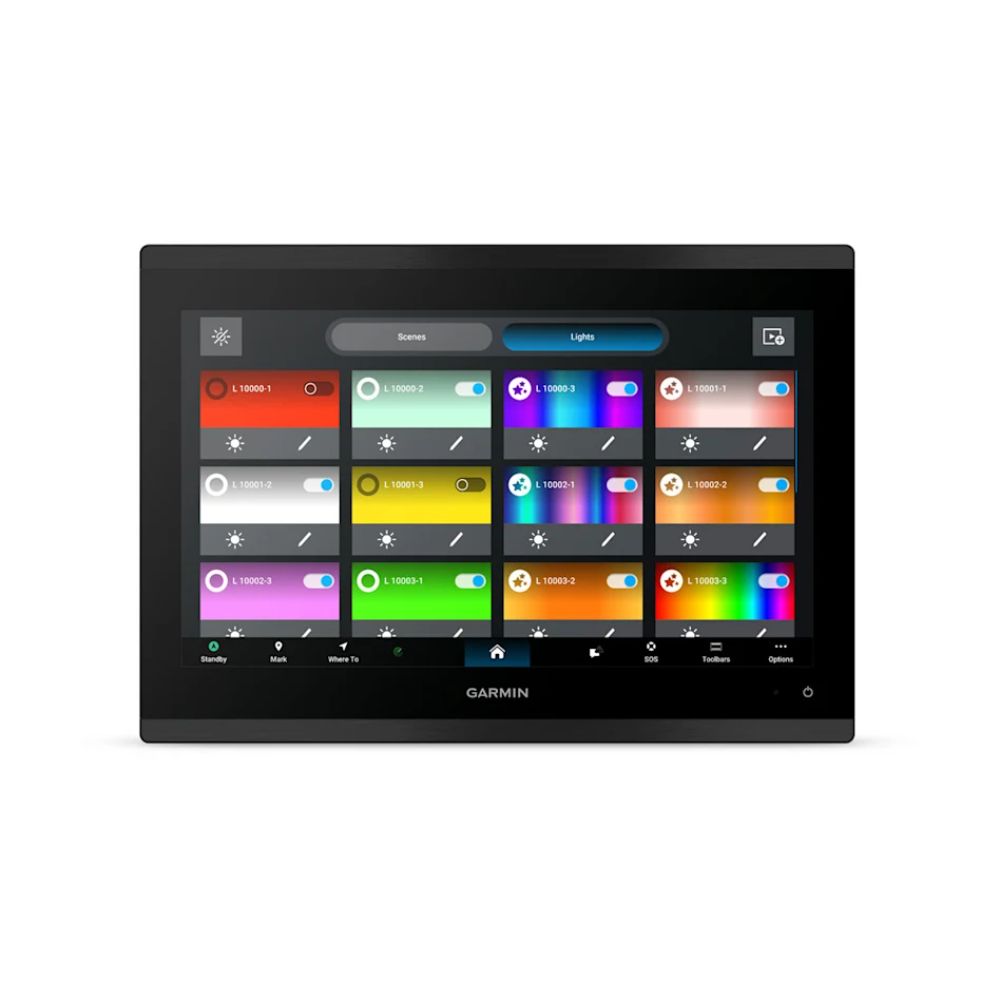

Connect An Ecosystem - Take command through digital system integrations to monitor, automate and control the vessel. The chartplotter uses the NMEA 2000 network to connect to all compatible accessories.
Luxury On The Helm
Connect
Software updates - Get wireless software updates via the ActiveCaptain app with a compatible smartphone or tablet.
Engine Monitoring - Keep tabs on engine performance with extensive engine integration.
Custom Look - Manufacturers can customise the homepage layout and splash screen for a brand tailored experience.
Navigate
Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates and more (subscription required).
Premium Charts - Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.
Know where you are - Get precise location with the built-in dual-frequency 10 Hz GPS.
Autopilot - Control the autopilot with any compatible chartplotter on the network with autopilot integration.
Integrate
Connect Cameras - Get extensive camera support and control to see footage directly on the chartplotter.
Control with a watch - Connect to the chartplotter with a compatible Garmin smartwatch.
Wireless Connectivity - Connect compatible devices with integrated Bluetooth and ANT technologies.
Verbal Commands - Use spoken commands to control the chartplotter through any compatible headset or quatix smartwatch.
Weather-Resistant - The GPSMAP 9000xsv chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
In The Box
- GPSMAP 9013xsv premium chartplotter
- Power Cable
- Backbone/drop cable (2 metres) and T-connector for the NMEA 2000 network

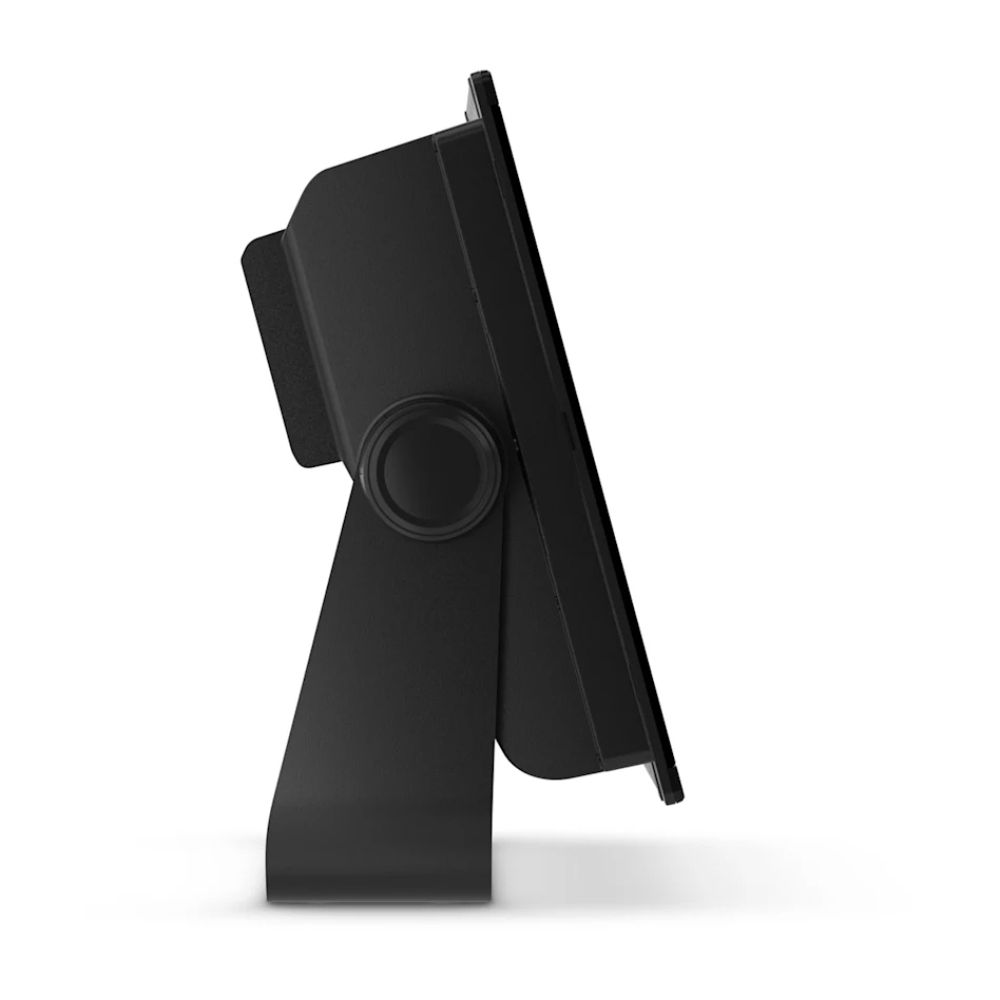

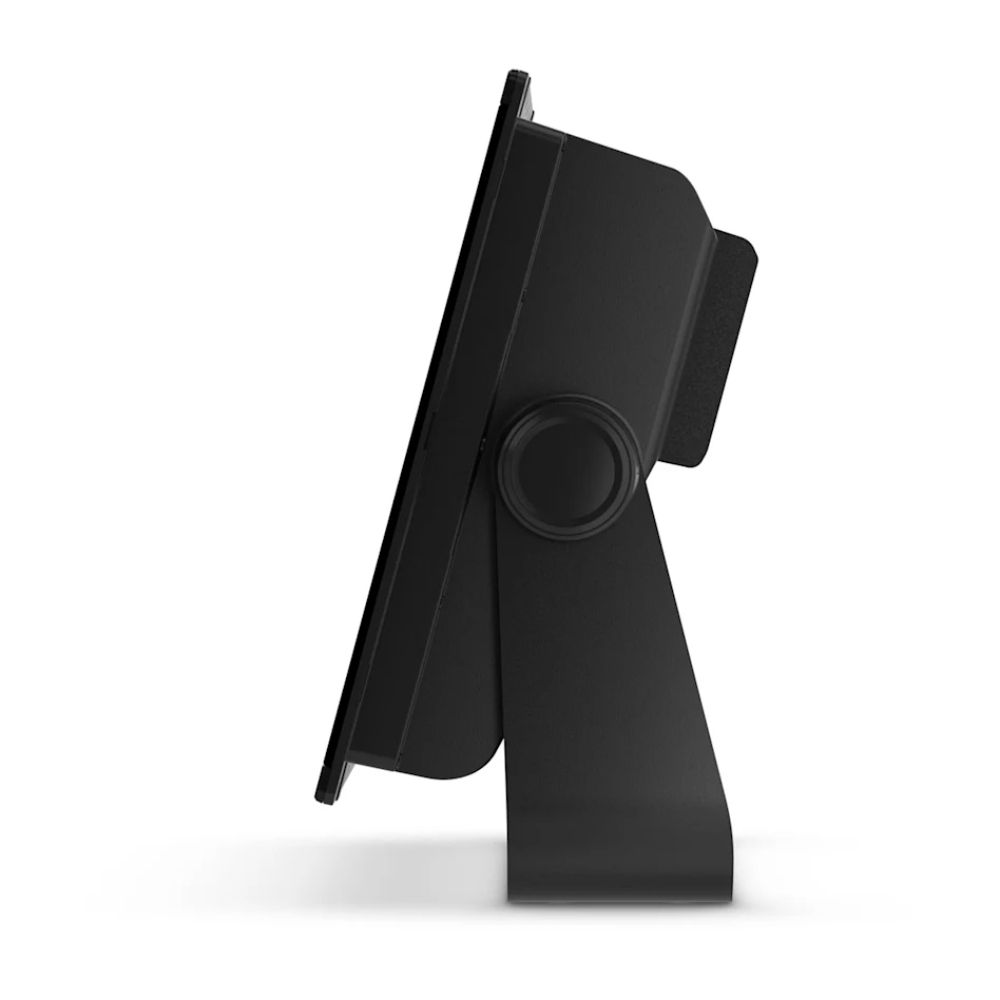

- Bail mount with knobs
- Flush Mount Kit
- Protective Cover
- Trim piece snap covers
- Documentation
