Garmin GPSMAP 923xsv - No Transducer

Easily integrate with more engines
Connect to compatible third-party devices with OneHelm digital switching
Easily build a marine system using the best of network connectivity
Compatible with premium maps and charts for the best in Garmin navigation
See below the boat with built-in sonar capabilities
Manage the marine experience from nearly anywhere

Specification Manual Installation Template

General
Dimensions	23.3 x 16.2 x 7.6 cm (9.2" x 6.4" x 3")
Input	Touchscreen
Display Size	19.9 x 11.2cm, 22.9 cm (9") Diagonal
Display Resolution	1280 x 720 pixels
Display Type	WXGA Display
Weight	1.6Kg
Water Rating	IPX7

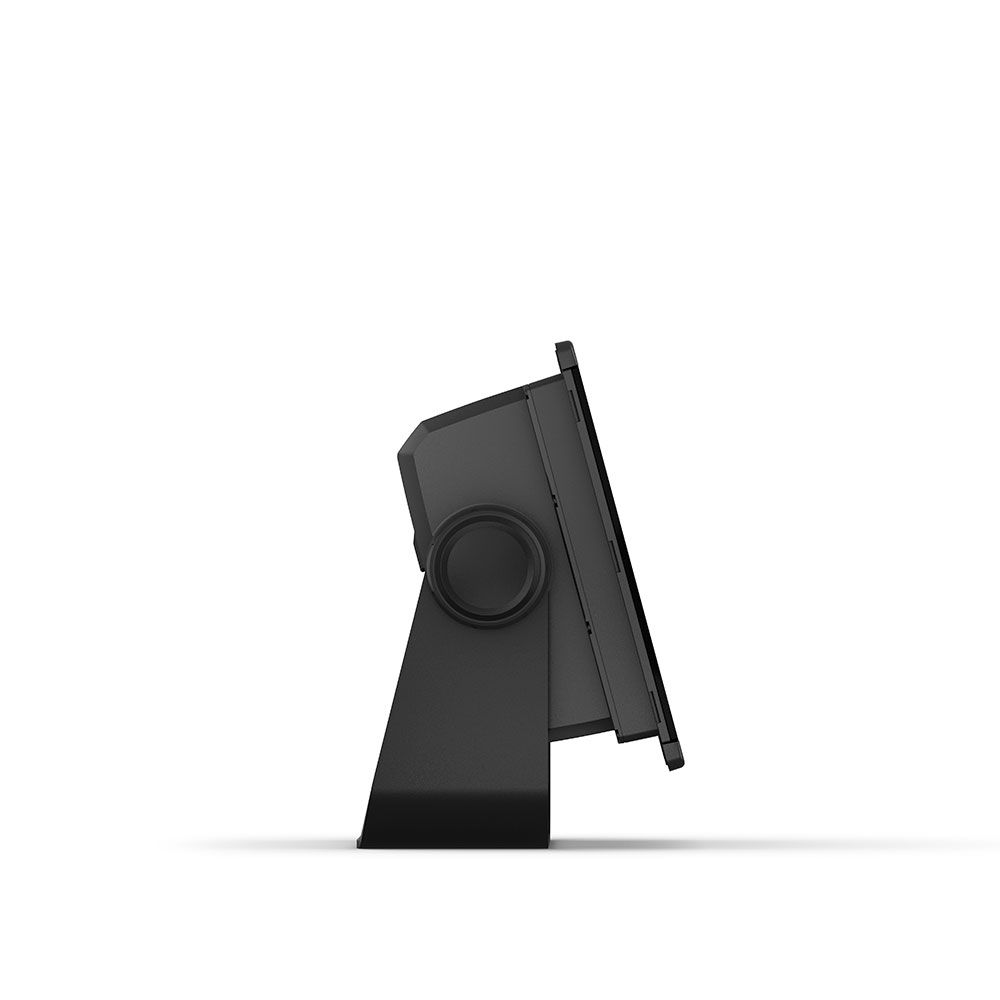

Mounting Options	Bail, Flush or Flat

Maps & Memory
Accepts Data Cards	2 microSD Cards (back of unit)
Waypoints	5,000
Track Points	50,000
tracks	50 Saved Tracks
Navigation Routes	100

Sensors
Built-in Receiver	✓
Receiver	10 Hz High-sensitivity
NMEA 2000 Compatible	✓
NMEA 0183 Compatible	✓
GPS	✓
GLONASS	✓
GALILEO	✓
Supports WAAS	✓

Built-in Maps
Built-in Auto Guidance	✓
BlueChart (Coastal)	✓
LakeVu (Inland)	✓
Tidetables	✓

Optional Map Support
LakeVu G3	✓
LakeVu G3 Ultra	✓
Garmin Navionics+	✓
Garmin Navionics Vision+	✓
TOPO	✓
Standard Mapping	✓
Garmin Quickdraw Contours	✓
Raster Chart Support	✓

Chartplotter Features
Garmin Smartmode Compatible (Customisable Monitor Presets)	✓
AIS	✓
DSC	✓
Fusion-Link	✓
GSD Black Box Sonar Support	✓
GCV Black Box Sonar Support	✓
ActiveCaptain App Compatible	✓
GRID (Garmin Remote Input Device) Compatible	✓
Wireless Remote Compatible	✓
Sailing Features	✓
Spoken Audo Alerts	✓
OneHelm Support	✓

Sonar Features & Specifications
Displays Sonar	✓
Power Output	1kW
Traditional Sonar	Built-in (Single channel CHIRP, 70/83/200kHz, L,M,H CHIRP)
ClearVu	Built-in 260/455/800/1000/1200kHz
SideVu	Built-in 260/455/800/1000/1200kHz
Panoptix Sonar	✓
Livescope	✓

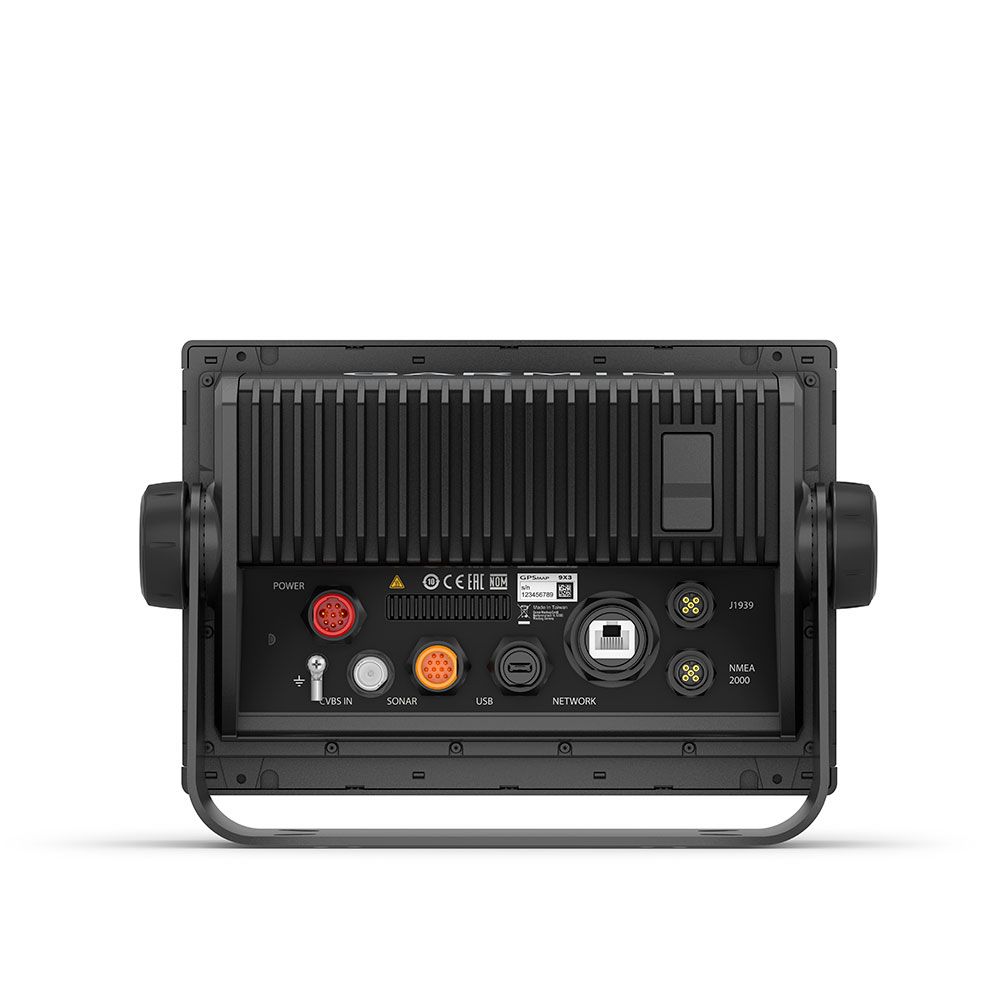

Connections
NMEA 2000 Ports	1
NMEA 0183 Input Ports	1 Diffential
NMEA 0183 tx Ports	1
Video Input Ports	1 BNC
J1939 Ports	1
Garmin Marine Network Ports	1
12-Pin Transducer Ports	1
USB Ports	✓
BNC External GPS Antenna Ports	✓
Bluetooth Calling	✓
ANT+ Connectivity	✓
Garmin Wi-Fi Network	✓

Electrical Features
Power Input	10 - 32 VDC
Typical Current Draw at 12V	1.37A
Max Current at 12V	3.2A
Max Power Use at 10V	40.2W

Get A Sharper View From A Connected Helm

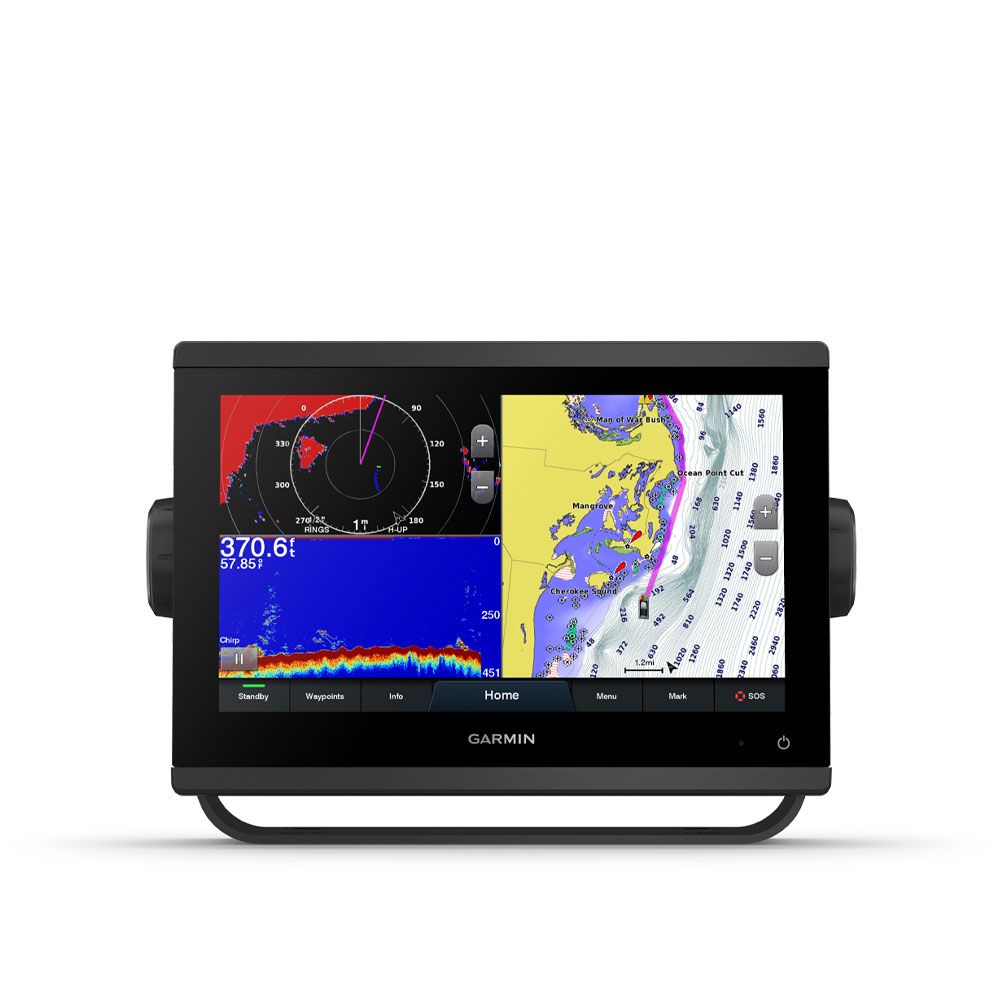

With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9-inch GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into the Garmin marine system.

See The World Below

Ultra High-Definition Scanning Sonar - Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP 943xsv also supports 1 kW CHIRP traditional sonar capabilities.

Panoptix Sonar Support - Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around the boat in real time.

Navigate With Eease

Faster, Sharper, Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9-inch plotter in a wider range of dash configurations.

Improved Display Optics - New higher-resolution 9-inch displays offer improved sunlight readability with 50% more pixels than previous-generation 9-inch GPSMAP devices.

Optional BlueChart G3 Vision Charts - These optional charts offer the best of Garmin and Navionics data, Auto Guidance3 technology and other premium navigation features.

Optional Radar Bundle - To help avoid weather and traffic on the water, the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with this GPSMAP chartplotter/sonar package.

Connect To Everything On The Boat

Garmin Marine Network - Share information - such as maps, user data, radar and IP camera video among multiple compatible Garmin devices on the boat.

NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more.

Integrated ANT Technology - Connect with devices, such as quatix marine watches, gWind Wireless 2 transducers transducers, GNX Wind marine instruments and wireless remote controls.

J1939 Connectivity - Connect the chartplotter to different kinds of engines, including select Yamaha engines.

OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
