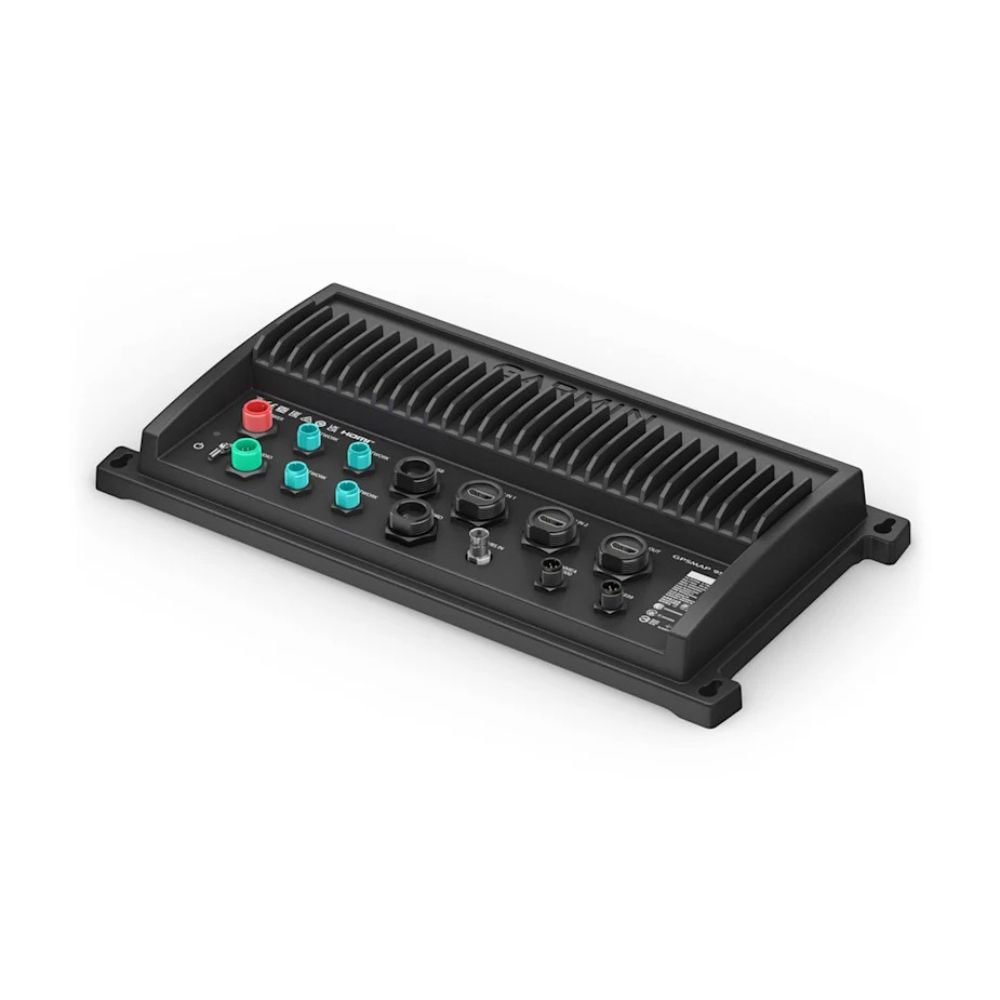

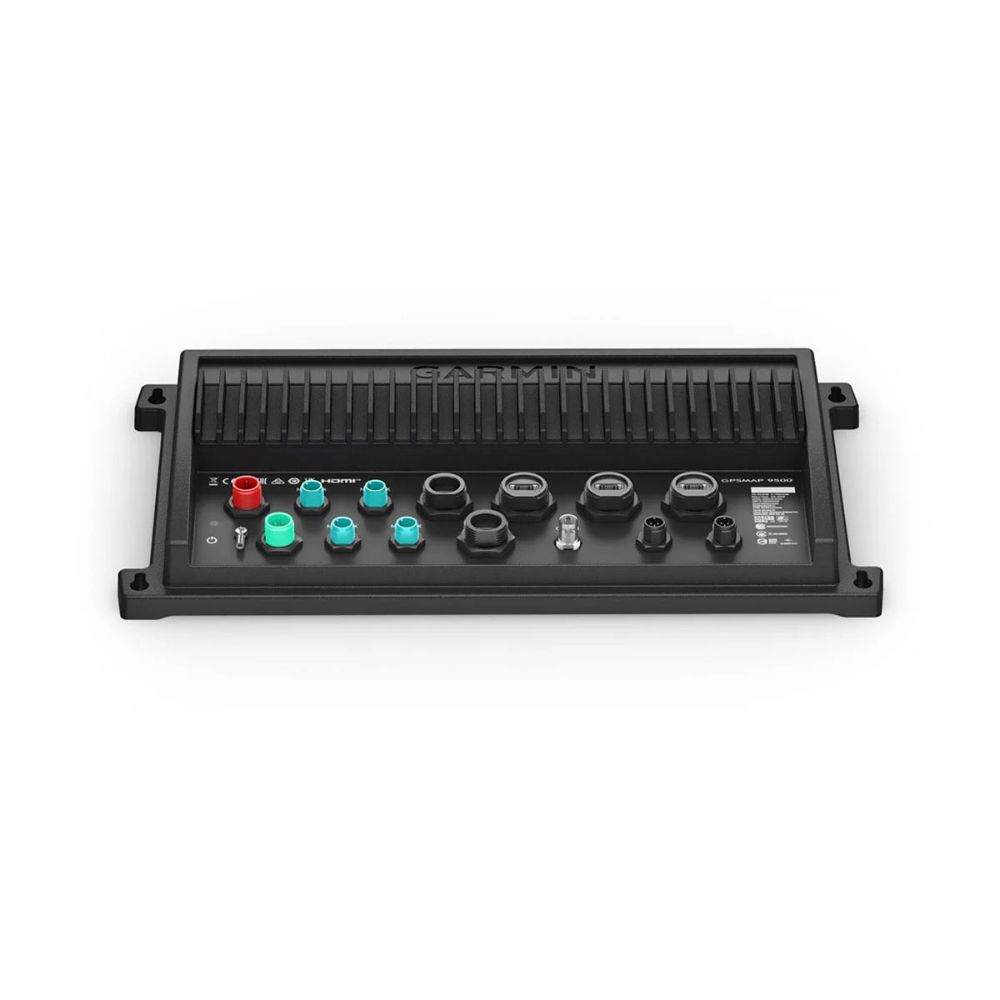

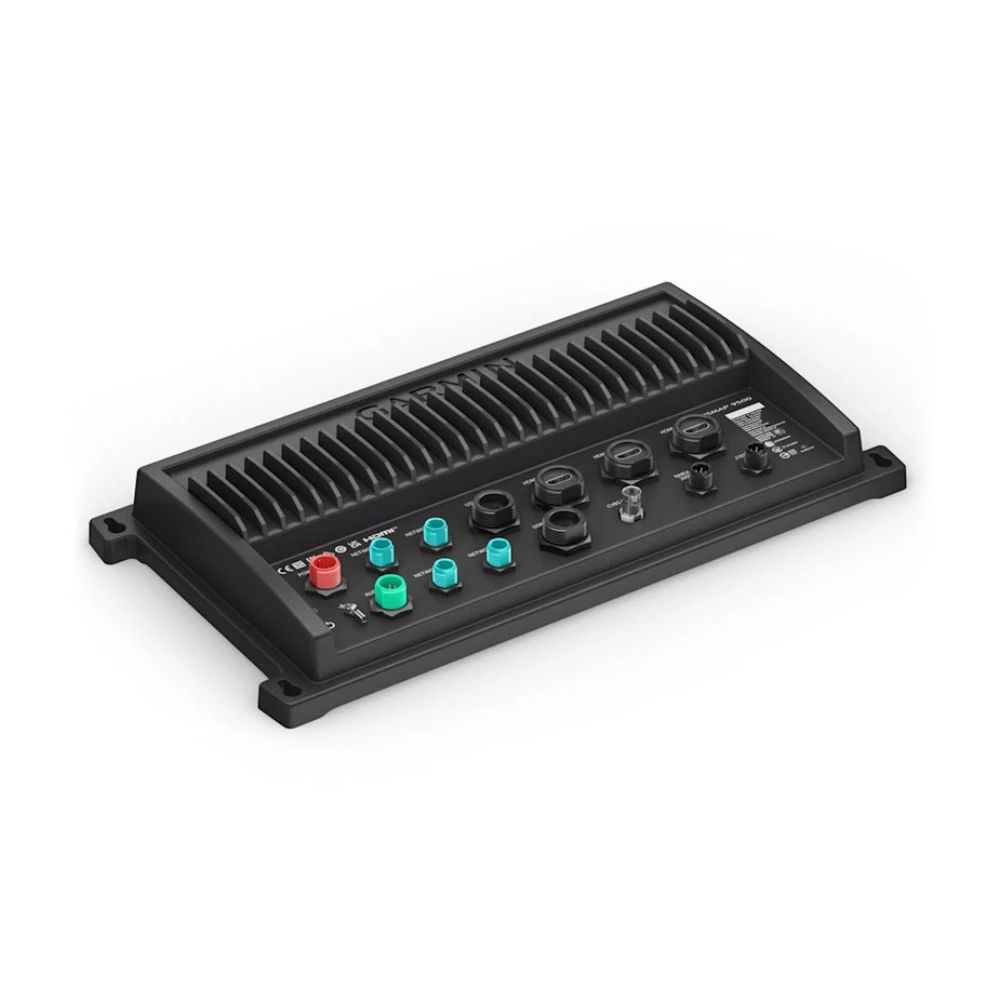

Garmin GPSMAP 9500 Black Box Chartplotter

Garmin GPSMAP 9500 Black Box Chartplotter

SKU

230-0100267700

With the GPSMAP 9500 black box, build an extensive network for the helm that links multiple chartplotters, monitors, radars, cameras and sonars and enjoy up to 10 times faster networking speeds with minimal lag.

SRP ex vat: £4,316.66

Reserve - Stock Pending. Please call

Product Information

Connect to third-party HDCP compliant monitors through HDMI with USB DRD capability for touchscreen support
For superior performance, gain up to 7 times faster processing power than previous generations
Build extensive networks with reliable connectivity and gigabit speeds on the new Garmin BlueNet network
Integrate with the Garmin suite of sonar options, including LiveScope and Panoptix sonars, GSD sonar modules and more
Take command of monitoring, control and automation systems with support for EmpirBus systems and other third-party solutions via OneHelm integrations
Enjoy high-quality entertainment with video integration capabilities through HDCP distribution

Specification Manual Installation

General
Dimensions	38.3 x 19.8 x 4.7cm (15.1" x 7.8" x 1.9")
Weight	1.583Kg (3.44lbs)
Water Rating	IPX7
Display Type	None (Requires external display)
Display Size	None (Requires external display)
Supported Display Resolutions	1024 x 600 1280 x 800 1920 x 1080 1920 x 1200 3840 x 2160 1024 x 768 (Letterboxed) 1280 x 1024 (Letterboxed)

Maps & Memory
Accepts Data Cards	No (USB Card Reader Required)
Waypoints	5,000
Track Points	50,000
tracks	50 Saved Tracks
Navigation Routes	100

Sensors
GPS	Yes (with external GPS antenna)
GLONASS	Yes (with external GPS antenna)
GALILEO	Yes (with external GPS antenna)
BEIDOU	Yes (with external GPS antenna)
NMEA 2000 Compatible	✓
NMEA 0183 Compatible	✓
Supports WAAS	Yes (with external GPS antenna)
Supports Multi-Band, Multi-Constellation GPS	Yes (with external GPS antenna)

Optional Map Support
LakeVu G3	✓
Garmin Navionics+	✓
Garmin Navionics Vision+	✓
Garmin Quickdraw Contours	✓

Chartplotter Features
Garmin Smartmode Compatible (Customisable Monitor Presets)	✓
AIS	✓
DSC	✓
Fusion-Link	✓
GSD Black Box Sonar Support	✓
GCV Black Box Sonar Support	✓
ActiveCaptain App Compatible	✓
GRID (Garmin Remote Input Device) Compatible	✓
Wireless Remote Compatible	✓
Sailing Features	✓
Spoken Audo Alerts	✓
OneHelm Support	✓

Electrical Features
Power Input	10 - 32 VDC
Typical Current Draw at 12V	2A
Max Current at 12V	3.3A
Max Power Use at 10V	40W

Sonar Features & Specifications
Displays Sonar	✓
Traditional Sonar	Yes (With compatible Black Box Sonar)
ClearVu	Yes (With compatible Black Box Sonar))
SideVu	Yes (With compatible Black Box Sonar)
Panoptix Sonar	✓
Livescope	✓

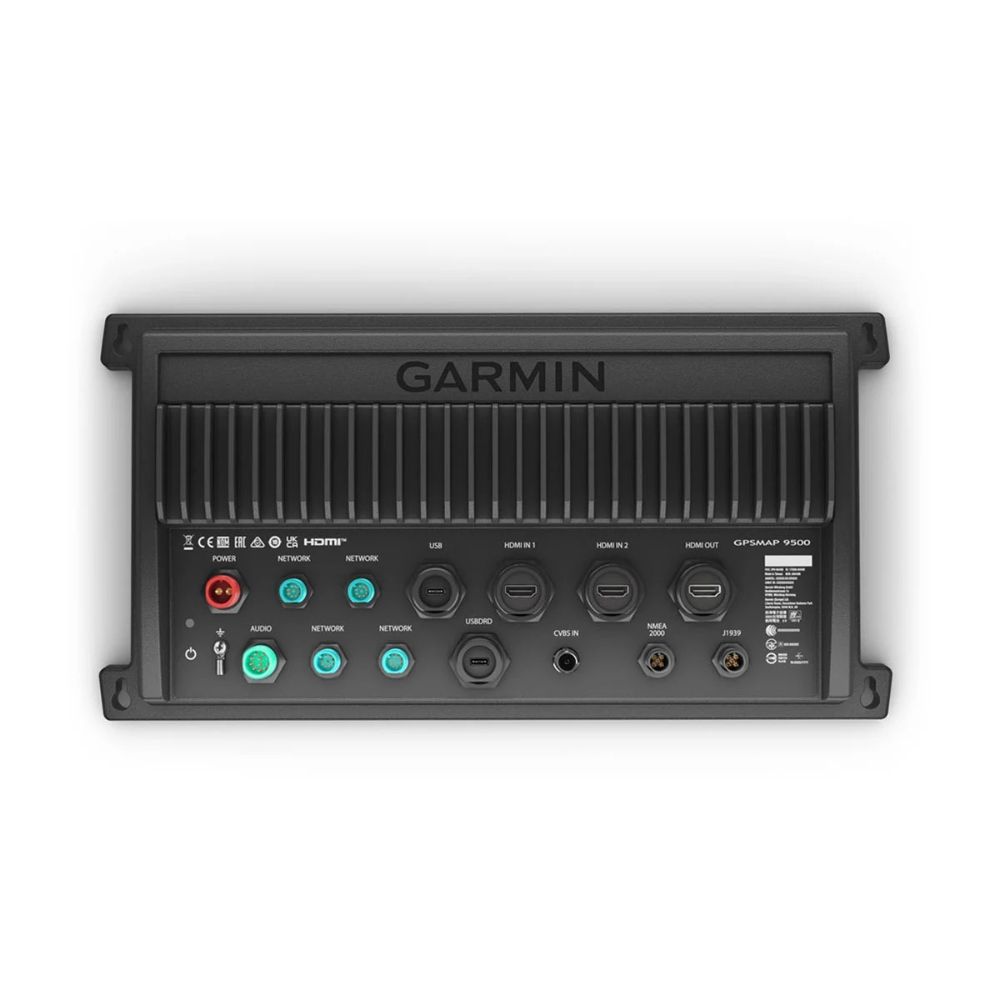

Connections
NMEA 2000 Ports	1
NMEA 0183 Input (RX) Ports	1
NMEA 0183 (TX) Ports	1
Video Input Ports	1 x BNC composite 2 x HDMI (HDCP compliant)
Video Output Ports	1 x HDMI
J1939 Ports	1
Garmin BlueNet Network Ports	4
USB Ports	2 x USB-C
Bluetooth Calling	✓
ANT+ Connectivity	✓
Garmin Wi-Fi Network	✓
Audio Output	✓

For captains who demand the best

Bring paradise to the dash of the boat with the premium GPSMAP 9500 black box connected to HDCP compliant monitors. It features up to 7 times faster processing power than previous generations for superior performance. Draw charts quickly and calculate routes with lightning speed, it adds comprehensive connectivity throughout the vessel.

Create a Fully Integrated Helm

With the GPSMAP 9500 black box, Build an extensive network for the helm that links multiple chartplotters, monitors, radars, cameras and sonars. Enjoy up to 10 times faster networking speeds with minimal lag. Keep tabs on engine performance with extensive engine integration. Control the autopilot with any compatible chartplotter on the network with autopilot integration. Connect cameras to see footage directly on the chartplotter, including a bird’s-eye view of the vessel with support for Garmin's Surround View Camera System. Enjoy audio and video integrations that allow everyone to see and hear the same video throughout the screens and speakers on the network.

Connect with the System

Integrated Wi-Fi, BLUETOOTH and ANT technologies connect compatible devices to the system. Enable easy, wireless software updates via the ActiveCaptain app with a compatible smartphone or tablet. Use any compatible Garmin smartwatch for remote control of key MFD features, including chart zoom, layout shortcut, Fusion stereo, autopilot and more and stream important data from the system directly to the watch. It can even understand spoken commands to control connected chartplotters through a compatible headset.

Fish with Stunning Detail

Get full support for Garmin's suite of sonar options, including CHIRP traditional sonar, GSD 28 xCHIRP high-powered sonar, ClearVü and SideVü scanning sonars and Panoptix PS70 or LiveScope XR live sonar options.

Add Garmin's Best Chart Coverage

Get support for detail-rich mapping of coastal waters, lakes and rivers for any region with Garmin Navionics+ and Garmin Navionics Vision+ cartography. Garmin Navionics+ charts make it easy to plot course with depth range shading, 0.5 m contours and more. Upgrade to Garmin Navionics Vision+ charts, which include premium relief shading for an easy-to-interpret, clearer view of bottom structure, satellite imagery for superior situational awareness and more. Both products provide Auto Guidance+ technology that lets allows navigation with suggested dock-to-dock routings. Plus, charts are constantly being enhanced with new and amended content; thousands of updates are made every day. The chart purchase includes a 1-year subscription to daily chart updates via the ActiveCaptain app and much more.
