Garmin GT30 -TM Transom Mount 12 pin Transducer New Design
Garmin GT30 -TM Transom Mount 12 pin Transducer New Design

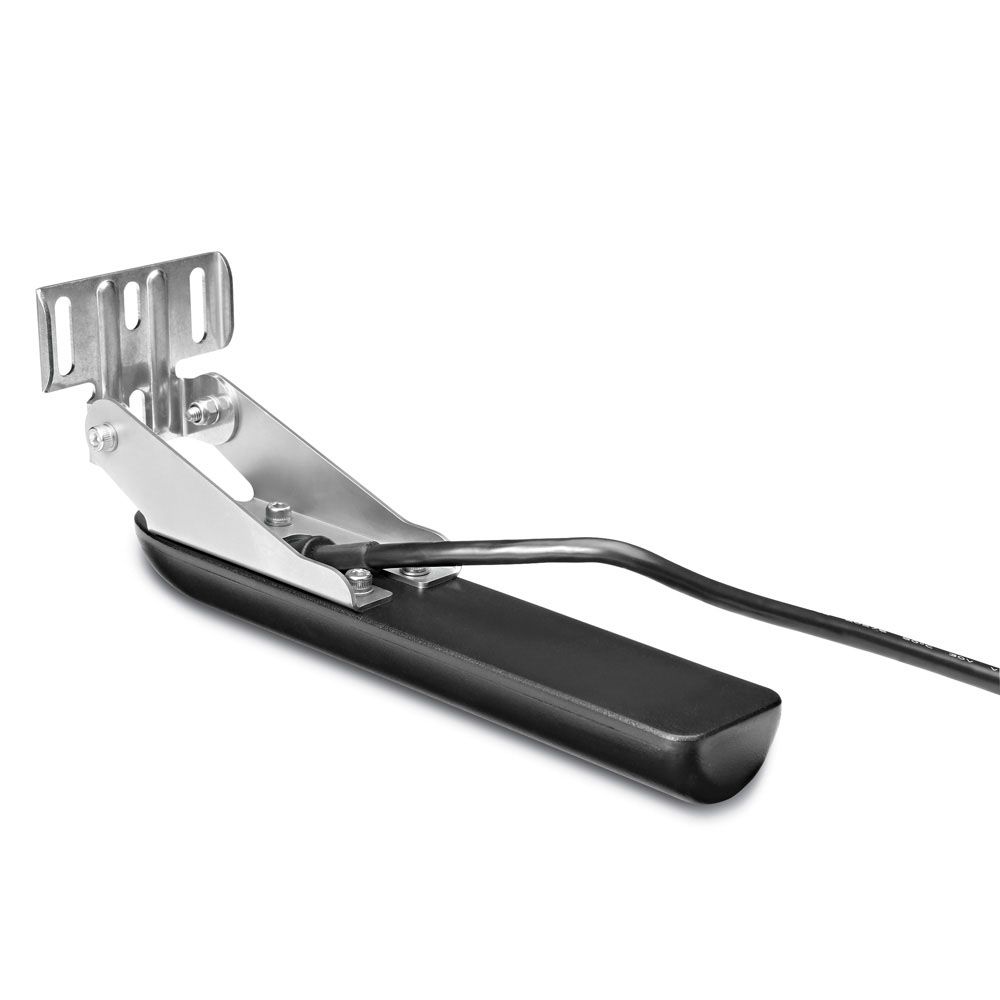

Garmin GT30-TM 12 Pin Transom Mount Transducer

SKU
230-0100196100

Weight: 1.08 lbs. (0.50 kg).

Cable length: 20’.

Number of pins on connector: 12.

Dimensions: Transducer: 7.8 x 1.5 x 0.9 in (198 x 38 x 22 mm).

Frequency: DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz, SideVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz.

Max Depth: DownVü: 750 ft, SideVü: 500 ft.

Transmit power: DownVü: 500 W, SideVü: 500 W.

SRP ex vat: £149.99
🟢 In Stock

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin transducer. This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü) and 500 ft left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar. Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
