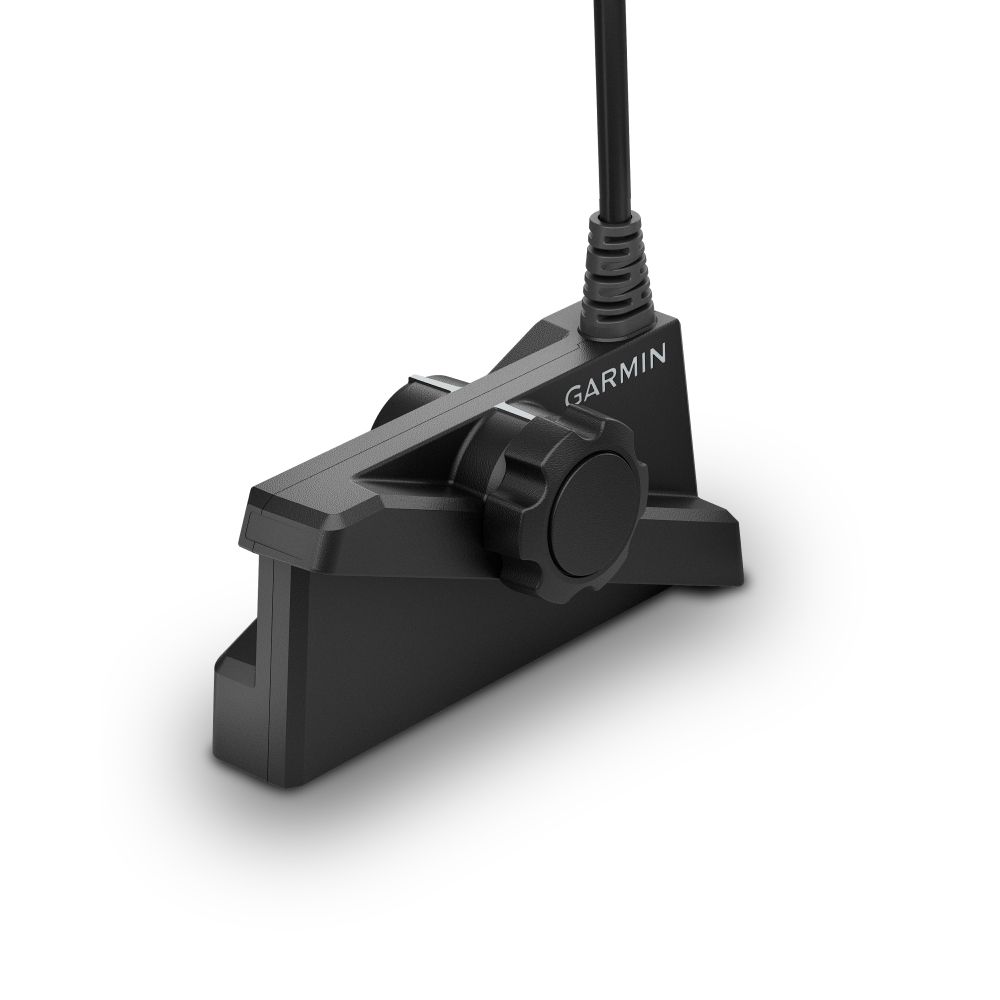

Garmin LVS34 Transducer for Panoptix LiveScope Plus

• Dimensions: 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
• Weight: 2.25 lbs (1.02 kg)
• Water Rating: IPX7
• Frequency: 530 - 1,100 kHz
• Max Depth: Down and Forward: 200’ (61.0 m)
•  Garmin Marine Network Ports: 1 (small connector)
• Power Input: 10-32 V
• Power Usage: 21 W typical, 58 W max
• Transmit Power: 500 W
• Fuse: 7.5 A
• Compass Safe Distance: 4" (0.1 m)
• Minimum depth: 3' (0.91 m)
• Sonar type: Live
• Beamwidth: 20° x 135°
• Transducer cable length: 20 ft
• Transducer number of pins: 21

The Best of the Best Just Got Better

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

• See images clearly with improved screen clarity, transducer sensitivity and target separation.
• Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
• Upgrade current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
• Get maximum contrast and clarity in images with vivid colour palettes.
• Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

Image Definition Never Seen Before

Real-Time Images: Real-time sonar ensures that live images are as accurate as possible.

Clear Vision: See exactly what is needed with reduced noise and fewer sonar artifacts that impede the picture of fish and structure.

Image Stabilisation: A built-in stabilisation system keeps the sonar image on the compatible chartplotter steady, even in rough conditions.

Vivid Colour Palettes: Choose from seven vivid colour options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.

Select a LiveScope mode to fit the environment.

Forward Mode: Scout ahead of the boat to see what’s happening in real time.

Down Mode: Explore live views of the activity directly beneath the boat.

Perspective Mode: See under the water with a view from the perspective above the water.
