Garmin Signal VHF 220 Marine VHF With Built-in AIS Receiver

Garmin Signal VHF 220 Marine VHF With Built-in AIS Receiver

SKU

230-0100295101

Stay connected and aware on the water with Garmin Signal VHF 220, the marine radio with advanced features and a colour touchscreen display.

SRP ex vat: £716.66

Reserve - Stock Pending. Please call

Product Information

Built-in Class B AIS SOTDMA receiver
3.5″ colour touchscreen display
Crystal-clear communication with adaptive noise cancellation
Intuitive class D Digital Selective Calling (DSC)
Includes fist mic with built-in speaker
Compact design takes up minimal space at the helm

Specification

General
Head Unit Size	75 x 160 x 104 mm (3″ x 6.3″ x 4.1″)
Fist Mic Size	100 x 60 x 31mm (3.9″ x 2.4″ x 1.2″)
Head Unit Weight	655 g (1.45 lbs)
Fist Mic Weight	245g (0.54 lbs)
Operating voltage	9.6 - 32 VDC
Water rating	IPX7
Display Type	Colour IPS LCD, capacitive touch
Display Size	3.5″ (89 mm)
Display Resolution	640 x 480 pixels
Operating temperature	–20° to 55° C (–4° to 131° F)
Inland Waterways (ATIS)	✓
Backlight	1,000 nits
Multi-language interface	✓

VHF Features
Adaptive noise cancellation	✓
Audio record and playback	✓
Auto squelch	✓
Dual/Tri watch	✓
Presets watch	✓
NOAA weather alert	✓
NOAA weather watch	✓
Loud Hailer	✓
Loud Hailer Listen-Back	✓
Intercom support	✓
AIS target display	✓
AIS collision and MOB alarms	✓

VHF Radio
Region	All U.S., Canadian and International marine channels; NOAA weather channels
VHF frequency range Tx	156.025–162.025 MHz
VHF frequency range Rx	156.025–163.275 MHz
VHF transmit power (max)	25 W, 1 W (high, low)
Transmitter frequency tolerance	+/0.3 kHz
Adjacent channel power	more than 70 dB
Spurious emissions	Less than –80 dBc (at 25 W)
Sensitivity (12 dB SINAD)	-118 dBm (-11 dBu/0.28 uV)
Adjacent channel selectivity	80 dB
Spurious response	more than 75 dB
VHF intermodulation	more than 75 dB
Max antenna gain	6 dBi

Class D DSC
Class	Class D
Sensitivity (1% BER)	-117 dBm (-10 dBu/0.32 uV)
Adjacent channel selectivity	80 dB
Spurious response	more than 75 dB
Intermodulation	more than 75 dB

AIS Transponder Features
Remote station support	RM 100 (x5)

AIS
Class	AIS RX only
Frequency range	156.025–162.025 MHz
AIS Sensitivity (20% PER)	-115 dBm (-8 dBu/0.4 uV)
Adjacent channel selectivity	80 dB
Spurious response	more than 75 dB
Intermodulation	more than 65 dB

GNSS
Integrated GNSS receiver	✓
Integrated GNSS antenna	✓
Constellations	GPS, GLONASS, BeiDou, Galilleo
Differential support	SBAS, AIS Msg 17
Navigation rate	10 Hz

Sensors
NMEA 2000® compatible	✓
Battery voltage	✓

Audio
Max speaker output power{}	Fist Mic: 5 W RMS, < 1% THD
Max external speaker output power	15 W RMS, < 1% THD, 4 Ω
Max hailer loudspeaker output power	25 W RMS, < 1% THD, 4 Ω

Tactical Features
Night vision mode	✓

Electrical Features
Typical current draw at 12 Vdc	Head Unit: 700 mA, 6 A max Fist Mic: 90 mA, 0.9 A max
Compass safe distance	Head Unit: 70 cm (27.6″) Fist Mic: 15.8 cm (40″)

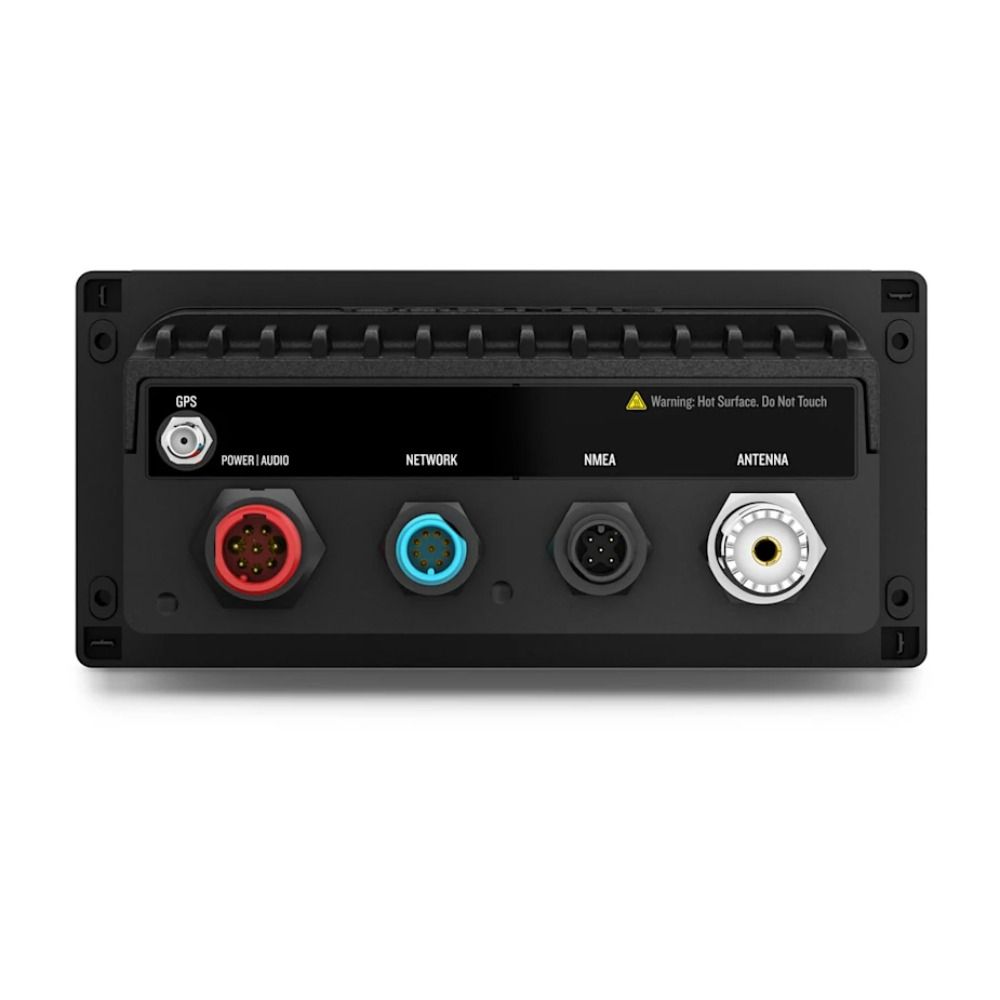

Networking & Connections
Garmin BlueNet™ Network	GMN 1.0/2.0
Wireless Connectivity	Access point for mobile phones, 802.11b/g/n, integrated antenna
Wireless security	WPA2 Personal
External GNSS antenna connector	SMA
Ant connector	SO-239 (50 Ω)

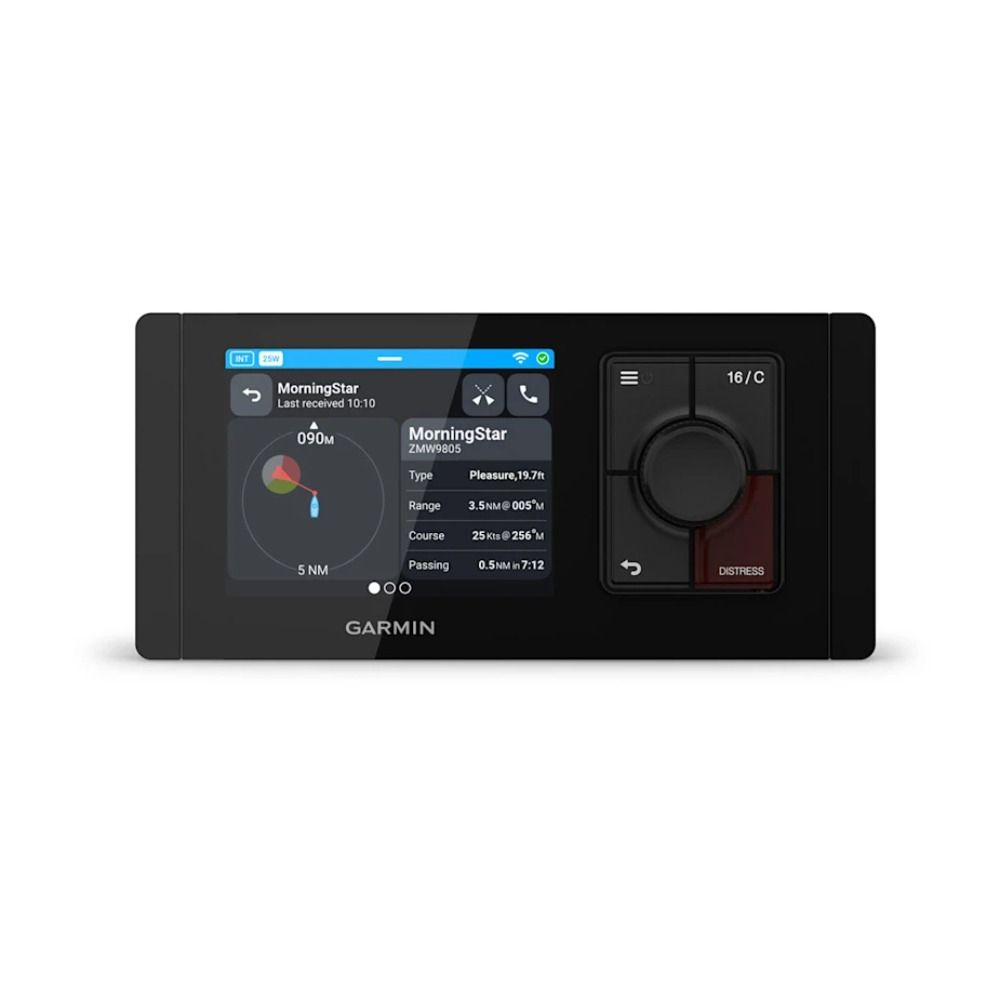

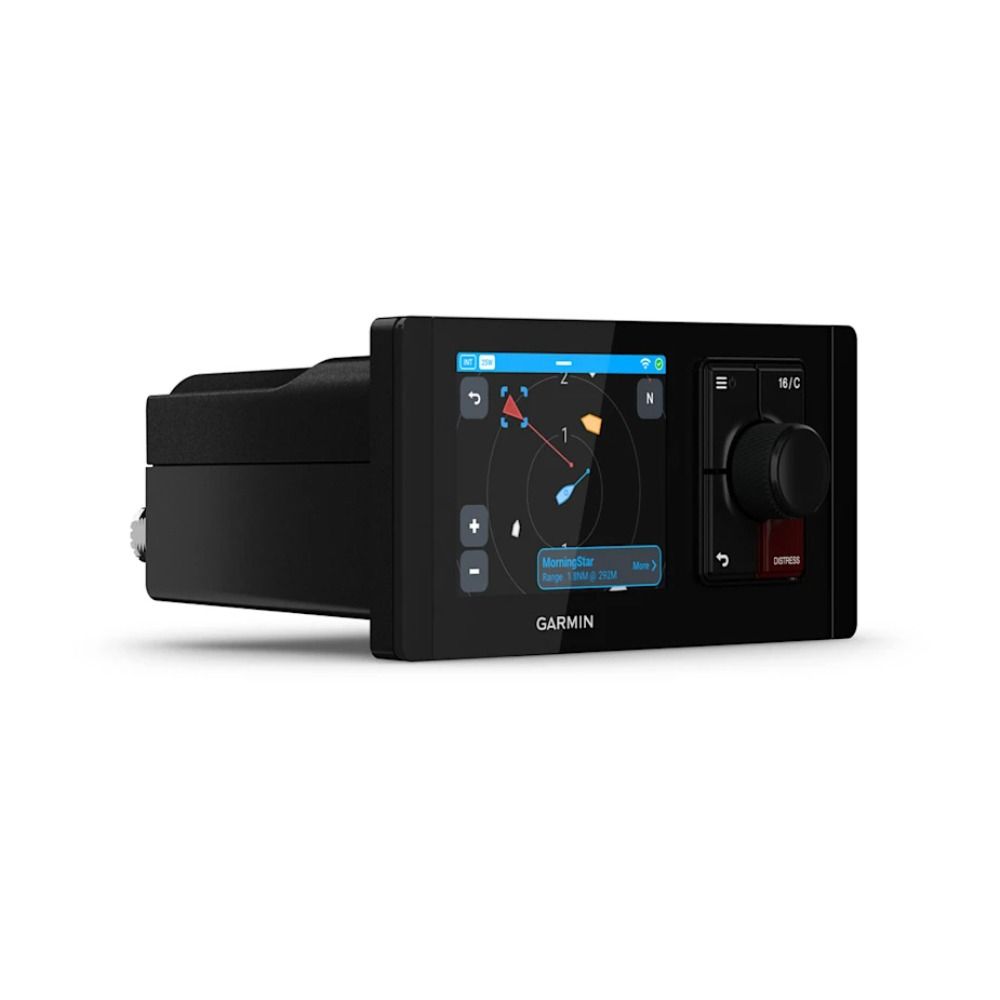

Built-in AIS - Stay aware on the water with built-in AIS receive capabilities. This feature shows range, course, speed and the crossing situation of other AIS-equipped vessels around you to help you navigate.

Sleek Design - The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.

Clear and Simple Communication - Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.

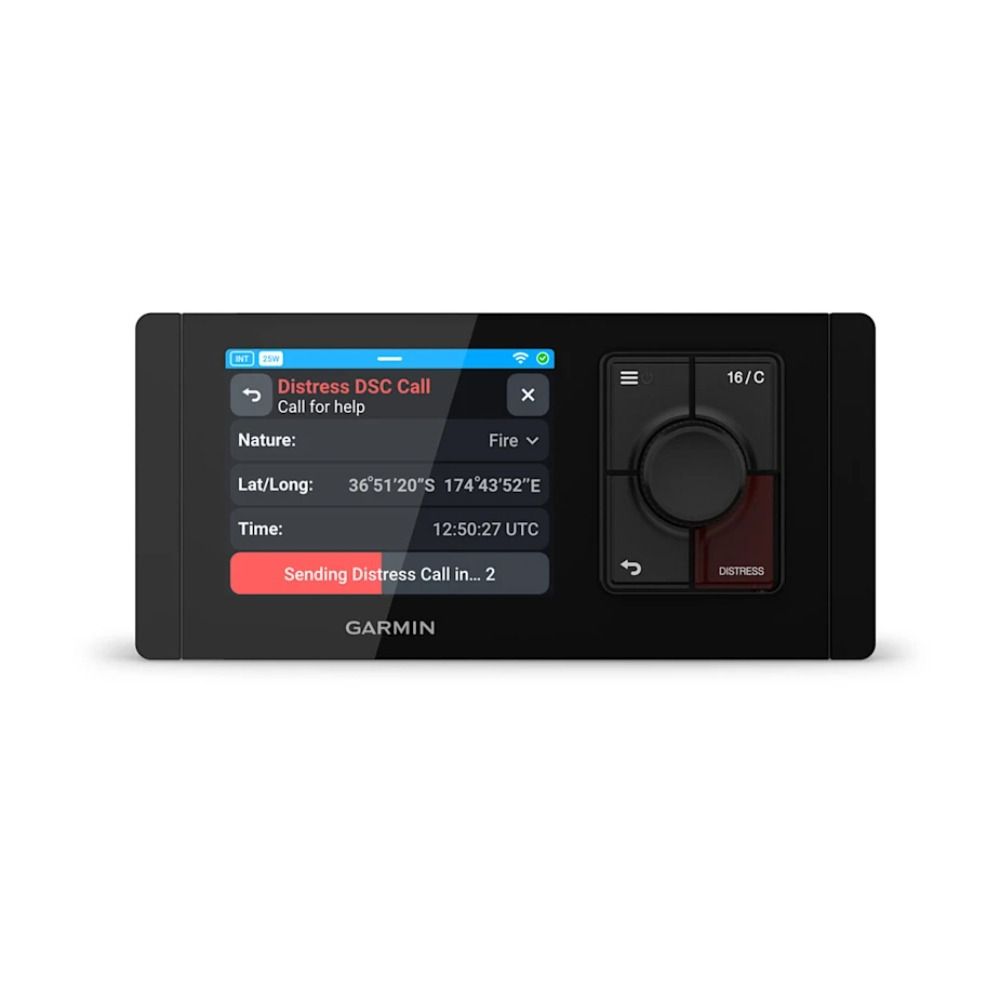

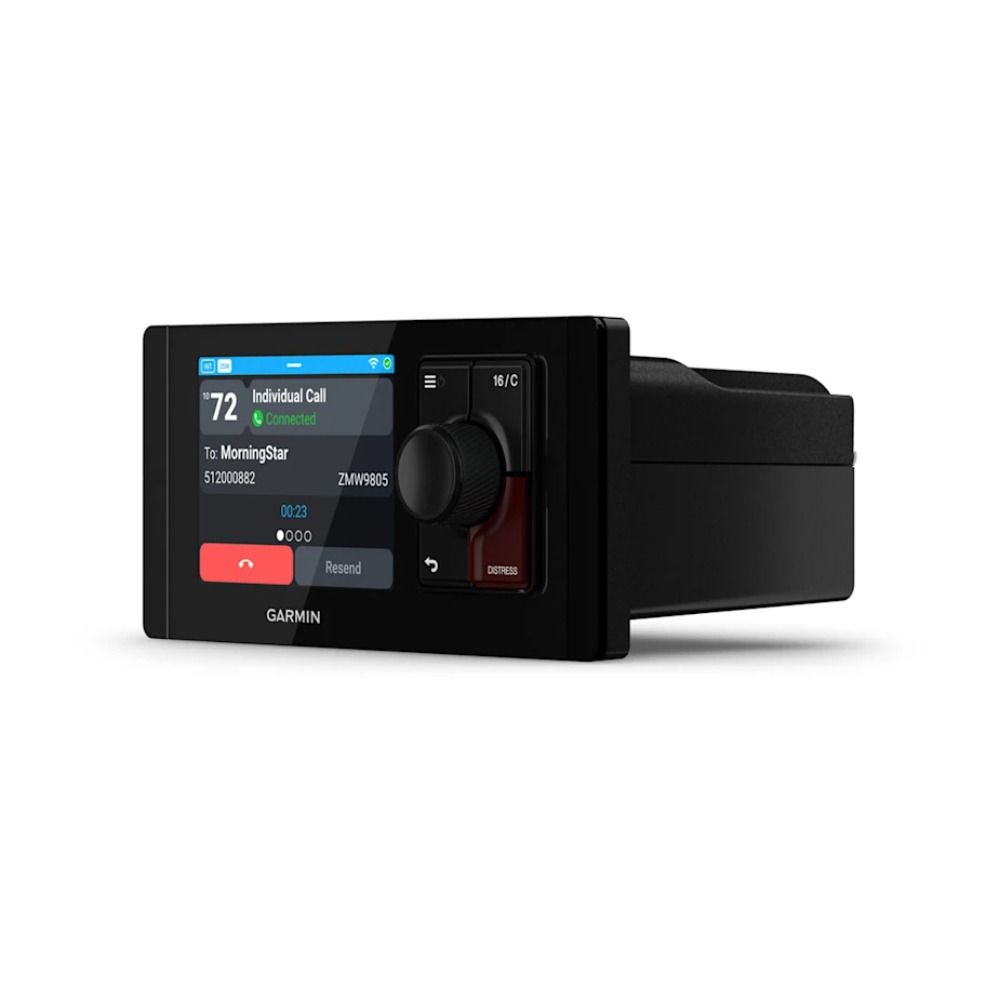

Stay Connected - Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels - simply select the vessel on the AIS plotter view, and call them with a tap of a button.

Easy to Update - Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain smartphone app via built-in Wi-Fi connectivity.

Installation is a Breeze - Installation is simple since VHF/DSC/AIS features only require a single VHF antenna and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000 network and Garmin BlueNet Network.

Advanced Software Features

Adaptive Noise Cancellation - Advanced noise cancellation uses machine learning algorithms to eliminate wind, wave and engine noise for our cleanest audio experience.

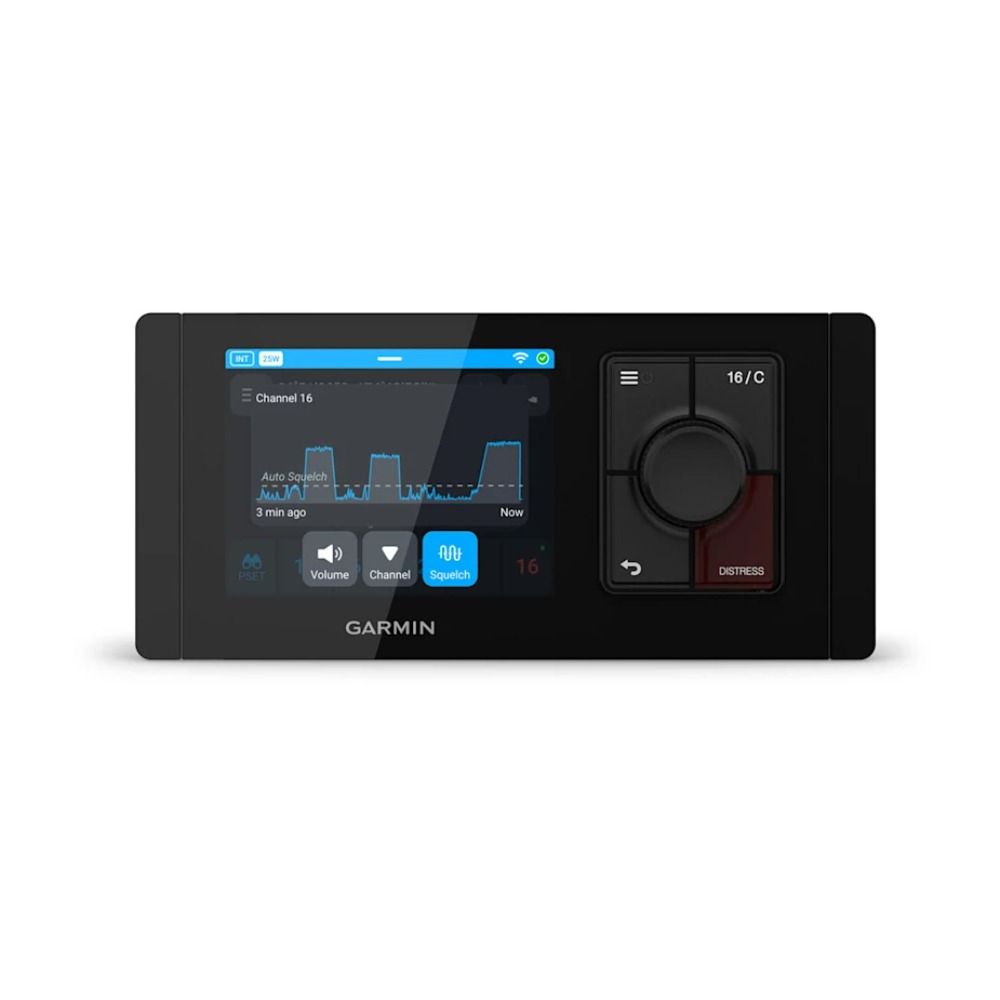

Automated Squelch - Radio activity is constantly monitored to eliminate unnecessary noise and static. You also have the option for manual fine-tuning.

Advanced Watch Modes - All VHF channels are continuously scanned for activity in the background, allowing you to maintain watch over channel 16 and all your favourite preset channels simultaneously.

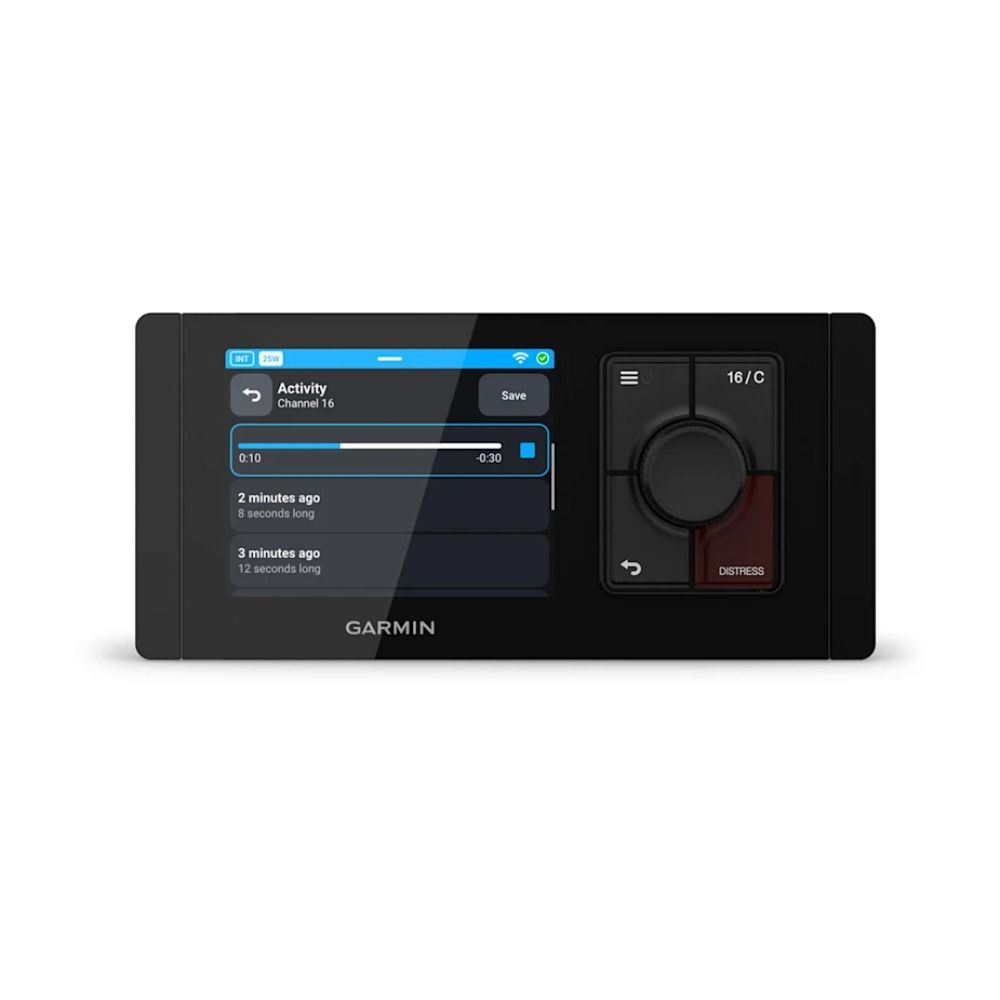

VHF Audio Playback - Didn’t catch that message? Replay it with VHF audio playback, and listen to audio messages for up to 3 minutes on any channel.

Communicate

AIS Receiver - Maintain situational awareness with the built-in Class B AIS SOTDMA receiver.

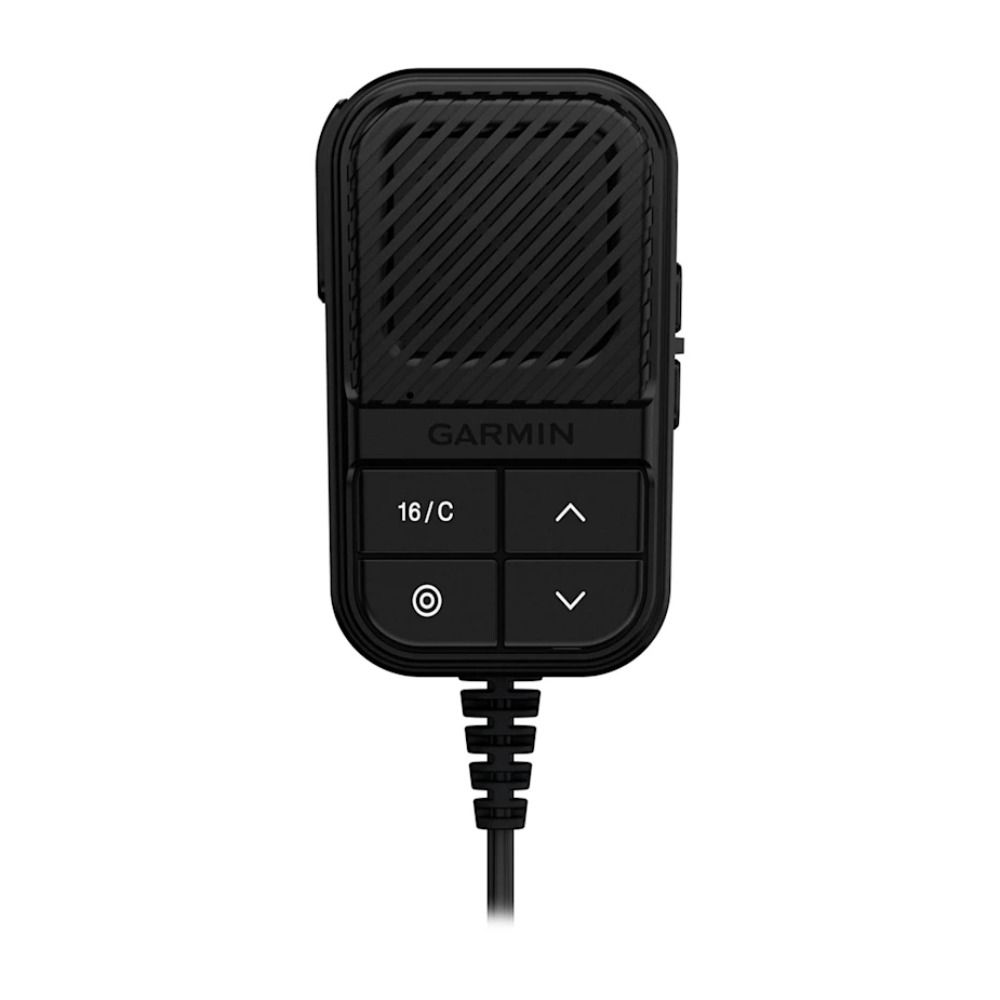

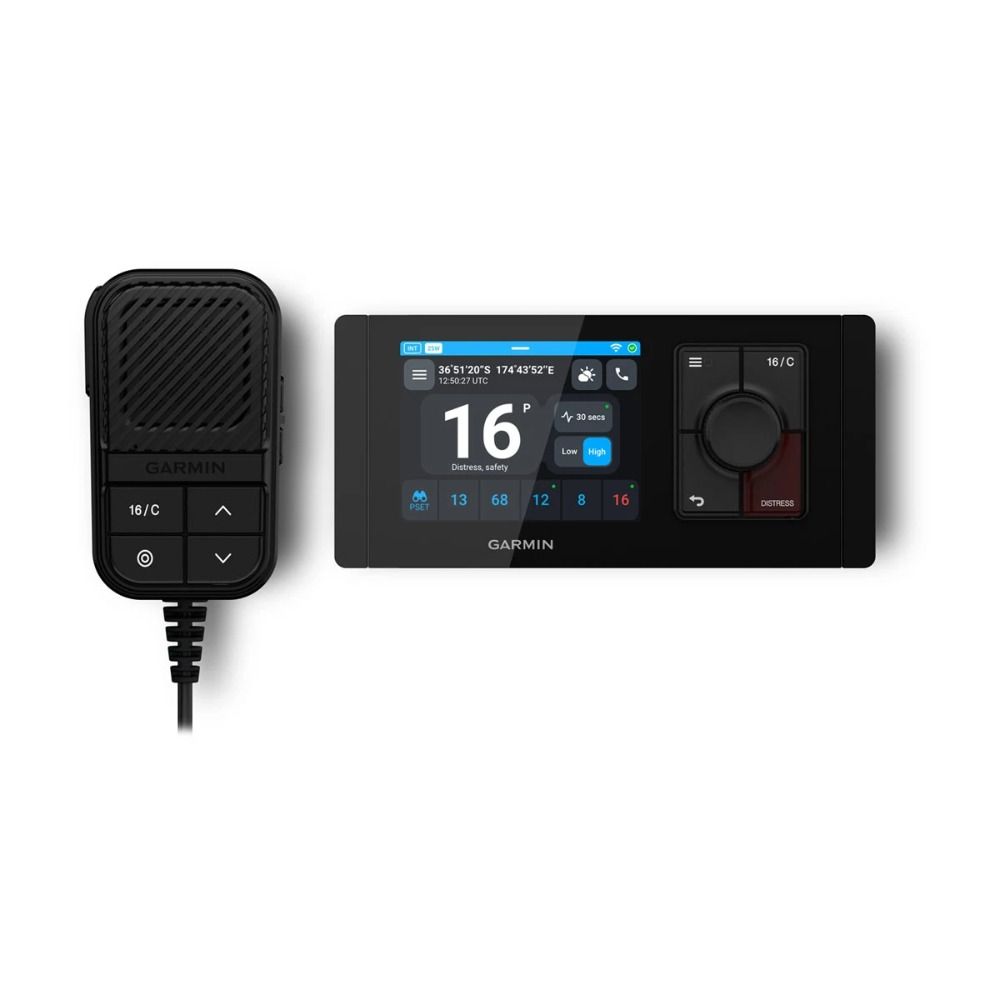

Fist Mic - The included fist mic features a built-in speaker (5-watt RMS) and can be mounted in a different location to the head unit.

Rugged Design - The radio is built to withstand harsh marine environments with an IPX7 rating.

External Speaker Support - Connect a compatible external speaker for more playback options beyond the built-in speaker on the fist mic.

Hailer With Listen Back - Connect the radio to a compatible loudhailer for broadcasting announcements. The listen back feature gathers background sounds that can be heard through the fist mic or external speaker.
