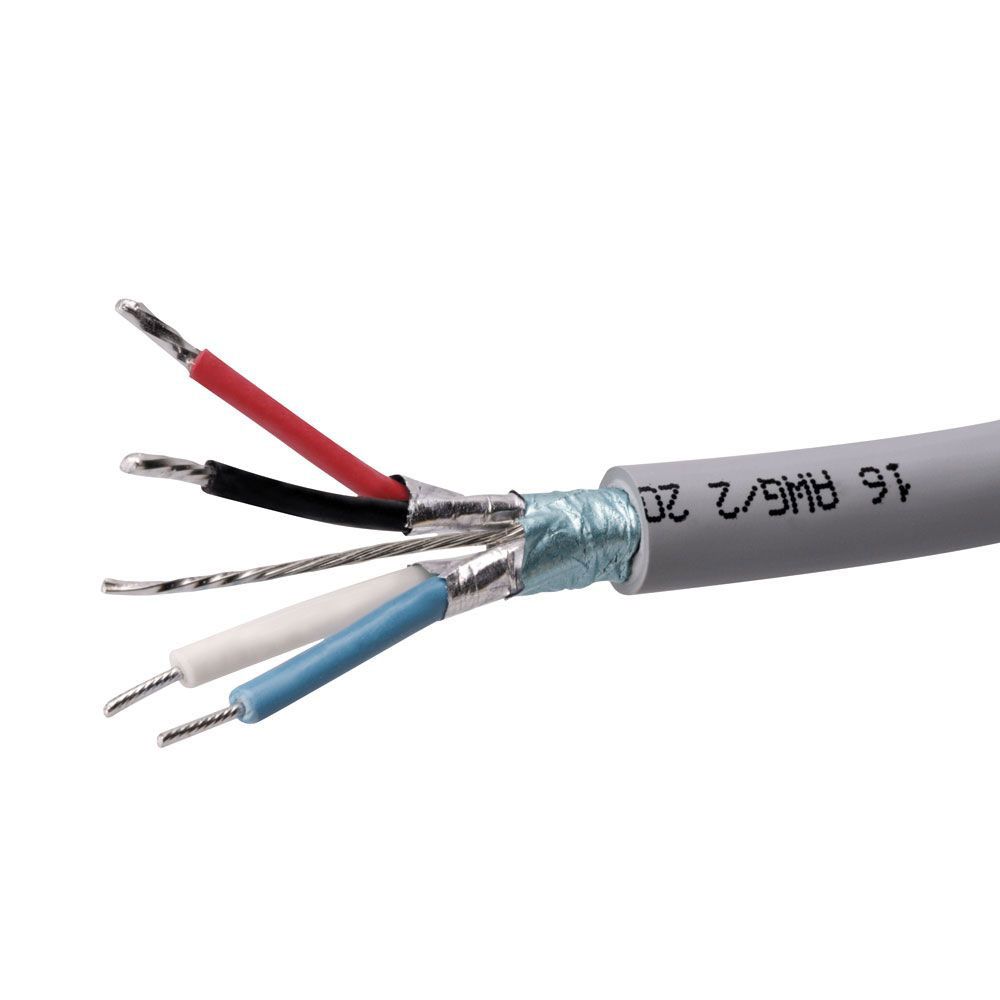

Maretron Mini Bulk Cable per metre grey Max 50 meter continuous piece

SKU

468-NG1

Meets and exceeds NMEA 2000 specifications for the highest reliability.

Trunk or drop cable for use with Mini connectors.

SRP ex vat: £5.92

🟢 In Stock

Product Information

Used with field-attachable connectors to build exact length cables at the job site.

Insulation Material: PE (data), PVC (power).

Power Pair - Wire: 2x15 (1.45mm) AWG.

Power Pair - Resistance/Conductor: 3.44 Ohms/1000 ft. max.

Power Pair - Max Amperage: 14 Amps.

Data Pair - Wire: 2x18 (1.02mm) AWG.

Data Pair - Characteristic Impedance: 120 Ohms ± 10%.

Data Pair - Capacitance: 12 pF/1000 ft. Max.

Mini bulk cable is primarily used as trunk cable, but it can also be used as drop lines. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.
