Garmin GHP Reactor 40 Steer-by-wire Standard Corepack & GHC 50
This corepack works with SeaStar Optimus systems, Yanmar Marine ZT370 sterndrive electronic power steering systems and ZF 2800 Pod drives. It requires a compatible Garmin chartplotter. The GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to the helm. Plus, GHC 50 shares data and settings with Garmin MFDs and other installed Garmin devices.
Reactor 40 CCU
- Dimensions: 3 19/32" diameter (91.4 mm)
- Weight: 5.6 oz (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft (3 m)
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)

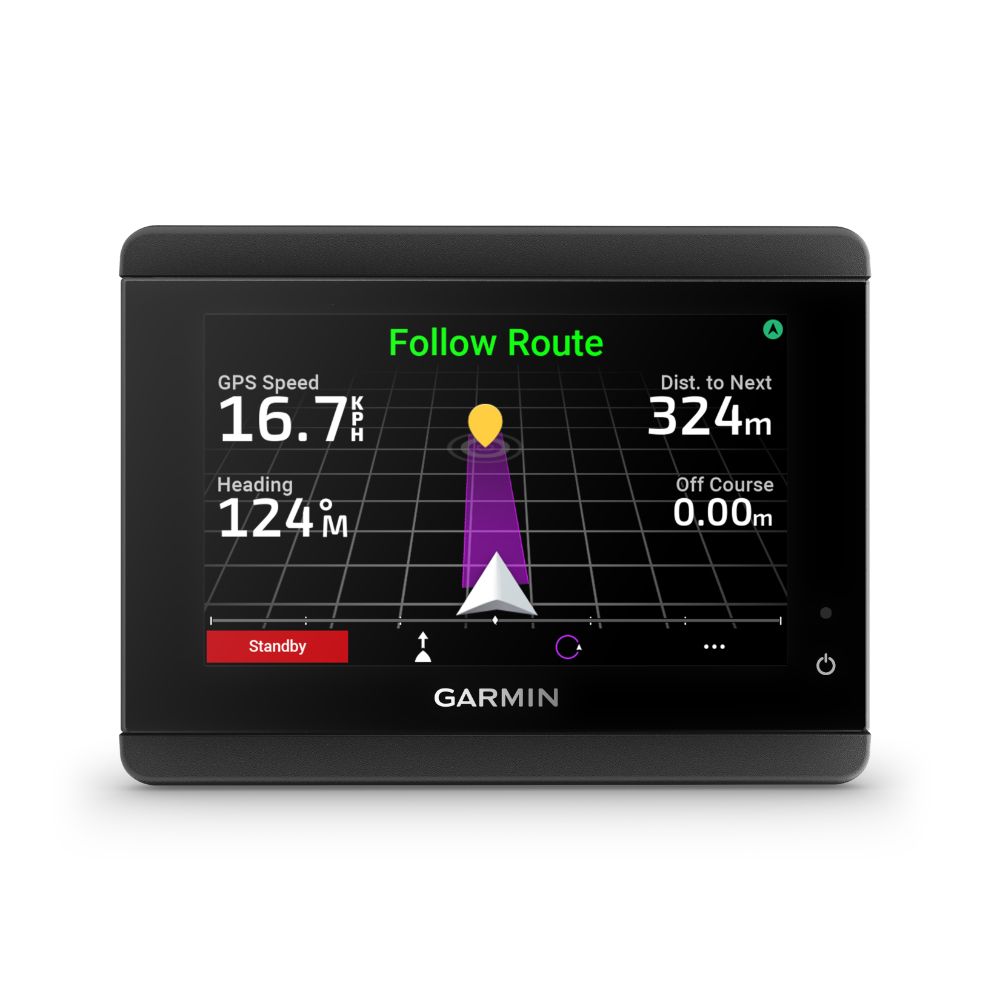

GHC 50 Marine Autopilot Instrument
- Dimensions: 4.13” x 4.51” x 2.01” (105 x 140 x 51 mm)
- Touchscreen: Yes
- Display resolution: 800 x 480
- Display type: WVGA
- Weight: 11.57 oz (328 g)
- Water rating: IPX7
- Mounting options: Flat or flush
Every Captain Needs a Co-Pilot
Designed for sailboats and powerboats, this Reactor 40 autopilot steer-by-wire corepack gives an extra hand, explore paradise worry-free.
- This Reactor 40 standard corepack is the perfect companion for the boat's steer-by-wire system.
- Yes, it features a solid-state 9-axis AHRS. And yes, that means it can be mounted nearly anywhere.
- Even when pitching or rolling, this autopilot reacts to sea conditions to keep the boat on course.
- Just want to get on the water, The calibration is fast and easy. That’s the power of simple.
- Combine with a compatible Garmin chartplotter, and control the autopilot from anywhere on the boat.
- Want more? The optional GHC 50 autopilot instrument enhances the autopilot experience.
Every Captain Needs a Co-Pilot
Designed for sailboats and powerboats, this Reactor 40 autopilot steer-by-wire corepack gives an extra hand, explore paradise worry-free.
- This Reactor 40 standard corepack is the perfect companion for the boat's steer-by-wire system.
- Yes, it features a solid-state 9-axis AHRS. And yes, that means it can be mounted nearly anywhere.
- Even when pitching or rolling, this autopilot reacts to sea conditions to keep the boat on course.
- Just want to get on the water, The calibration is fast and easy. That’s the power of simple.
- Combine with a compatible Garmin chartplotter, and control the autopilot from anywhere on the boat.
- Want more? The optional GHC 50 autopilot instrument enhances the autopilot experience.
Plot Course to Paradise
Corepack Compatibility: This corepack works with SeaStar Optimus systems, Yanmar Marine ZT370 sterndrive electronic power steering systems and ZF 2800 Pod drives. It requires a compatible Garmin chartplotter.
Solid-State 9-Axis AHRS: With its advanced solid-state 9-axis AHRS, the Reactor 40 can be mounted nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.
Reacts to Water Conditions: Hold course on the sea - this autopilot reacts to conditions, so remain confident even when the boat ispitching or rolling.
Simple Calibration: All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
Wireless Remote Capabilities: Control the autopilot from anywhere on the boat by using a compatible Garmin devices, including the Reactor autopilot remote, select quatix marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
Connect to Everything on the Boat
Includes GHC 50: Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to the helm. Plus, GHC 50 shares data and settings with Garmin MFDs and other installed Garmin devices.
Powerboat and Sailing Features: When connected to a compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns - plus wind hold and tack/jibe when paired with a wind sensor (sold separately). Gain additional benefits such as the follow route and Auto Guidance+ features
In The Box
- Reactor 40 CCU (Course Computer Unit)
- GHC 50 Marine Autopilot Instrument
- NMEA 2000 drop cables (2 metres)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Buzzer
- Male and female terminators
- CCU cable
- Documentation
