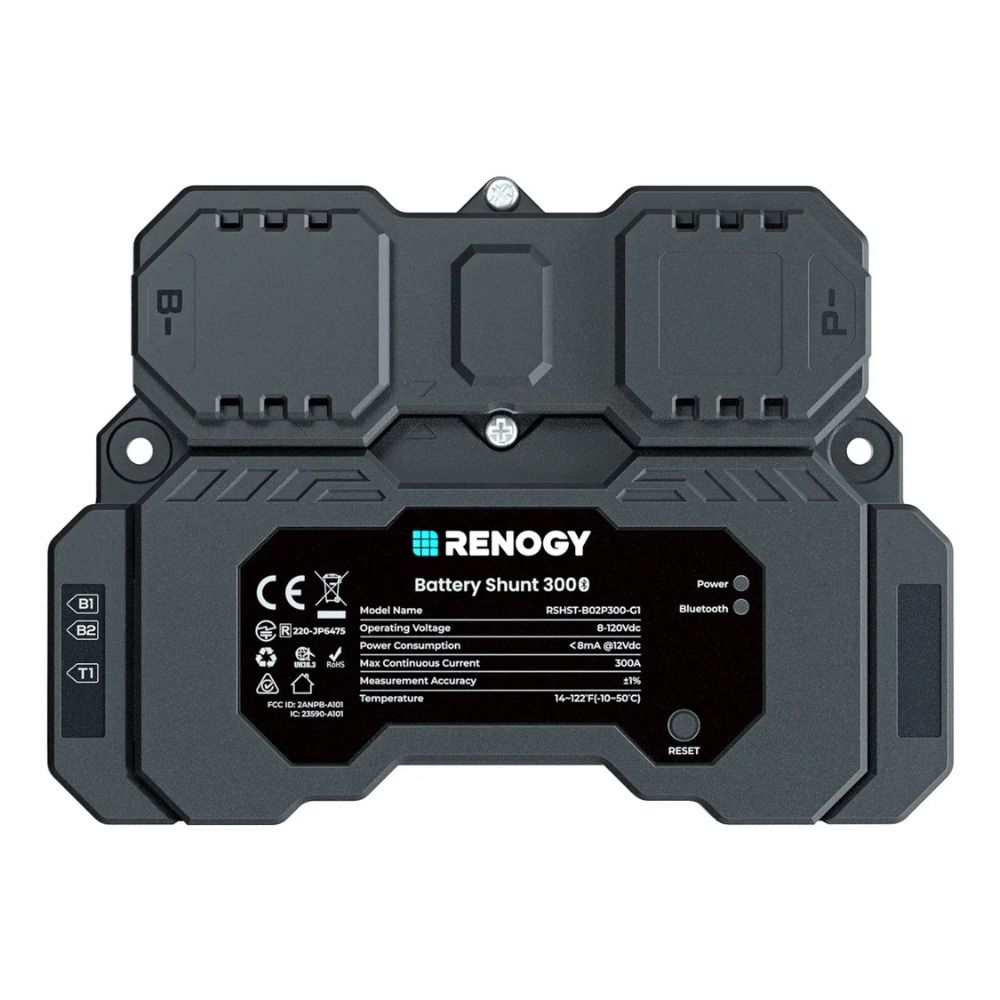

Renogy Core Battery Shunt With Bluetooth - 300A

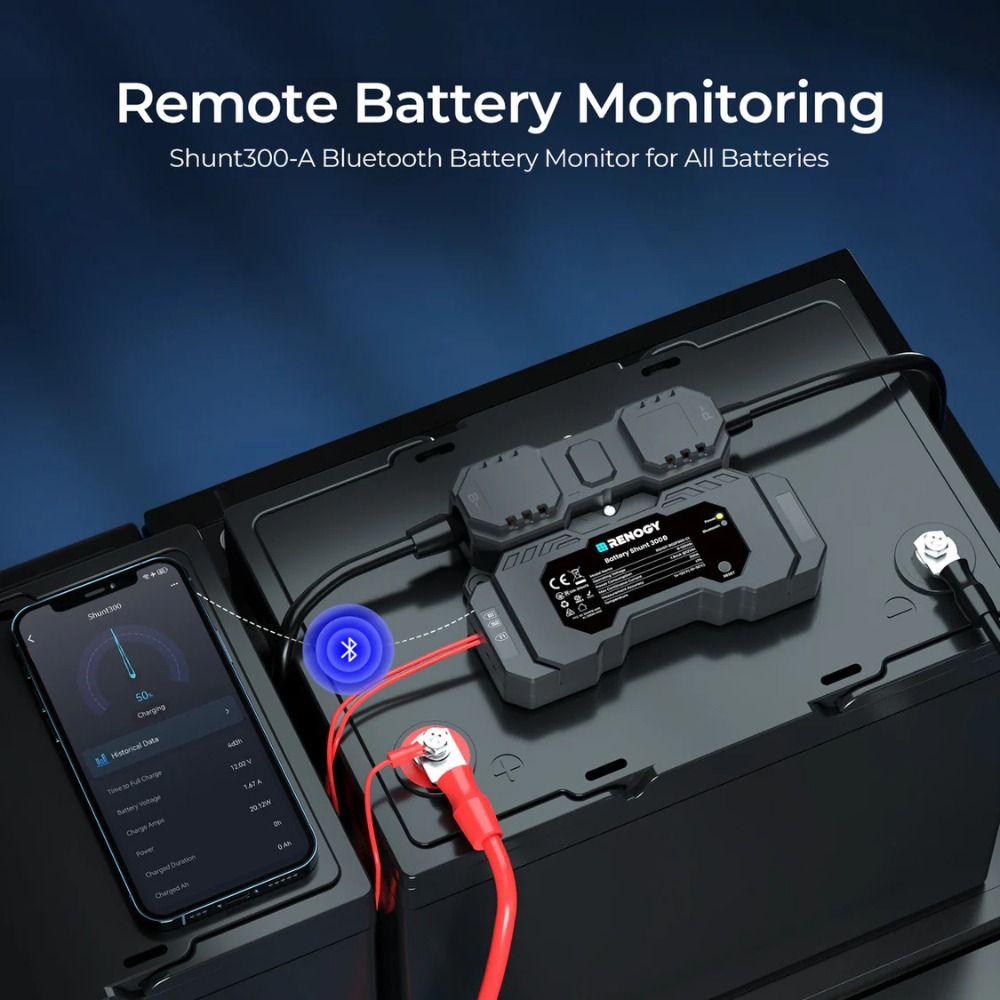

The Renogy Battery Shunt 300 is an intelligent battery monitor that measures the battery voltage and currant based on which it calculates the state of charge and remaining running time of the battery. With built-in bluetooth the it communicates with the Renogy app and Renogy One allowing the monitoring of real-time charging and discharging.
- Power Supply: 8 - 120V DC
- Max Continuous Current: 300A
- Max Peak Current: 500A
- Remote monitoring and control via Renogy ONE/DC Home App
- Compatible with various batteries：Lead Acid, LFP, Li-ion, and Ni-MH
- Displays State of Charge, temperature, and starter battery voltage
- Records historical data and issues alerts via DC Home app
Specifications
X| Specifications | ||
|---|---|---|
| Power Supply | 8 - 120VDC Power Consumption | <0.1W |
| Communication | Bluetooth LE and BLE Mesh | |
| Max continuous current | 300A | |
| Max peak current | 500A(<10s) | |
| Current accuracy | ±1% | |
| Current Resolution | 0.01A | |
| Battery Capacity | 1 - 6500Ah | |
| Voltage Input Range | 8 - 120V | |
| Voltage input resolution | 10mV | |
| Temperature sensor range | -20~80℃ | |
| Temperature sensor accuracy | ±1% | |
| Operating Temperature | -10℃ to 50℃ (14℉ to 122℉) | |
| Operating Humidity | 0% to 95% RH | |
| Operating Altitude | Less than 2000m above sea level | |
| Installation | Surface mounting | |
| Battery connection | M10 bolts | |
| Weight | 260g (0.57lb) | |

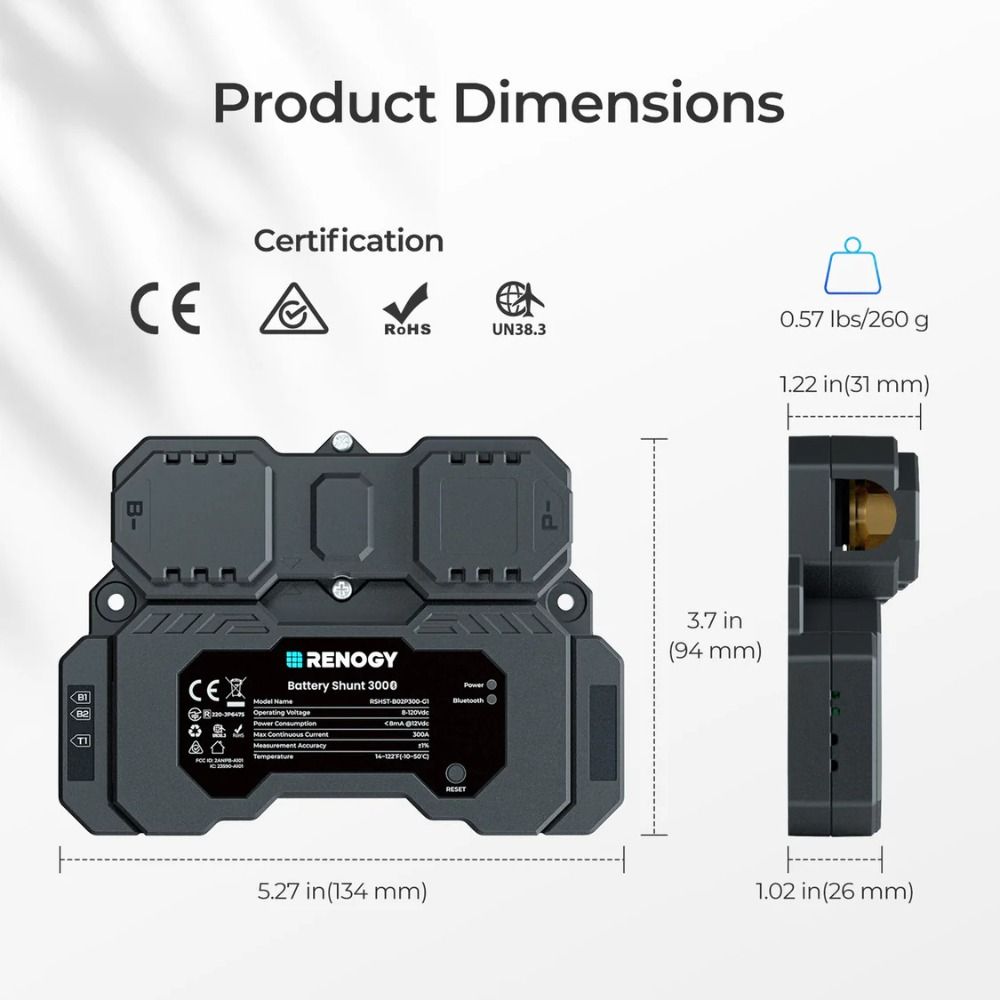

| Dimensions | 134 x 97 x 31 mm (5.27" x 3.82" x 1.22") | |
The Renogy Battery Shunt 300 is an intelligent battery monitor that measures the battery voltage and currant based on which it calculates the state of charge and remaining running time of the battery. With built-in bluetooth the it communicates with the Renogy app and Renogy One allowing the monitoring of real-time charging and discharging.
Check Your Battery Charging Level Anytime Anywhere - Ensures precise battery monitoring via the Renogy ONE Core and DC Home App.

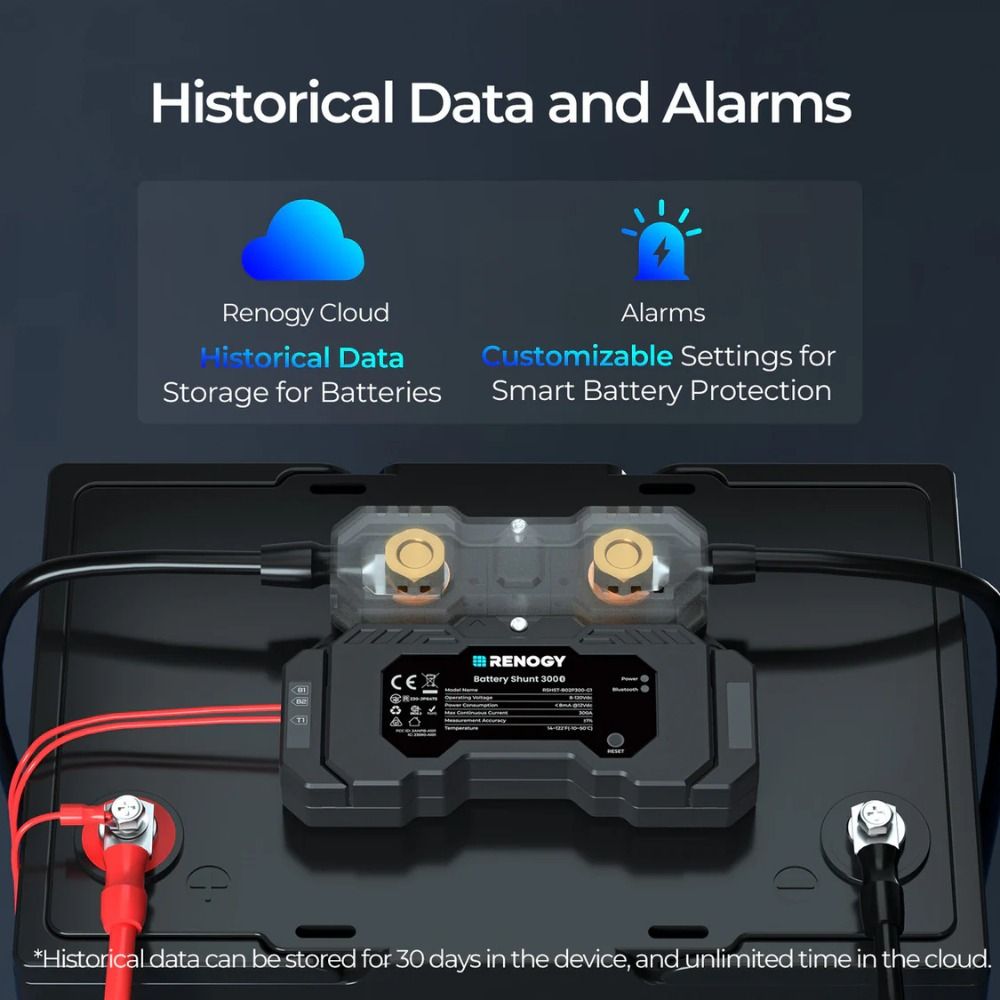

Data Analysis - Track Battery Data Performance Over Time. The Shunt 300 helps record historical data via Renogy ONE Core and DC Home App.

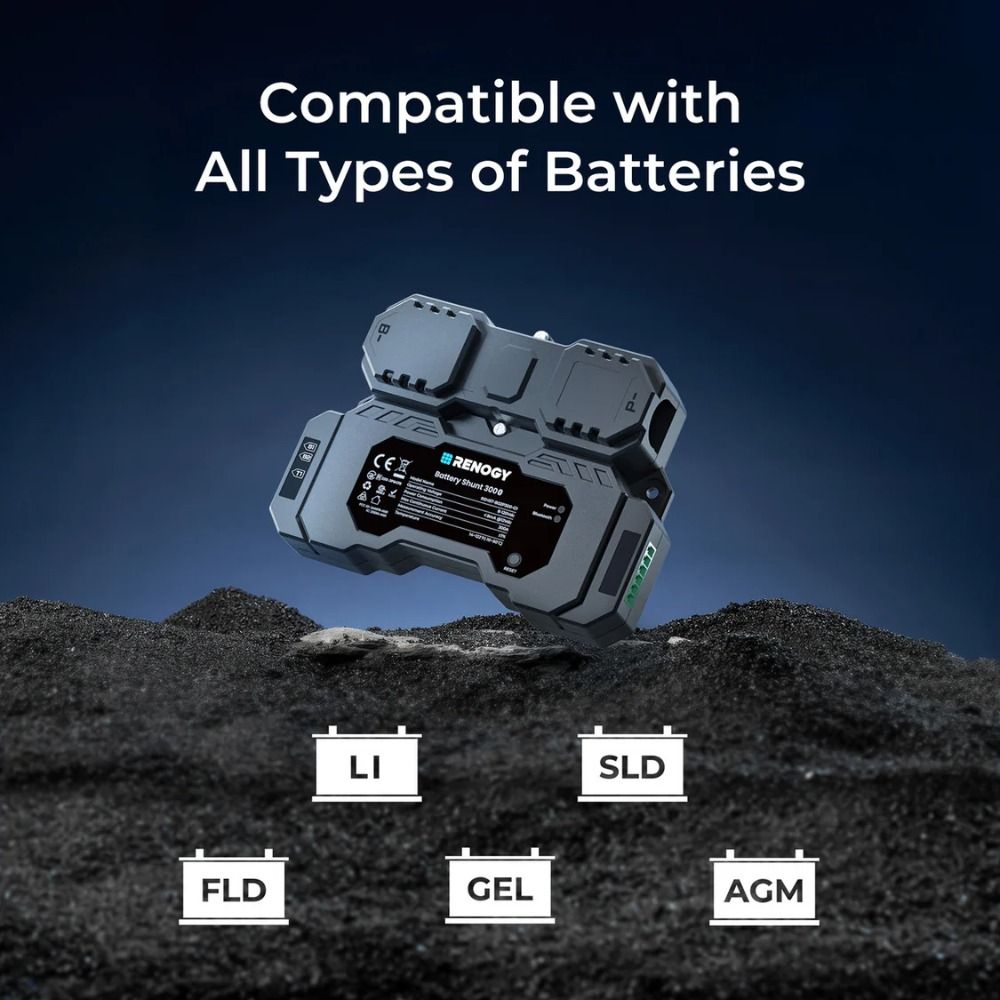

Batteries Compatibility - Compatible With All Types of Batteries The Shunt 300 is compatible with all your starter battery and main batteries.
Trusted Performance - The Shunt 300 has undergone comprehensive testing to not only meet but also surpass exceptionally high standards of excellence.
Battery Temperature Sensor - Detection of the battery temperature is possible with the included temperature sensor.
Effortless Installation in 5 Minutes - It can be placed on top of the battery or securely mounted on the wall with screws. The connection points feature protective covers to effectively safeguard against any loosening caused by various movements.
Quick Setup Involves Simple Operations to Get Started - The initial steps for a quick setup are designed to be user-friendly and straightforward, ensuring that users can get started with ease.
Fast Connection in 4 Steps - When paired with Renogy ONE Core and DC Home, the Shunt 300 provides a seamless real-time data display experience.

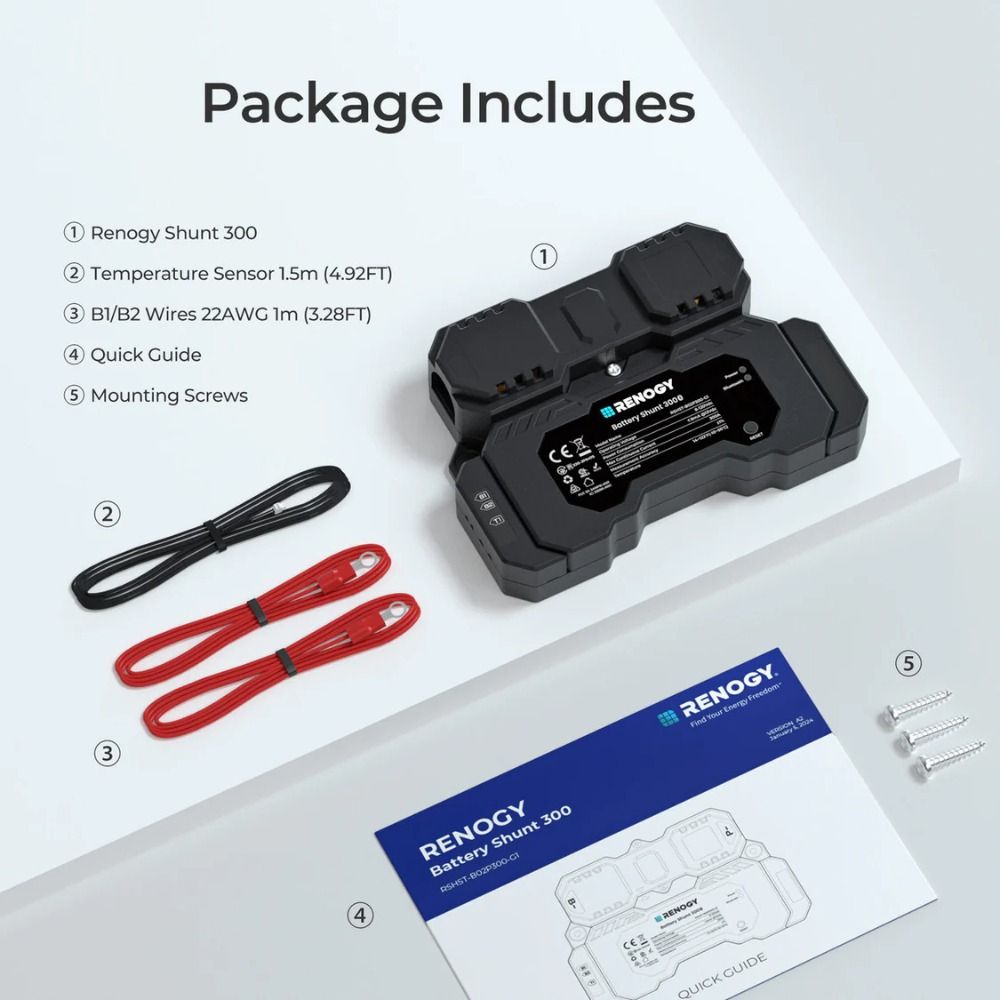

In The Box
- Renogy Battery Shunt 300
- Temperature Sensor with 1.4m Cable
- B1 / B2 Wires - 1m 22AWG
- Quick Start Guide
- Mounting Screws
