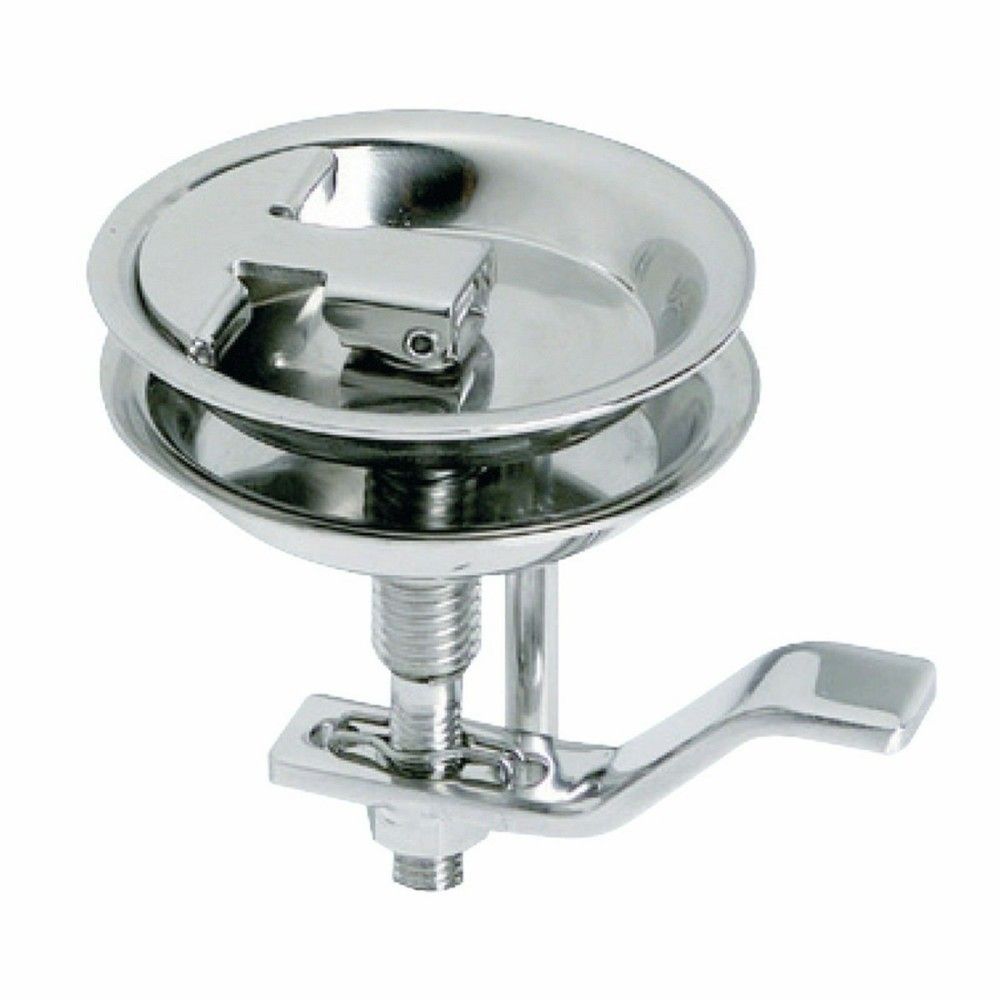

Osculati Lift Latch - Mirror Polished AISI 316 Stainless Steel - 90mm
Mirror polished AISI 316 stainless steel lift latch fitted with counter stop plate leaving no visible screws. The special pulling system which turns the handle is designed to completly lock the bottom boards to avoid vibrations.
Made of mirror polished AISI 316 stainless steel, fitted with counter stop plate; no visible screws; special pulling system which turns the handle to completely lock the bottom boards, thus avoiding vibrations, supplied with angled locking lever + straight lever + stop plate.
- Polished AISI 316 Stainless Steel
- Includes Angled and Straight Levers

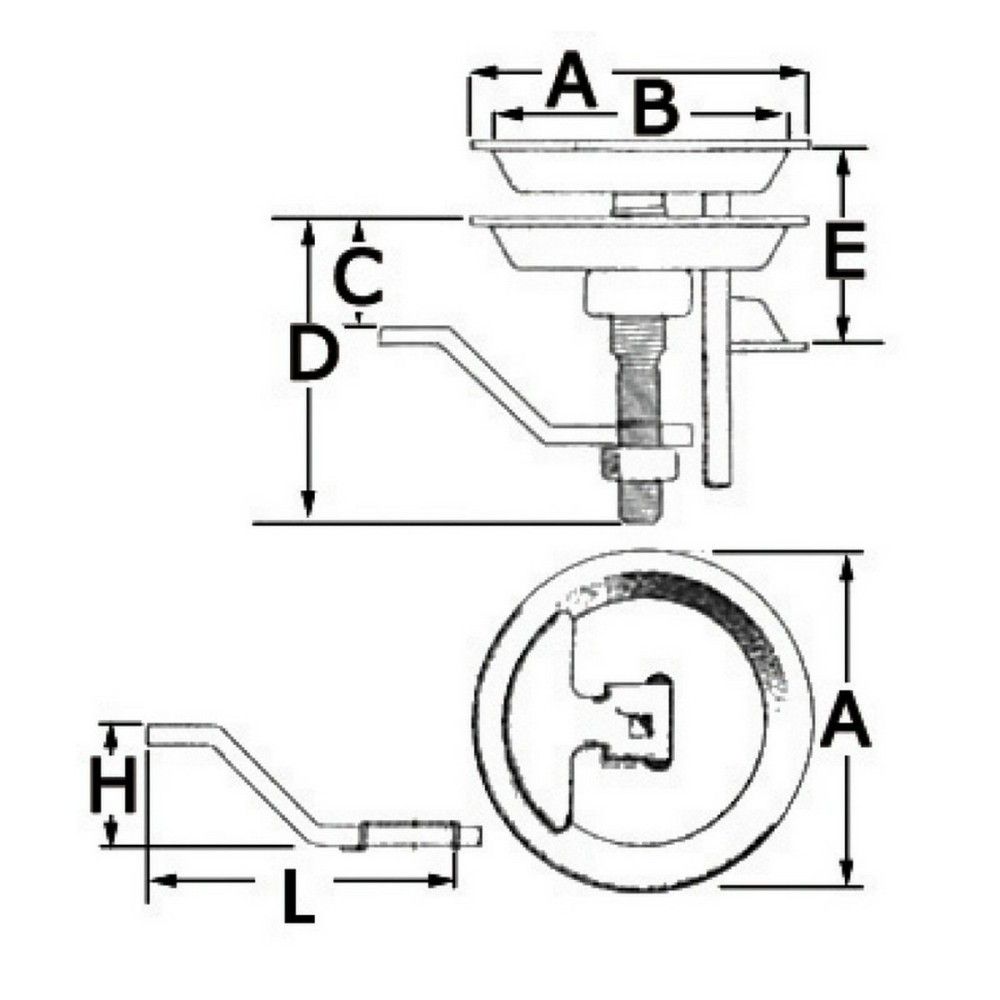

- Dimension A: 90mm
- Dimension B: 70mm
- Dimension C: 30 / 80mm (Angled / Straight Lever)
- Dimension D: 88mm
- Dimension E: 2/49 mm
- Dimension L: 71mm
- Dimension H: 22mm
Mirror polished AISI 316 stainless steel lift latch fitted with counter stop plate leaving no visible screws. The special pulling system which turns the handle is designed to completly lock the bottom boards to avoid vibrations. Supplied with stop plate, with both angled and straight locking levers.
