Quick 7108 IP67 Watertight Connector - 8 Pin 4A
SKU
690-FC7108000000A00

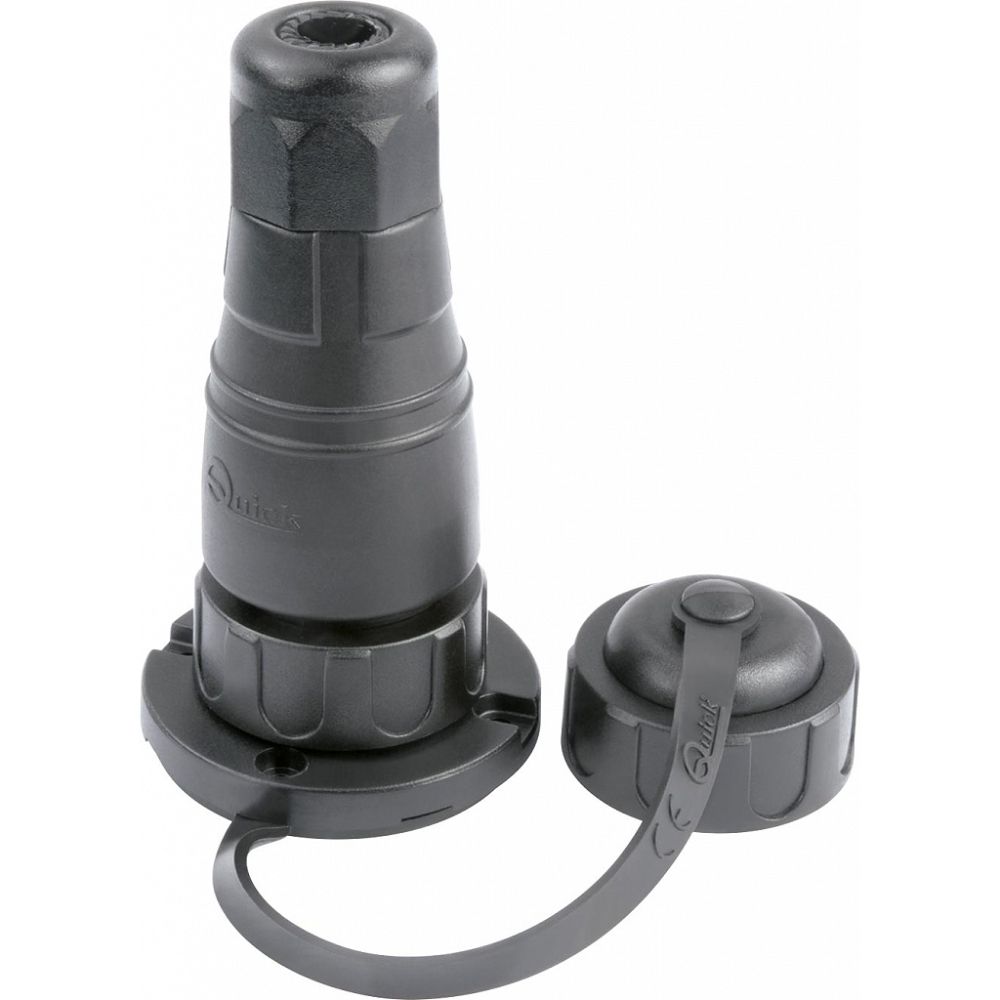

IP67 watertight Plug & Socket connector with 8 pins and 4A current capacity. The socket is fixed in place using four screws and comes with a protective cap. The plug secures with a screw twist ring nut and comes supplied with grommets to fit cables from 4.5mm to 9.5mm diameter.
SRP ex vat:
£32.06
Reserve - Stock Pending. Please call
- Number of contacts: 8
- Current capacity (per contact): 4A
- Max Voltage: 48V
- Contact resistance: <2.5mΩ
- Protection Rating: IP67
- Operating Temerature: -20°C - 70°C
IP67 watertight Plug & Socket connector with 8 pins and 4A current capacity. The socket is fixed in place using four screws and comes with a protective cap. The plug secures with a screw twist ring nut and comes supplied with grommets to fit cables from 4.5mm to 9.5mm diameter.
