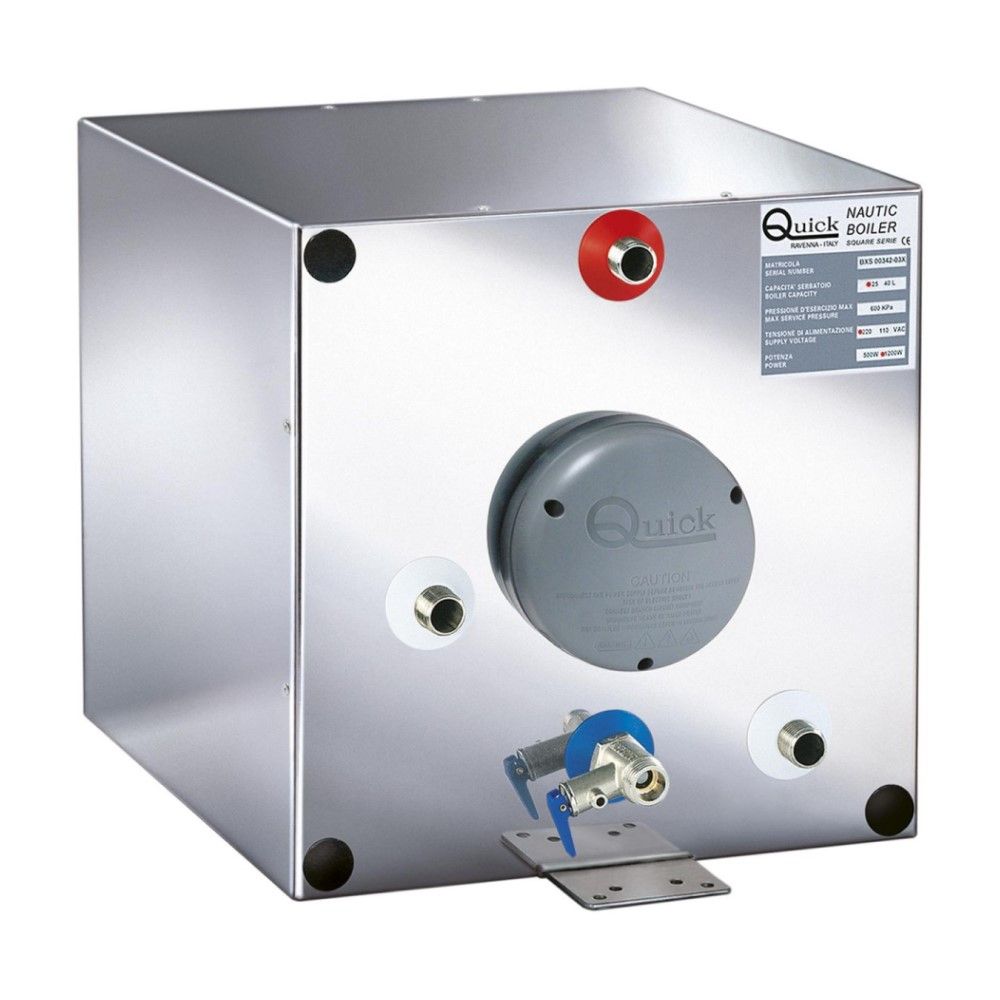

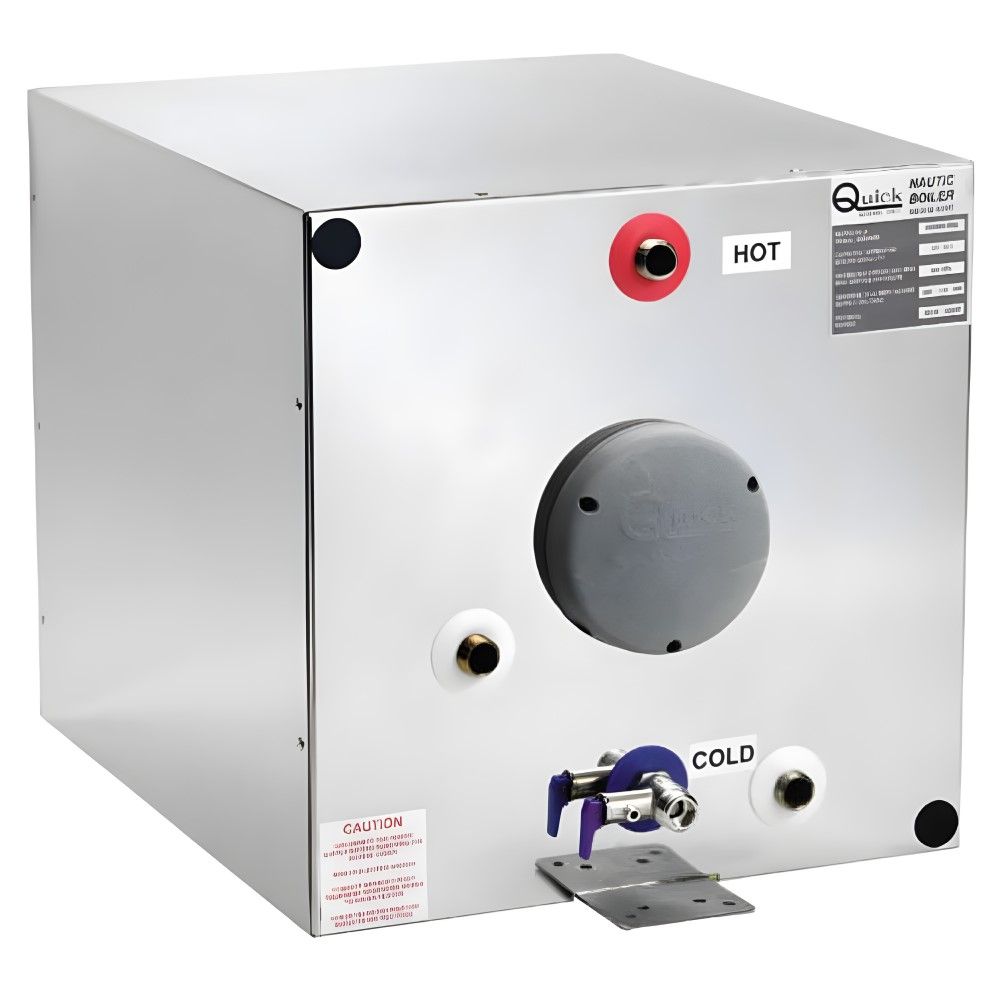

Quick Nautic Square BXS Boilers With Heat Exchanger
The BXS water heater is distinguished by the square-shaped design, making for particularly easy installation. Composed of an AISI 316 stainless steel interrior tank, polyurethance foam insulation and a AISI 304 stainless steel exterior casing.
- AISI 316 Stainless steel Tank
- AISI 304 Stainless Steel Casing
- Polyurethane foam insulation
- Heat exchanger with wide exchange surface
- Produces hot water from the electric element
- Fitted with an adjustable safety thermostat
- Relief / non-return vale that allows discharging
The Quick Model BXS is a square water heater. This unit produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers.
The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a sleek looking 304 AISI stainless steel. The unit has a thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. Thanks to the square design this unit is perfect for installation in small spaces.
This unit comes equipped with the Water heater, Mounting Brackets, and 4 brass fittings.
