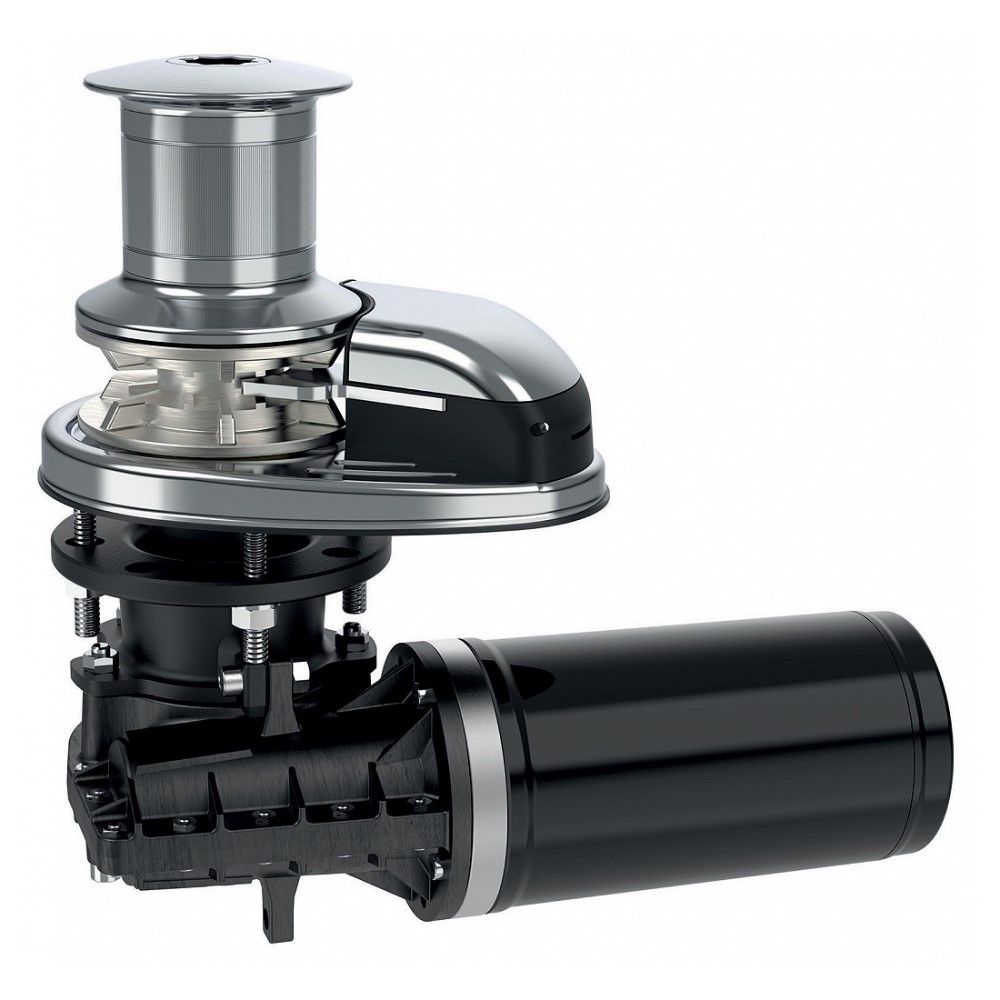

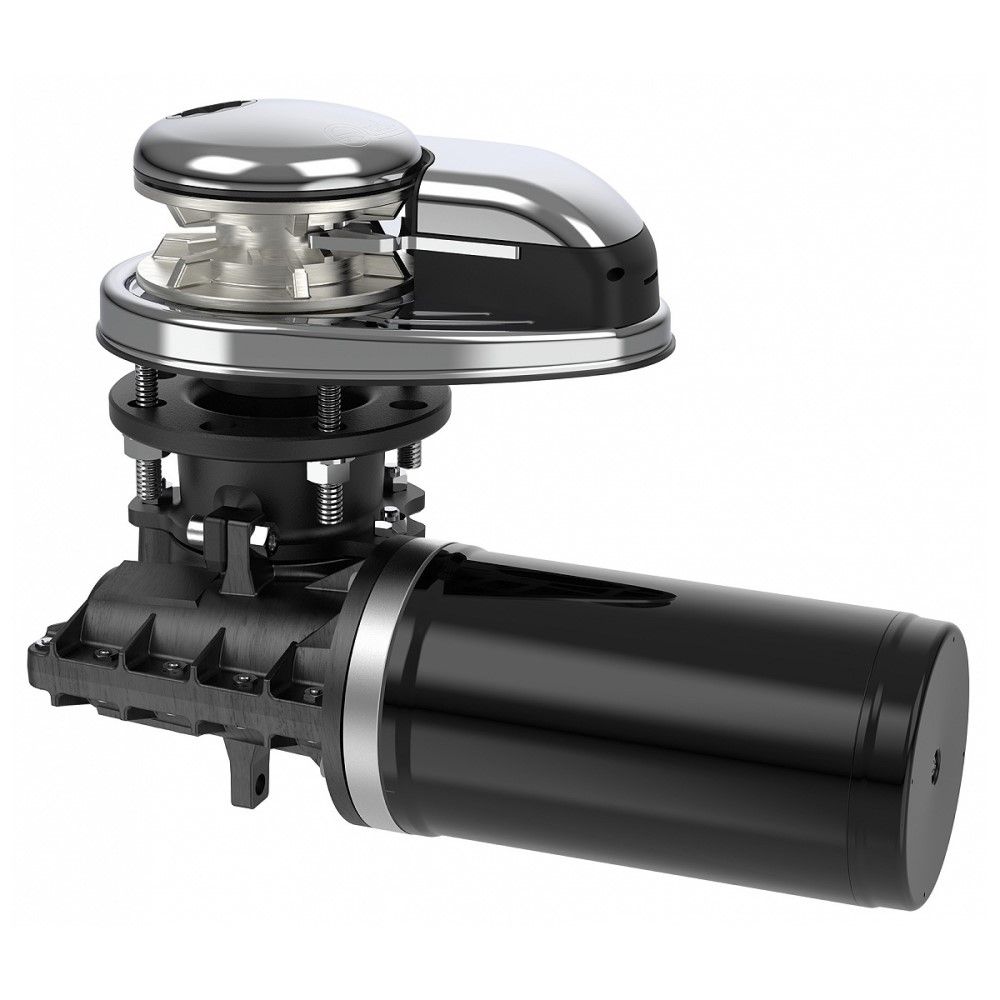

Quick Prince DP1 Series Vertical Axis Windlasses
The DP1 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It is a chain only unit and features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid.
- Vertical windlasses
- Aisi 36 Stainless steel base and anodized aluminium in hard oxide
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Inspection cover
- IP66 Watertight motor
- Technopolymer gearbox
The DP1 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It is a chain only unit. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
Gypsy Options
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
