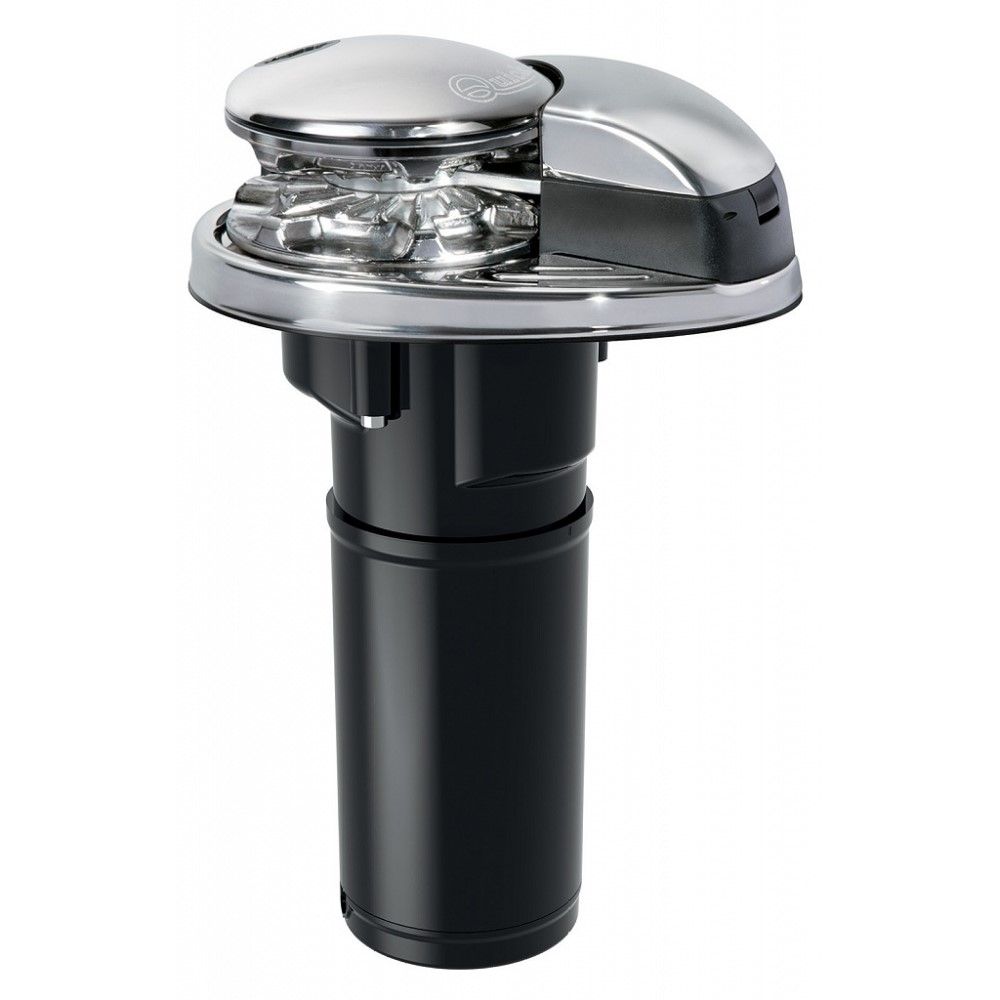

Quick Prince DP2L 770 Series Vertical Windlasses
SKU
690-DP2L-CONFIG
The DP2L is a compact vertical application windlass for smaller boats with limited deck space. Powered by a watertight IP66 350W Motor there are Gypsy options for 6mm or 7mm (1/4") chain.
SRP ex vat:
£888.29
Availability: please select an option
Tap the Download button to buy this map from the Memory-Map Licence Management site.
- Vertical windlasses
- Stainless steel Aisi 316 base and BHC.
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- BHC material gearbox
The DP2L is a compact vertical application windlass for smaller boats with limited deck space. Powered by a watertight IP66 350W Motor there are Gypsy options for 6mm or 7mm (1/4") chain.
Gypsy Options
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
