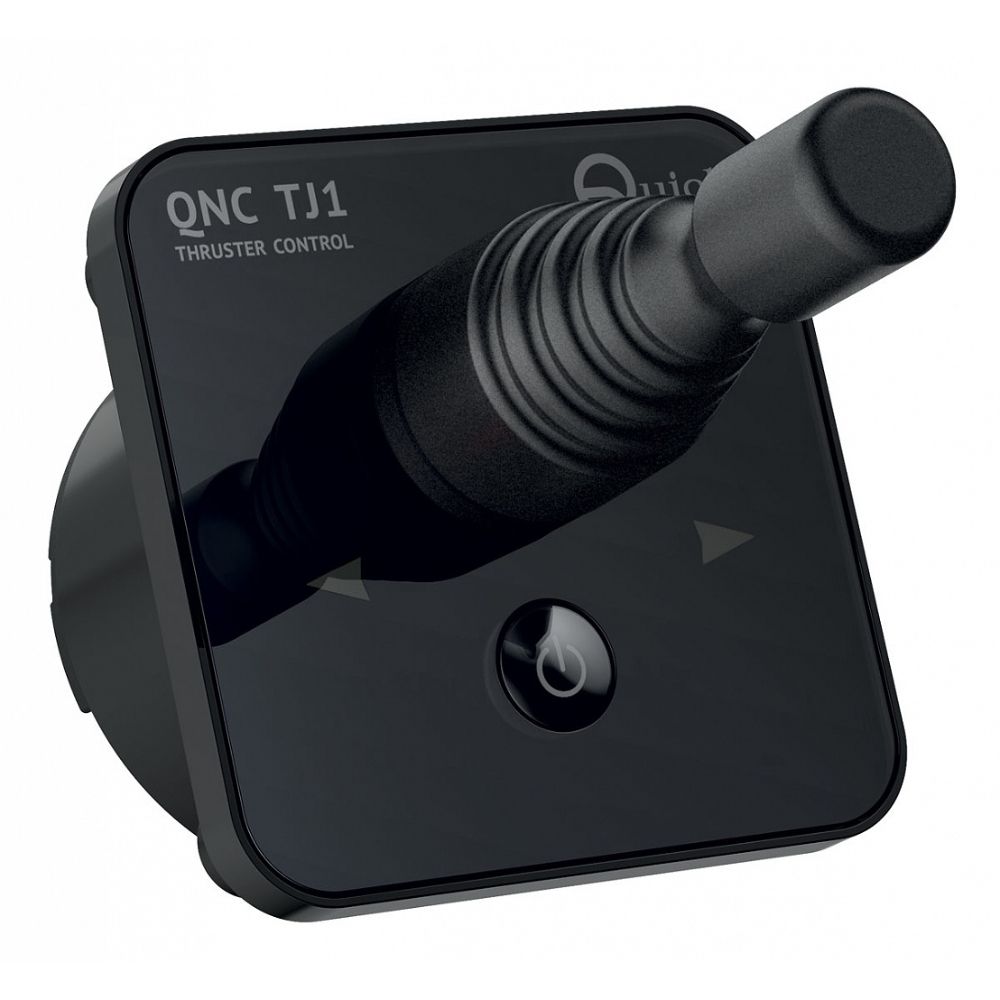

Quick QNC TJ1 H Joystick Thruster Control
SKU
690-FNQNCTJ1H000A00
The QNC TJ1 will control QSY Proportional motors in an ON-OFF manner via CAN bus, features a tempered glass panel surface and LED indicators visible only if active.
Note: Not suitable for use with retractable thrusters.
SRP ex vat:
£185.59
Reserve - Stock Pending. Please call
- Supply Voltage: 12 / 24V DC
- Current consumption at rest: 35mA
- Operating Temperature: -20°C - 70°C
- Protection rating: IP67
- Interface: M12A (Can bus + Power supply)
- EMC Class: EN60495 - FCC Title 47 Part 15 Subpart B Class B
- Dimensions: 75 x 75 x 118mm
- Weight: 195g
The QNC TJ! will control QSY Proportional motors in an ON-OFF manner via CAN bus, features a tempered glass panel surface and LED indicators visible only if active.
Note: Not suitable for use with retracable thrusters.
- Simple and intuitive user interface
- Easy installation
- Possibility of connecting several QNC remote controls to the same network
- Enabling or disabling system with automatic priority
- Possibility of simultaneous control of several motors from the same axis
- HOLD function for maintaining direction
- Local or remote errors indications (signals from the actuator)
- Can work in a wide range of ambient temperatures
- Acoustic signals (that can be deactivated)
- Protection against reverse polarity
