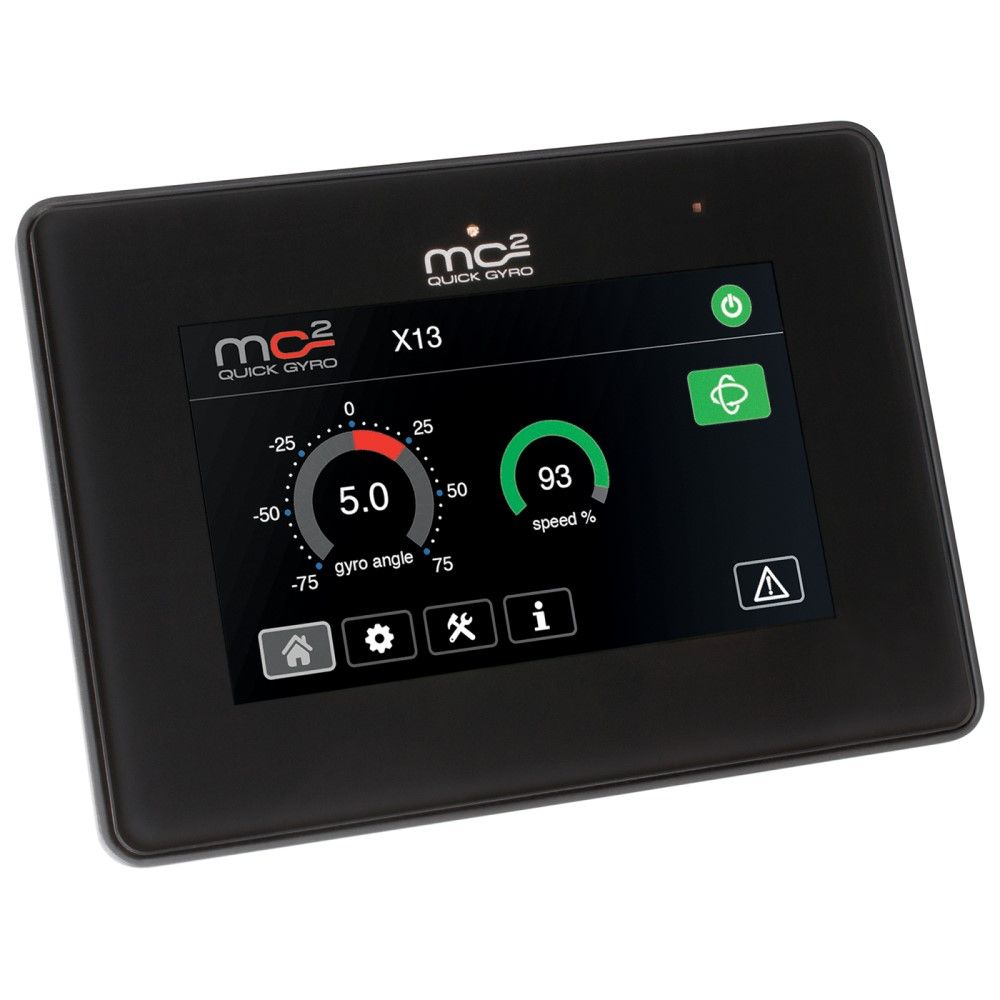

Quick RC QNC 5" Remote Control For MC2X Gyroscopes
The MC²X RC Remote Control is the dashboard device that is used to monitor the stabilizer. The panel features an LCD touch screen to access the controls to turn the stabilizer on/off, and to display its status and correct operation. The device features a large 5” display, with backlighting LED.
- Display roll angle and precession, with optional inclinometer (currently not available)
- Dynamic switch on/off of the precession motion
- Compact and practical design
- High flexibility of installation Multiterminal (through CAN cable)
- 5” TFT colour display
- 800 x 480 resolution display, 24 Bit colours
- Capacitive touch screen
- 1 Ethernet port with adapter cable
- 1 USB host port
- 1 CAN BUS port
- Solid and compact design with IP67 degree of protection (front/rear)
The MC²X RC Remote Control is the dashboard device that is used to monitor the stabilizer. The panel features an LCD touch screen to access the controls to turn the stabilizer on/off, and to display its status and correct operation. The device features a large 5” display, with backlighting LED. The panel can be used to monitor the precession release, RPM, and width of the angle of
inclination. User utilities include periodic maintenance reminders and alarms in the event of a failure. Adjustments and display preferences are also available.
In The Box
- 1 x R5_QNC Remote Control MC²X touch 5”
- 1 x Protective cover
- 1 x Power supply cable and I/O (1 m / 3,28 ft)
- 1 x CAN BUS adapter cable (0,5 mt / 1,64 ft)
- 1 x J3 CAN BUS extension M/M (12 mt/ 39,37 ft)
- 1 x Connector CAN T 5P F/F/F
- 1 x CAN Terminator M
- 1 x Adhesive Gasket
- 2 x Fixing screw
- 2 x Bracket fixing
- 1 x Installation Template
- 1 x Installation and Use Manual
