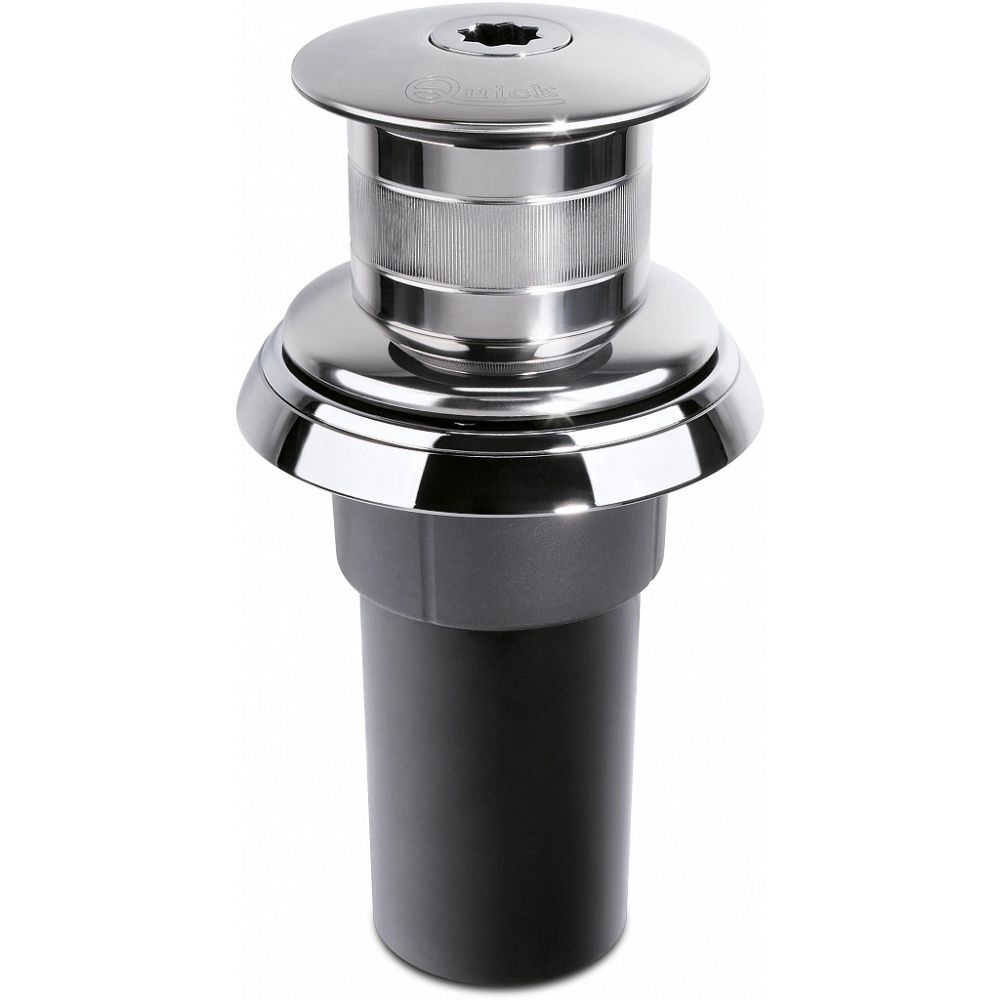

Quick Totem TM3 Series Capstan Winches
SKU
690-TM3-CONFIG
The Totem is a capstan winch with a vertically mounted motor below the deck with easy drop-in installation. This unit comes equipped with an IP67 watertight motor and epicyclical gearbox.
SRP ex vat:
£1,049.48
Availability: please select an option
Tap the Download button to buy this map from the Memory-Map Licence Management site.

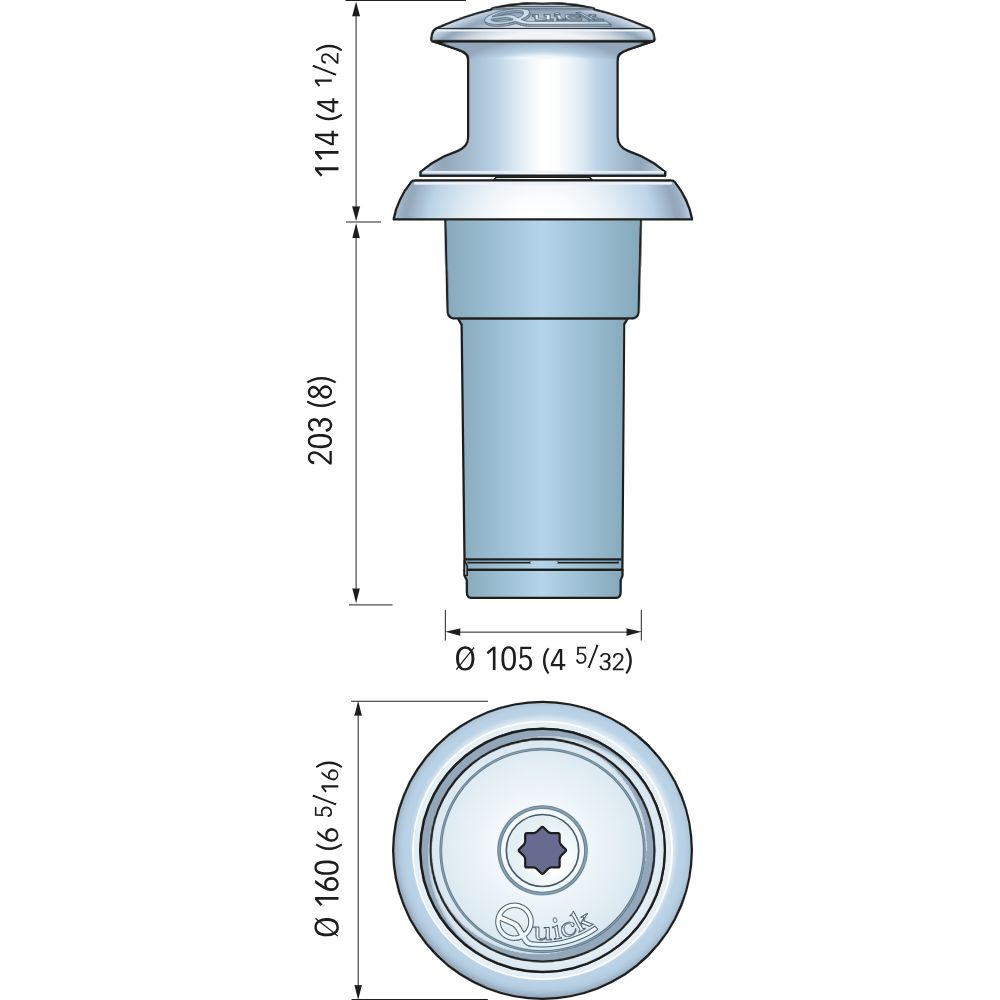

- Drum Diameter: 130mm (5"1/8)
- Warping Winches
- AISI Stainless steel 316 base
- Vertical watertight motor for easy and fast drop-in installation
- Anodized aluminium gearbox
The Totem is a capstan with a vertically mounted motor below the deck with easy drop-in installation. This unit comes equipped with an IP67 watertight motor and epicyclical gearbox, that provides much higher efficiency 40% compared to equivalent traditional gearboxes. The drum and bass are composed of chrome-plated bronze. This unit is sold complete with the capstan, solenoid unit, clutch handle, mounting hardware, and users manual.
