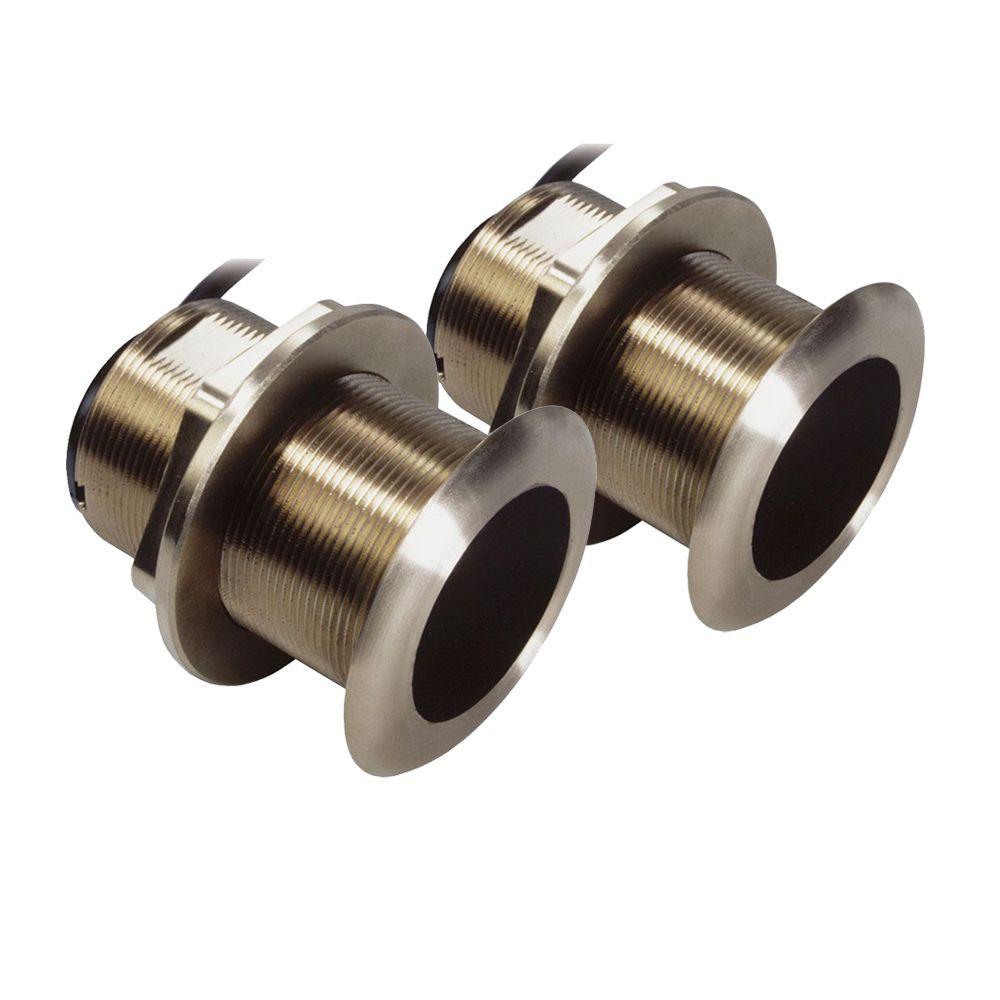

Raymarine B175 D/T Thru Hull Low-Medium Transducer pair 20°

Raymarine B175 D/T Thru Hull Low-Medium Transducer pair 20°


B175 LM Bronze Low Profile Thru-Hull 20 Degree Tilted Element Transducer 1kW Low / 1kW High.

Power (RMS) : L: 1kW / M: 1kW.

Max Depth (Ft) : L: 2,500 / M: 1,500.

Frequency (KHz) : L: 40-60 / M: 85-135.

Beam Width (L/M) : L: 32°-21° / M: 24°-16°.

Records : Depth / Temperature.

Approved Hull Material : Fiberglass / Wood.

Cable Length (Ft/M) : 33ft / 10m.

Supported Deadrise / Transom Angles : 16-24° Deadrise.

SRP ex vat: £2,204.17
Delivery: 3-5 days

B175 1KW Thru-Hull Transducers.

The B175's provide uncompromised 1kW CHIRP performance in a number of tilted element thru-hull configurations. Ideal for trailer able boats, these low-profile transducers can sit on trailer rollers/bunks without damage.

Given their flush design, low-profile transducers may be more easily subjected to surface aeration at higher speeds.

Pair two B175's together with the Paired CHIRP Transducer Y-Cable (A102146).

More Information
SKU 705-T70076
Brand Raymarine
