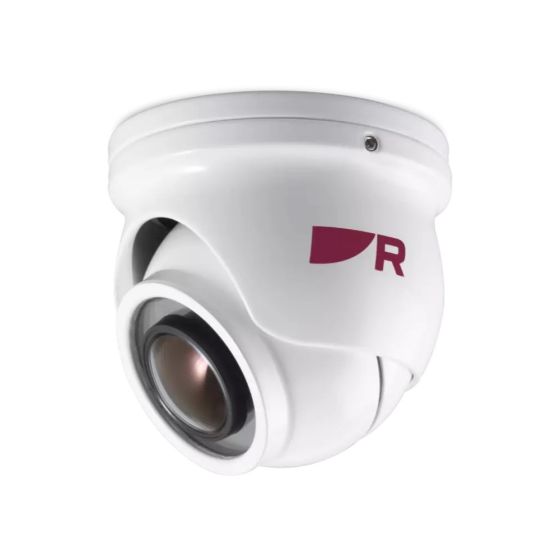

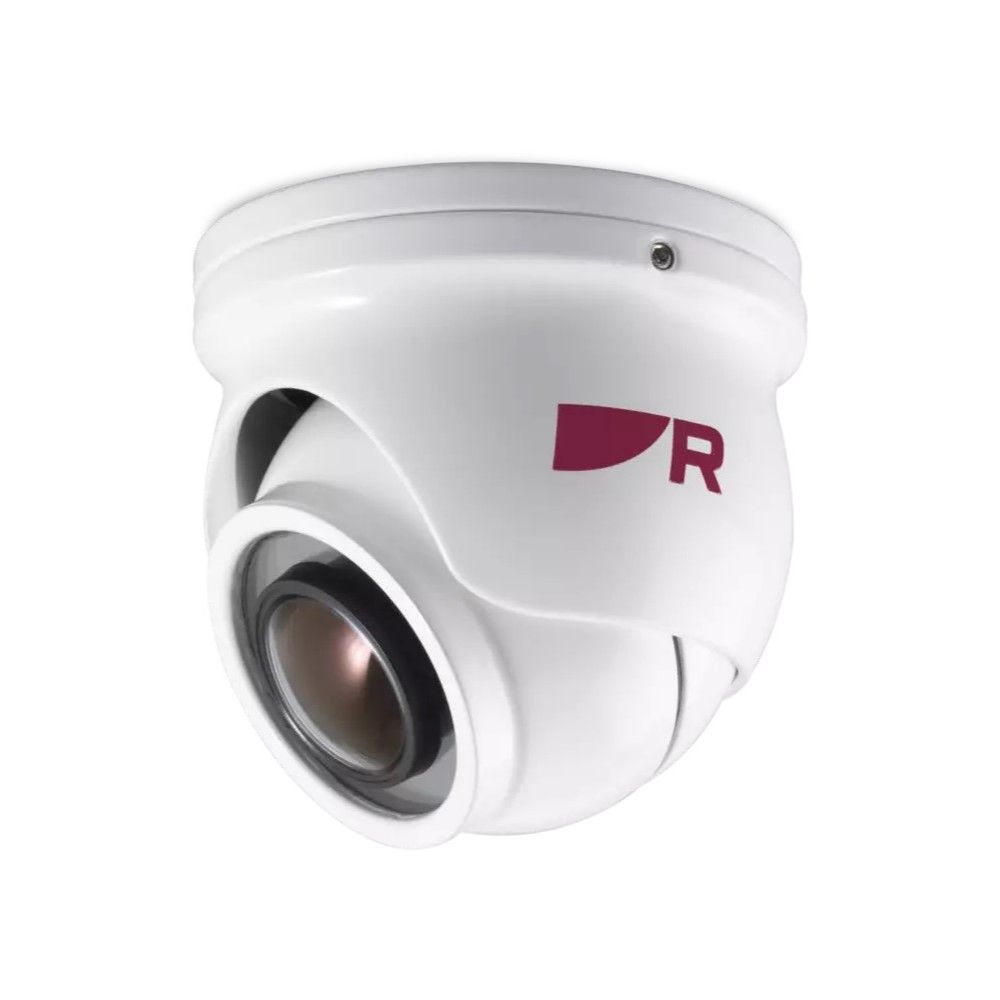

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm.
Base Diameter: 59.5mm (2.34") Height: 52.9mm (2.08")
Weight
0.42Kg (0.926lbs)
Video
Video Processing
H.264 Codec / Dual Stream
Illumination
6 x 850nm Infrared - 10 meter range
Frame Rate
25 fps
Resolution
2304 x 1296 (3MP) Max
ONVIF Conformance
Profile S
Sensor / DSP
1/4" CMOS Sensor
Field of View
1.8mm Standard (160° HFOV x 130° VFOV)
Compatibility
Axiom Display Compatibility
Units running LightHouse 4.2 or later
The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.
In The Box
CAM300 - includes an approximate 670 mm (2.2') fitted cable, featuring an RJ45 (male) and power connector
