Raymarine i70s Smart Wind System Pack - i70s RSW Wired Wind & DST810

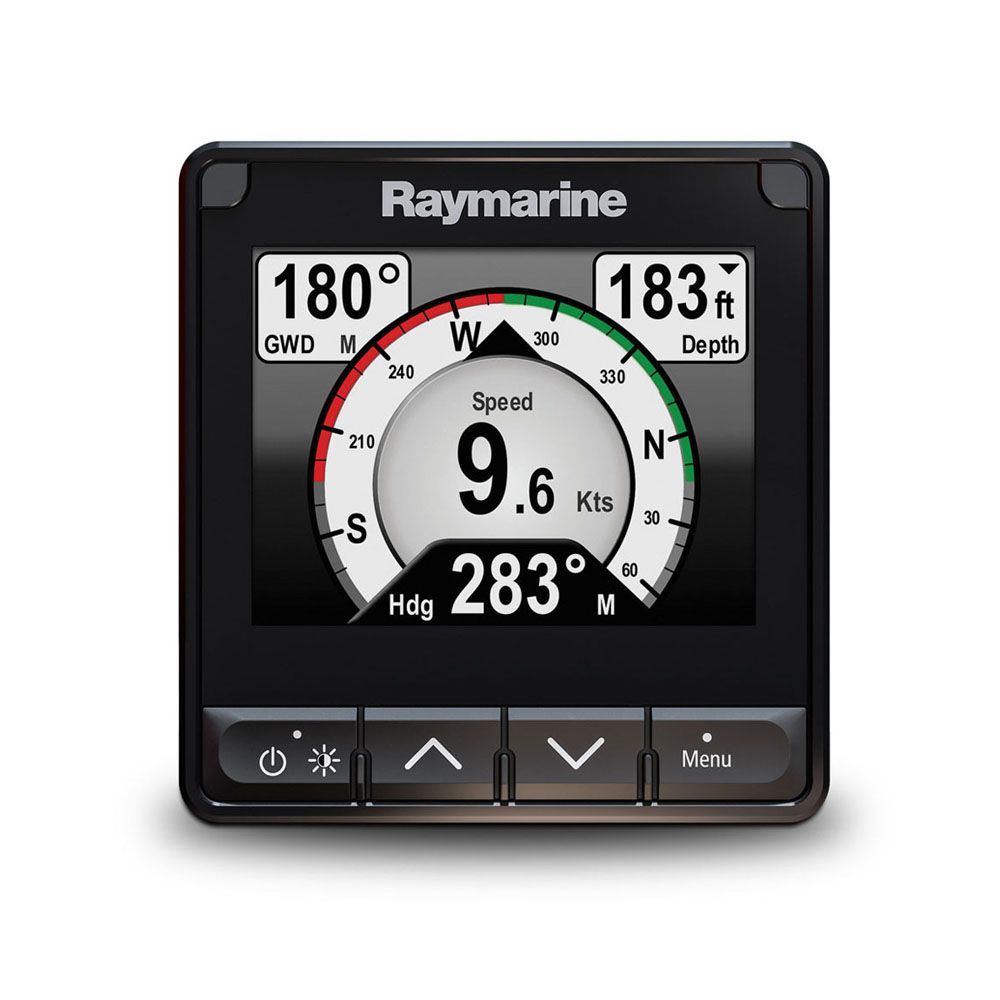

i70s Multifunction Colour Display

• 4.1” super bright oversized LCD for maximum visibility
• All weather optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Simple user interface with sculpted rubber keypad for precise operation in all conditions
• Customisable data displays of depth, speed, wind and more
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
• NMEA2000 connectivity* for engine, environment fuel and navigation data
• Convenient AIS repeater mode allows you to visually track nearby AIS targets

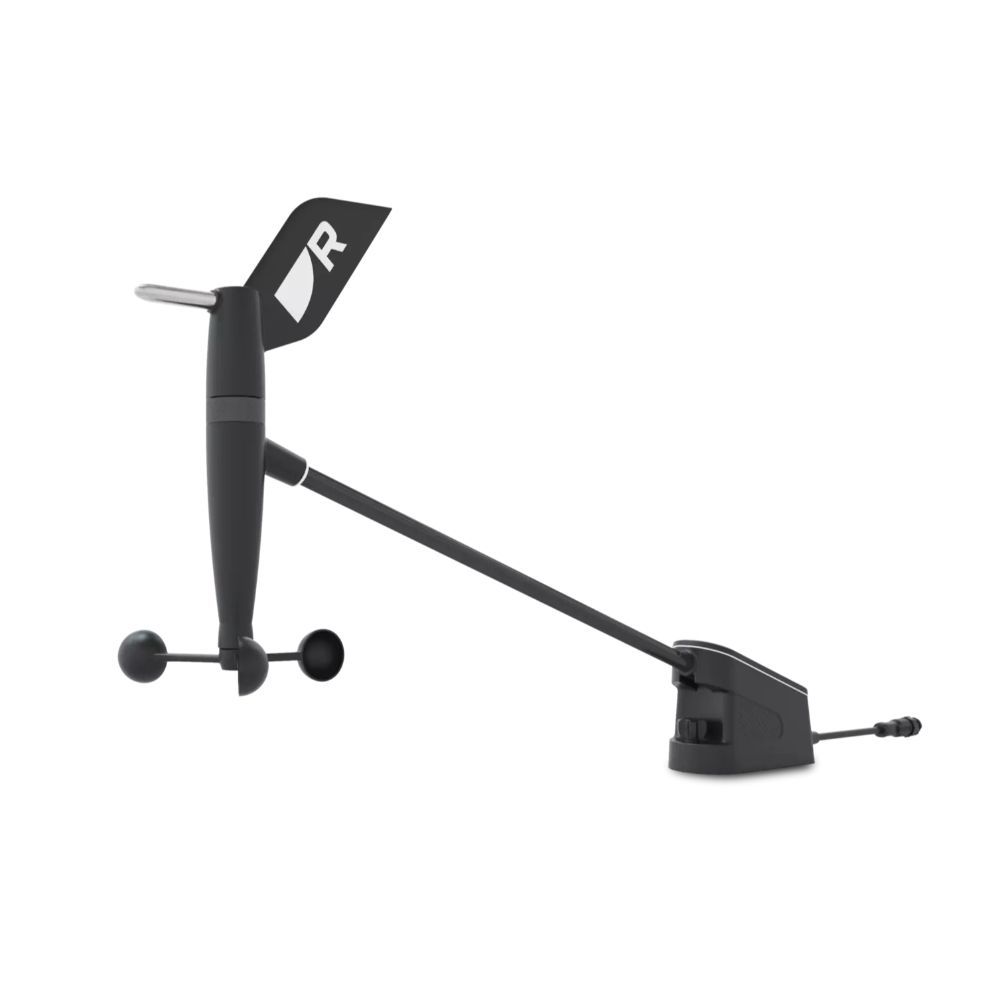

RSW Wired Smart Wind Transducer with 30m Cable

• Dimensions: 540 x 46.96 x 305.86mm
• Nominal supply voltage: 12V dc (via SeaTalk NG)
• Operating Voltage Range: 9 to 16V dc
• Power Consumption: <100mW
• Max Wind Speed: 100 Knots (115mph / 185kph)
• Waterproof Rating: Transducer: IPX7, Wired gateway: IPX6

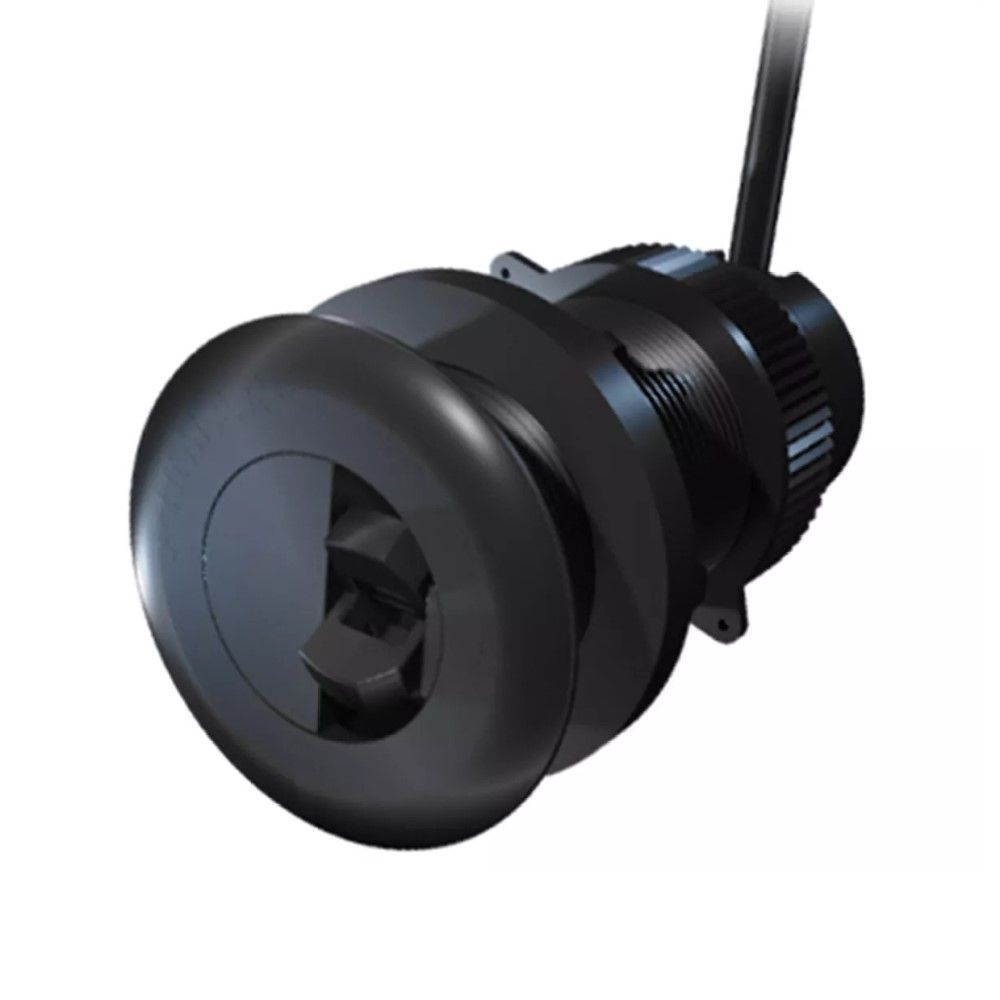

DST810 Gen2 Through Hull DST Smart Transducer

• Convenient depth, speed and temperature sensors in a single 2-inch through-hull fitting
• 5.7 Hz speed output (5x per second) for smooth speed-through-water readings
• Advanced speed calibrations for heel and trim available through the CAST app
• Ultra-responsive speed readings from 0.3 knots
• 235 kHz frequency prevents mutual interference with other onboard depth sounder and fishfinders
• 2-inch, high-strength plastic housing suitable for fiberglass or metal hulls
• Retractable housing with water valve for easy maintenance
• 2.5M (8-feet) interconnect cable with SeaTalkng connector

The i70s, DST810, and Smart Wind Pack is perfect for getting started on a sailboat. With its multifunction display and accessory kit including a wind vane, temperature, speed, and depth sensor, cables, 5-way connectors, and SeaTalkNG backbone, this pack has everything needed to install and get sailing.

Intuitive LightHouse User Interface

The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Customisation

The Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all.

Transducer Connectivity

Pair i70s instruments with the included DST810 transducer for convenient depth speed and water temperature. The DST 810 also includes a

 built-in attitude sensor that measures vessel heel and trim. Combining those measurements together with the ultra-precise readings from its Gen2 paddlewheel sensor, the DST810 provides heel compensated speed through water readings without any additional sensors.

Calibration of the DST810 is performed using the downloadable Airmar CAST app for smartphones and tablets, linked directly to the transducer using Bluetooth.

RSW Wired Wind

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Install & Go! - Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

Finely Tuned - Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.

Sail Smarter - Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

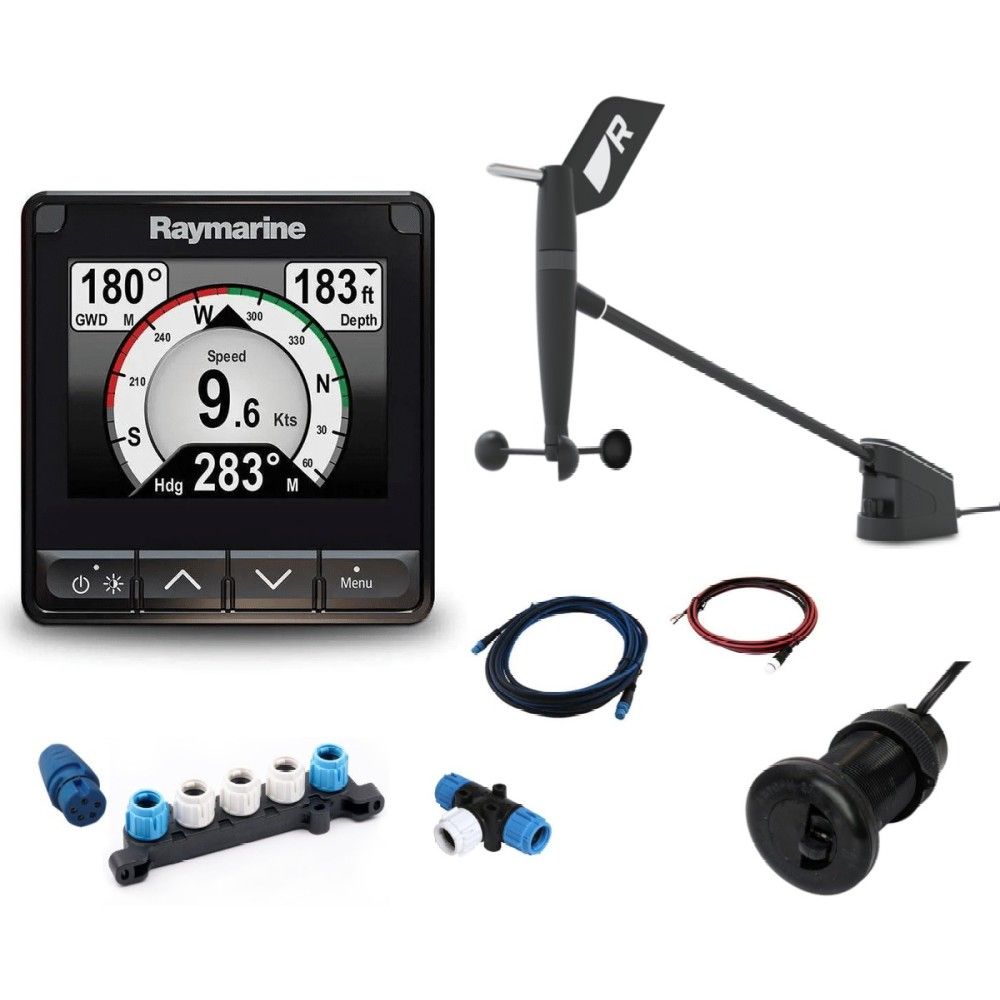

In the Box

• i70s Multifunction Colour Display
• RSW Wired Smart Wind Transducer with 30m Cable
• DST810 Gen2 Through Hull DST Smart Transducer
• STNG 5-Way Connector
• STNG T-Piece Connector
• STNG Backbone Cable - 3m
• STNG Power Cable
• STNG Terminators (x2)
