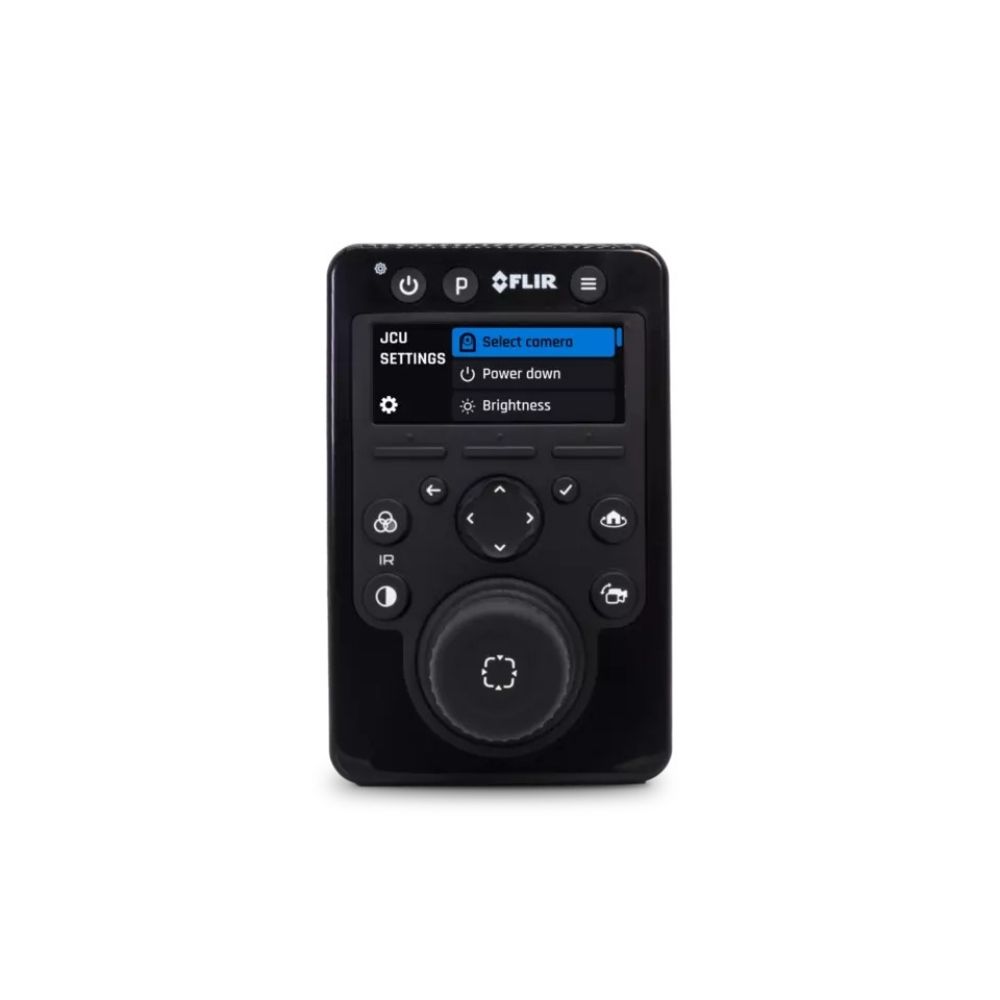

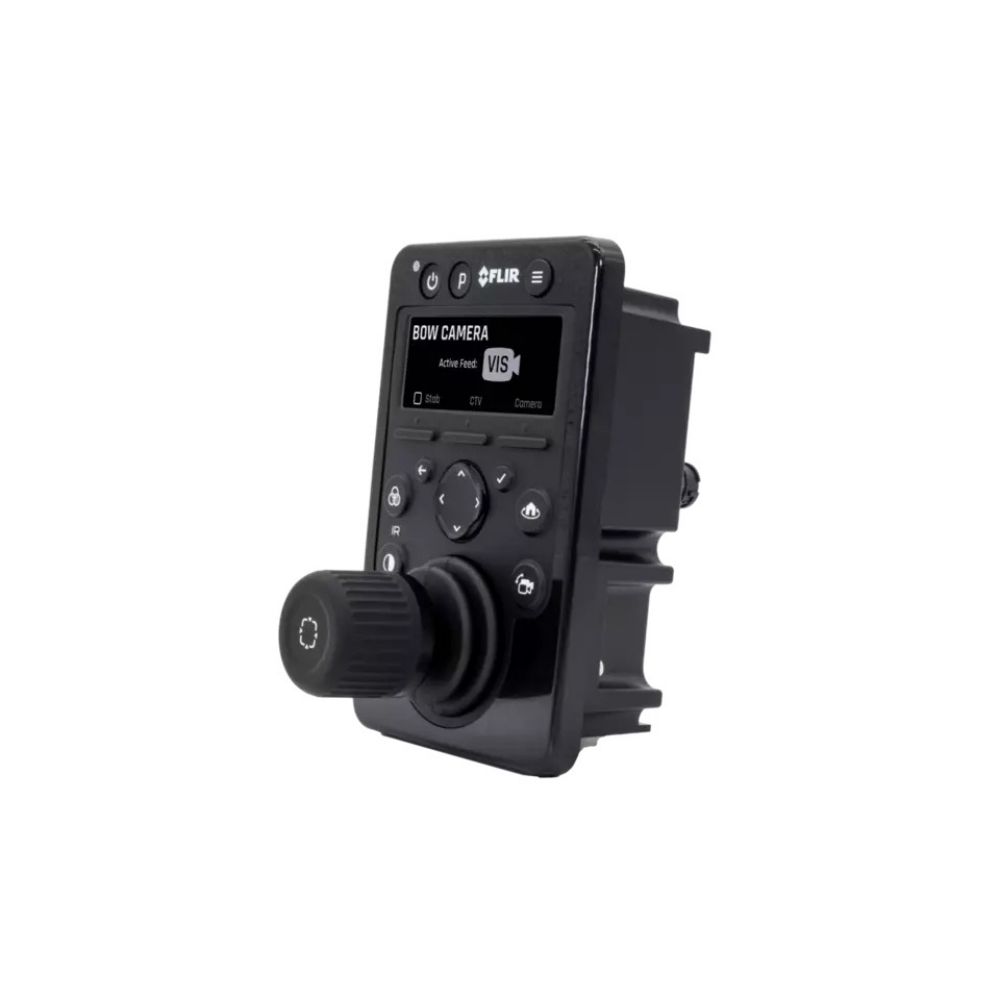

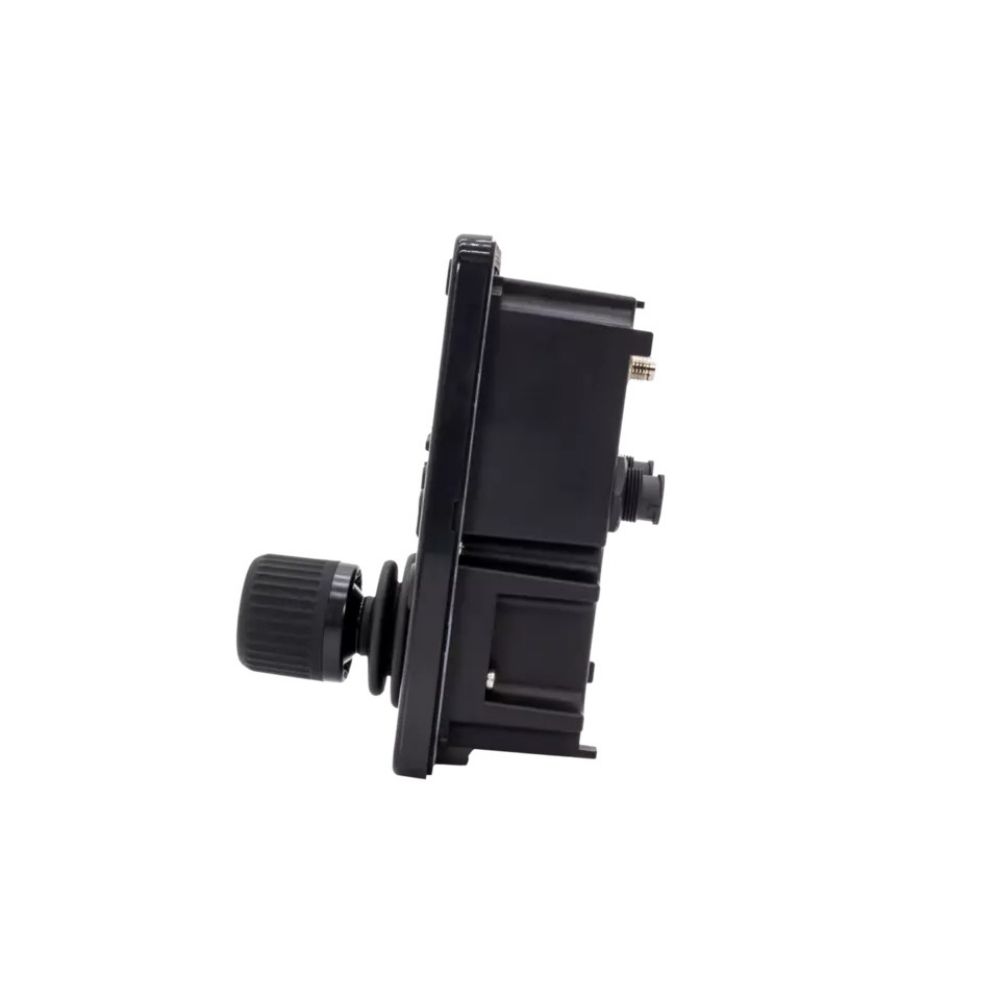

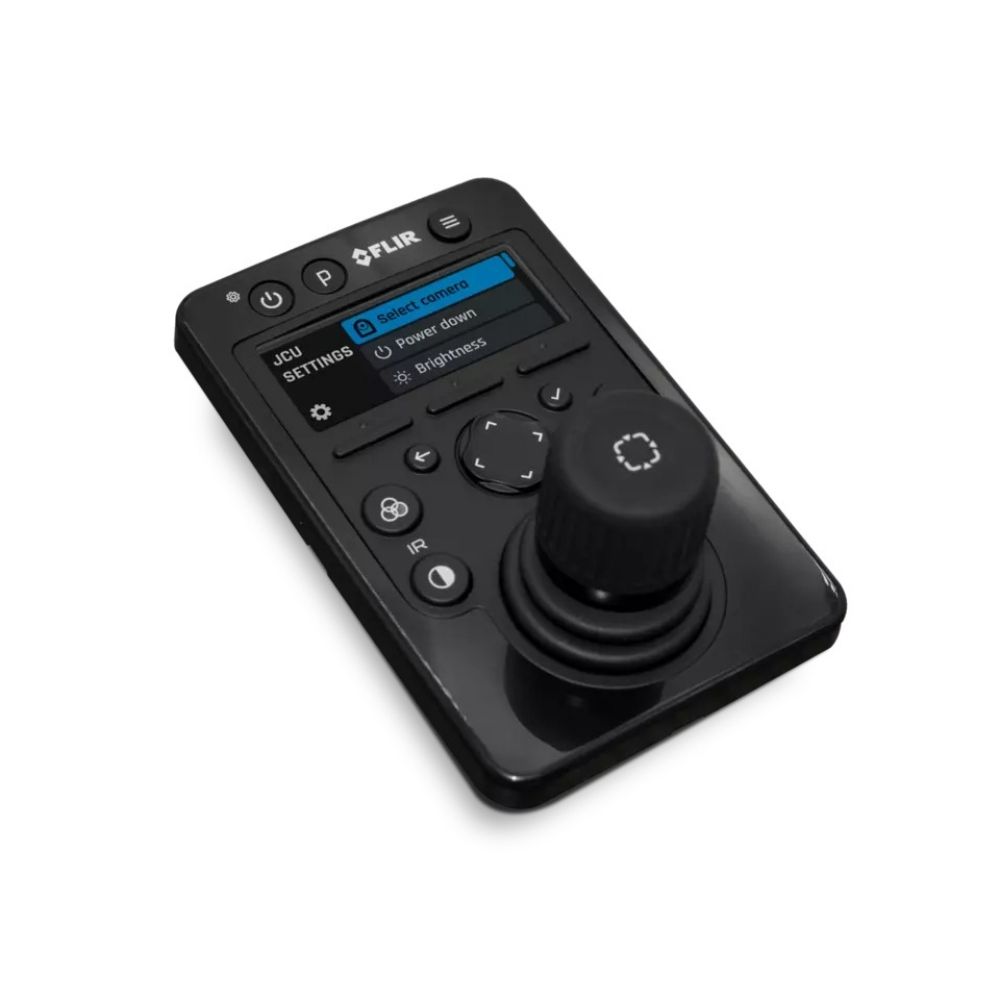

Raymarine JCU-4 Joystick Control Unit for FLIR Cameras
SKU
705-E70695
Premium joystick control unit for FLIR marine cameras - compatible with the M132, M232, M300, M400/M400XR and M500 series cameras.
SRP ex vat:
£1,329.17
Reserve - Stock Pending. Please call
- Provides ergonomic and responsive control of FLIR marine cameras while underway
- The 2.9” color LCD and keypad simplify camera operation and offer easy access to the joystick setup configuration menus
- Rugged, low profile 3-axis joystick for precision camera control in all conditions
- Dimmable LCD and back lit keypad preserve vision during nighttime operations
- 3 custom keys for user-defined camera functions Applications
- Marine law enforcement professionals who require rugged and intuitive camera control
- Recreational and commercial marine captains who actively navigate with thermal
- Compatible with FLIR M100, M200, M300, M400, M500 Series cameras, as well as many legacy FLIR camera models
Technical Specifications
X| Physical | |
|---|---|
| Width | 93.66mm (3.69") |
| Height | 146.66mm (5.77") |
| Depth | 63.36mm (2.49") |
| Depth (Including joystick) | 113.3mm (4.46") |
| Power | |
|---|---|
| PoE Class | Class 2 |
| Nominal supply voltage | PoE: 48V DC
Alternate power: 12/24V DC |
| Operating voltage range | PoE: 44V to 57V DC
Alternate: 8V to 32V DC |
| Power Consumption | 5W Max with full keypad ilumination |
| IEEE Standard | IEEE 802.3af |
| Network | |
|---|---|

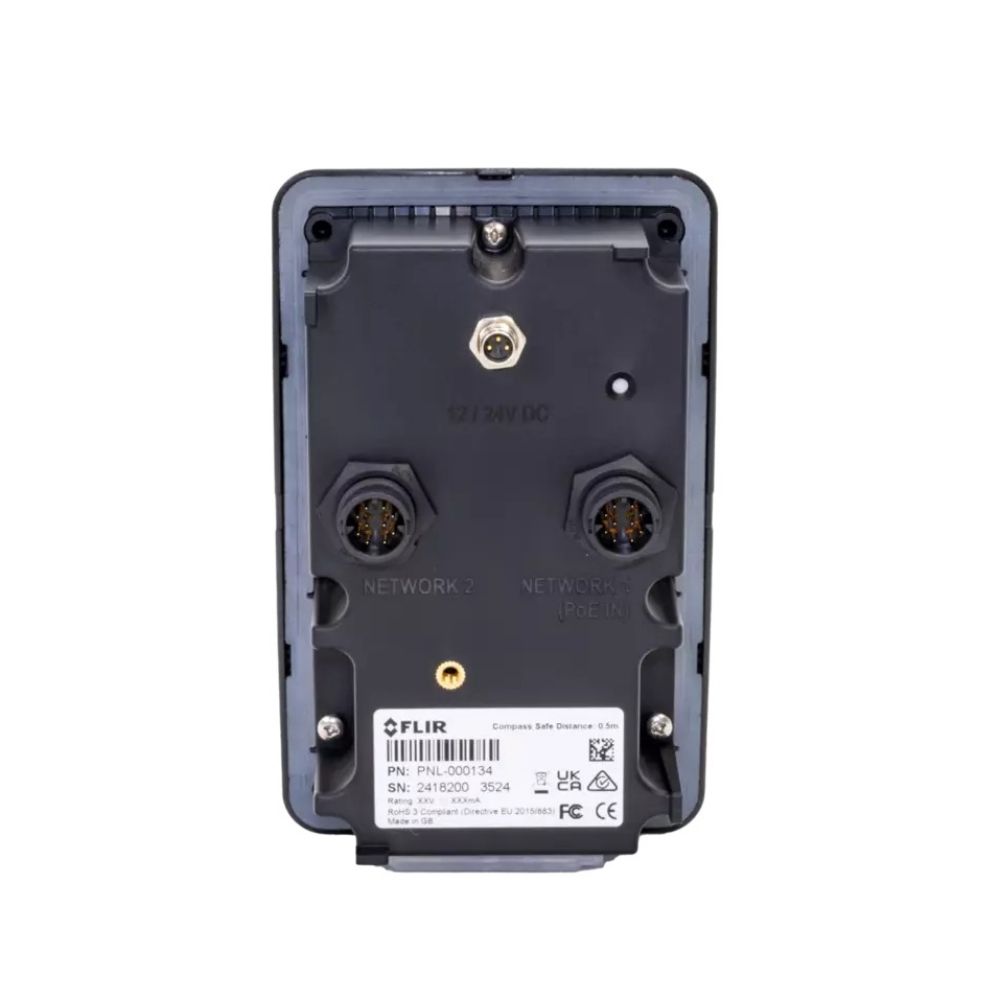

| Network connection ports | 1 x 10/100/1000 Mbits/s RayNet (Ethernet)
1 x 10/100/1000 Mbits/s PoE RayNet (Ethernet) |
| Display | |
|---|---|
| LCD Size | 2.9" |
| LCD Type | IPS TFT LCD |
| Active area | 26.51 x 67.68mm |
| Brightness / Luminance | 600 nits / 600cd/m2 |
| Viewing angles> | 80+ / 80+ |
| Resolution | 376 x 960 pixels RGB |
| Contrast ratio | 1:1500 |
| Environmental | |
|---|---|
| Operating temperature | -25ºC to +55ºC (-13ºF to 131ºF) |
| Storage temperature | -30ºC to +70ºC (-22ºF to 158ºF) |
| Relative humidity | Maximum 93% @ + 40°C (104°F) |
| waterproof rating | IPx6 |
The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4’s ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.
Confident Control
Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.
- Rugged, low profile 3-axis joystick for precision camera control in all conditions
- The 2.9” color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus
- Dimmable color LCD and back lit keypad preserves the operator’s vision during nighttime operations
- 3 custom keys for quick access to user-defined camera functions
Easy to Integrate
- Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution
- Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative

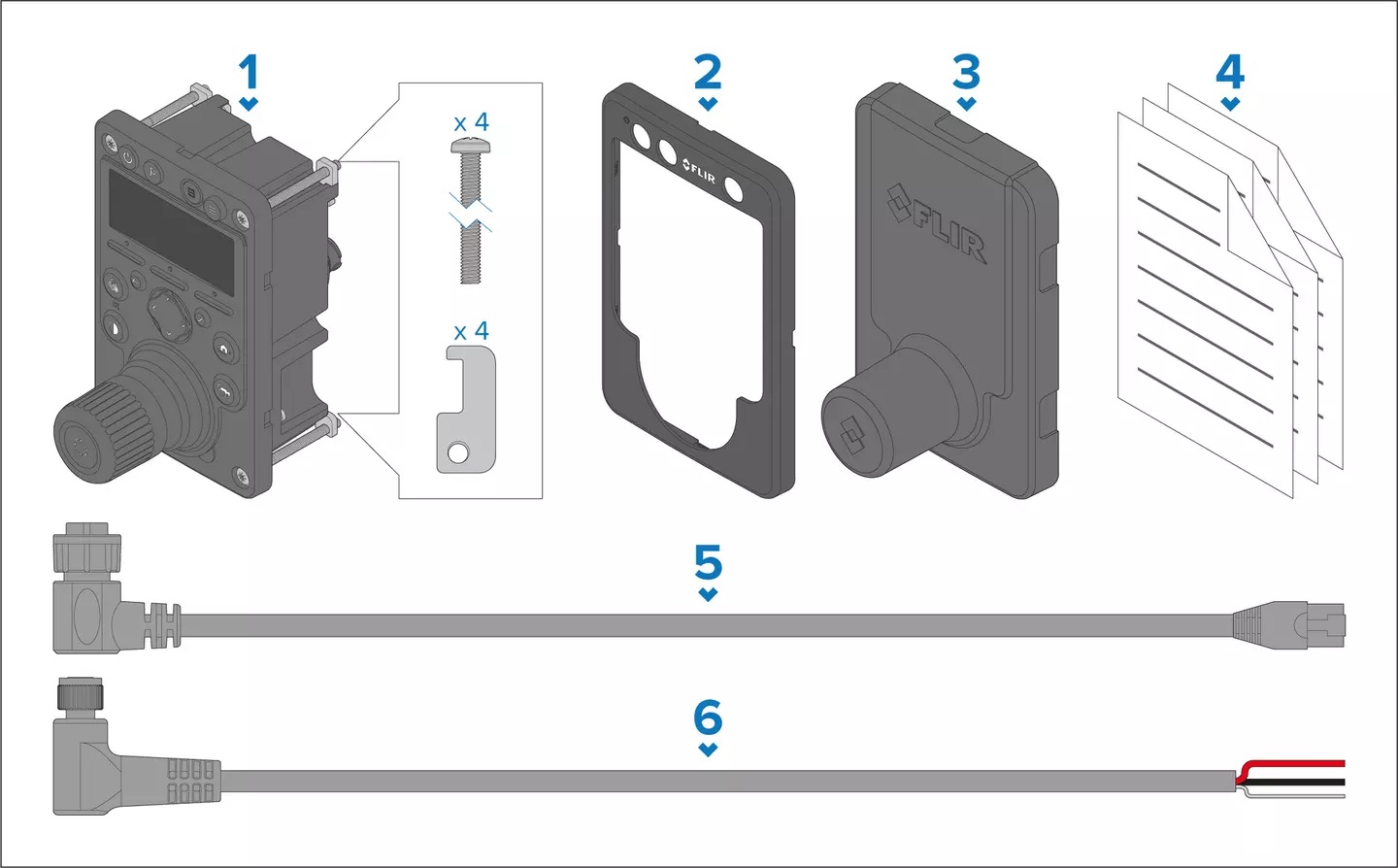

In The Box
- 1 x JCU-4 (includes 4x screws and 4x mounting plates pre-fitted)
- 1x Front cover

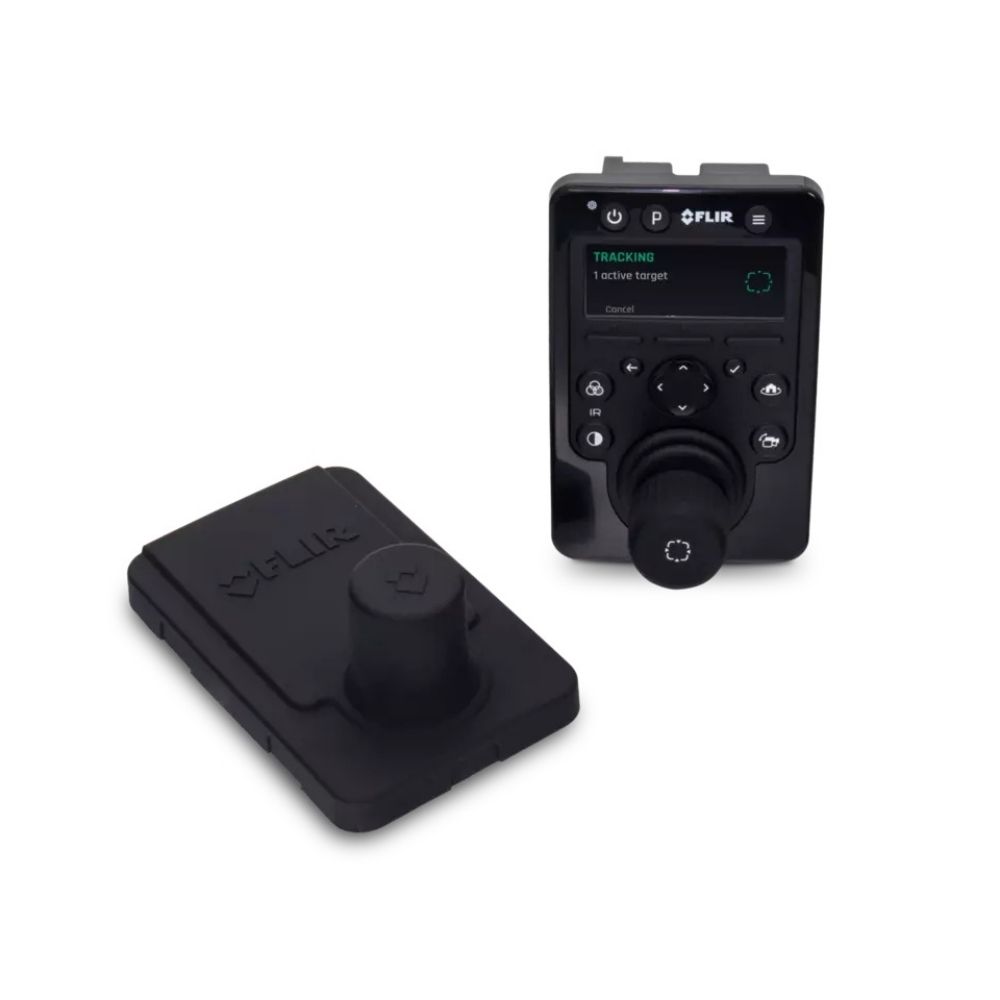

- 1x Weather cover
- 1x Documentation pack
- 1x Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft)
- 1x Right-angled 3-pin power cable, 3 m (9.84 ft)
