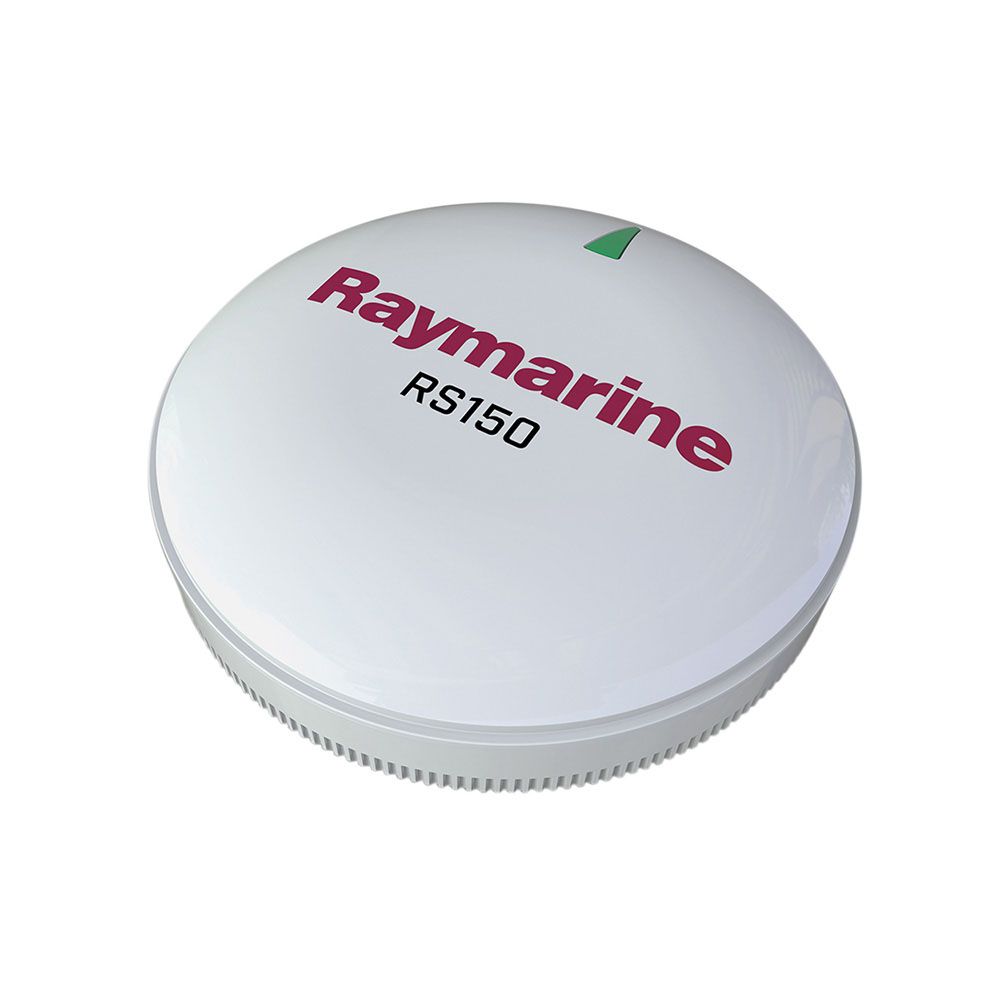

Raymarine Raystar 150 10Hz GPS/Glonass antenna (STng) with Pole Mount
Raymarine Raystar 150 10Hz GPS/Glonass antenna (STng) with Pole Mount

Raymarine Raystar 150 GPS/Glonass Antenna and Pole Mount

SKU
705-T70327

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

SRP ex vat: £250.00
🟢 In Stock

Features

  • 72-channel GPS receiver
  • Fast 10Hz position updates
  • Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
  • A GNSS receiver with GLONASS compatibility
  • Low power consumption: 30mA (1 LEN)
  • SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
  • Designed for low profile surface mounting or optional pole mounting

Specifications

  • Nominal supply voltage 12V D.C. Powered by N2K bus
  • Operating voltage range 8 - 32V DC
  • Power consumption 30 mA max (NMEA LEN = 1)
  • Operating temperature -13ºF to 131ºF (-25ºC to +55ºC)
  • Relative humidity max 93%
  • Waterproof IPx6/7
  • Supported connection protocols SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
  • Sensitivity High sensitivity - acquisition down to -163dBm
  • No. of channels 72
  • Positioning System GPS & GLONASS
  • Satellite Differential Type WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
  • Differential acquisition Automatic
  • Position accuracy (95%) <15m
  • Position accuracy with SDGPS (95%) <5m
  • Speed accuracy (95%) <0.3kt
  • Time to first fix from cold start <2 minutes (< 45 seconds typical)
  • Time to first fix from hot start < 8 seconds -72 hour hold up battery allows for hot start
  • Geodetic Datum WGS84
  • Mounting Surface/rail/pole

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

The RS150 is supplied from SMG with additional antenna pole mount included.
