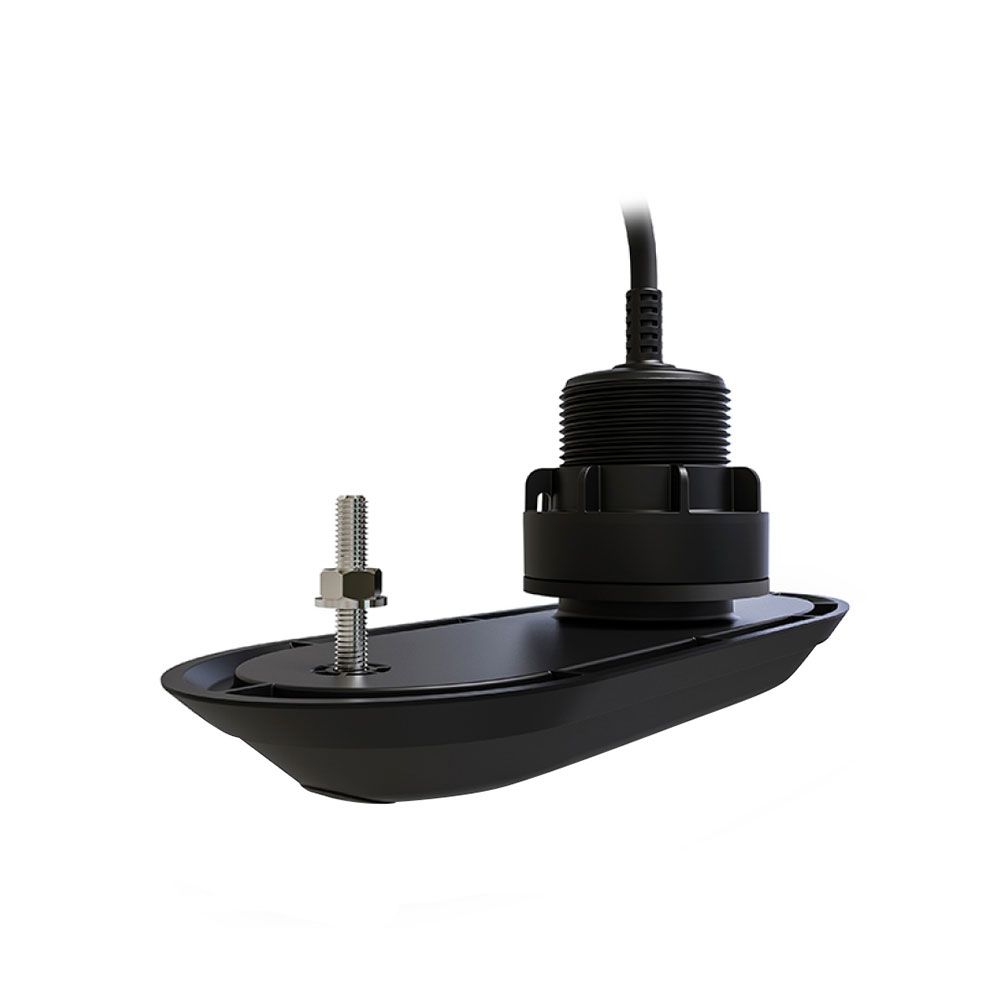

Raymarine RV-300 RealVision 3D Thru-Hull Plastic Transducer - 0 Degree
Designed for inboard or outboard boats, the RV-300 Plastic Through Hull Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
0° Element angle for Hull deadrises between 0° - 5°
- Installation: Thru-Hull
- Material: Plastic
- Max. Depth (ft): 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
- Frequency (KHz): RealVision I High CHIRP
- Beam Width (L/H): 3D: 180° I Down: 60° I Conical: 25°
- Records: Depth and Temperature
- Approved Hull Material: Fiberglass, Metal
- Cable Length (Ft): 26
- Supported Deadrise: 0-5°
Raymarine’s RV-300 Plastic All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You’ll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings.
The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze.
In The Box
- RV-300 Plastic All-In-One Through Hull Transducer with 8-meter (26-foot cable)
- Anti-rotation bolt kit
- Installation instructions
