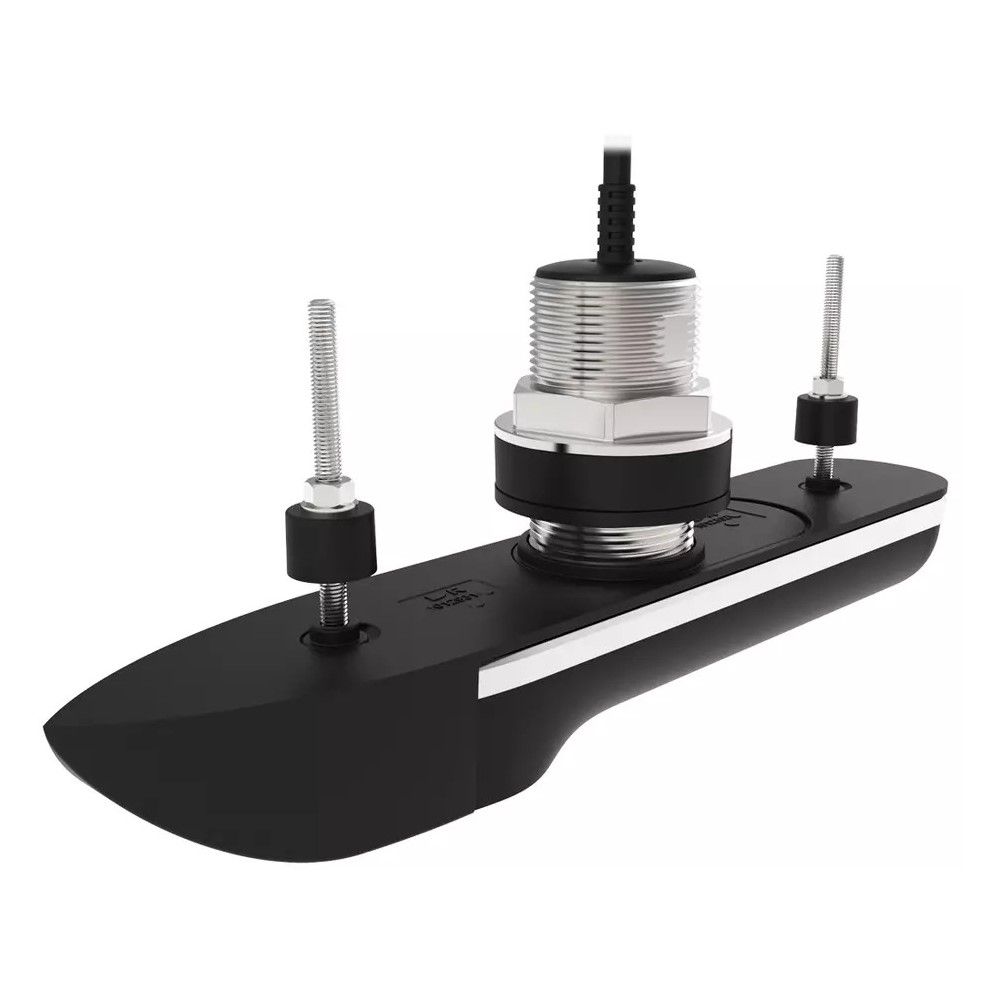

Raymarine RVM-400 RealVision MAX 3D SS Thru-Hull Transducer - 0°
RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters
The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise.
- 0° Offset for mounting position with less than 5° hull deadrise
- Sensors: Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
- Sonar channels: RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600W
- Beam width: 200 kHz: 12°
- Cable length: 8 m (26.2')
- Weight: RVM-400 4.56 kg (including cable)
- Dimensions (including high speed nose cone): Length: 424.69 mm (16.72"), Width: 79.64 mm (3.14")
Technical Specifications
X| RealVision MAX 3D Sonar | |
|---|---|
| Sensors | Temperature sensor AHRS (Attitude and Heading Reference System) sensor |
| Sonar channels | RealVision MAX 3D SideVision DownVision Conical High CHIRP 600W |
| Beam width | 200kHz: 12° |
| Phyical | |
|---|---|
| Dimensions | Length: 424.69mm (16.72") Width: 79.64mm (3.14") |
| Cable length | 8m (26.2') |
| Weight | 4.56Kg (including cable) |
| Enviroment | |
|---|---|
| Waterproof rating | IPX6 (surfaces exterior to hull only, IPX7, IPX8 |
| Storage temperature range | -20°C - 70°C (23°F - 158°F) |
| Operating temperature range | -2°C - 55°C (28.4°F - 131°F) |
| Sonar Range | |
|---|---|
| Sonar range | CHIRP Sonar: 0.6 - 549m (2' - 1,800') DownVision: 0.6 - 229m (2' - 750') SideVision: 0.6 - 183m (2' - 600') RealVision MAX 3D: 0.6 - 183m (2' - 600') |
See RealVision MAX In Action - Sonar Gallery
Click to enlarge images
RealVision MAX SideVision, DownVision, 3D, and traditional CHIRP sonar showing wrecks and fish targets
The RVM1600 and RVM-100 transducer with traditional CHIRP marking fish over 400' (122 meters)
RealVision MAX SideVision, DownVision, and traditional CHIRP showing predator fish stalking bait fish above a wreck
RealVision MAX traditional CHIRP sonar separating fish targets from the sea bottom
RealVision MAX SideVision, DownVision, and traditional CHIRP sonar seeing wrecks and debris
The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise.
RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters
The RVM-400 series transducers feature DownVision, SideVision, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.
In The Box
- Documentation
- Locking collar kit (for transducer cable connector), consisting of: 2 x Split rings (includes spare), 1 x O-ring, 1 x Locking collar, 1 x Split ring fitting tool
- Hull nut
- Cable protector
- Large internal isolator sleeve
- Rubber washer
- External isolator plate
- High speed nose cone
- Transducer (including cable)
- 2 x Nuts for anti-rotation studs
- 2 x Small washers for Anti-rotation studs
- 2 x Small internal isolator sleeves
- 2 x External isolator sleeves
