Raymarine WG-1 Wireless Gateway
SKU
705-R70947

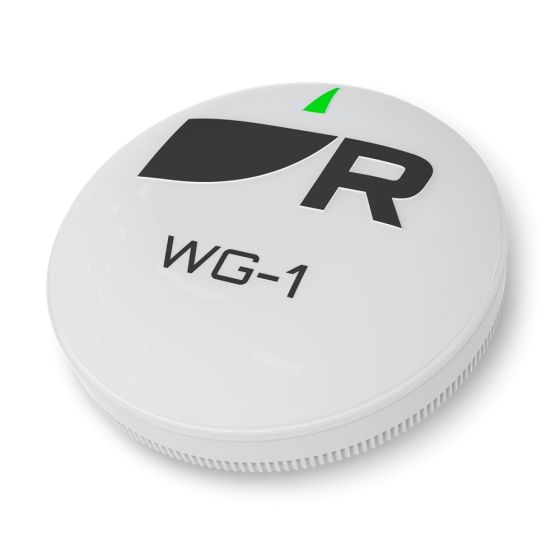

A wireless gateway for the RCU-1 autopilot remote controller. Designed for both powerboats and sailboats the device is powered from the SeaTalk NG network.
SRP ex vat:
£208.33
Reserve - Stock Pending. Please call
- For use with the RCU-1 Autopilot remote control
- Powered via SeaTalk NG network
- Wireless range up to 30 m (98 ft.)
- Compatible with Raymarine Evolution series pilots
RCU-1 Technical Specifications
X| Physical | |
|---|---|
| Height | 26.61mm (1.05 in) |
| Width | 108.48mm (4.27 in) |
| Product weight | 129g (4.55 oz) |
| Power | |
|---|---|
| Nominal supply voltage | 12V DC (Via SeaTalk NG network) |
| Operating voltage range | 9 - 16V DC |
| Power consumption | 30mA |
| LEN | 1 |
| Enviromental | |
|---|---|
| Operating temperature range | -25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range | -25°C (-13°F) to + 70°C (158°F) |
| Humidity | 93% |
| Water ingress protection | IPx6, IPx7 |
| Bluetooth | |
|---|---|
| Bluetooth Version | 5.1 |
| Connection range | Up to 30m (98.43ft) with clear line of sight |
Wireless gateway for the RCU-1 Autopilot remote control. Gives up to 30m connection to the remote with a clear line of sight with Bluetooth 5.1. Powered via the SeaTalk ng network the gateway only cosumes 30mA of power.
