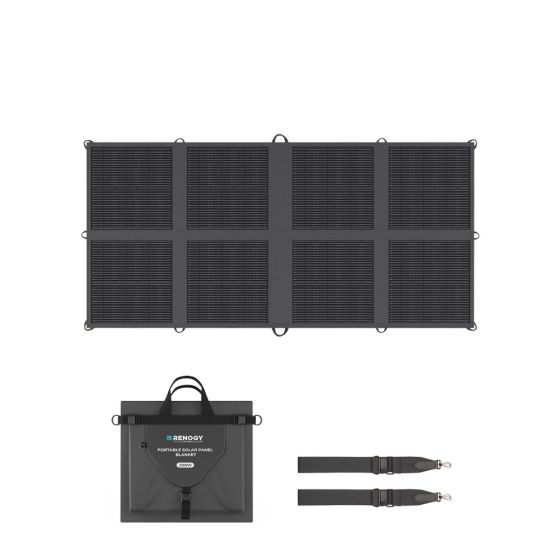

Renogy 200W Portable Fold Up Solar Panel Blanket
The lightest, most efficient solar blanket with the highest-performance N-Type cells.
- Solar Panel: 200W
- Max Current (Imp): 11.9AA
- Optimum Operating Voltage: 16.8V
- Short circuit current (Isc): 13.1A
- IP rating: IP65 Splash-proof
- USB Outputs: USB-C: 5V/3A, 9V/3A, 12V/3A or 15V 3A, (45W Max), USB-A: 5V/3A, 9V/2A, 12V/1.5A, (18W Max)
- Dimensions: Closed: 410 x 390 x 78mm, Open: 1560 x 810 x 38mm
- Weight: 4Kg
Specifications
X| Specifications | |
|---|---|
| Max Power at STC | 200W |
| Open Circuit Voltage | 19.6V |
| Short Circuit Current | 13.1A |
| Optimum Operating Voltage | 16.8V |
| Optimum Operating Current | 11.9A |
| Operating Temperature | -10°C to 65°C |
| Dimensions(folded) | 410 x 390 x 78mm (16.14" x 15.35" x 3.07") |
| Dimensions(unfolded) | 1560 x 810 x 38mm (61.41" x 31.89" x 1.50") |
| Weight | 4kg (8.82lbs) |
The lightest, most efficient solar blanket with the highest-performance N-Type cells.
Fits in Tight Trunk Spaces - Folds down to the size of a travel backpack.
The Power of N-Type Solar Cells - Maximizing efficiency and longevity with industry-leading technology.
Fully Adjustable & Removable Shoulder Strap - Store the strap in the zippered outer pocket when not in use.
Multi-Device Charging Made Easy - Equipped with 1 USB-C (45W Max) and 2 USB-A (18W Max) ports for flexible charging options. Please Note: Direct USB charging is only supported on the 200W model. The 400W model requires a separate adapter to use these ports.
Flexible Installation Options - Mount on the side of your truck camper, vehicle windshield, lay flat on the ground, or hang from a rope.
The Dynamic Power Boost for Existing Solar Systems - Please ensure that the PV input voltage remains lower than the controller solar input voltage.
Compatible with Most Power Stations - Seamless integration with most power station brands, or simply add an adapter cable for charging.
Perfect Pairings for Optimal Performance - For battery connections, we recommend using an MPPT controller, paired with the adaptor cable and extension cable to achieve unlimited charging distance.
