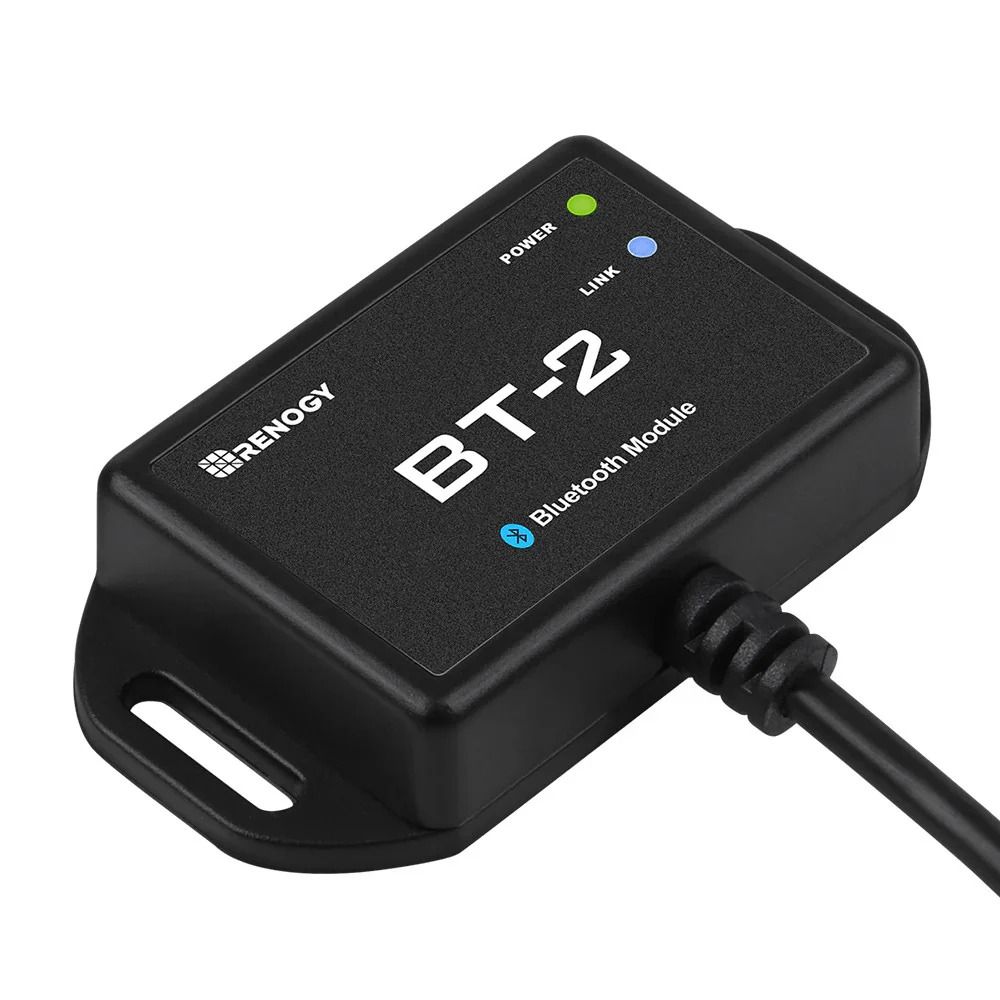

Renogy BT-2 Bluetooth Module for Renogy Products With RS485 Port
The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

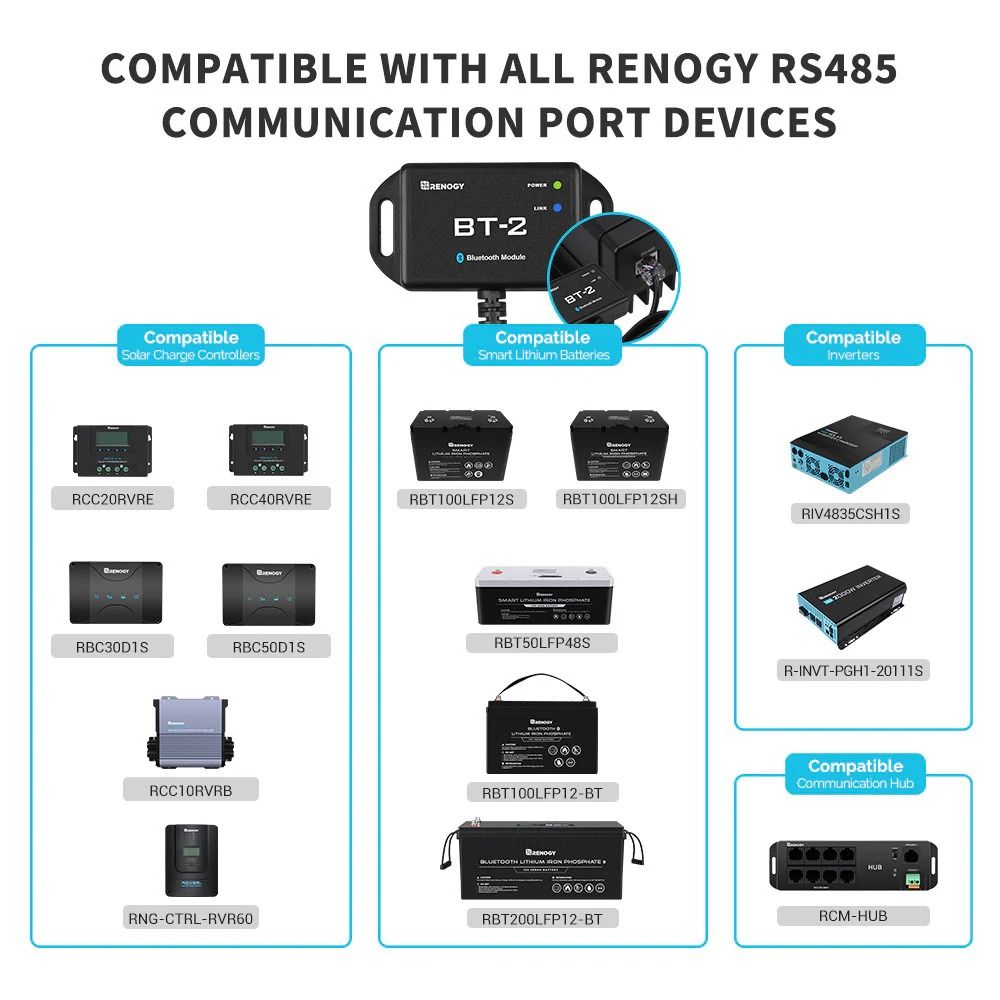

- Compatible with all Renogy RS485 communication port products

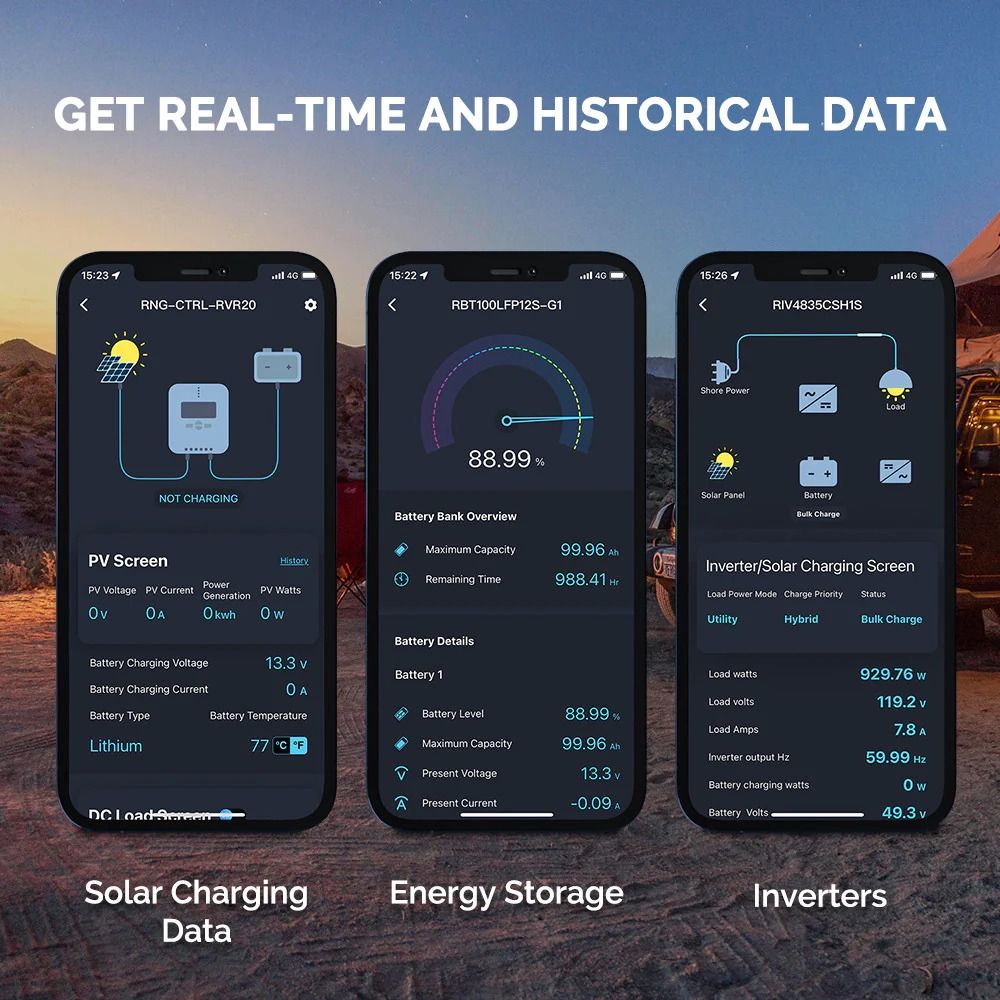

- Get real-time and historical data via Bluetooth Module and Renogy DC Home App.
- Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.

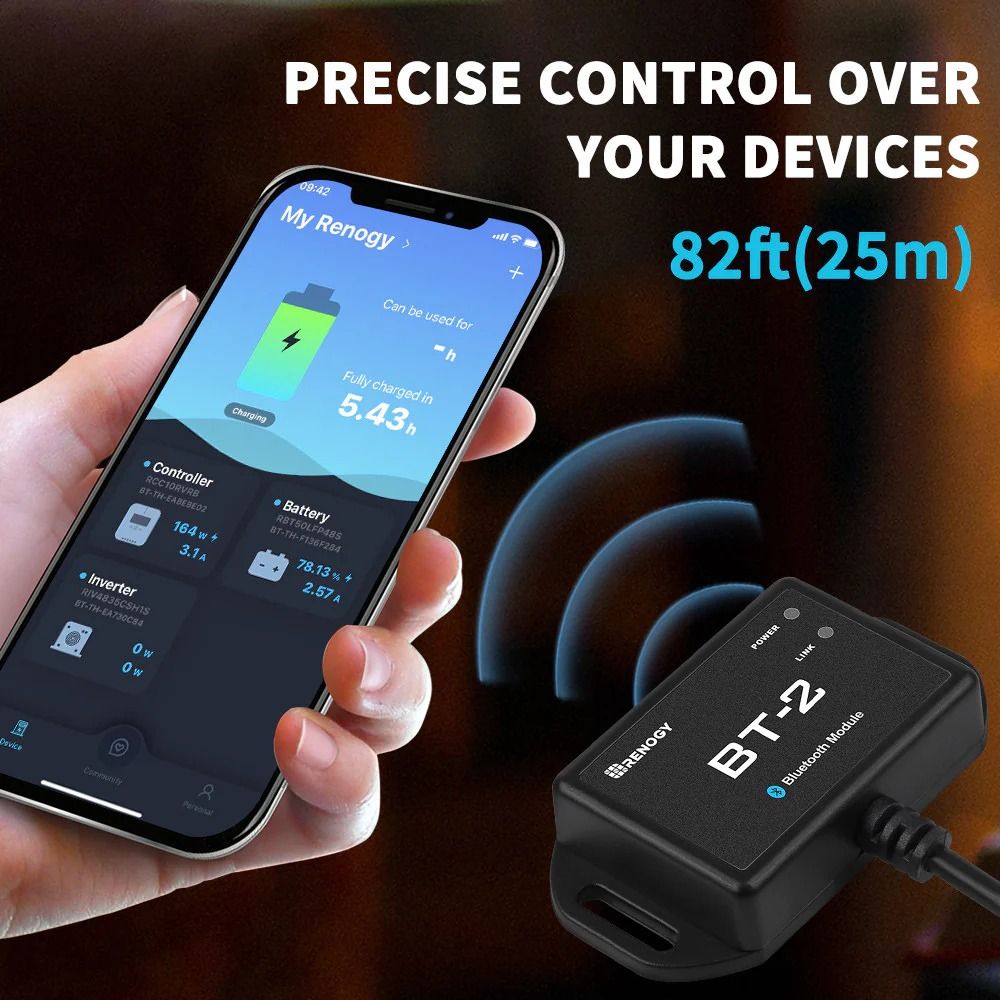

- Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
- Port Type: RJ45
- Dimensions: 67.3 x 35 x 14mm
- Weight: 130g
Specifications
X| Specifications | |
|---|---|
| Communication Protocol: | RS485 |
| Port Type: | RJ45 |
| Input Voltage: | 5V or 12V |
| Protection Grade: | IP54 |
| Standby Power Consumption: | 0.04W |
| Operating Power Consumption: | 0.05W |
| Communication Range: | ≤82ft |
| Serial Baud Rate: | Fixed Baud Rate 9600bps |
| Cable Length: | 5.00 m (16.4 ft) |

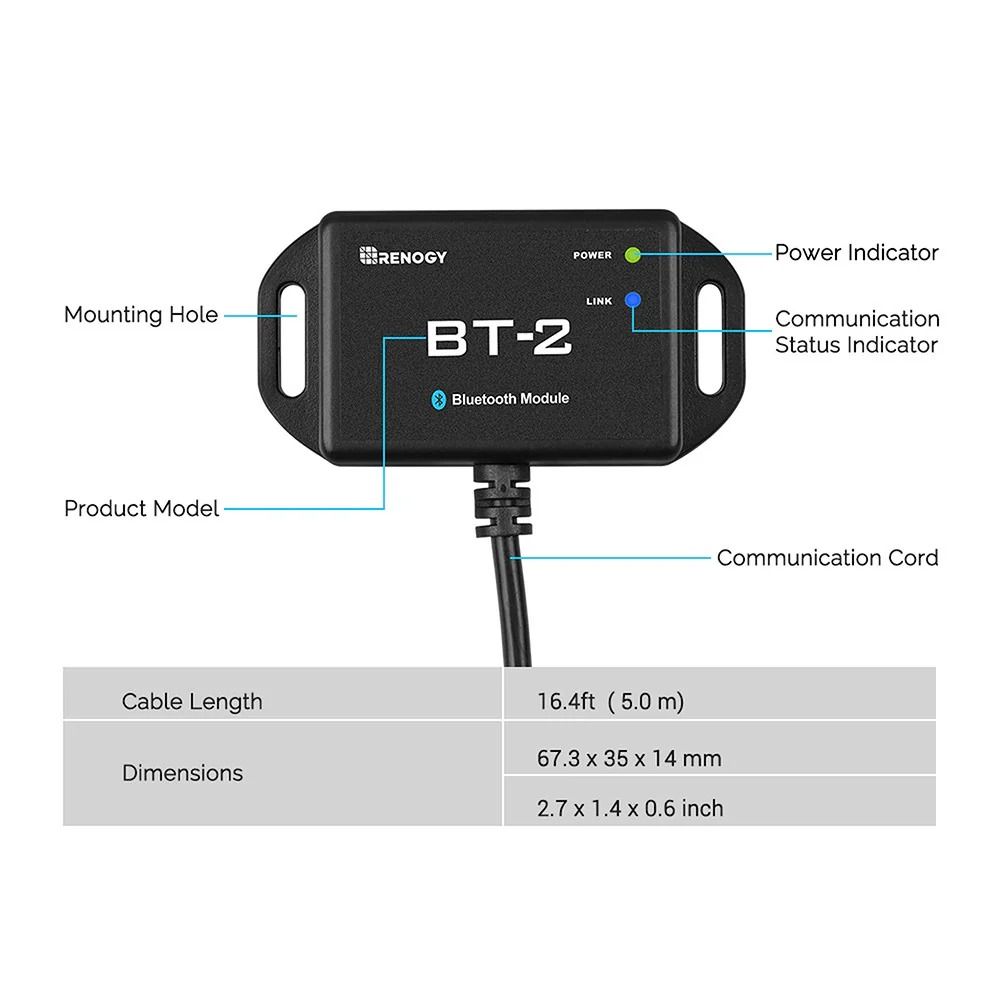

| Dimensions: | 67.3 X 35 X 14mm (2.65" X 1.38" X 0.55") |
| Installation Dimensions: | 67.3 φ3.5mm（2.66" φ0.14") |
| Operation Temperature: | -20℃ - 85℃（-4°F to 185°F |
| Weight: | 130g (4.58oz) |
The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

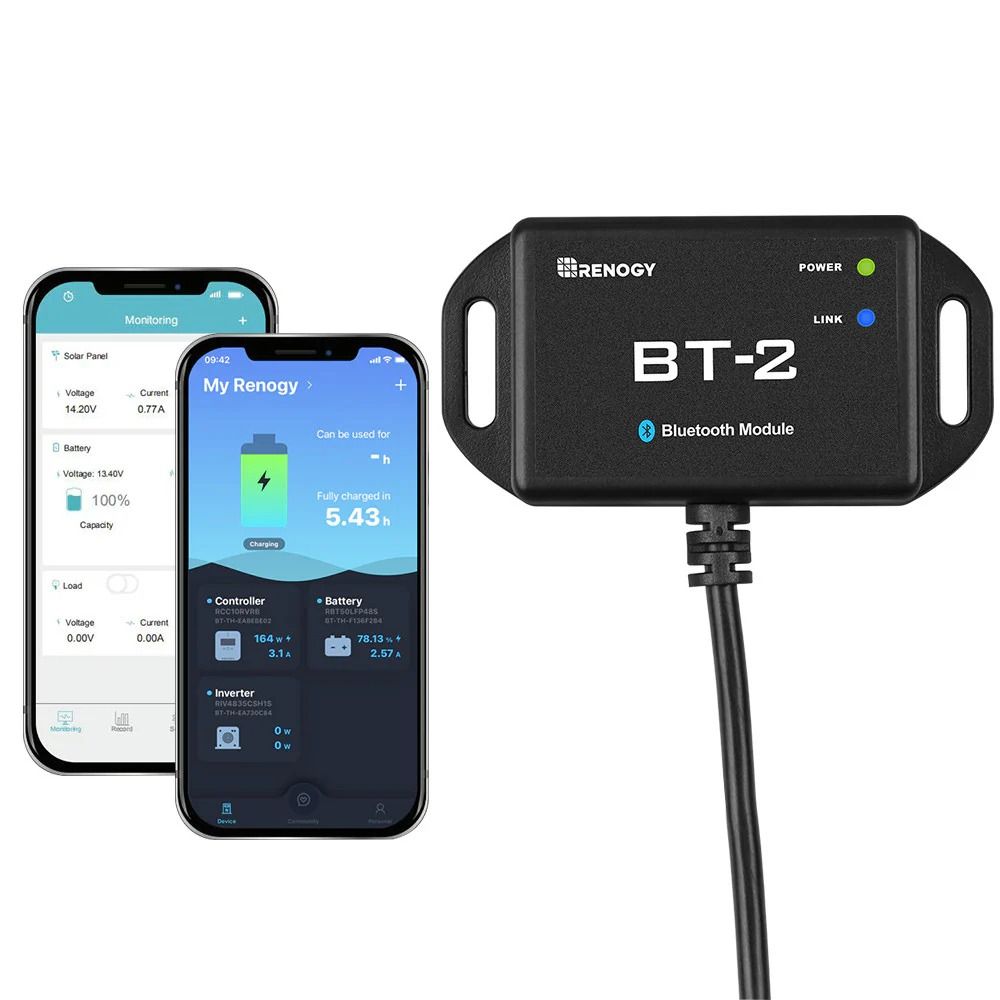

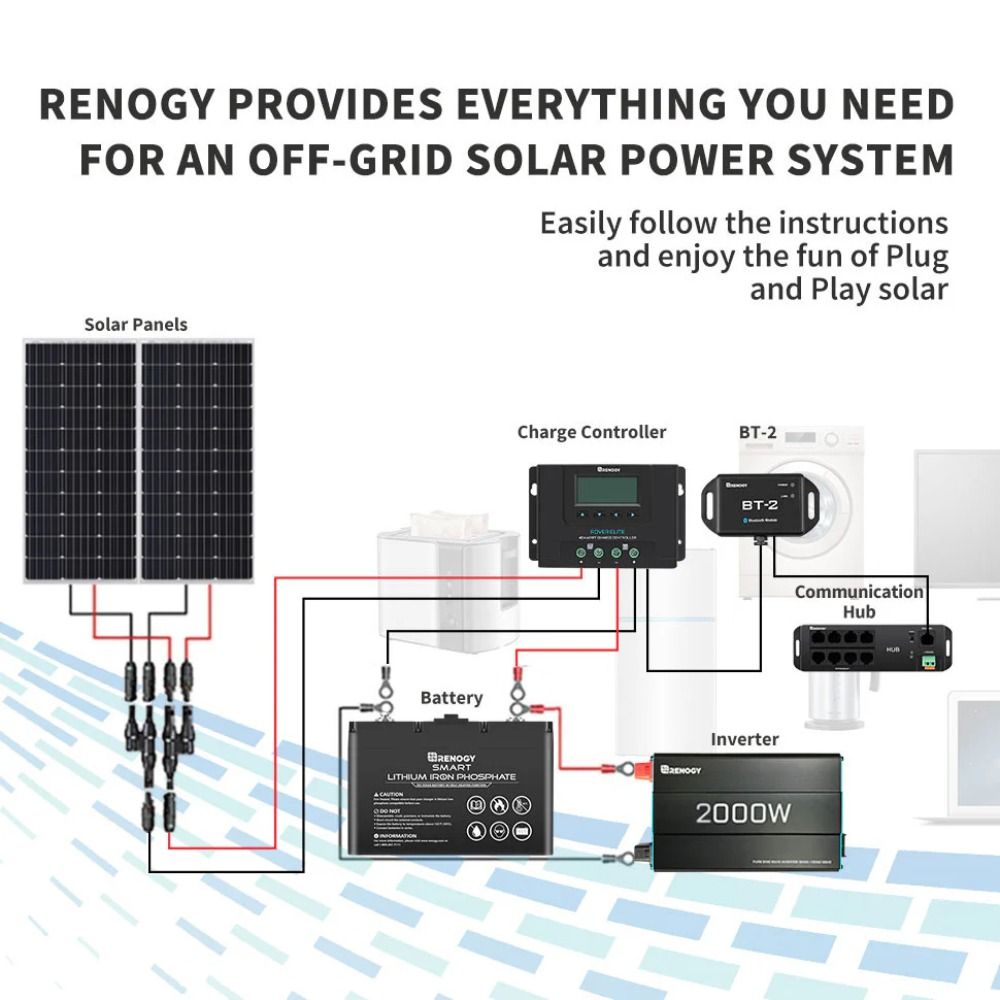

The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smart phone or tablet.
