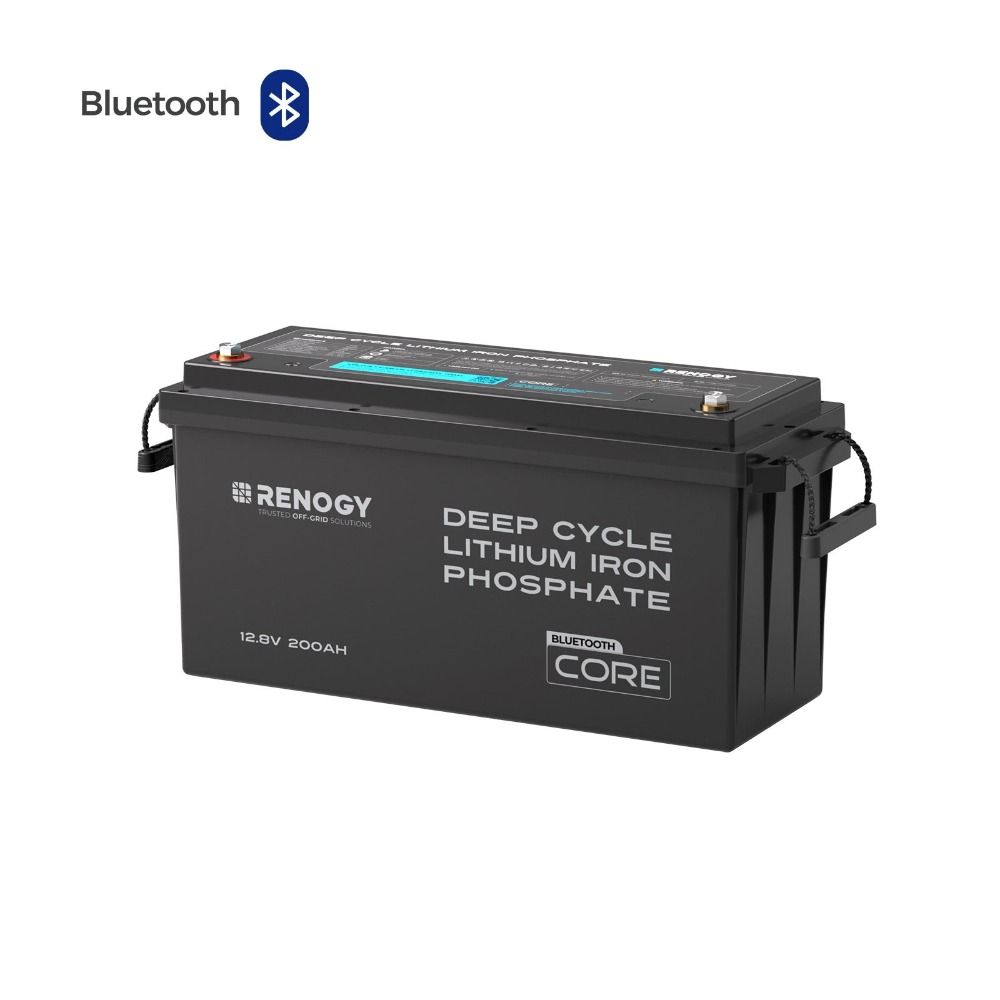

Renogy CORE Deep Cycle LiFePO4 Battery With Bluetooth - 12V 200AH
12V 200Ah Core LFP Battery, with Bluetooth for smart mobile monitoring. Able to deliver a 400A peak output for 10 seconds to start heavy loads.
- Rated Capacity (0.5C, 25°C): 200Ah
- Nominal Voltage: 12.8V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 5000 Cycles (80% DOD, 80% EOL)
- Dimensions: 502 x 187 x 242mm (19.76" x 7.36" x 9.53")
- Weight: 20.2Kg (44.53lbs)
- Protection Rating: IP65
Specifications
X| Electrical | |
|---|---|
| Rated Capacity (0.5C, 25°C) | 200Ah |
| Nominal Voltage | 12.8V |
| Voltage Range | 10V to 14.8V |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
| Operation Temperature Range Charge | 0°C to 50°C (32°F to 122°F) |
| Operation Temperature Range Discharge | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature Range | -20°C to 65°C (-4°F to 149°F) |
| Operation Relative Humidity | 10% to 95% |
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 400A@10s |
| Dimension (L x W x H) | 502 x 187 x 242mm (19.76" x 7.36" x 9.53") |
| Weight | 20.2kg (44.53lbs) |
| Terminal Bolt Size | M8 x 1.25 x 15mm |
| Protection Rating | IP65 |
| Certifications | MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, and UKCA |
12V 200Ah Core LFP Battery, with Bluetooth for smart mobile monitoring. Able to deliver a 400A peak output for 10 seconds to start heavy loads.
200Ah Core vs. Other LiFePO4 - Unmatched performance for your most demanding energy needs.
Real-Time Power at Fingertips - The all-new Renogy 12V 200Ah Core Battery with Bluetooth connectivity enables effortless monitoring via the Renogy app. Instantly track remaining power, voltage, current, and receive critical alerts for protection triggers—all from your smartphone. Stay informed and ensure optimal performance with seamless, real-time updates.
Extra Power. More Possibilities. - The Renogy 12V 200Ah Core delivers more than expected. With a max. 6% additional capacity, you’re ready for unexpected challenges like storms, hurricanes, wildfires, and more.
Powerful to the Core - Providing reliable power almost 10 times longer than standard lead-acid batteries, the Renogy 12V 200Ah Core LiFePO4 Battery is equipped with EV-grade cells for superior, lasting performance.
Year-round Protections - The built-in 200A battery management system (BMS) ensures peace of mind year-round. The low-temperature cut-off feature actively prevents charging when temperatures drop below 32°F.
Protections from Bumps - We understand the journey is often bumpy. That’s why the battery is designed with rugged protection to safeguard components from impacts on the road.

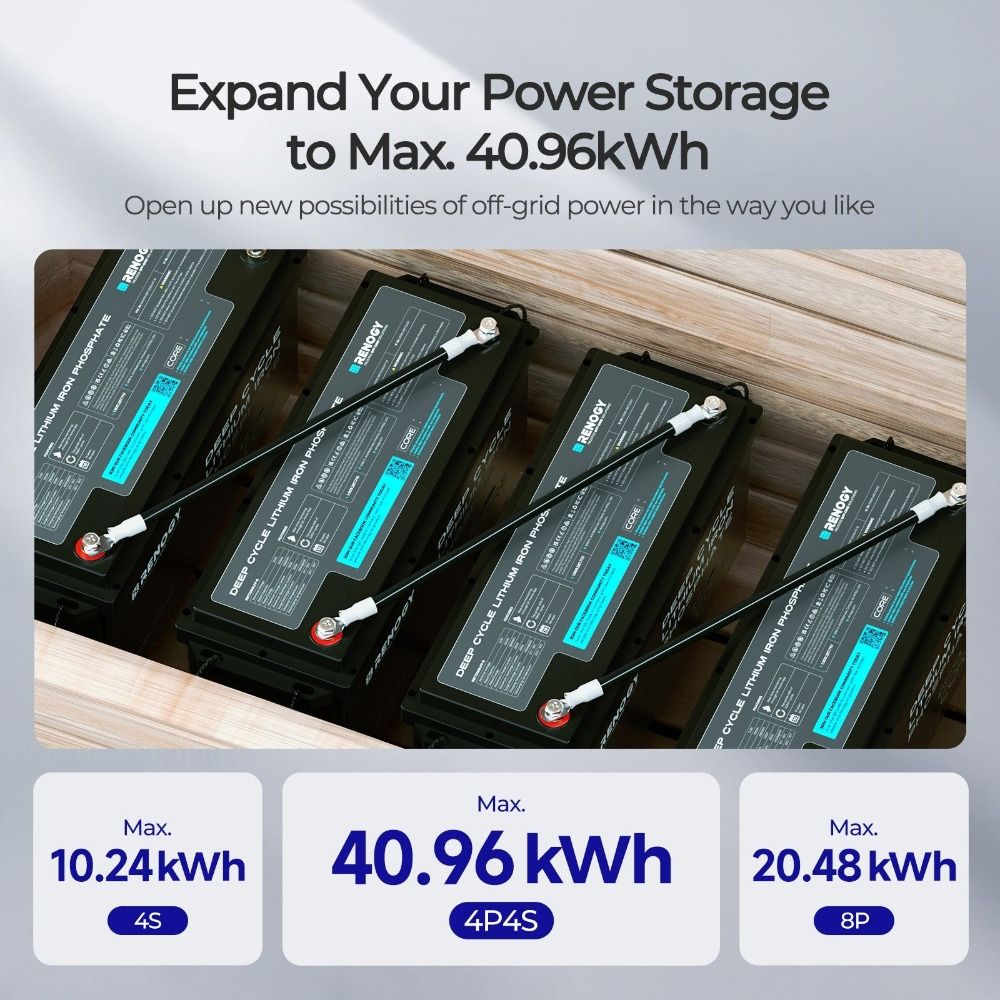

Connect in Series - Easily wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
Connect in Parallel - Extend the runtime of your off-grid power system by connecting batteries in parallel. With 8 Renogy 12V 200Ah Core Series Batteries, you can achieve up to 20.48kWh of power.
Connect in Series-Parallel - Looking to boost both voltage and capacity? Try connecting sets of batteries in series-parallel to maximize your system's power and be ready for emergencies like outages and hurricanes.
Dimensional Reference Guide - Before installing the battery, ensure you leave 1.97-3.94 inches (5-10 cm) of space above the battery and at least 7.87 inches (20 cm) on the side with the busbars.
In The Box
- 12V 200Ah Deep-Cycle Lithium Iron Phosphate Battery with Bluetooth
- User Manual
- Insulating Sleeve
- M8 Long Terminal Bolts
