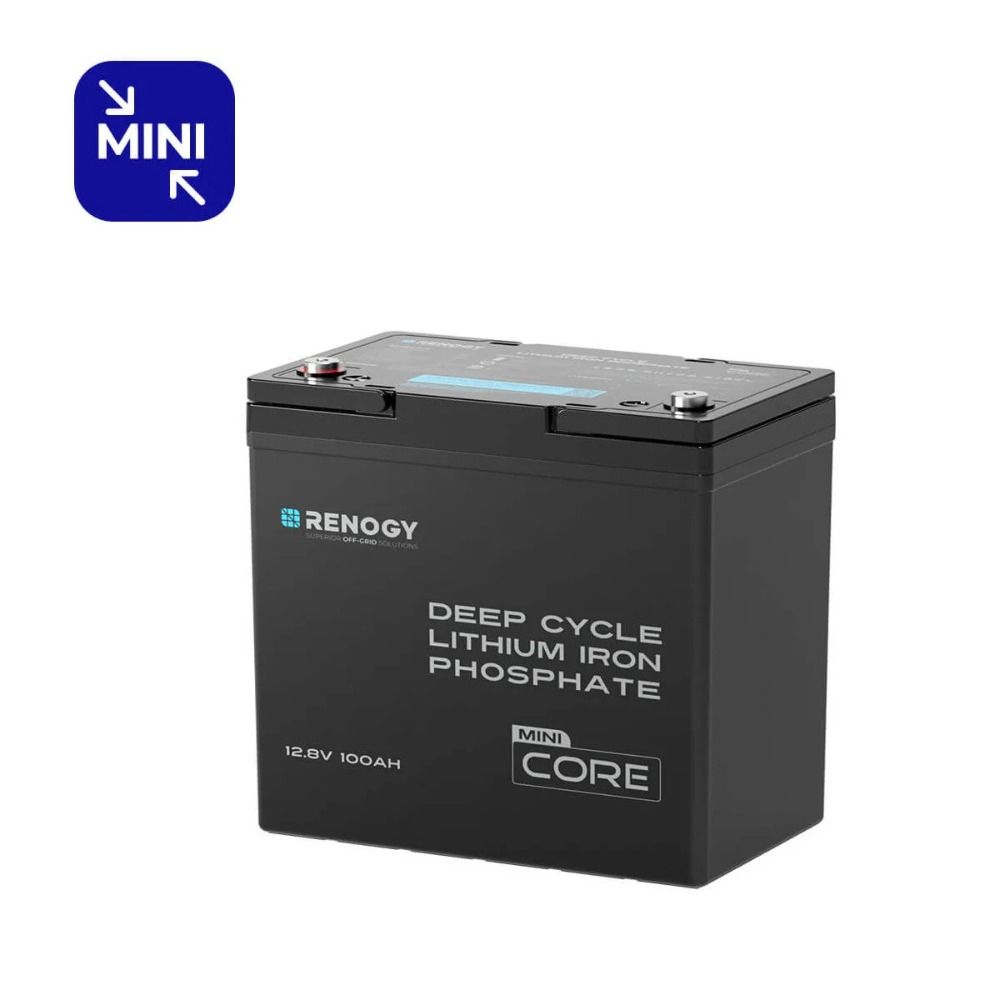

Renogy CORE Mini Lithium Iron Phosphate Battery - 12V 100Ah

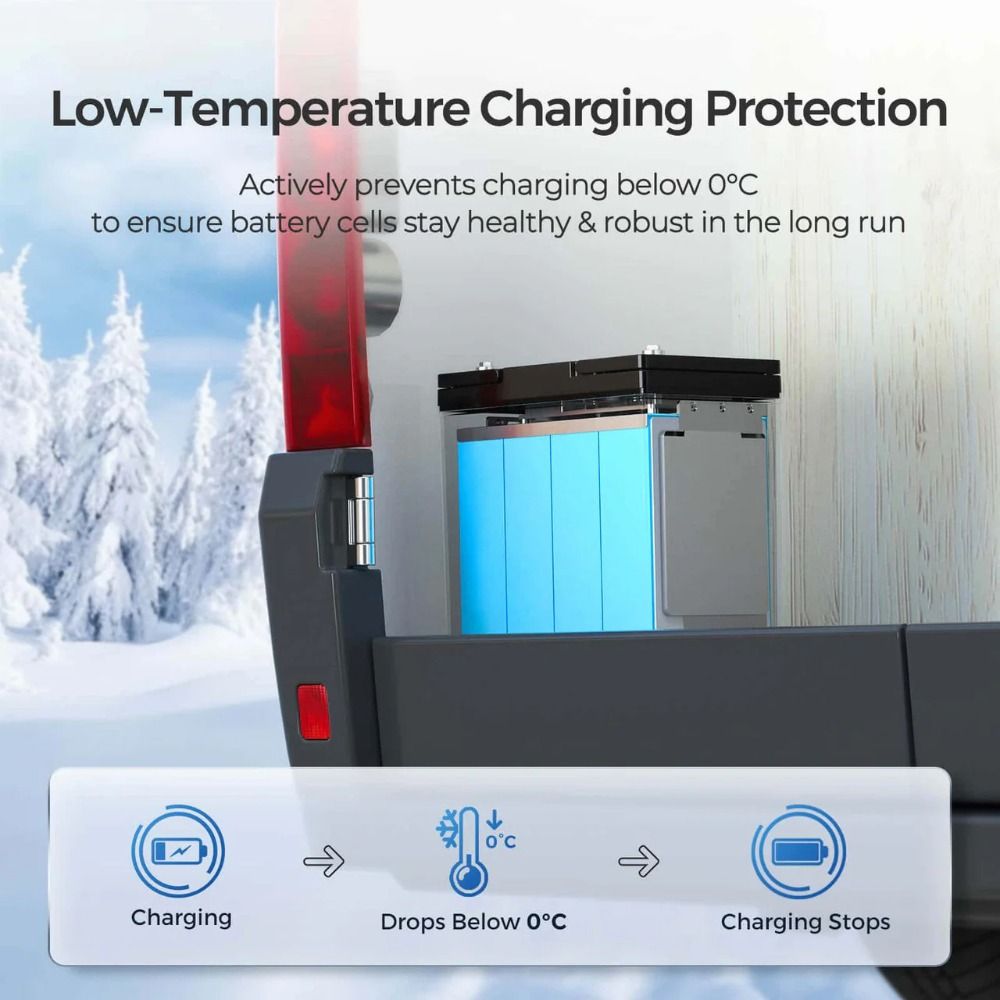

Compact 100Ah battery with built-in core BMS and low-temperature protection to prevent charging in freezing conditions. Over 4,000 cycles for a decade-plus long lifespan of reliable service.
- Rated Capacity (0.5C, 25°C): 100Ah
- Nominal Voltage: 12.8V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 5000 Cycles (80% DOD, 80% EOL)
- Dimensions: 229 x 138 x 213mm (9.02" x 5.43" x 8.39")
- Weight: 9.9Kg (21.8lbs)
- Protection Rating: IP65
Specifications
X| Electrical | |
|---|---|
| Dimensions | 229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in |
| Weight | 21.8 lbs / 9.9 kg |
| Battery Type | Lithium Iron Phosphate |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.8V |
| Connection Method | Series & Parallel (4S4P) |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Protection Rating | IP65 |
| Charge Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -13°F to 149°F (-25°C to 65°C) |
| Terminal Bolt Size | M8 x 1.25 x 12 mm |
| Recommended Terminal Torque | 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m |
| Peak Discharge Current | 300A@5s |
| Cycle Life (0.5C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
| Terminal Bolts | 2 x M8 x 1.25 x 15 mm |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA |
Compact 100Ah battery with built-in core BMS and low-temperature protection to prevent charging in freezing conditions. Over 4,000 cycles for a decade-plus long lifespan of reliable service.
Lead-Acid vs Core Mini - Same power output in a lighter, more compact design
The Compact Advantage - Next-gen design with premium safety and full power
10X More Battery Life - Premium EV-grade cells deliver 5000 cycles at 80% discharge – outperforming traditional lead-acid batteries in both lifespan and reliability
300A Peak Surge Power - Delivers powerful 5-second surge current for high-demand appliance start-up
Vibration-Resistant Design - Metal cell spacers prevent damage in rough terrain and choppy waters
Safety Certified Design - UL, FCC, and CE certified for reliable performance in any application
Compact Power for Endless Adventure - The perfect power solution for teardrop trailers and compact RVs
Built for Better Fishing - Reliable energy for trolling motors, fish finders, and all your essential fishing gear
Space Requirements - Before installing the battery, please note that you need to leave 50-100 mm for the top of the battery; the side with busbars needs to be left at least 200 mm.
In The Box
- Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
- Long Terminal Bolts (M8 x 1.25 x 15 mm)
- User Manual
